Feature

1. Turbine Housing: Silicon-Molybdenum - High Temperature Resistance, Highly Stable And Ductile, Corrosion And Crack Resistant, Increases Durability And Reliability.

2. Turbine Wheel: K419 Alloy - High Temperature Resistance, Efficiently Converts Engine Exhaust Gasses Into Kinetic Energy, Resists Thermal Breakdown For Smooth Reliable Operation.

3. Billet Compressor Wheel: Forged Billet Aluminum CNC Machined Compressor Wheel - High Efficiency, Fast Response, Lower Fuel Consumption, Smooth Operation.

4. Oil Seal: High-Speed Steel Oil Seal Ring - Abrasion And Heat Resistant, Protects Bearings, Prevents Oil Leakage And Smoking.

Specification

Exhaust Inlet Flange: Standard T25 Flange

Exhaust Outlet Flange: 5-Bolt

Turbine Side:

Turbine Trim: 76.3

Turbine A/R: 0.64

Turbine Inducer Diameter: 53.8mm

Turbine Exducer Diameter: 47mm

Compressor Side:

Compressor Trim: 48

Compressor A/R: 0.60

Compressor Inducer Diameter: 49.2mm

Compressor Exducer Diameter: 71 mm

Bearing Type: Wet Float

Cooling Type: Water + Oil Cooled

Thrust Bearing: 270 Degrees

Wastegate: with Wastegate

Oil Restrictor: Yes

Oil Restrictor Size: inside diameter 2mm

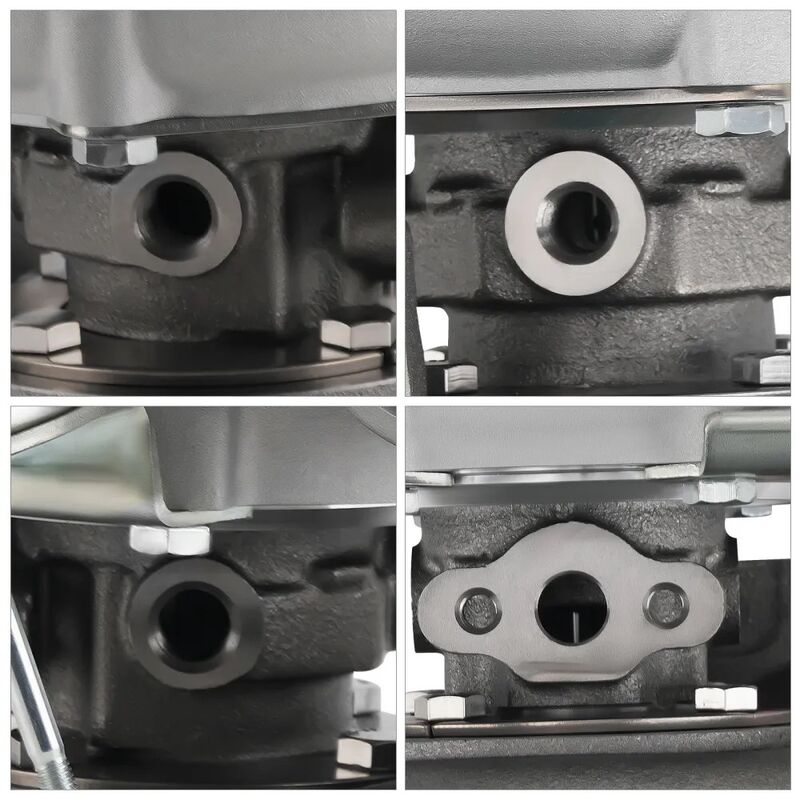

Oil Feed Size: 12mm

Oil Inlet: M12*1.25

Oil Drain Size: 14mm

Oil Outlet: M14 & 2*M8*1.25

Oil Drain Thread Pitch: 40mm

Water Thread Size: M14*1.5

Horse Power: Boost Horse Power up to 350BHP

Turbo Type: Individual

Universal Fitment: Yes

Finish: Matte

Condition: 100% Brand New

Fitment

Universal for Turbo Manifold with T25 Flange(T28 Flange can be converted to T25 Flange, Adrapter is needed).

Perfect for all 1.5L-2.0L engine, for all 4 cylinder engine

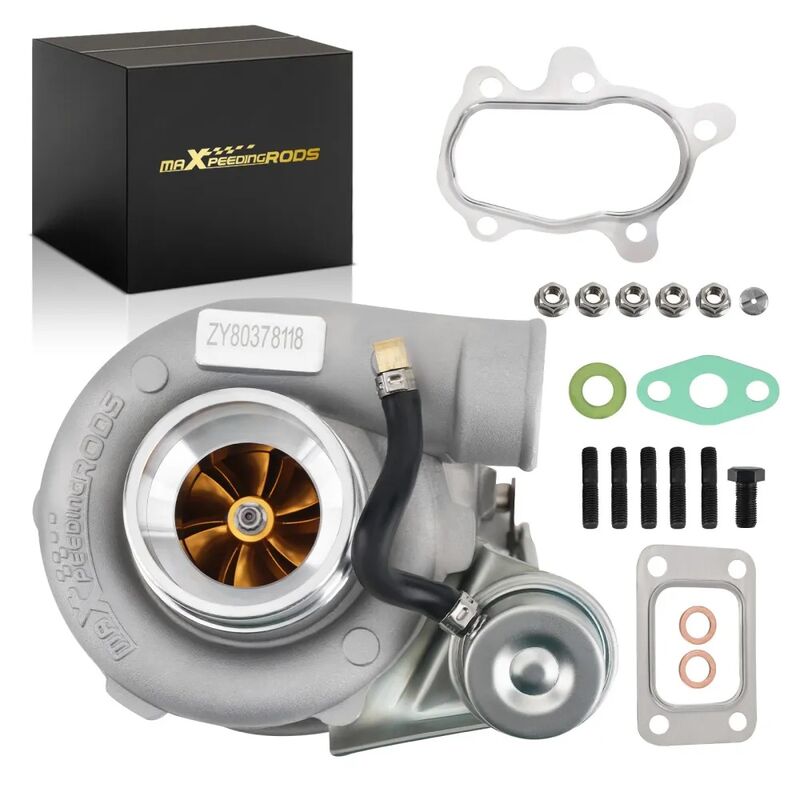

Package

1 x Turbocharger

Accessories: You will get exactly as shown as picture above

Notice

Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

Make sure the oil drain line is lower than the turbo itself.

Gasoline car must install a water cooling device to avoid overheating.

Ensure exhaust outlet are well sealed by welding

The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
