Feature

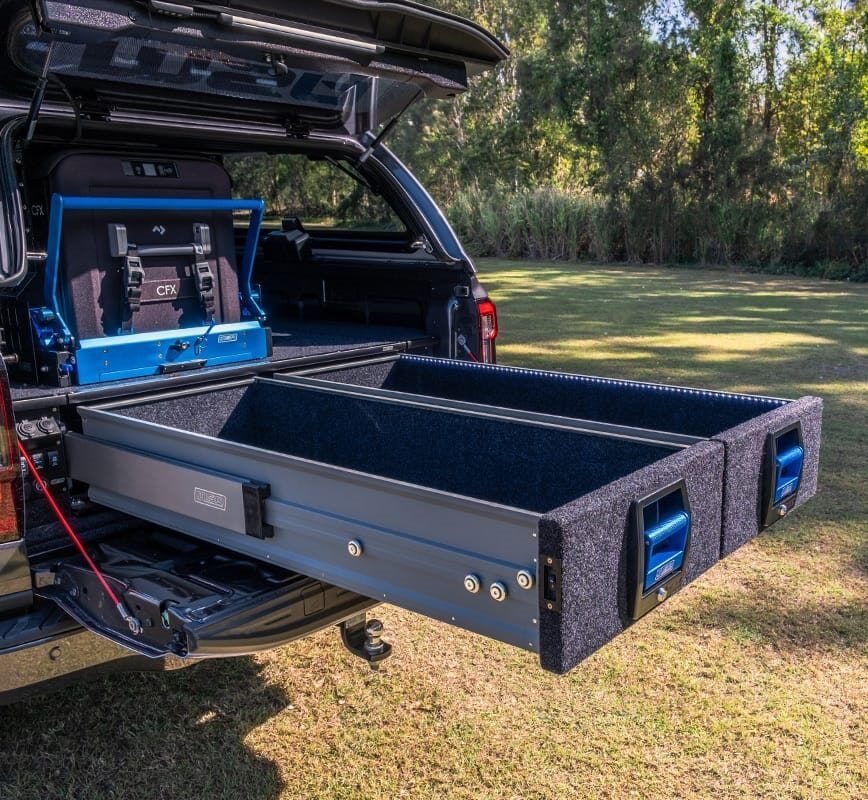

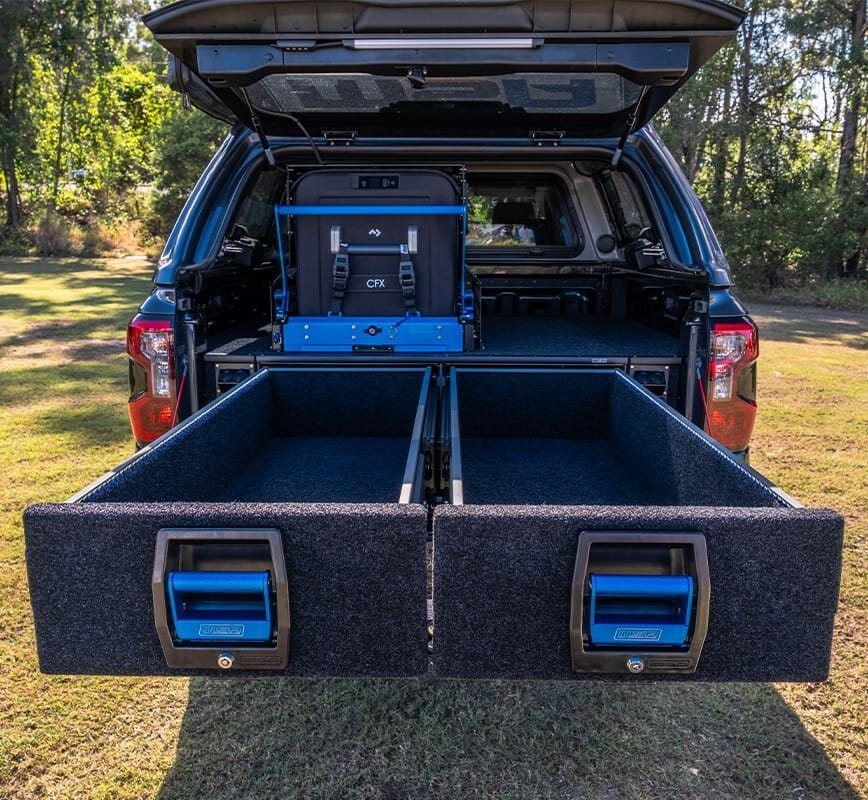

100% Drawer Extension For Complete Access

Patented “Stay-Open Block”

Rust Resistant Sealed Bearings With Nylon Rollers

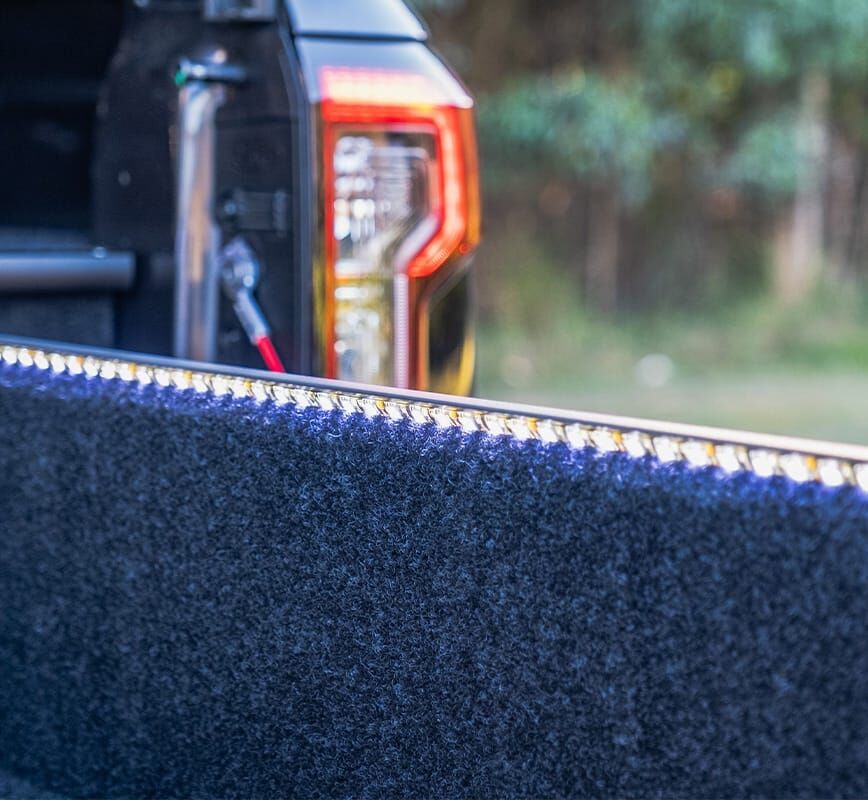

Internal LED Light Strip

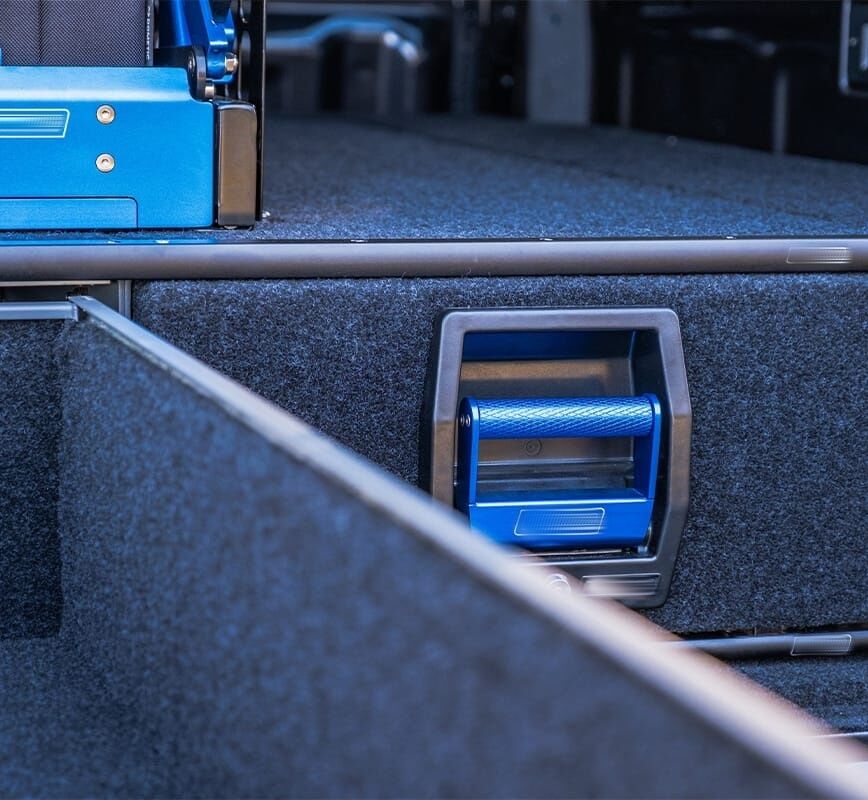

Safe And Secure Lock System

Dust Resistant Seal

Stainless Steel Fasteners



Specification

PARTS INCLUDED:

Left Drawer Module



DRAWER ACCESSORIES:

40001 - Drawer Stacking Kit

EDDIV - Drawer Divider

40018 - Battery Box Large

40019 - Battery Box Slimline

20013 - Explorer Storage Bag Bundle

20012 - Explorer Storage Bag Large

20011 - Explorer Storage Bag Medium

20010 - Explorer Storage Bag Small

45042 - Deluxe Coffee Kit Black

45043 - Deluxe Coffee Kit Cream



EXTERNAL DIMENSIONS +10mm For Rear Anchor Bolts

Overall Drawer Length = 1100mm (Including Handle Lock)

Overall Drawer Height = 275mm

Overall Single Drawer Width = 600mm (No Wings)



INTERNAL DIMENSIONS

Usable Drawer Height = 215mm (Upto Under Side Of The Top Deck)

Drawer Height = 211mm

Internal Drawer Length = 1000mm

Internal Drawer Width = 525mm



WEIGHT

42kg



Include

Cargo Barrier Mounting Points

Child Restraint Points

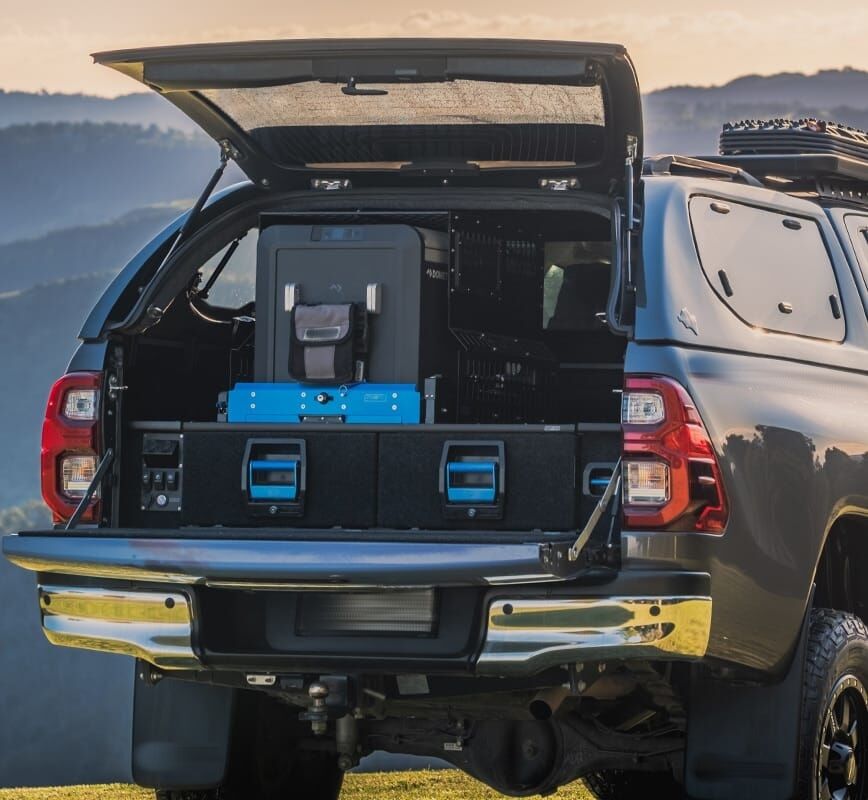

Note: MSA 4X4 Storage Drawer Systems Are Designed To Fit Directly Into The Vehicle Tub Body. It Is Not Designed To Fit In Conjunction With a Tub Liner. Tub Liners MUST Be Removed Before Installation.

SKU MSAA-E1100-LEFT
Brand MSA
Shipping Weight 45.0000kg
Shipping Width 0.800m
Shipping Height 0.500m
Shipping Length 1.300m
Shipping Cubic 0.520000000m3
