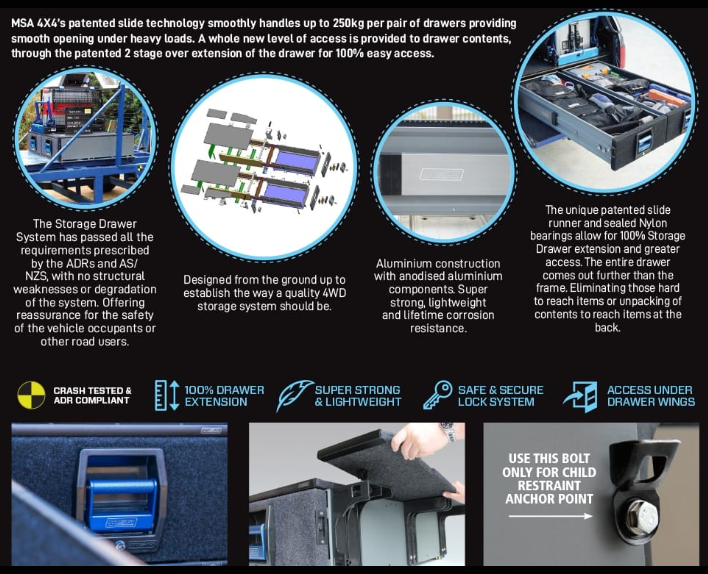

Feature

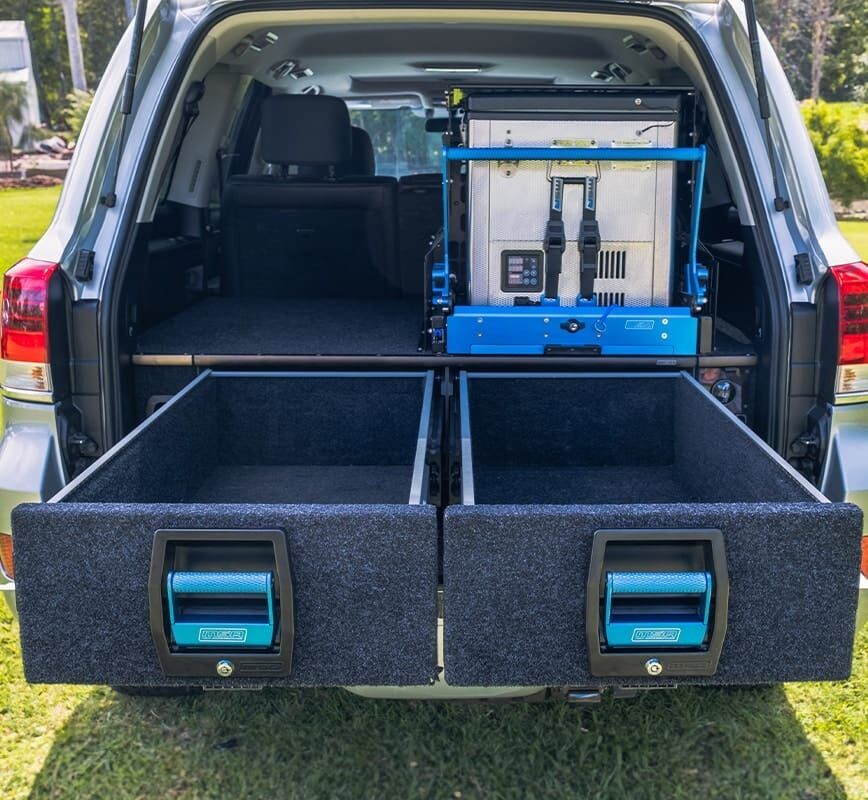

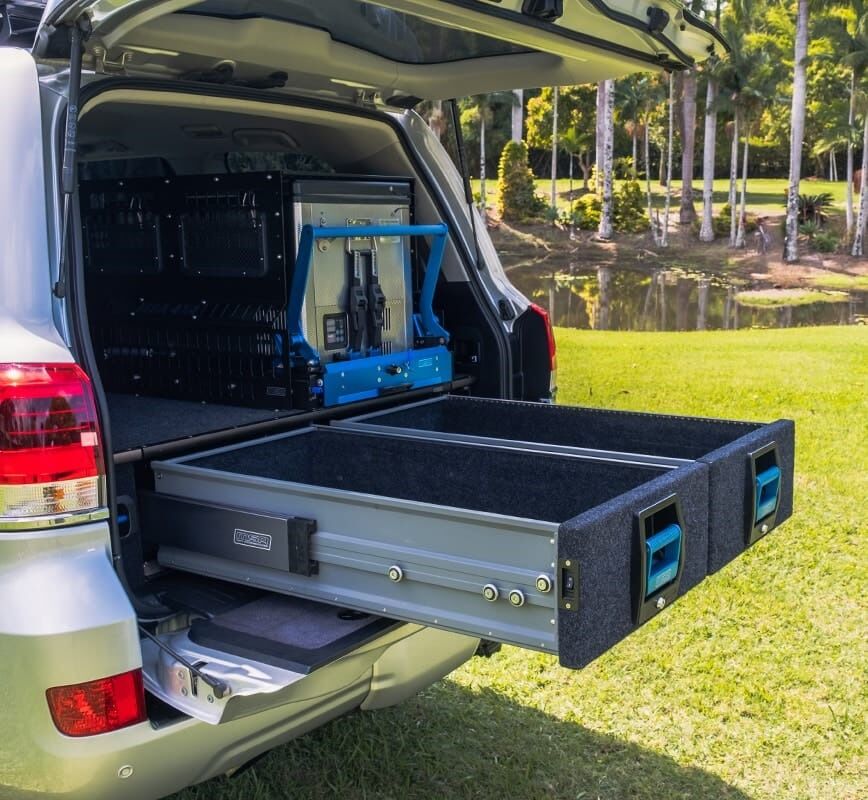

100% Drawer Extension For Complete Access

Patented “Stay-Open Block”

Rust Resistant Sealed Bearings With Nylon Rollers

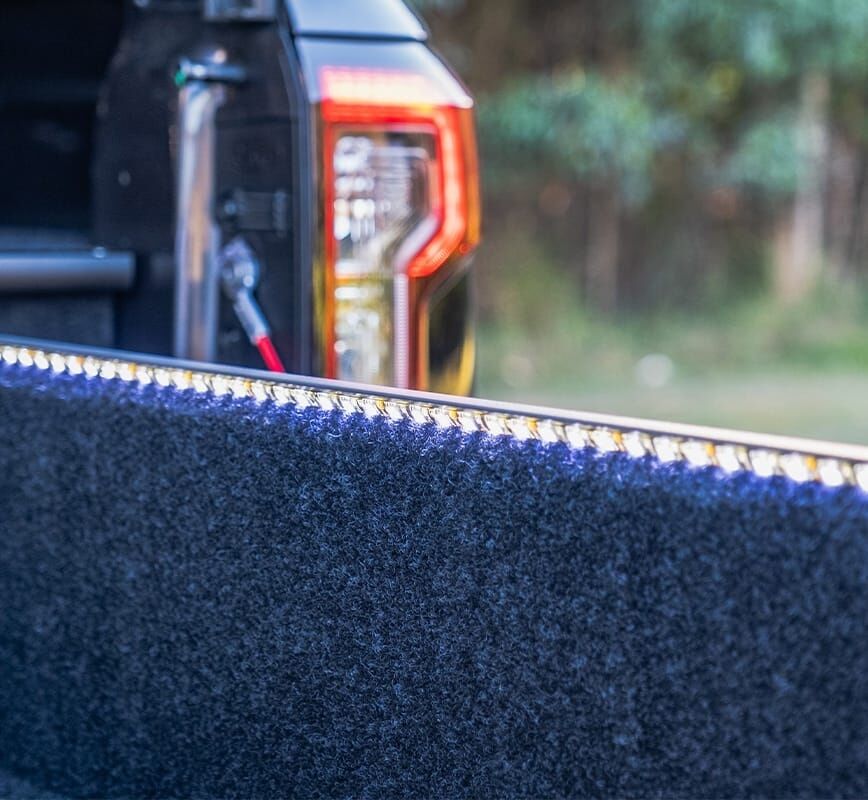

Internal LED Light Strip

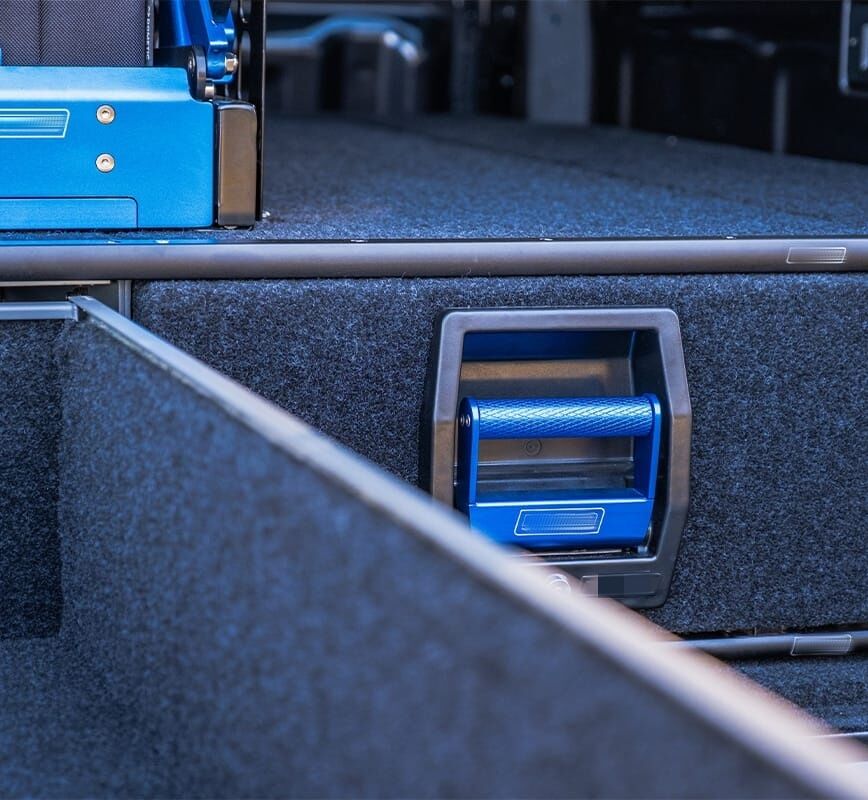

Safe And Secure Lock System

Dust Resistant Seal

Stainless Steel Fasteners

Removable Wing And Face Panels

Specification

PARTS INCLUDED:

Left Drawer Module

Left Fit Kit

Left Wing Kit

Single Width Trim

DRAWER ACCESSORIES:

40001 - Drawer Stacking Kit

EDDIV - Drawer Divider

EPP-Left - Left Power Panel

SP0506 - Left Pre-Cut Panel

40018 - Battery Box Large

40019 - Battery Box Slimline

20013 - Explorer Storage Bag Bundle

20012 - Explorer Storage Bag Large

20011 - Explorer Storage Bag Medium

20010 - Explorer Storage Bag Small

45042 - Deluxe Coffee Kit Black

45043 - Deluxe Coffee Kit Cream

EXTERNAL DIMENSIONS +10mm For Rear Anchor Bolts

Overall Drawer Length = 1045mm (Including Handle Lock)

Overall Drawer Height = 275mm

Overall Single Drawer Width = 530mm (No Wings)

INTERNAL DIMENSIONS

Usable Drawer Height = 215mm (Upto Under Side Of The Top Deck)

Drawer Height = 211mm

Internal Drawer Length = 930mm

Internal Drawer Width = 453mm

WEIGHT

44.2kg

Fitment

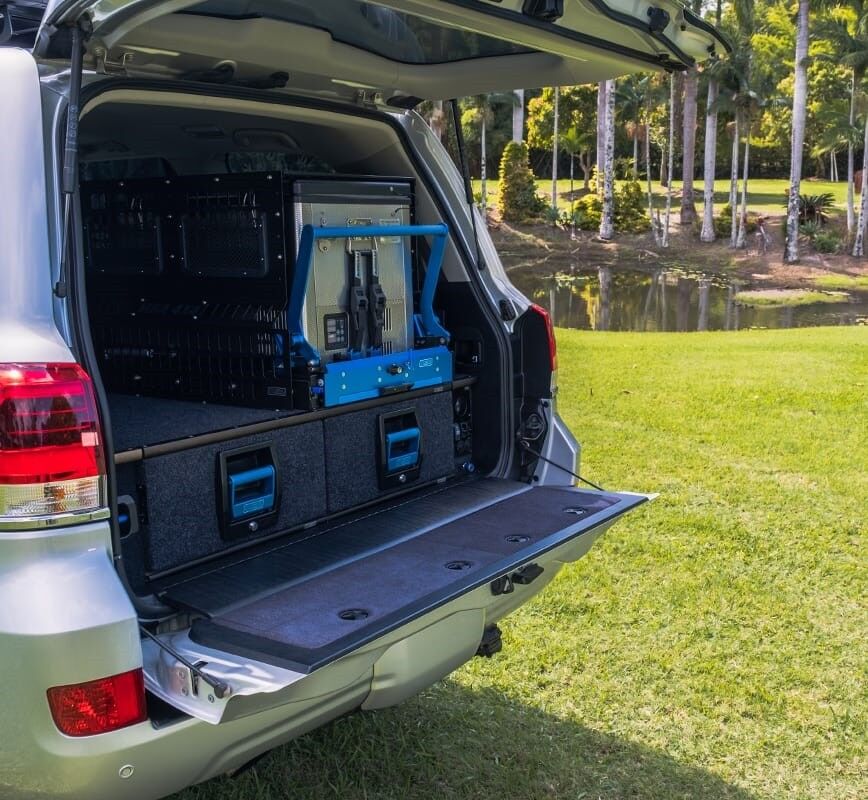

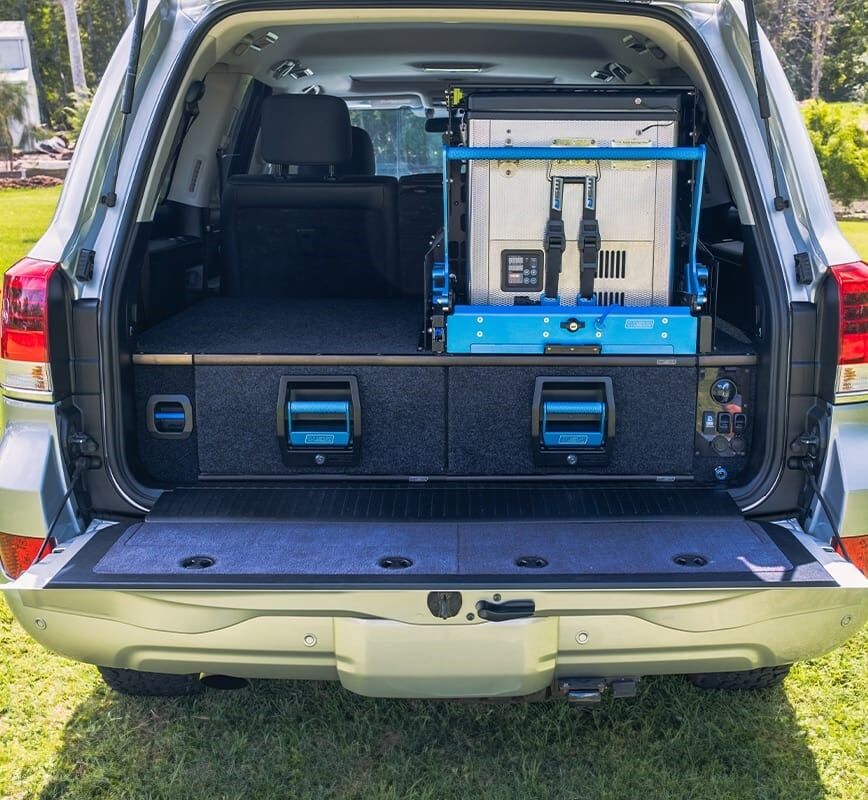

Fit For Toyota Landcruiser 200 Series GXL/VX/Sahara 10/2008-07/2021

Include

Complete Wing Kits

Cargo Barrier Mounting Points

Child Restraint Points
