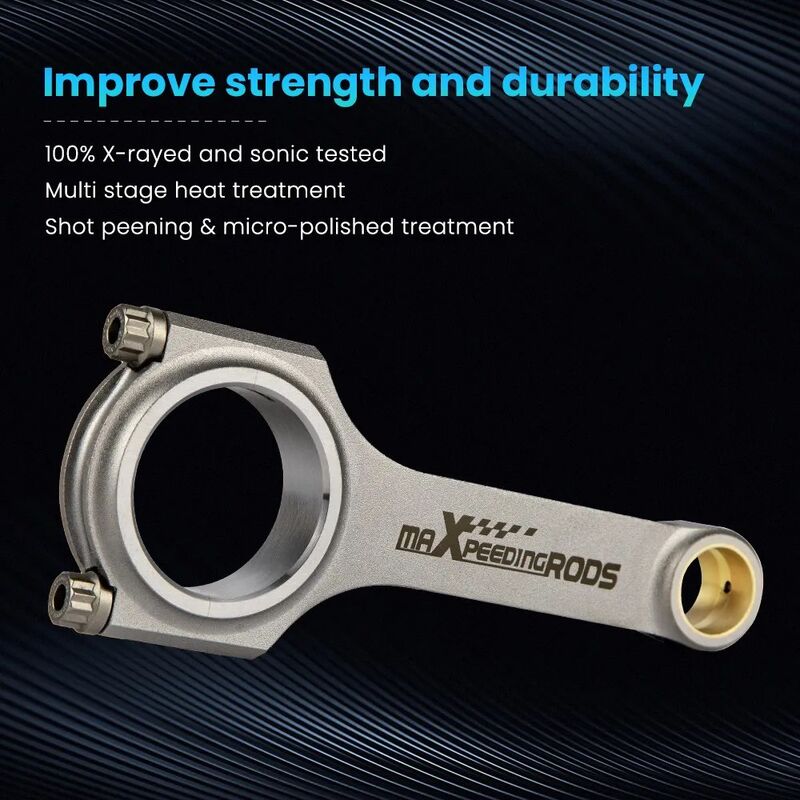

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.

-Designed and processed by CNC machine.

-All big and small ends are finished with SUNNEN honing machine.

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk.

-100% X-rayed, sonic tested and magnafluxed.

-Multi-stage heat treated.

-Shot peened to relieve stress.

-Come with the bronzed bushing suitable for the floating piston pin.

Specification

TÜV Certification Con Rods

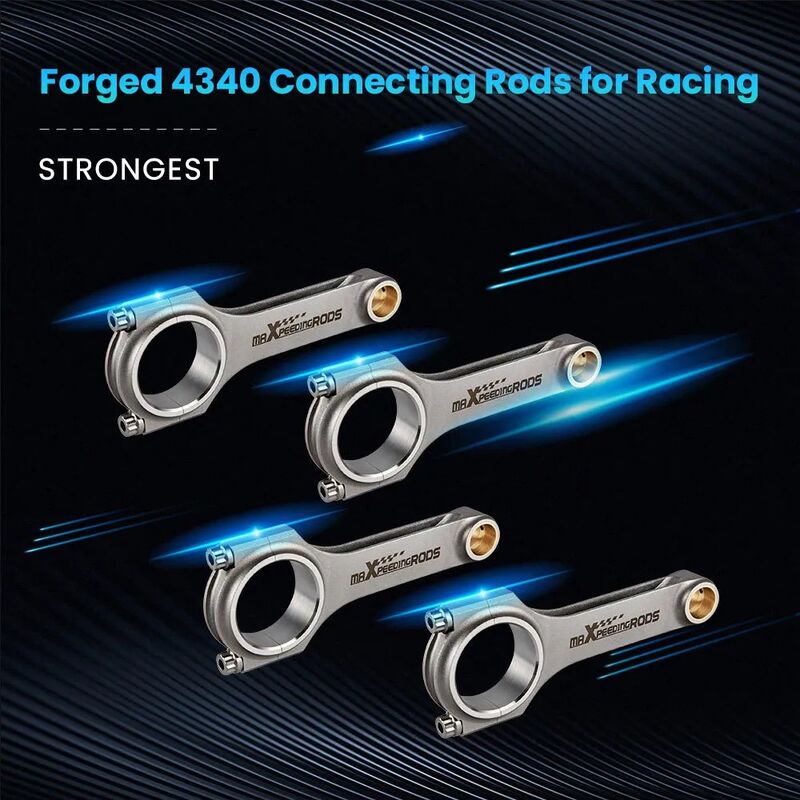

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 4 Pieces a set

Bolts:Including Genuine ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: ARP 2000 3/8" bolts

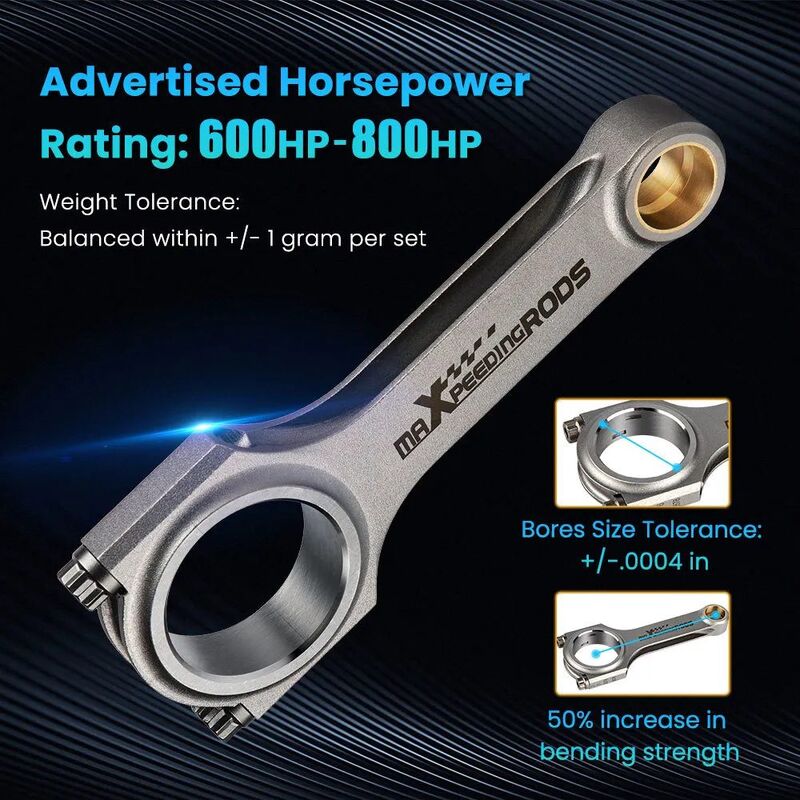

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 9000rpm

Center to center length: 156.03mm

Big end diameter: 53.7mm

Small end diameter: XX

Big end width: XX

Small end width: XX

Fitment

Fit For Alfa Twin Spark 75 2.0

Fit For Alfa Romeo 75 162B 1985-1992 Saloon 2.0 T.S Fit For Cat 2.0 T.Spark

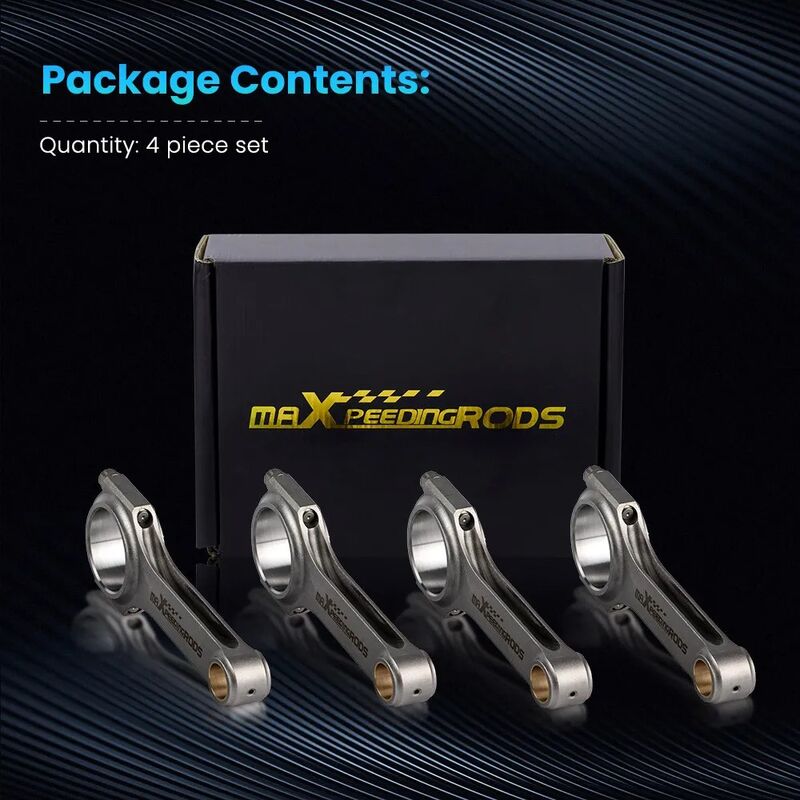

Package

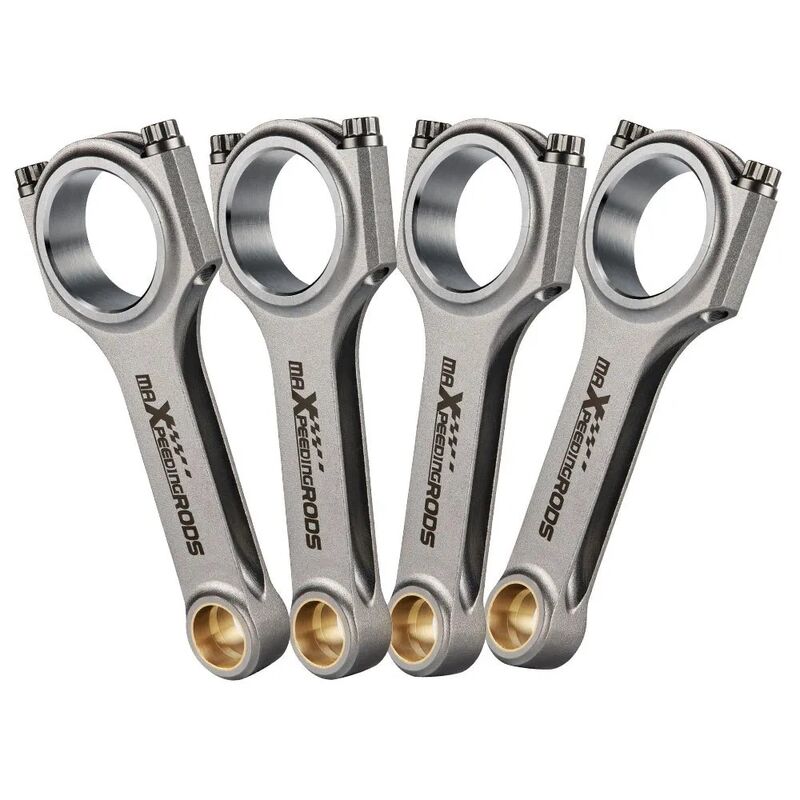

4 x Connecting Rod Rods

Note

Professional installation is highly recommended (No Instruction Included)
