Feature

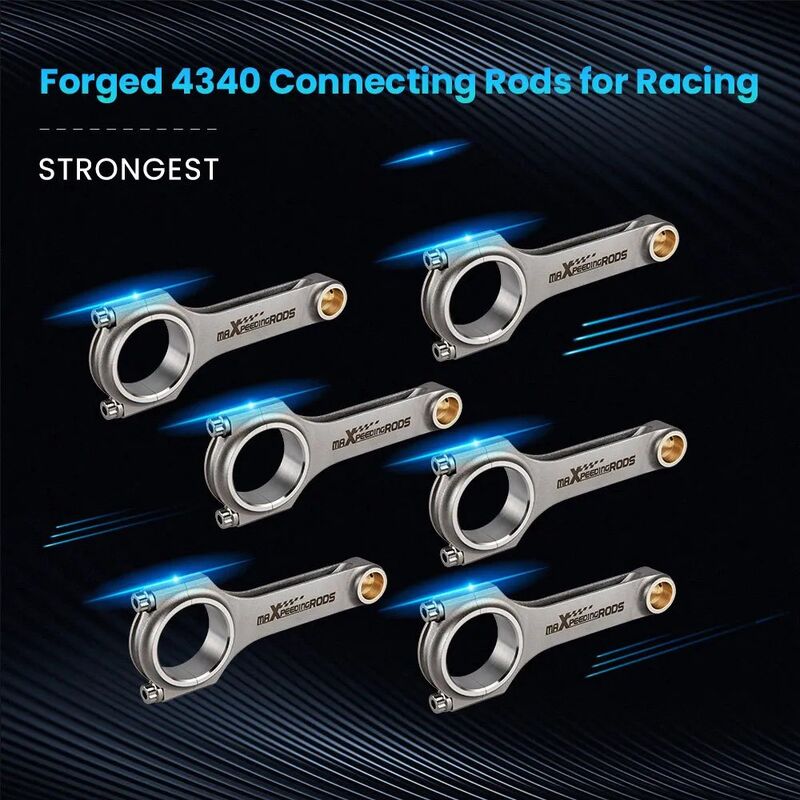

Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.

Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine.

Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk.

100% X-rayed, sonic tested and magnafluxed.

Multi-stage heat treated.

Shot peened to relieve stress.

Come with the bronzed bushing suitable for the floating piston pin.

Specification

TÜV Certification Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

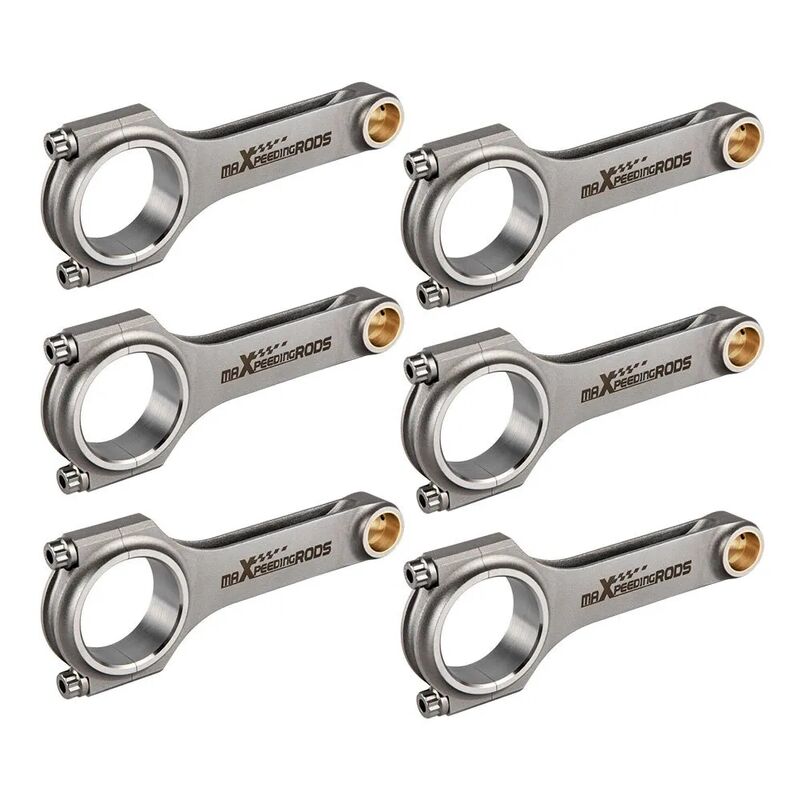

H-beam Conrods Quantity: 6 Pieces as showing in picture

Bolts: Including ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: Genuine ARP 2000 3/8" bolts

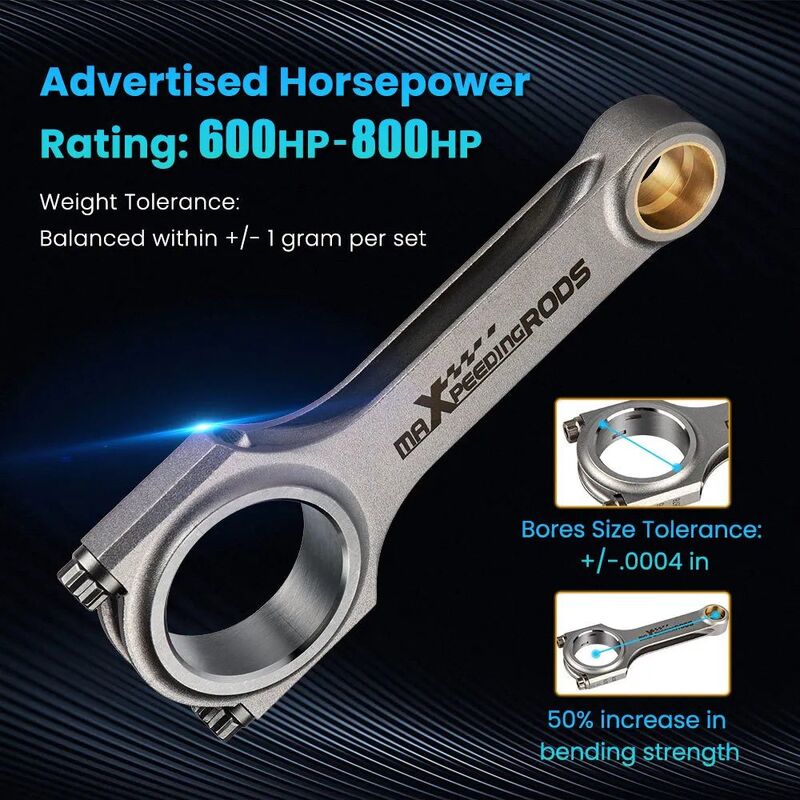

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 9000rpm

Center to center length: 131.1mm

Big end diameter: 55.6mm

Small end diameter: 22mm

Big end width: xx

Small end width: xx

Fitment

Fit For Alfa Romeo GTV6 V6 2.5L 3.0L

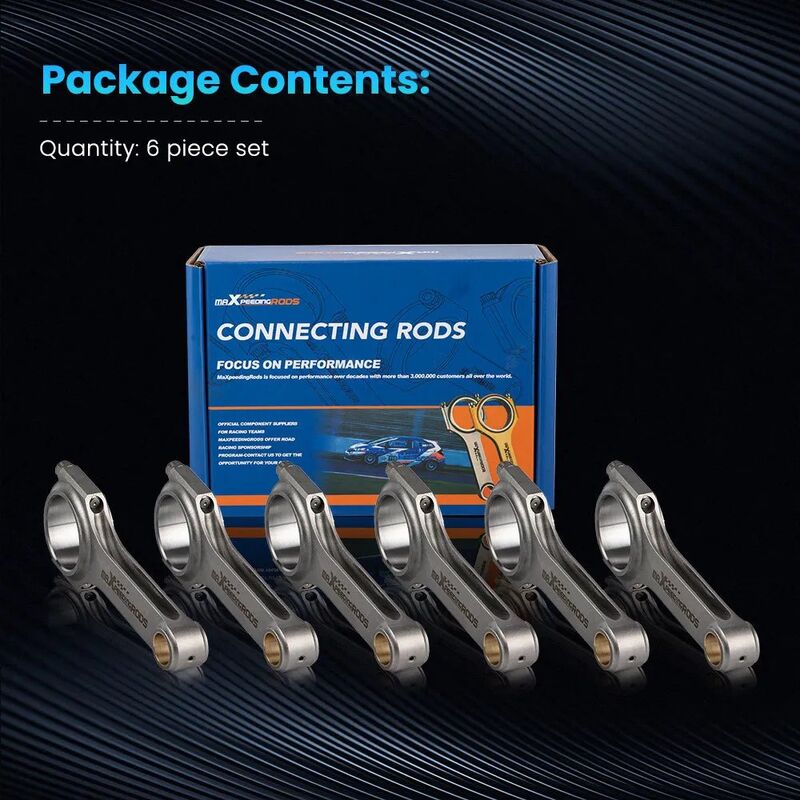

Package

6 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)
