Feature

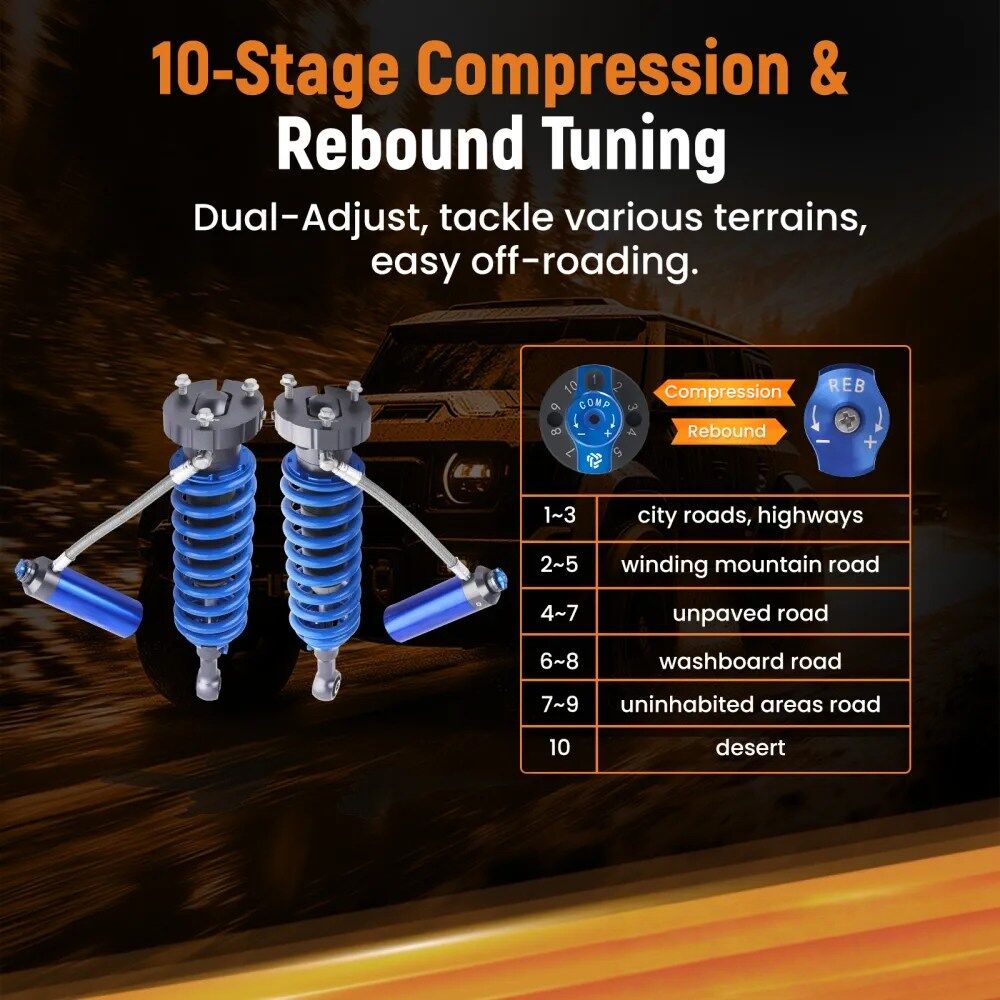

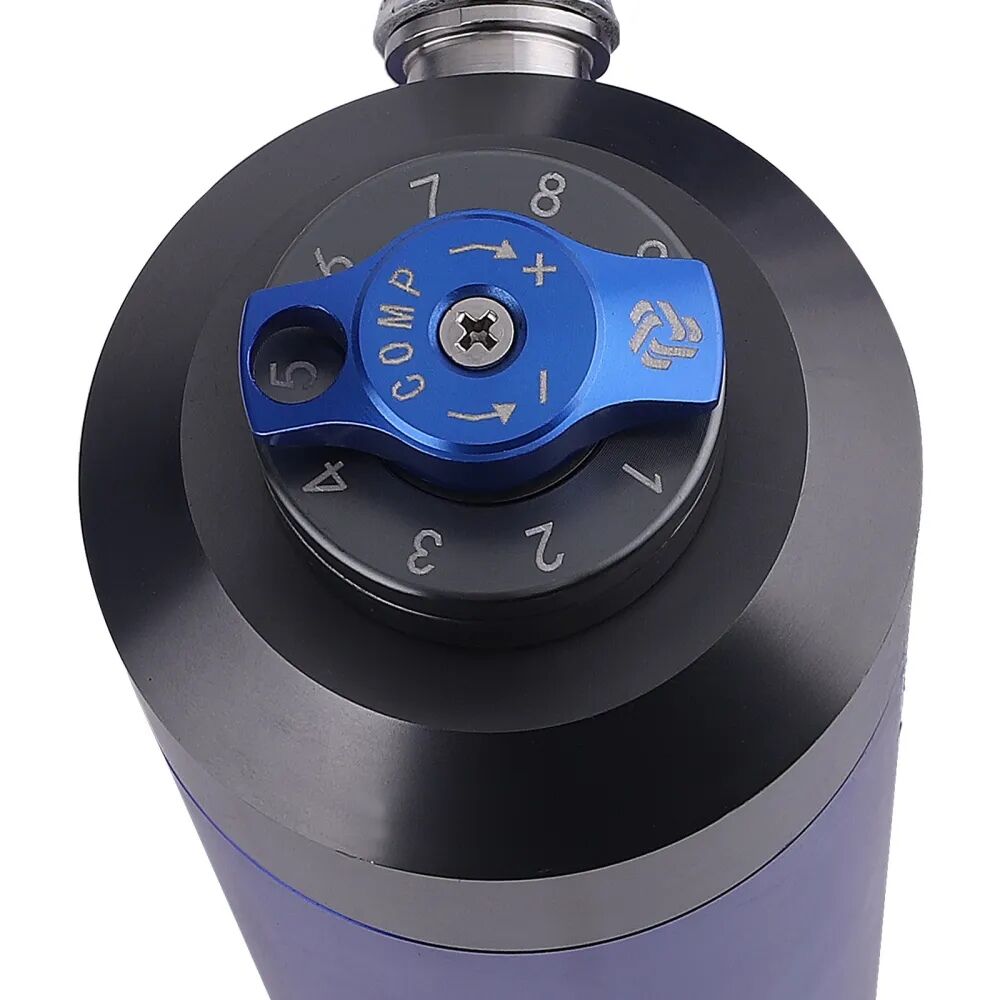

The Expanded Inner Diameter Of The Nitrogen Cylinder Optimizes Gas Chamber Volume And Thermal Dissipation Surface Area, Ensuring Stable Damping Performance Under Prolonged High-Intensity Operation. A Precision-Engineered 10-Stage Rebound And Compression Damping Adjustment Mechanism Provides Extended Parameter Adaptability, Balancing Terrain-Specific Stiffness Control With Ride Comfort Optimization.



Specification

Body Outer Diameter (mm): 65*250

Body Material: 45# Steel

Body Outer Diameter (mm): 65*220

Body Material: 45# Steel

Top Mount: OEM

Bottom Mount: EYELET BUSHING

Compressed Length (mm): 128

Extended Length (mm): 128

Hose(mm): 370

Reservoir Dimensions: 57×160

Reservoir Type: Remote

Shaft Size (mm): 260

Travel (mm): 128

Type: Coilover Shock

Valving: Adjustable Compression And Rebound

Outer Diameter Of Springs(mm): 108-110

Compression Valve Plate(mm): 44

Body OD: 65MM

ID Bore Size: 57MM

COX3-DMAX1220-2-F



Fitment

Fit For Isuzu DMAX 2012-2020
Fit For Holden Colorado 2012-2021

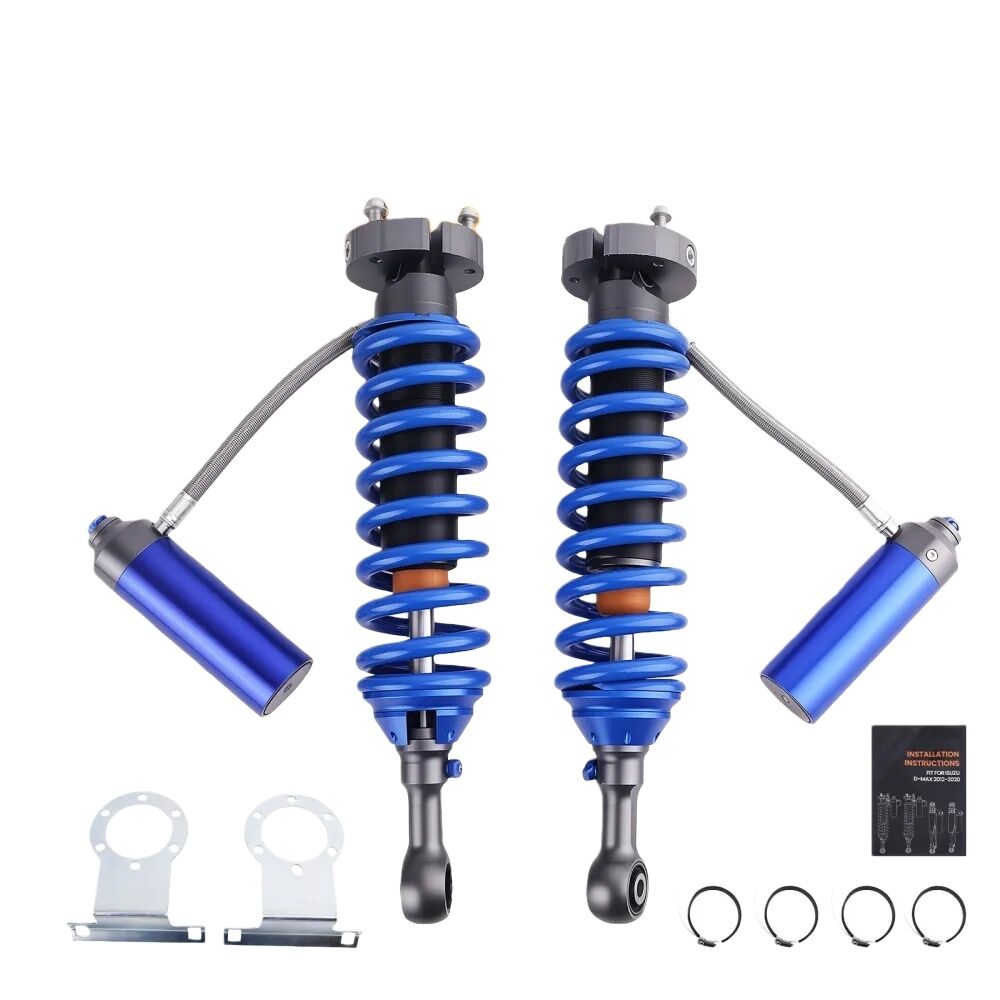

Package

2 x front coil-overs

1 x Instructions
4 x Rubber-coated hose
2 x Cylinder Mounting Plate
3 x Sticker

SKU MPR-SA-IS002
Brand MAX PEEDING RODS
Shipping Weight 24.5000kg
Shipping Width 0.500m
Shipping Height 0.300m
Shipping Length 0.900m
Shipping Cubic 0.135000000m3
