Product Description

The Oricom AIR30 Is a High-Performance Portable Air Compressor, Delivering Quick Inflation With a 150PSI Max Pressure And 75L/min Air Flow Rate, Perfect For 4WDs And Off-Road Vehicles. Featuring a Durable Air Filter, Automatic Shut-Off, And Thermal Protection, For Safe, Reliable Inflation.

Features

Max Pressure Of 150 PSI - High Pressure For Inflating a Variety Of Tyres With Ease.

Air Flow Rate Of 75L/min (0 PSI) - Fast Air Delivery For Quick Tyre Inflation.

Pressure Cutoff Switch (90 PSI ON / 120 PSI OFF) - Automatically Turns Off Once The Set Pressure Is Reached.

Thermal Protection (Shuts Off At 115°C) - Prevents Overheating By Automatically Turning Off The Compressor.

6m Hose Length With NPT 1/4" Quick Connect - Provides Ample Reach For Inflating Multiple Tyres Or Different Vehicles.

2.5m Power Cable With Battery Clamps - Connects Directly To Your Vehicle’ s Battery For Reliable Power.

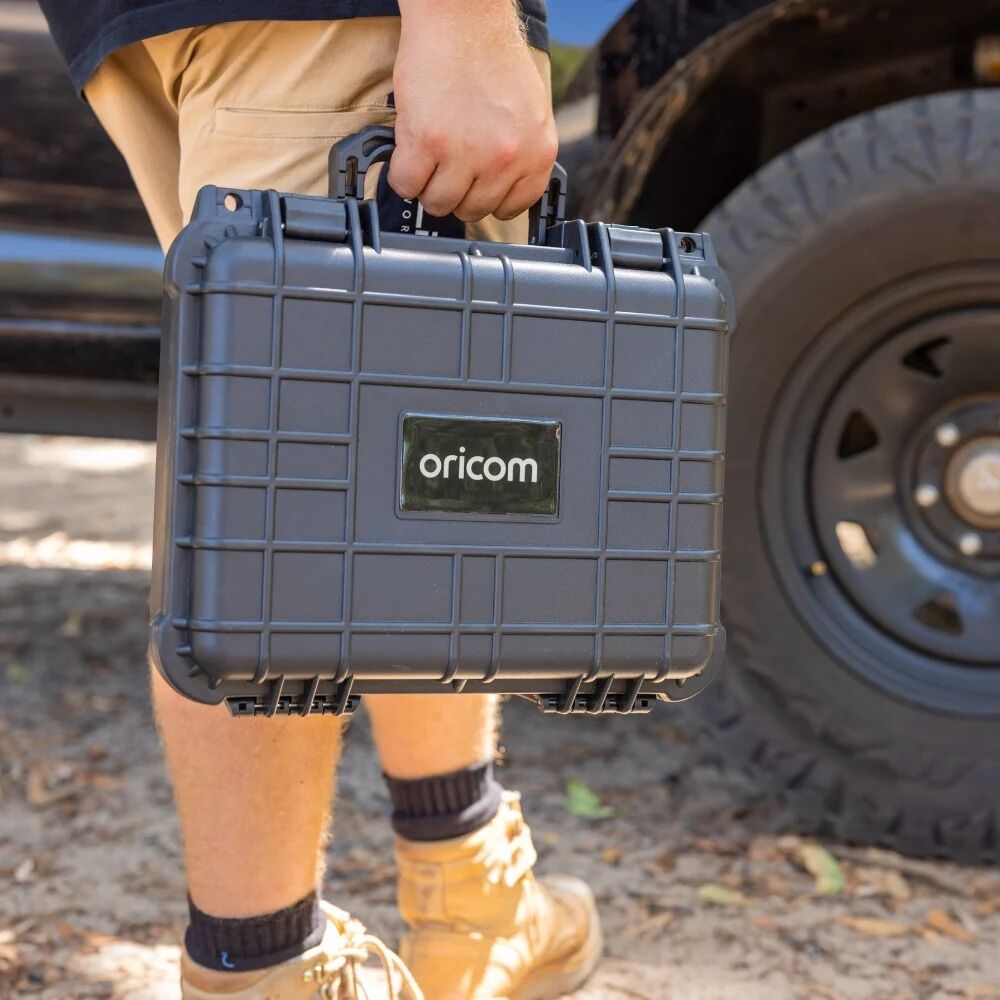

Heavy Duty Carry Case - Convenient Storage And Portability For The

Compressor And Accessories.

Compatible With Oricom's Tyre Inflator And Deflator.

Specifications:

Number of Cylinders: 1

Cylinder Diameter (Bore): 44mm

Voltage: 12-13.8VDC

Current Draw Under Load: 32A

Current Draw No Load: 17A

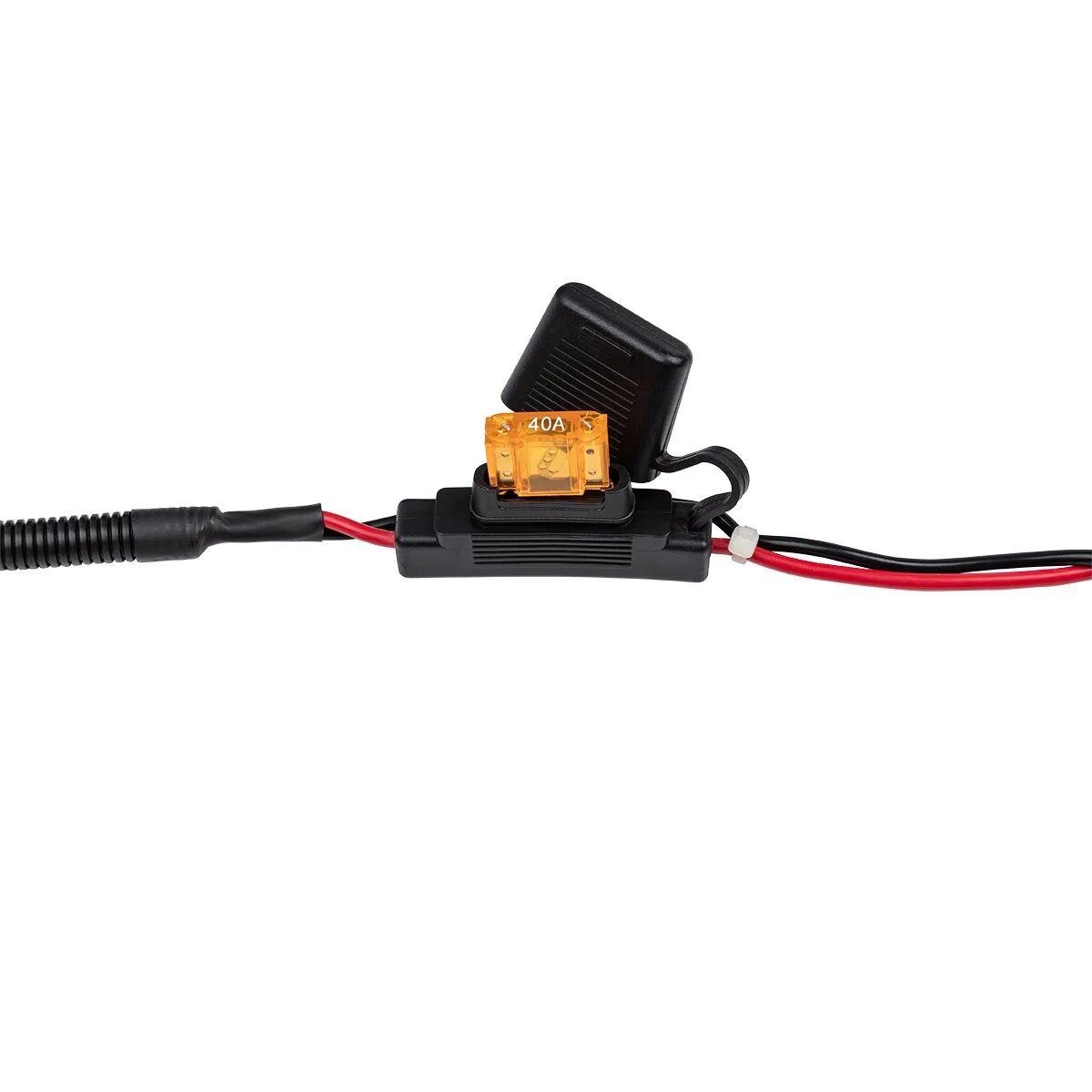

In line Fuse Supplied: 40A

Air Filter: Yes

Max Pressure: 150PSI

Max Working Pressure: 120PSI

Duty Cycle Working 20mins - Rest 40mins

Air Flow Under Load: 42L/min(40PSI)

Air Flow Rates: 75 L/min (0PSI) 50 l/min (29PSI)

Pressure Cutout Switch: 90PSI ON /120PSI OFF

Thermal Protection: Automatically Shuts Off at 115°C to Prevent Overheating

Connection to Battery: 2.5m Cable with Battery Clamps

Hose Length: 6m

Hose Connector Type: NPT ¼" Quick Connect

Carry Case: Included

Tested to Meet Safety Standards: AS/NZS 60335.1:2020-tAl:2021 ond EMC Compliant with EN/IEC 55014-1:2021

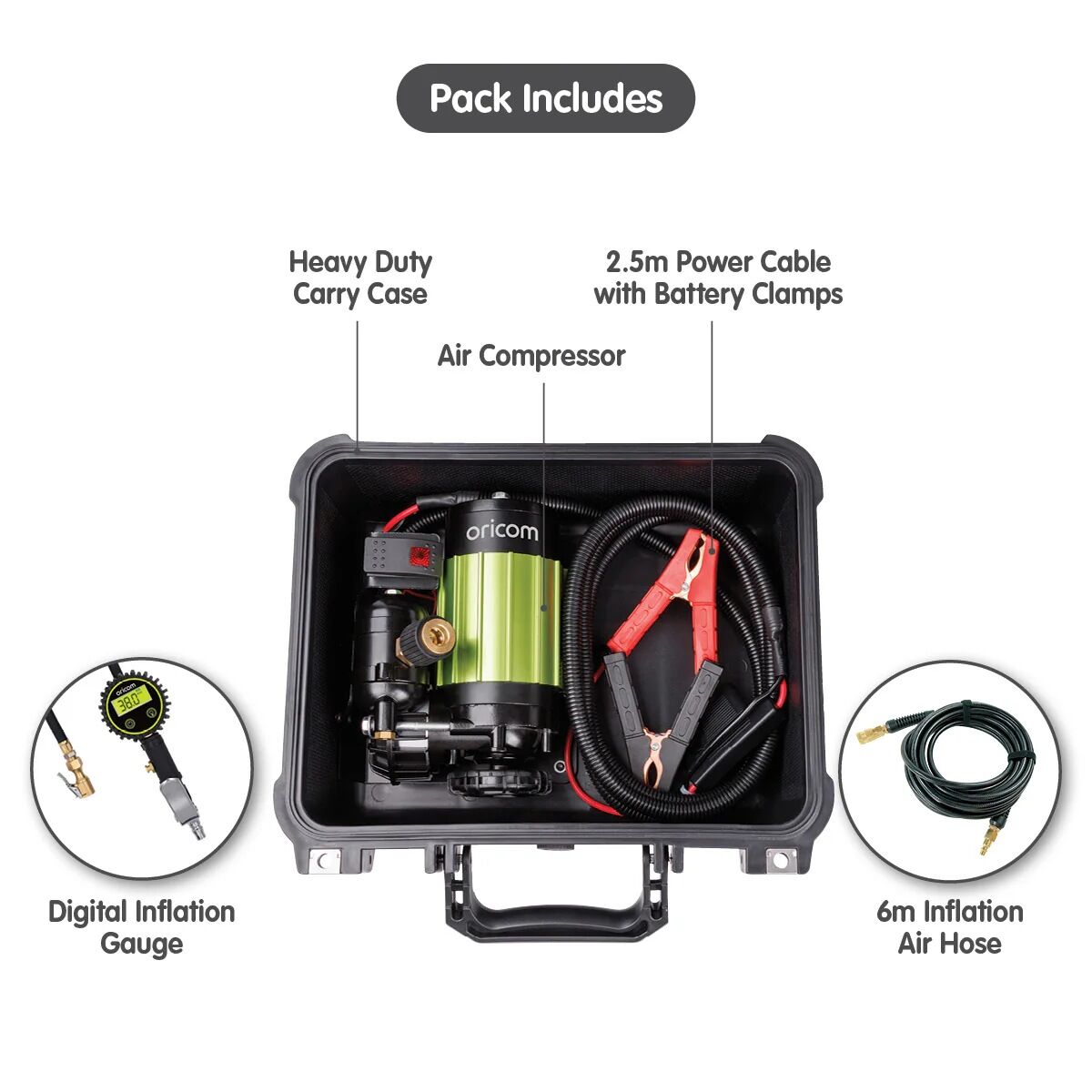

Package

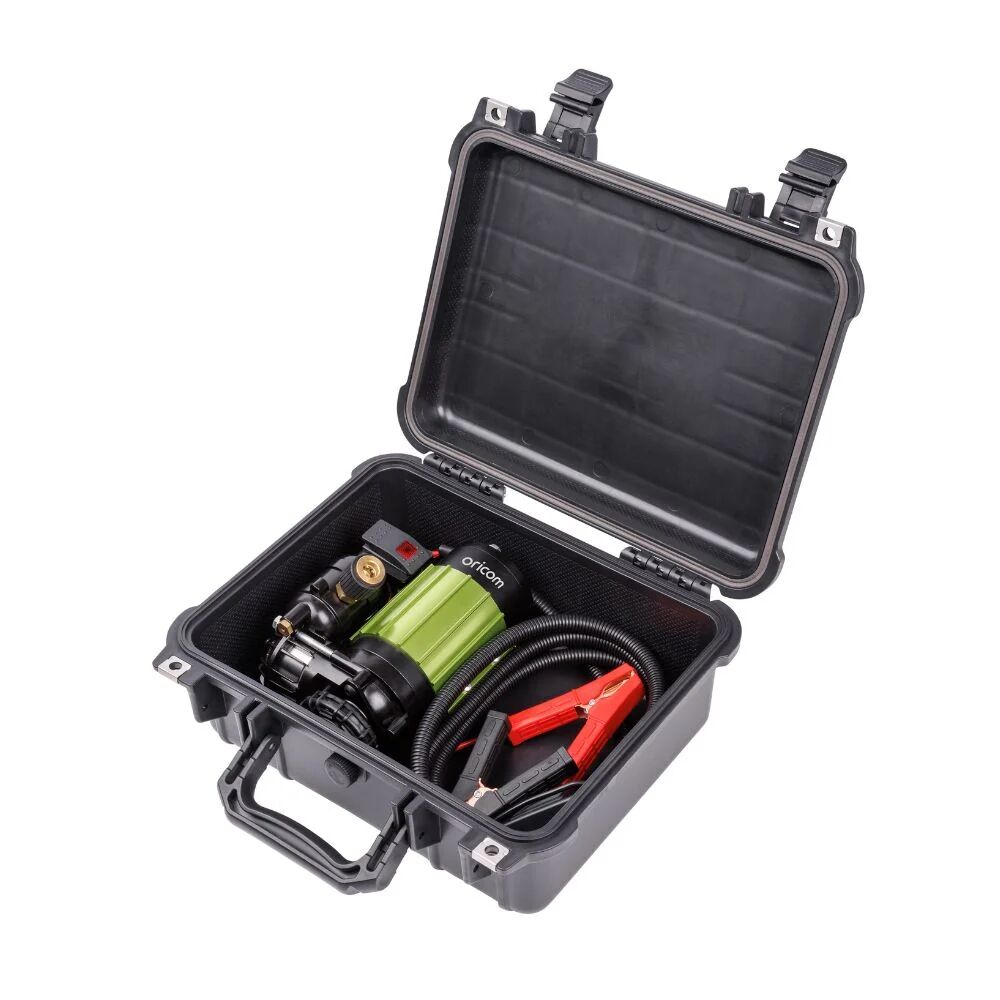

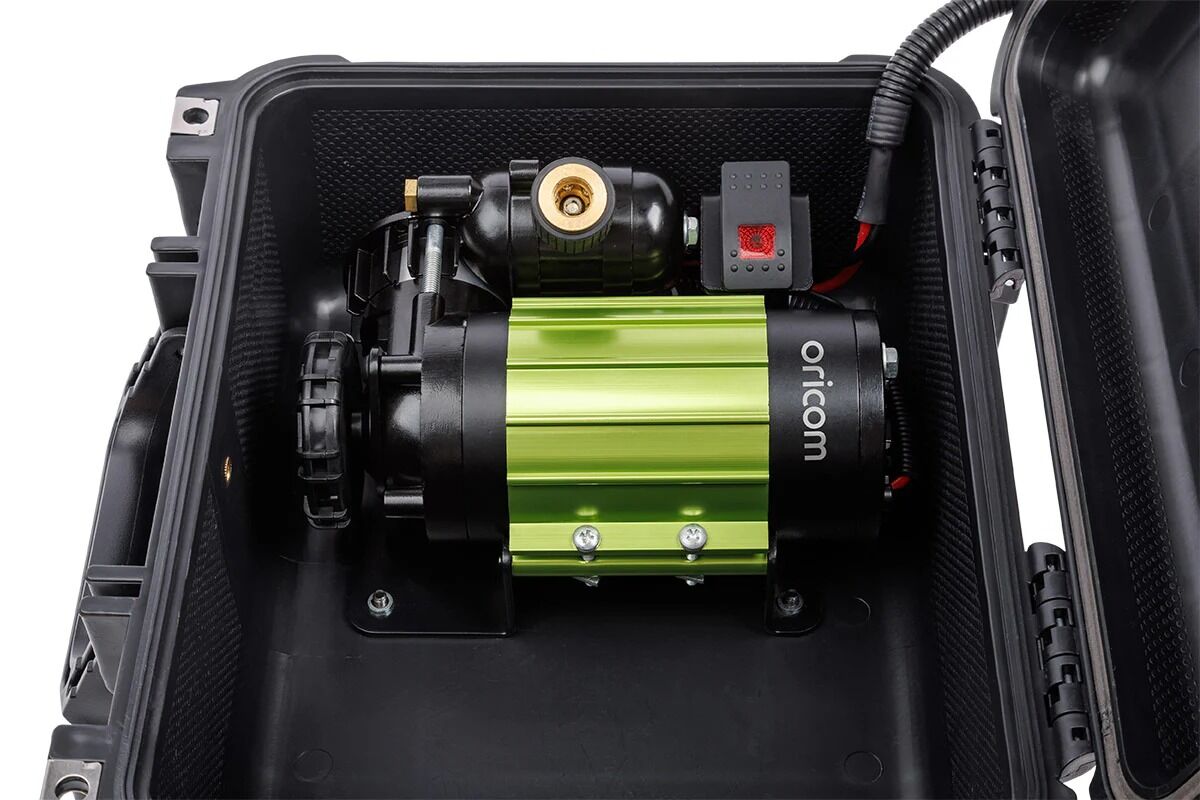

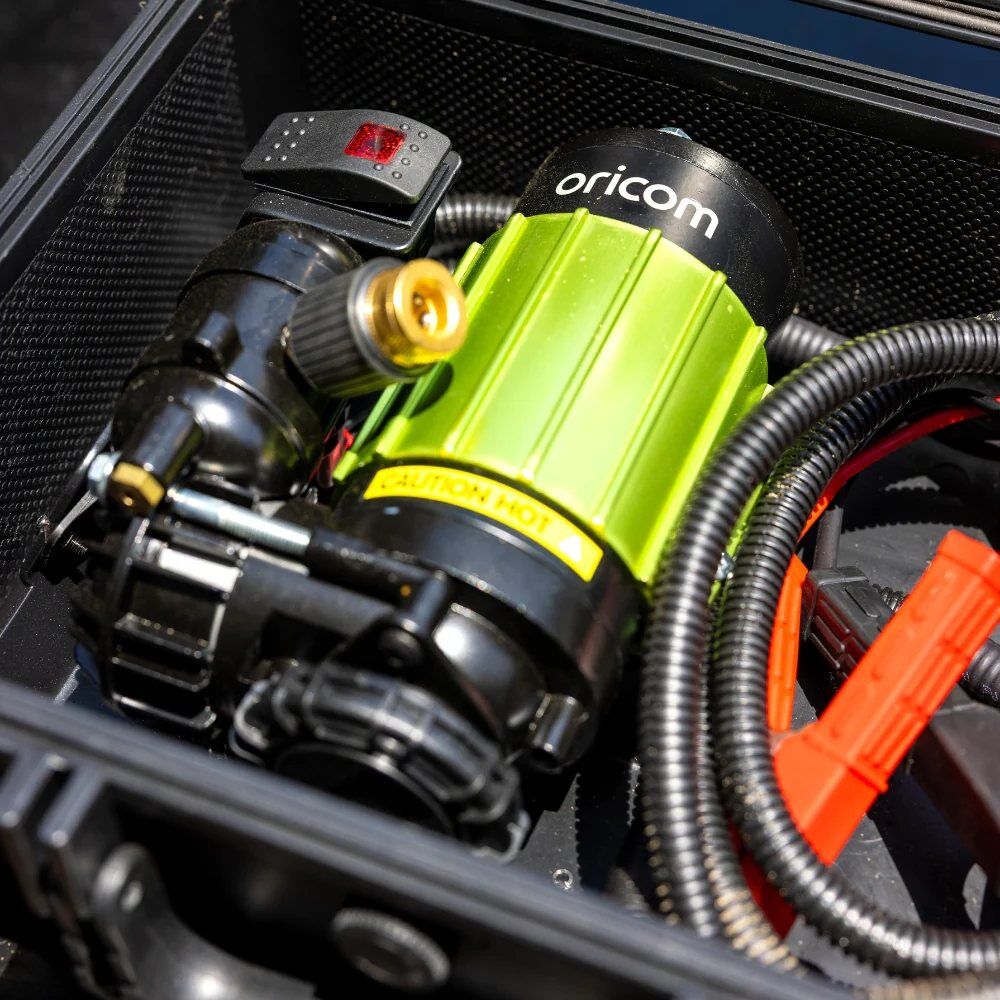

1 x Air Compressor with Heavy Duty Case

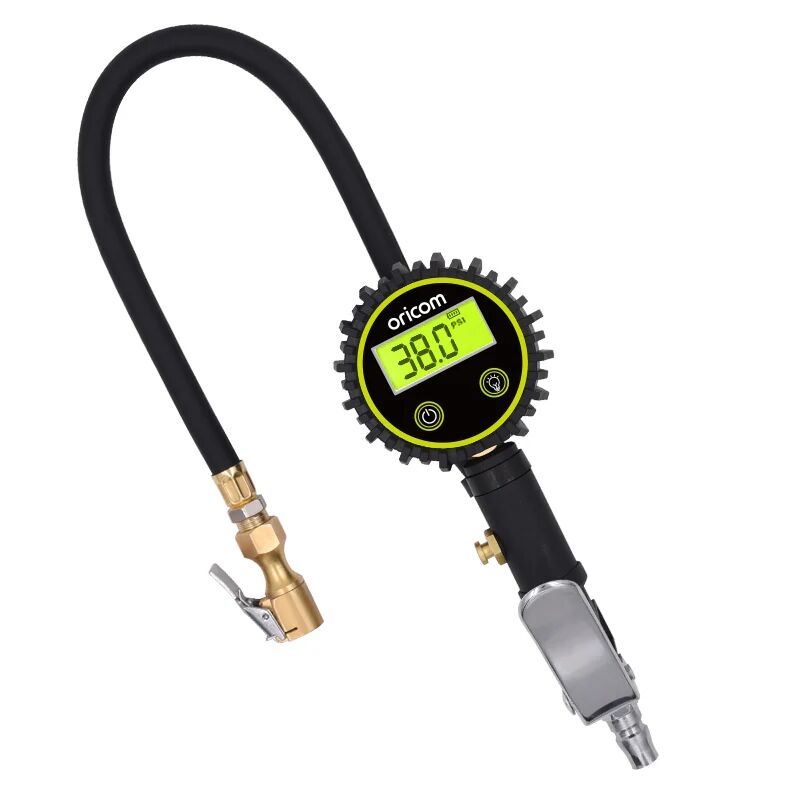

1 x Digital Pressure Gauge with Auto Shut Off

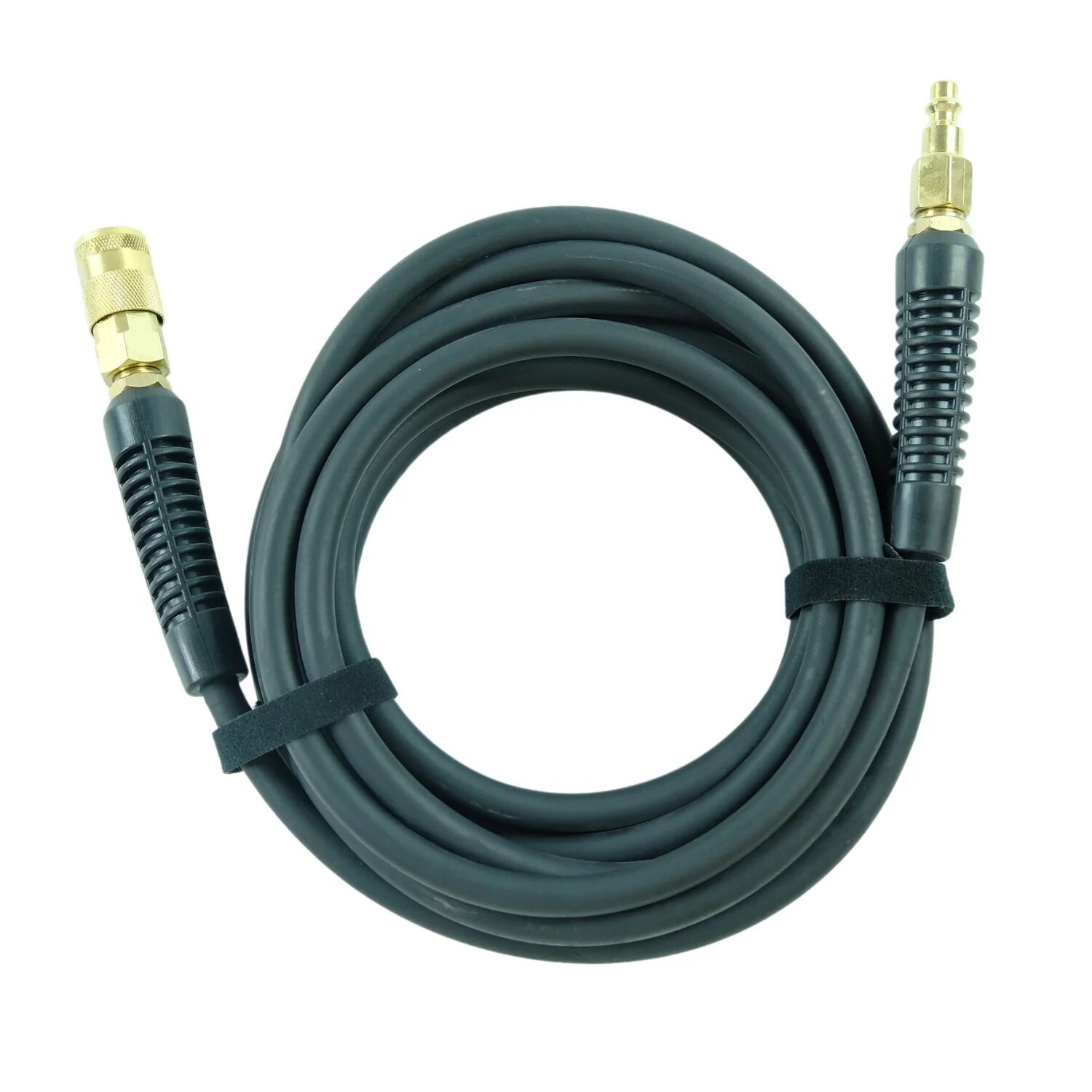

1 x 6m Inflation Hose with ¼" NPT Quick Connect Fitting

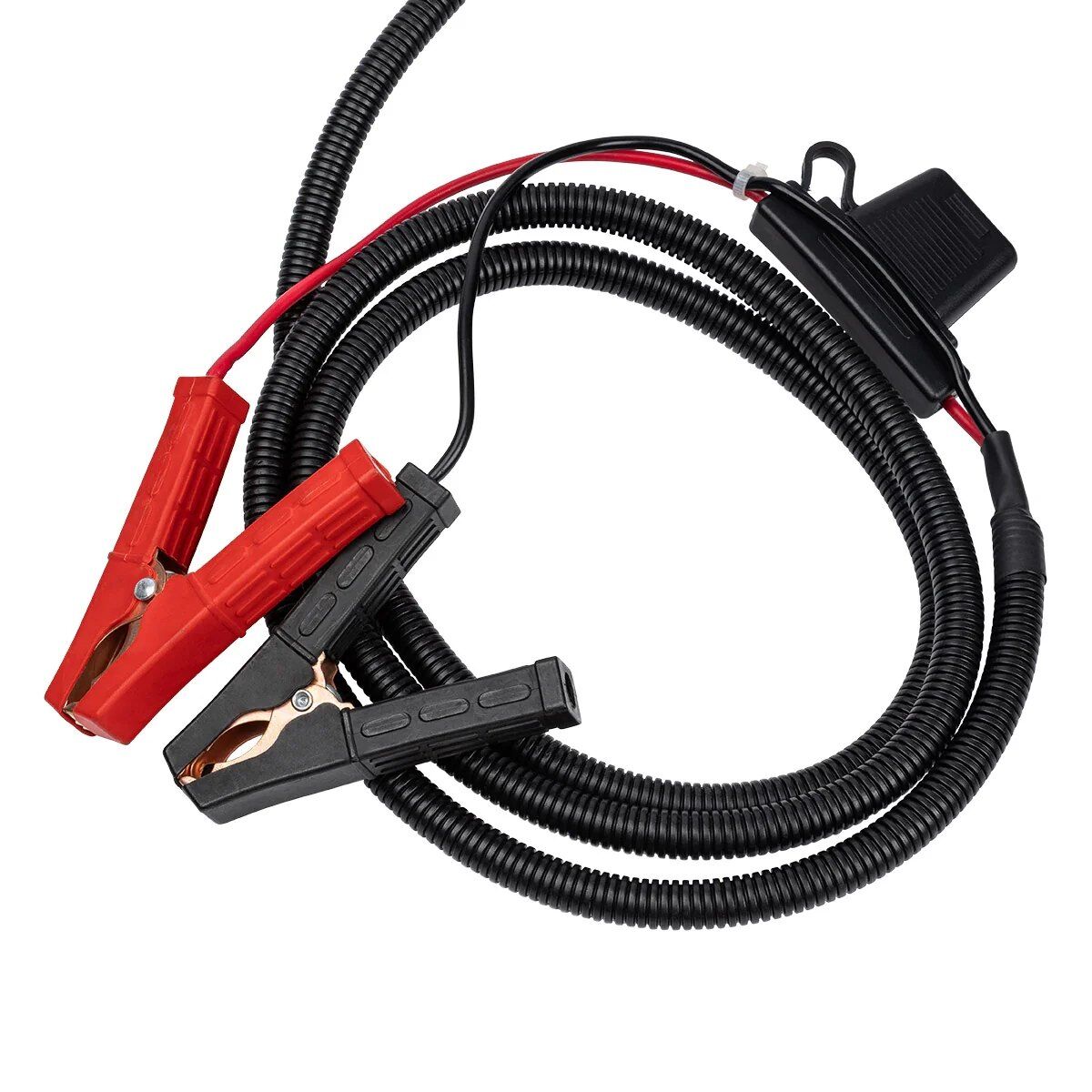

1 x 2.5m Power Cable with Battery Clamps
