Product Description

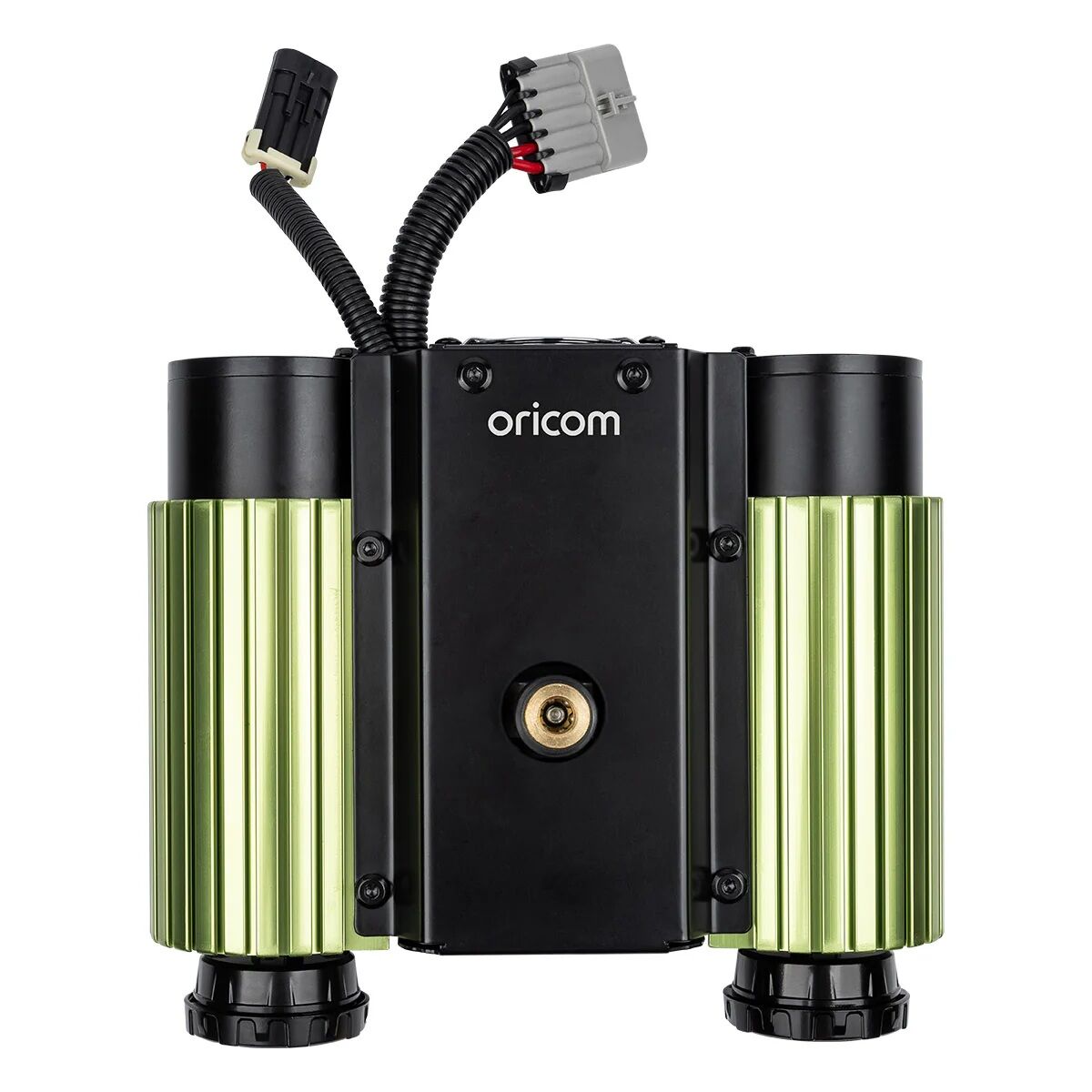

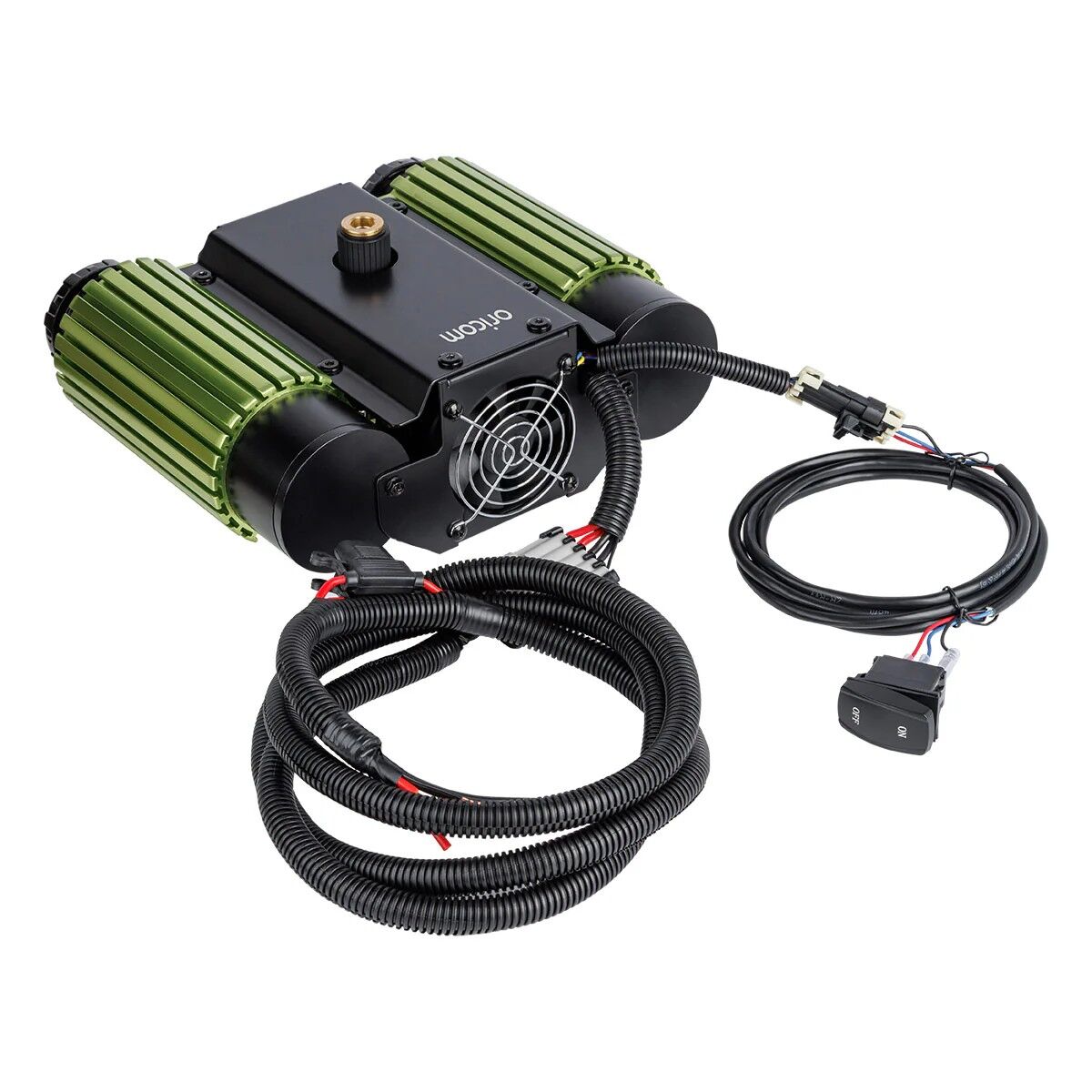

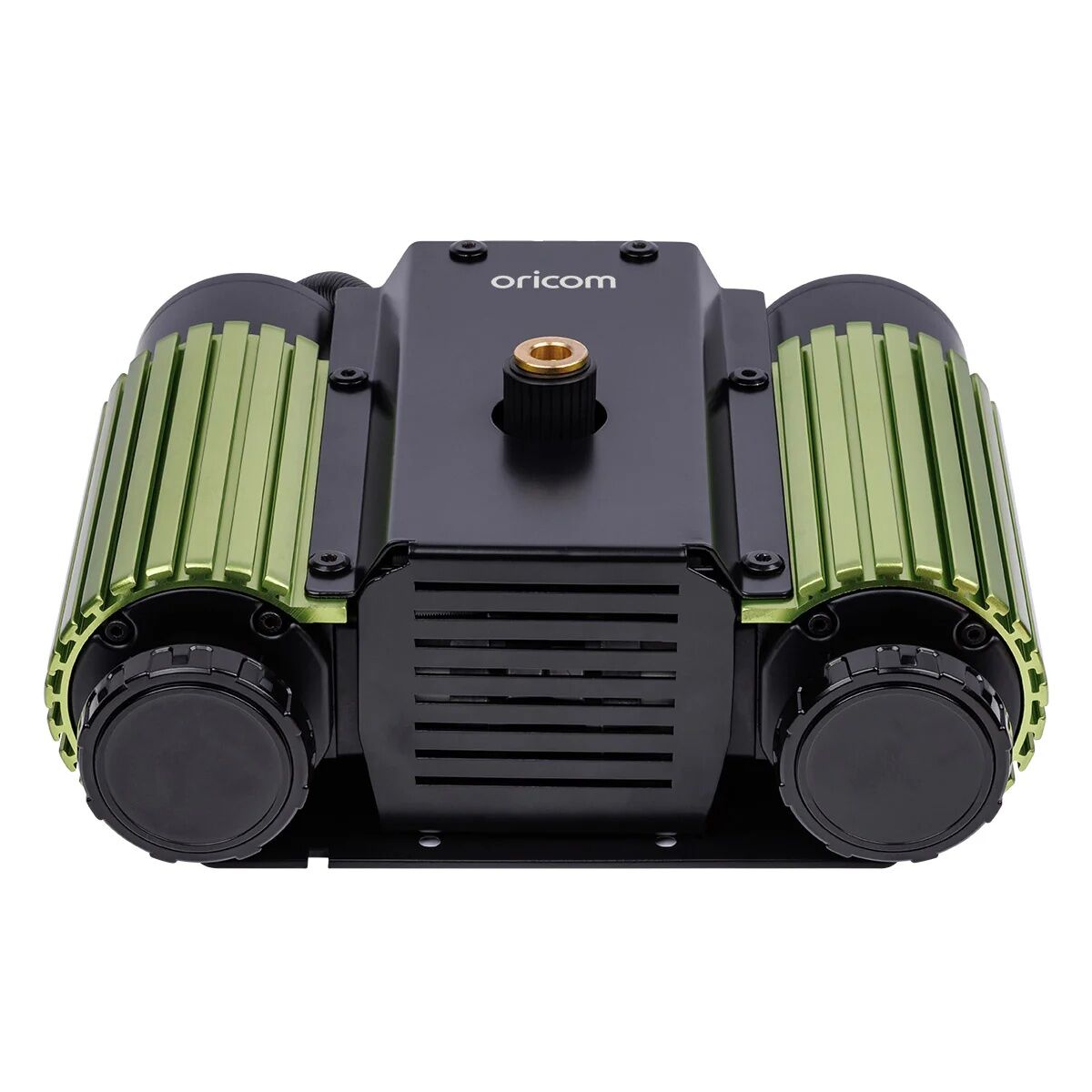

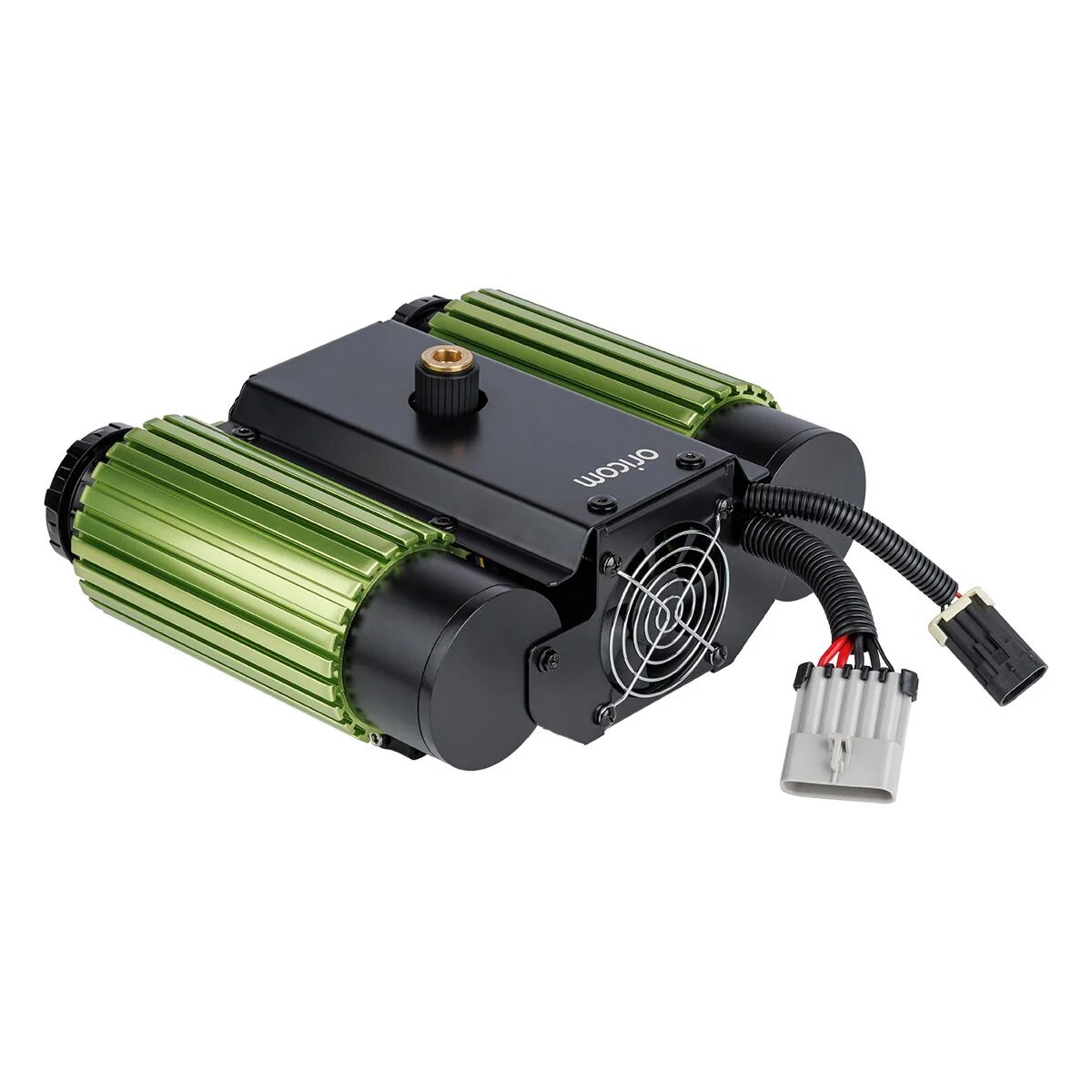

The Oricom AIR40 Is a High-Performance Twin Cylinder Air Compressor, Delivering Quick Inflation With a 300PSI Max Pressure And 130L/min Max Air Flow Rate, Perfect For 4WDs And Off-Road Vehicles. Featuring a Durable Air Filter, Automatic Shut-Off, And Thermal Protection, For Safe, Reliable Inflation.

Features

Max Pressure Of 300 PSI - High Pressure Capability For Larger Tyres And Tough Inflating Jobs.

High Flow Rates At Various Pressures - Offers a Consistent, High Flow Rate Even At Different Pressure Settings, Enhancing Performance And Speed.

Air Flow Rate Of 130L/mln (0 PSQ - Rapid Inflation Even At Lower Pressures, Reducing Downtime.

Thermally Protected Motor- Prevents Overheating During Extended Use, Ensuring Long-Tern, Durability.

Washable Air Filter-Reduces Maintenance By Allowing Easy Cleaning And Reusability.

Automatic Shut-Off Pressure Switch (120-150 PSQ -Safeguards Your Tyres And Compressor By Preventing Overinflation.

Quick Connect NPT ¼• Connector-Efficient Power Usage That Reduces Strain On The Vehicle's Electrical System.

Pressure Cut-Out Switch (120PSI On/160PSI Off) - Enhances Safety And Ensures The Compressor Does Not Overwork, Prolonging Its Lifespan.

Max Working Pressure Of 150 PSI - Ensures Reliable Performance For Large Vehicle Tyres Even In Demanding Situations.

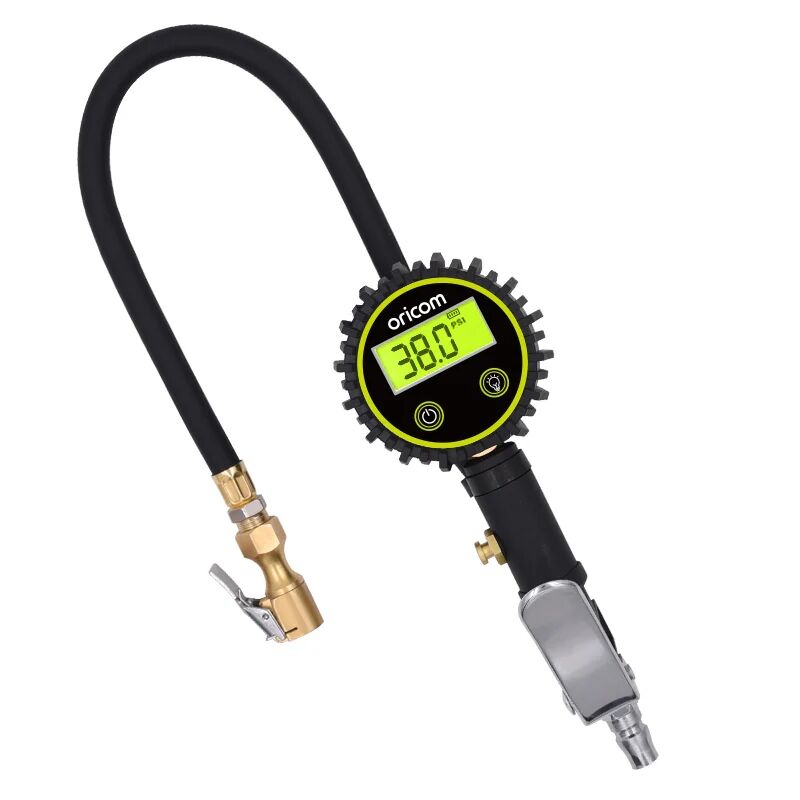

Compatible With Oricom’ s Tyre Inflator And Deflator.

Specifications:

Number of Cylinders: 2

Cylinder Diameter (Bore): 40mm

Voltage: 12-13.8VDC

Current Draw Under Load: 62A

Current Draw No Load: 35A

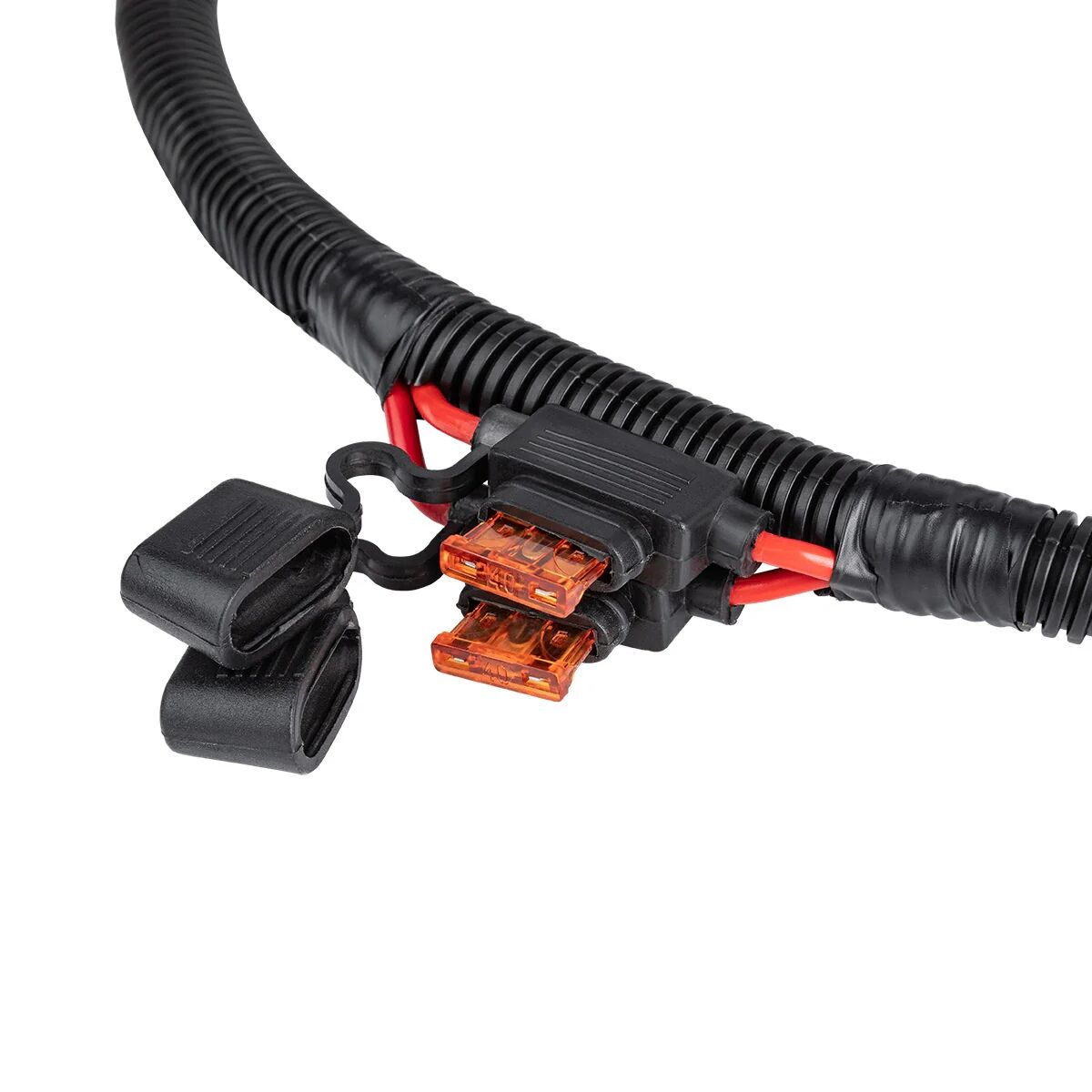

In line Fuse Supplied: 40A

Washable Air Filter: Yes

Max Pressure: 300PSI

Max Working Pressure: 150PSI

Duty Cycle Working 45mins - Rest 20mins

Air Flow Under Load: 108L/min (40PSI)

Air Flow Rates: 130 L/min (0PSI) 112 L/min (29PSI)

Pressure Cutout Switch: Cuts Out Automatically When 120-150psi Pressure Reached

Thermal Protection: Automatically Shuts Off at 115°C to Prevent Overheating

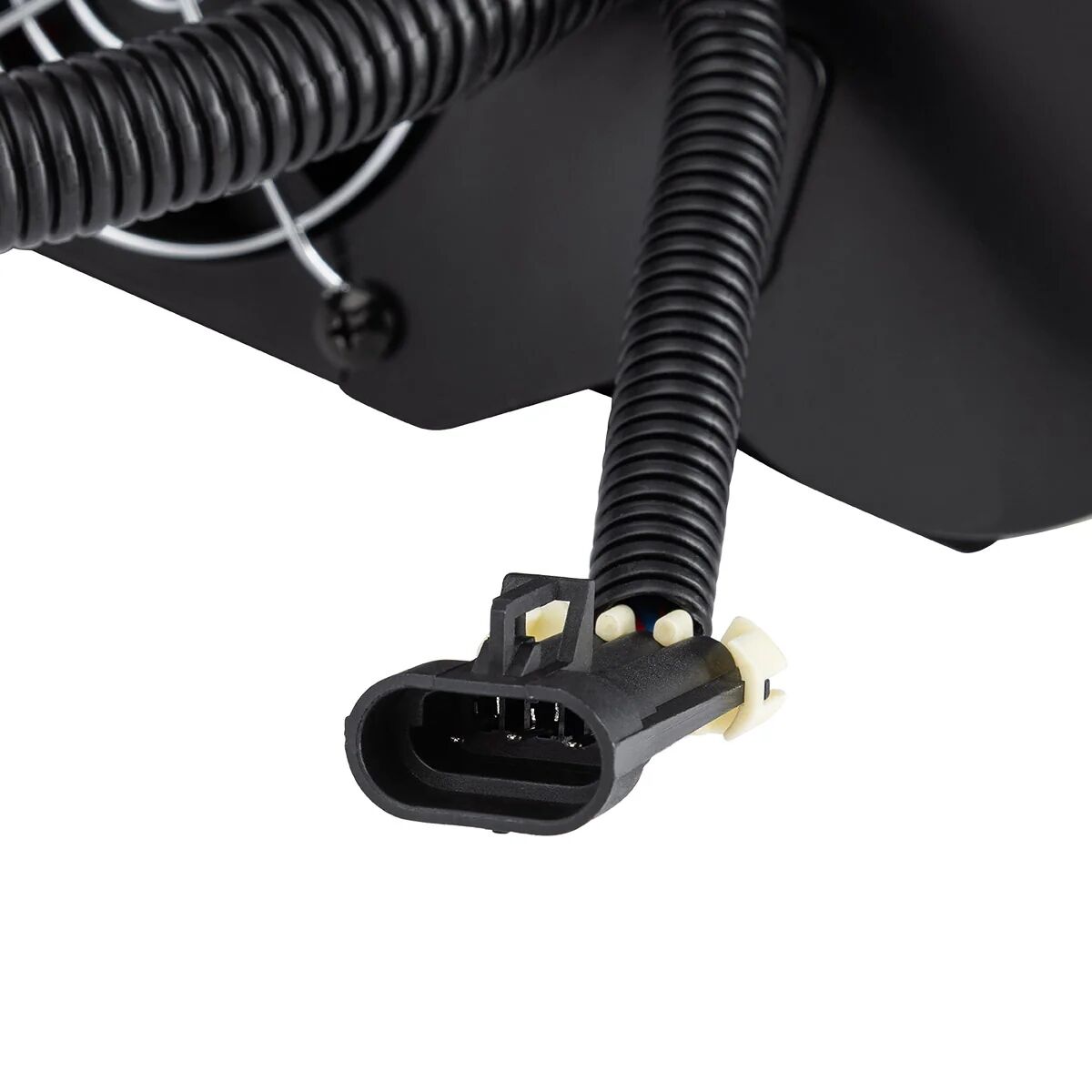

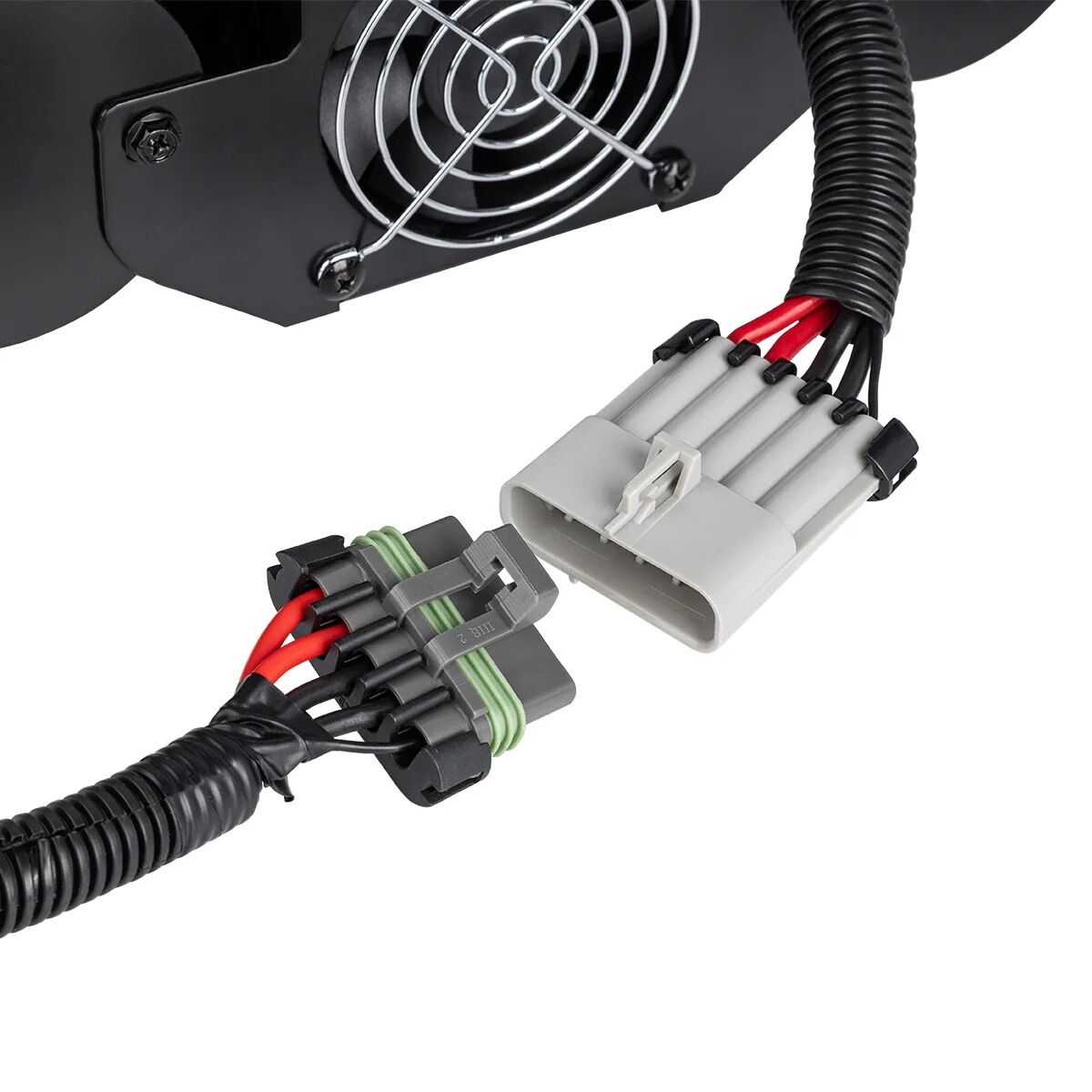

Connection to Battery: Wiring Loom

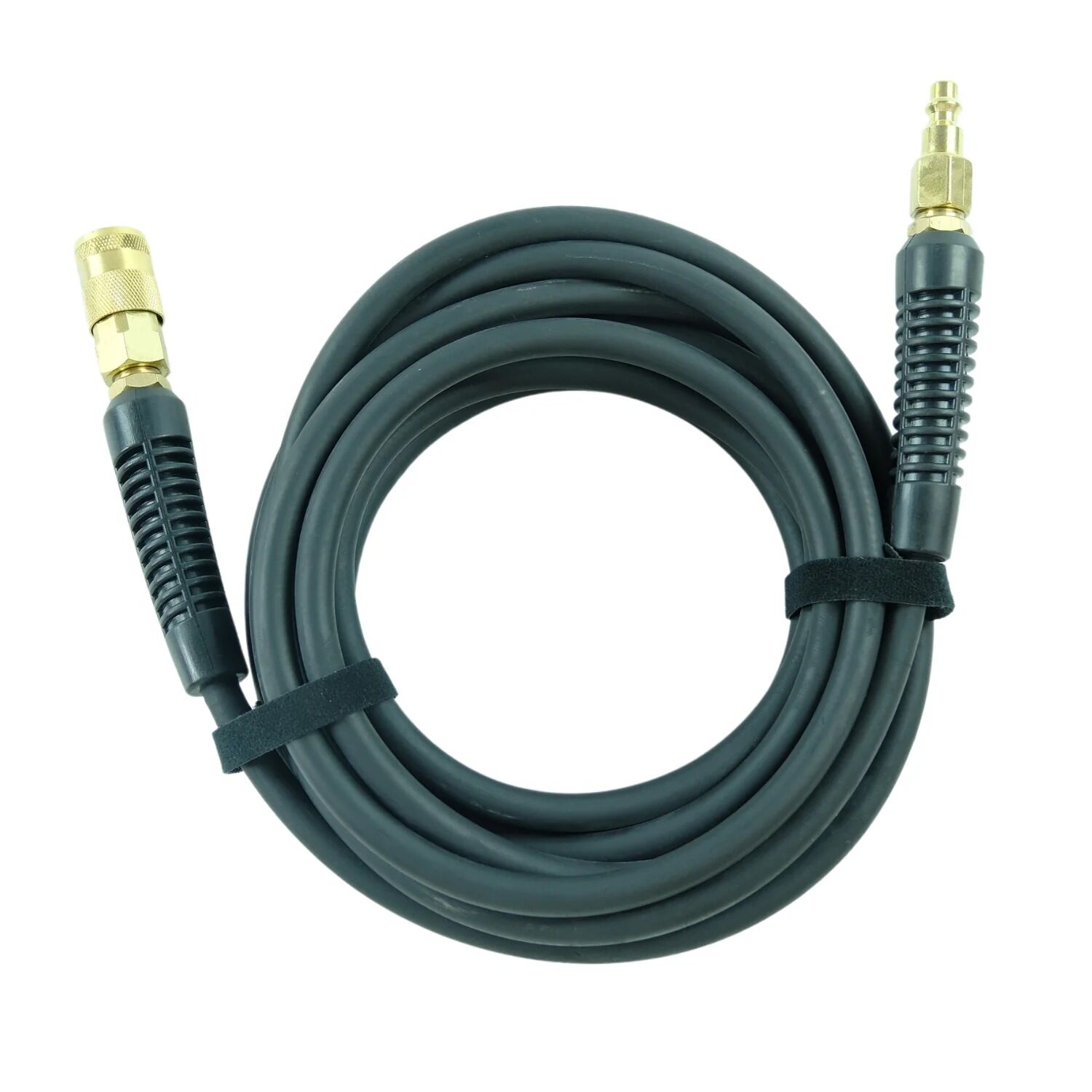

Hose Length: 6m

Hose Connector Type: NPT ¼" Quick Connect

Tested to Meet Safety Standards: AS/NZS 60335.1:2020-tAl:2021 and EMC Compliant With EN/IEC 55014-1:2021

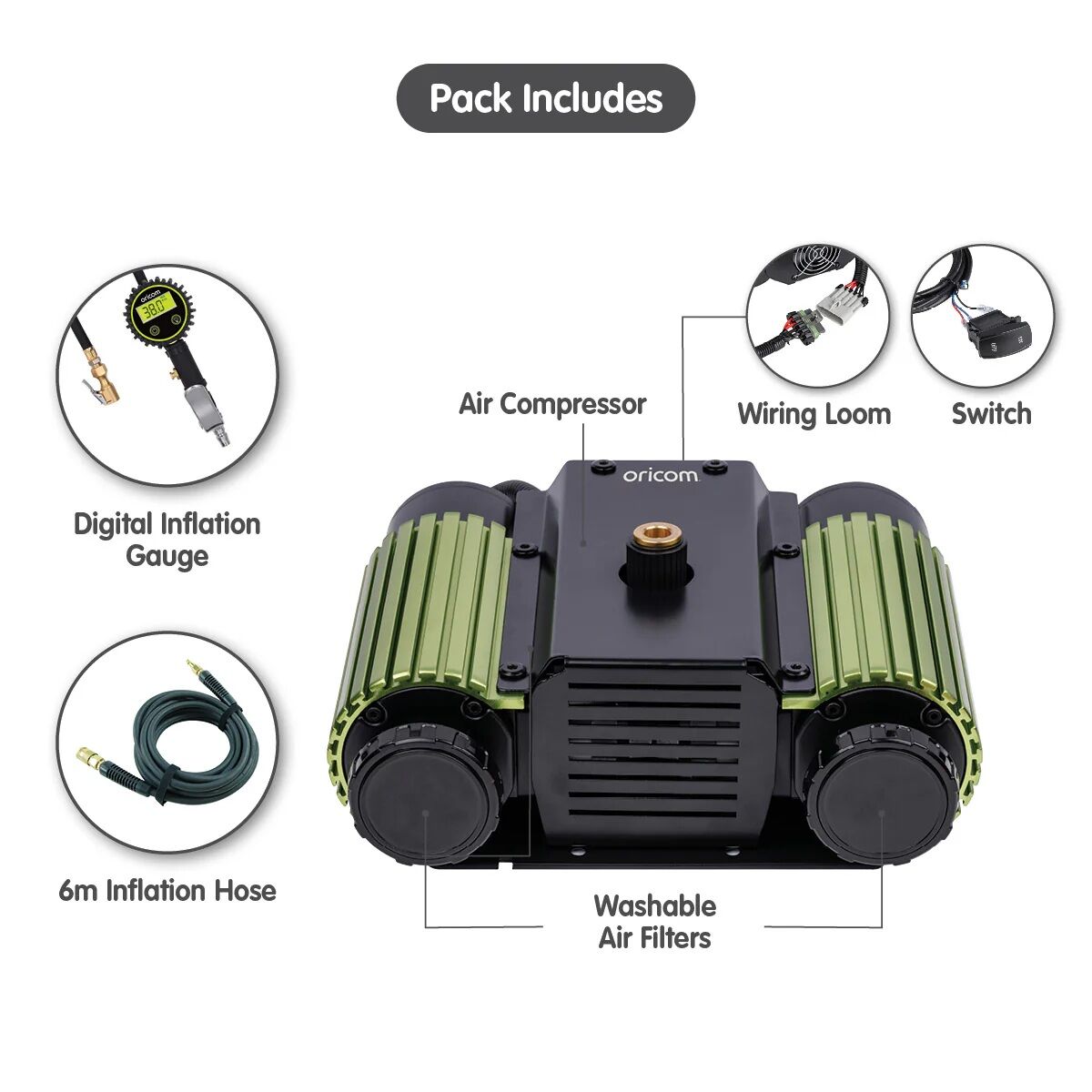

Package

1 x Air Compressor + Inflation Kit
