Feature

Unmatched Pulling Power: Features a massive 12000lb (5450kg) single-line pull driven by a 12V DC 6HP series wound motor.

IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).

Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.

Complete Installation Kit: Includes a CNC'd anodised alloy signature Carbon fairlead paired with our robust MegaPro hook, plus an isolator switch with extra cabling for safety when not in use.

Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

Specification

Part Number: CW-12KV3X

Rated Line Pull: 12000lbs (5450kg) single-line

Motor:12V DC 6HP series wound motor

Geartrain: 3-Stage Planetary

Gear Ratio: 218:1

Clutch (Free Spooling): Rotating Ring Gear clutch with manual pull and twist handle

Brake: Full load automatic brake (installed in motor housing end plate)

Drum Diameter/Length: 63mm x 224mm

Mounting Bolt Pattern: 254mm x 114.3mm

Recommended Battery: 650 CCA minimum for winching

Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")

Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8" x 7.9" x 8.7")

Winch Weight (Version 3X): 19.7kg (with synthetic rope attached)

Total Kit Weight: 26.65kg (including rope, control box, cables, bolts & fairlead)

12V DC Performance Specs

Package

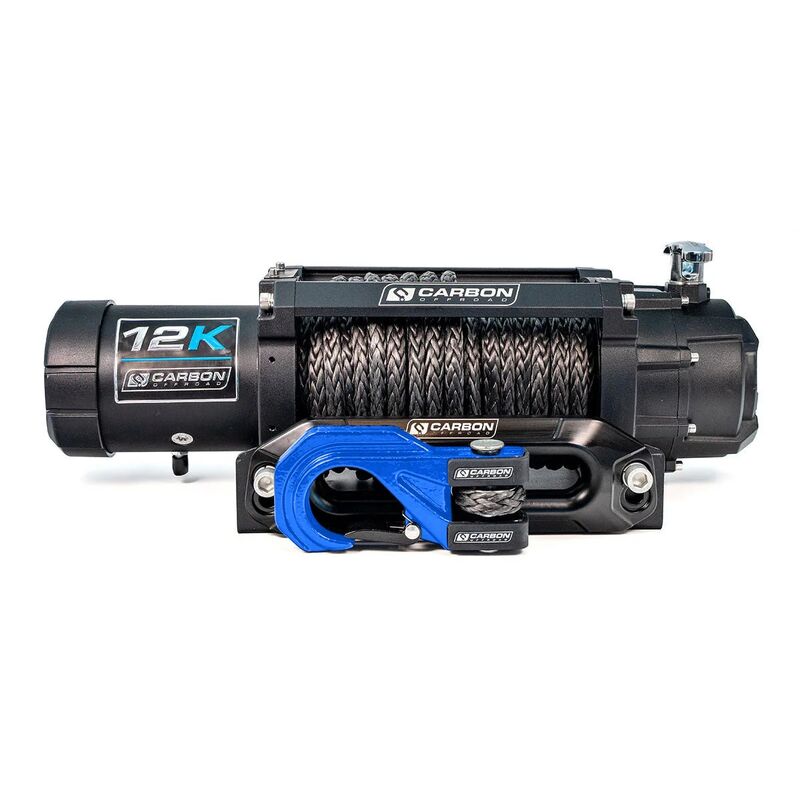

1 x Carbon 12K Winch V3X

1 x MegaPro Hook

1 x Synthetic Rope (24m x 10mm diameter)

1 x CNC Billet Alloy Black Anodised Fairlead

1 x Wired Remote Control (12ft/3.7m lead)

1 x Wireless Remote Control

1 x Isolator Switch and Cabling

1 x Mounting Hardware Set
