Feature

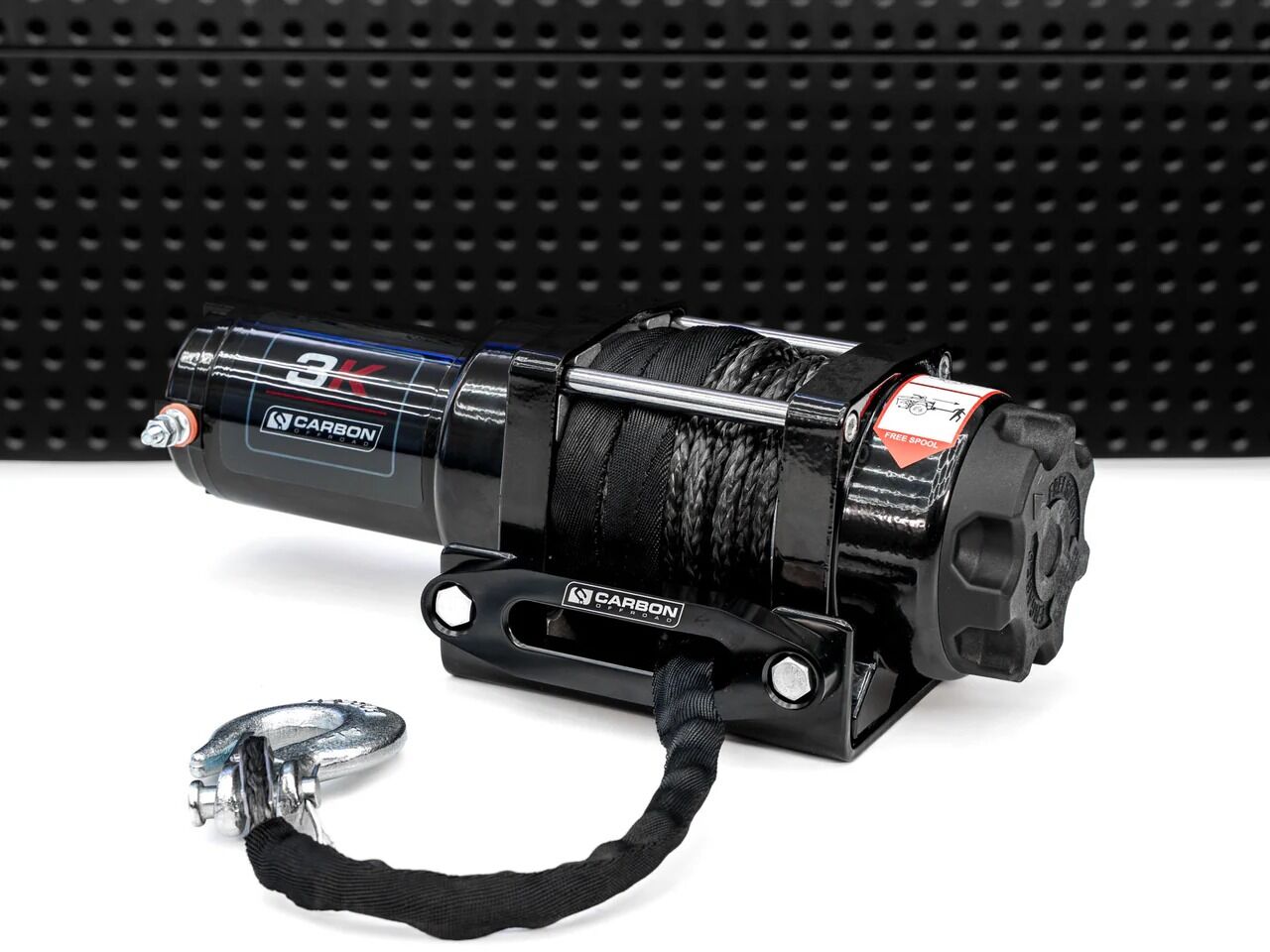

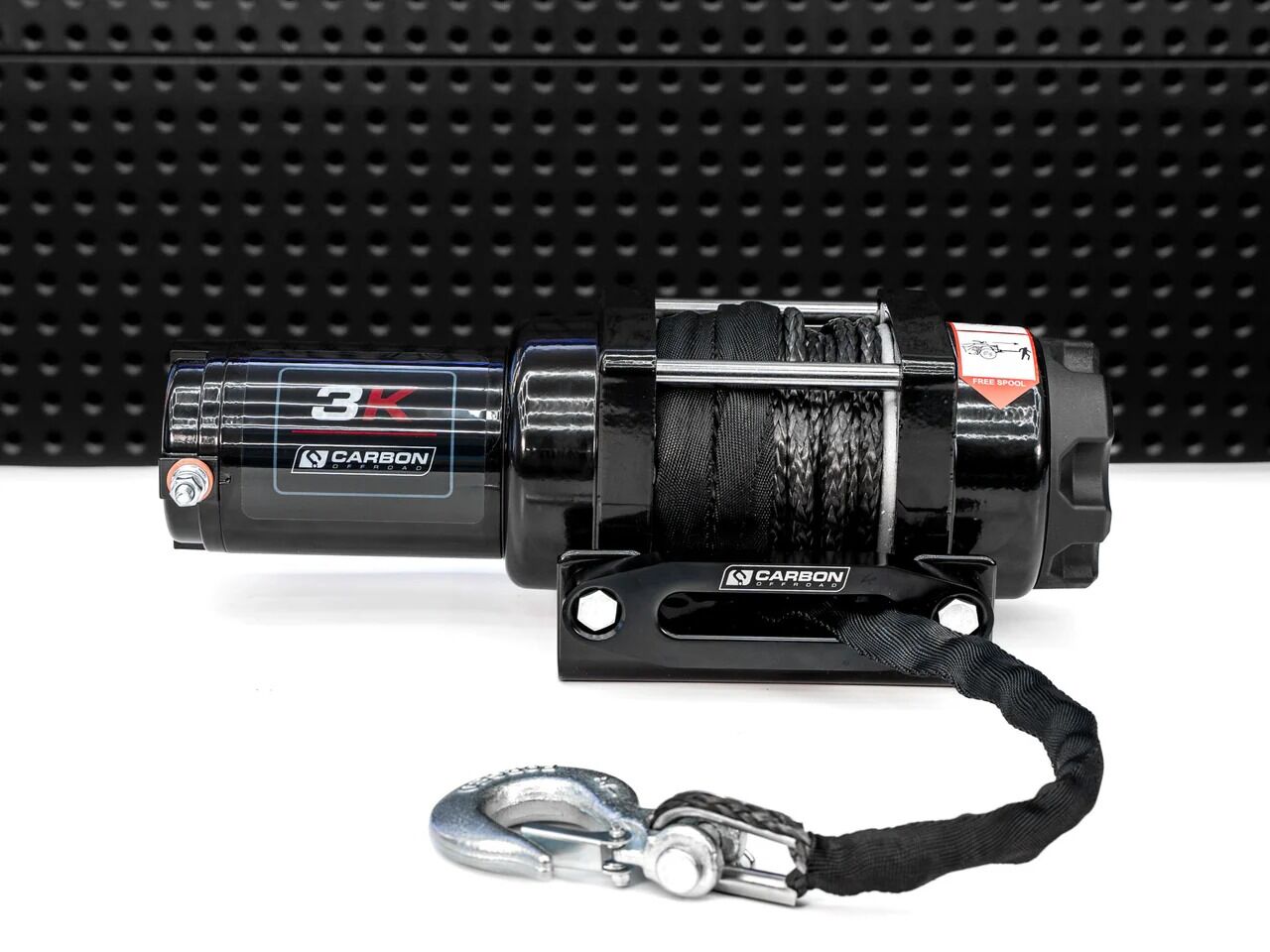

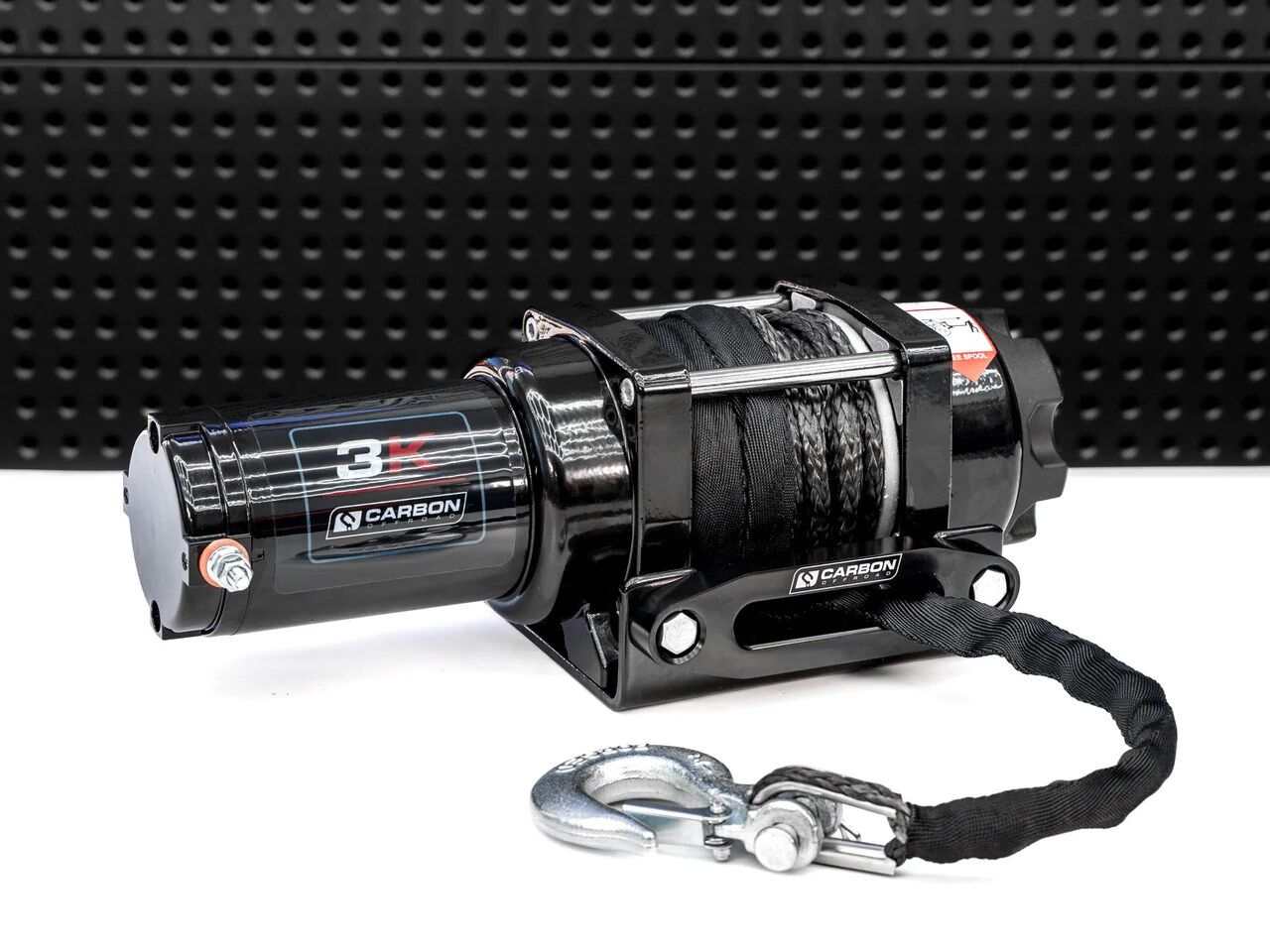

The Carbon CW-3U 3.0K 3000lb Winch Delivers Exceptional Value, Combining Reliability And Premium Quality In a Compact Design. Built For Light-Duty Applications With a 3,000 lb (1360 kg) Capacity, This Winch Is Engineered To Handle a Variety Of Towing And Utility Tasks Effortlessly. Designed With Convenience In Mind, It Features Both a Handheld Remote And a Wireless Remote Control, Allowing Seamless Operation Of The Power-In/Power-Out Functions. Enhanced With Tie Rods For Added Stability, The CW-3U Ensures Durability And Performance When You Need It Most.



Specification

Rated Line Pull: 3,000 lbs (1360 kg), Single-Line

Motor: 12V DC, 1.5 HP Permanent Magnet Motor

Remote Controls:

Wired Remote With 12 ft (3.7m) Lead

Wireless Remote Included

Geartrain: Single-Stage Planetary

Gear Ratio: 153:1

Clutch (Free-Spooling): Split Ring Gear

Brake System: Self-Locking Gear Train (Rated Load Holding)

Drum Dimensions: 1.26” Diameter × 2.87” Length (32mm × 73mm)

Synthetic Rope: 43 ft, 3/16” Diameter (13m, 4.8mm)

Fairlead: Roller

Mounting Bolt Pattern: 3.0” × 4.87” (76mm × 124mm)

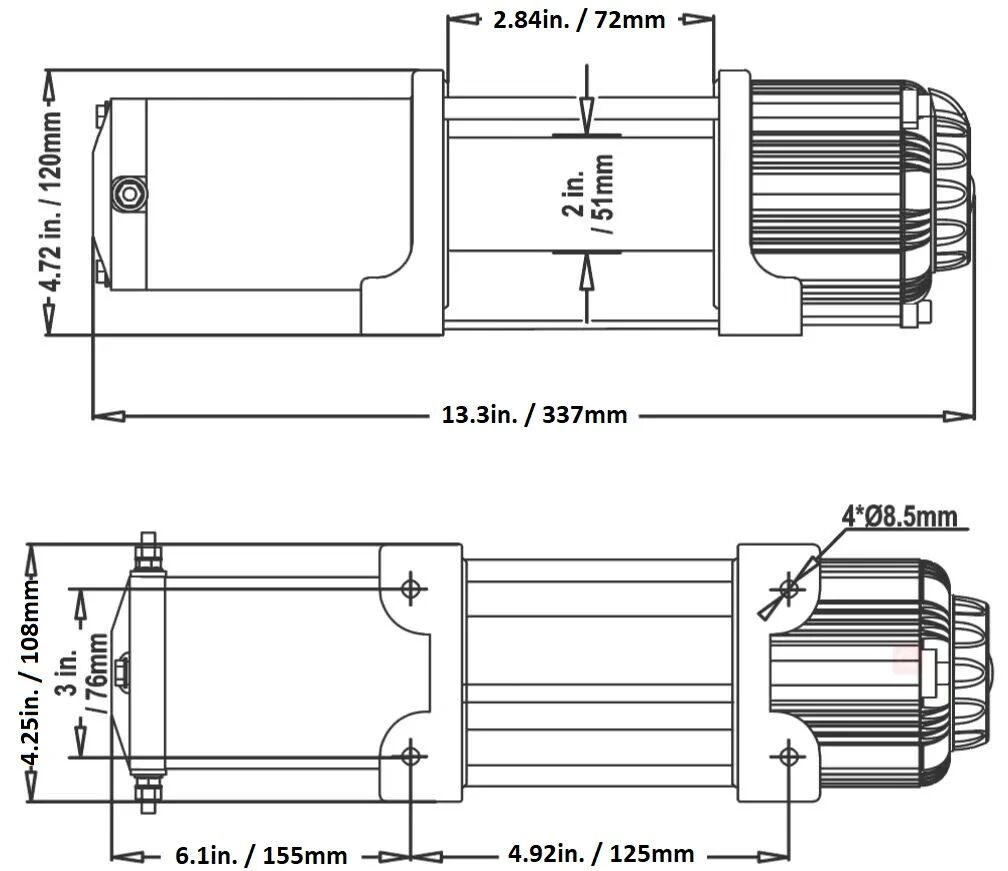

Winch Dimensions: 12.2” × 5.0” × 5.0” (310mm × 127mm × 127mm)



Package

1 x Winch

SKU CBN-CW-3U
Brand CARBON OFFROAD
Shipping Weight 10.0000kg
Shipping Width 0.200m
Shipping Height 0.220m
Shipping Length 0.400m
Shipping Cubic 0.017600000m3
