Feature

A Small Compact Winch With Integrated Mounting Plate Makes Mounting This Winch Is As Simple As It Can Get To An Existing Pedestal On a Trailer, Or Into a Winch Location On An Small Form Factor Bar. With Wireless And Wired Remote Control Included Free, It's a Very Versatile Winch Setup. Perfect For Small Car And Equipment Trailers, Great To Mount In The Back Of a Van To Help Load Heavy Equipment And Has Even Been Used To Load Tinny's And Open Cattle Gates On Livestock Truck Trailers.



Specification

Rated Line Pull: 6000 lbs, (2725kg) Single-Line

Motor: 12V DC 2.5 HP Permanent Magnet (Available in 24V)

Remote Control: Handlebar Mini-Rocker

Wireless Remote Control: Included

Geartrain: 3-Stage Planetary

Gear Ratio: 147:1

Clutch: Roller Disc Full Load Automatic

Brake: Automatic Brake In The Motor Bracket

Aluminium Hawse

IP Rating: IP66 For Winch And Solenoid (Excludes Remote Control And Switch)

Synthetic Rope: 16m x 6.5mm Diameter

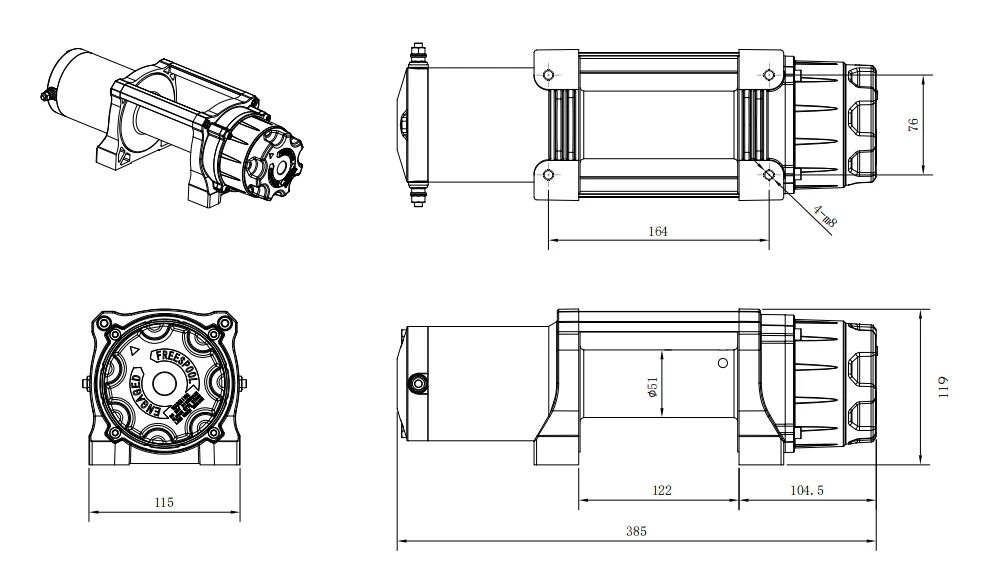

Drum Diameter/Length: 51mm x 122mm

Mounting Bolt Pattern: 164mm x 76mm

Recommended Battery: 650 CCA Minimum For Winching

Winch Dimensions (L x W x H): 385 x 115 x 119mm

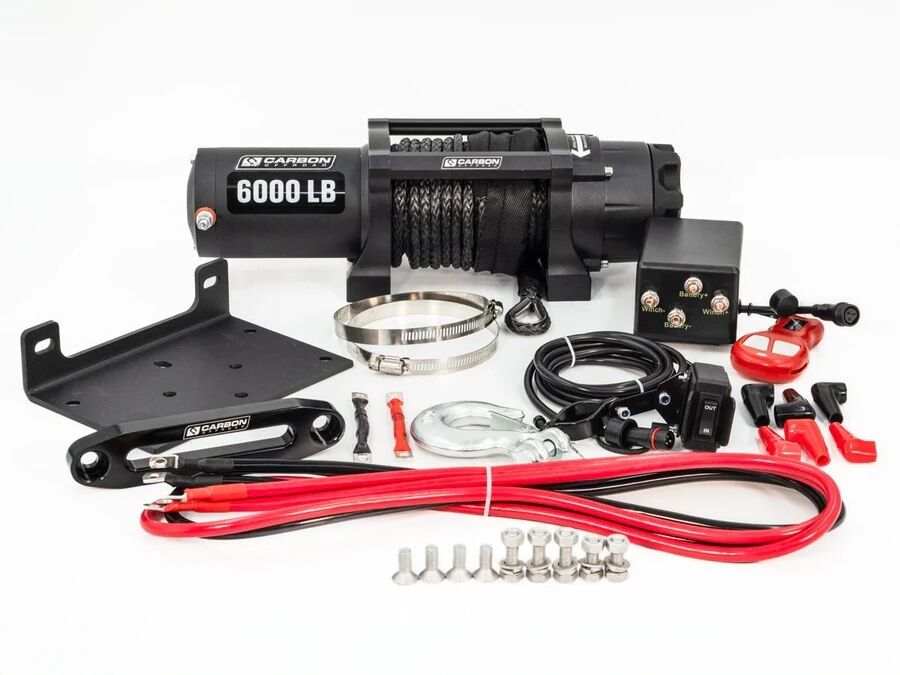

Package

1 x Winch

SKU CBN-CW-XD6
Brand CARBON OFFROAD
Shipping Weight 12.0000kg
Shipping Width 0.170m
Shipping Height 0.230m
Shipping Length 0.530m
Shipping Cubic 0.020723000m3
