Feature

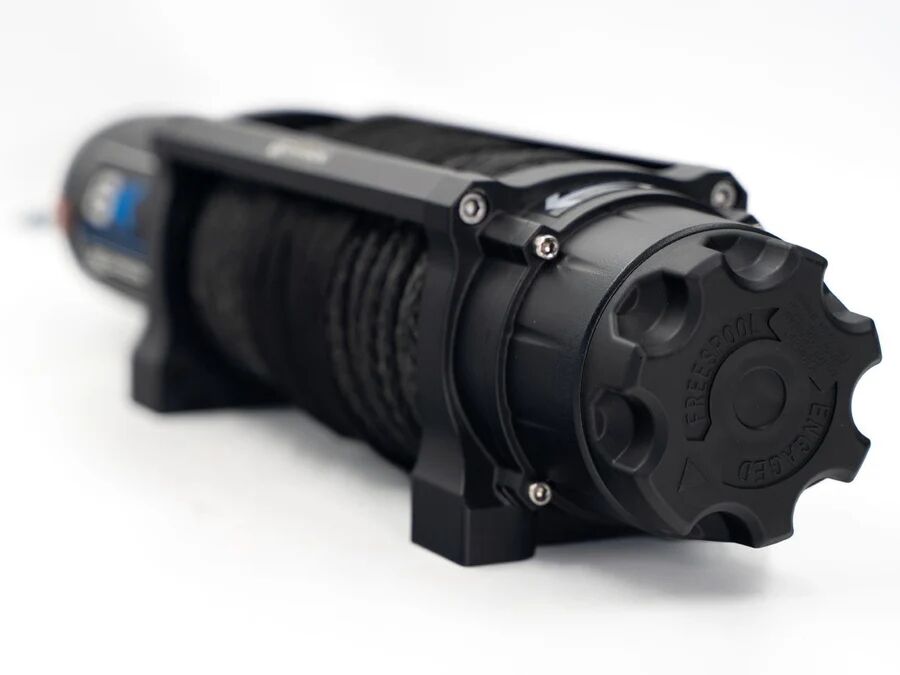

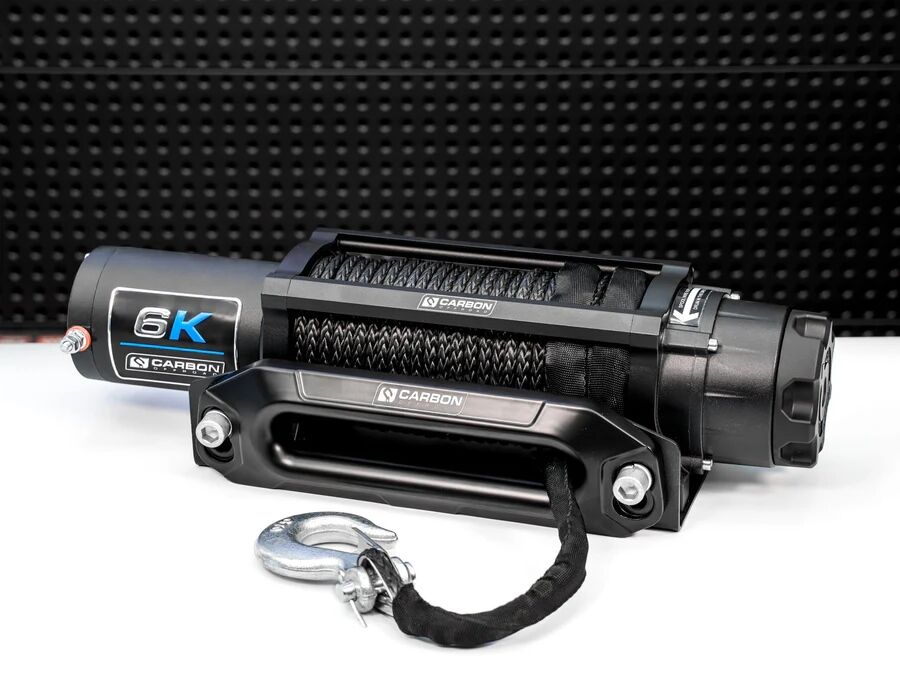

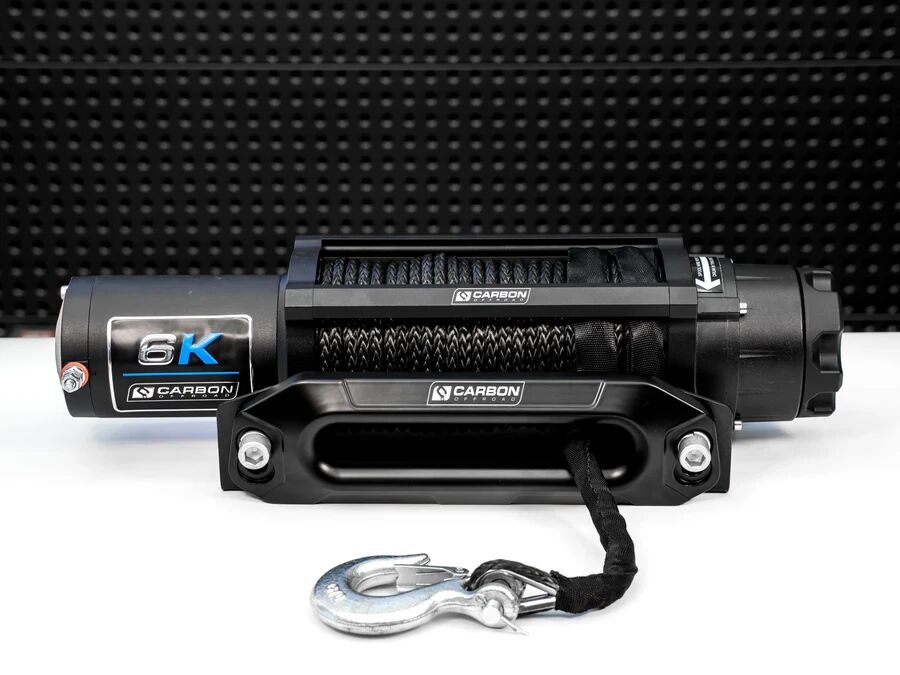

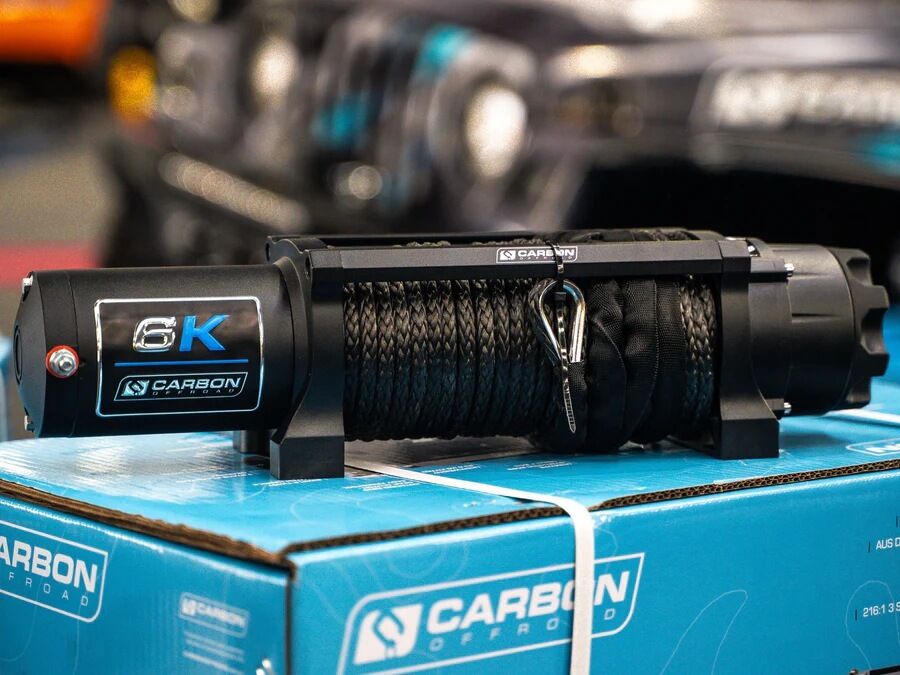

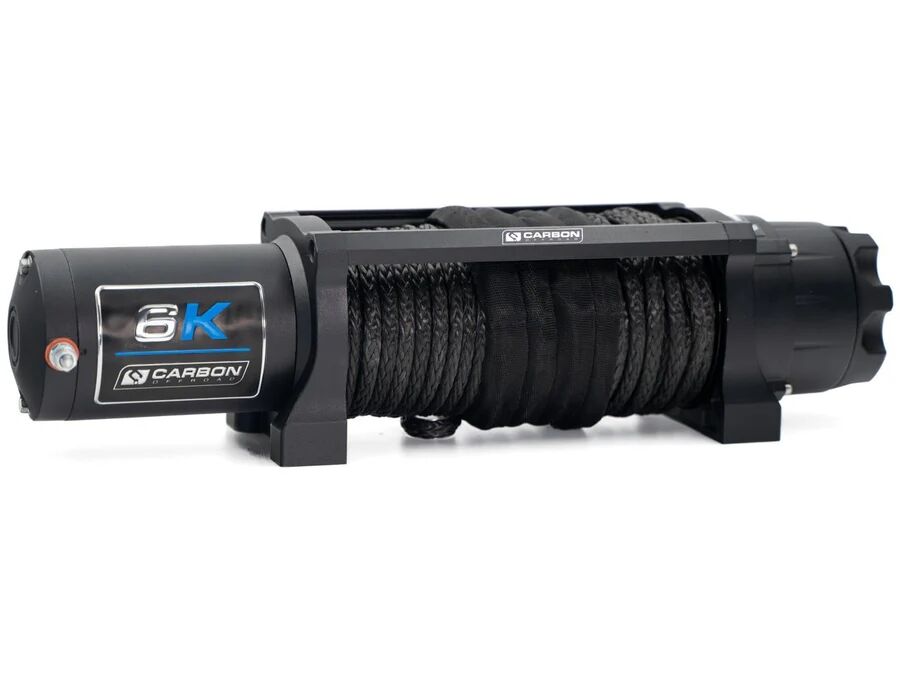

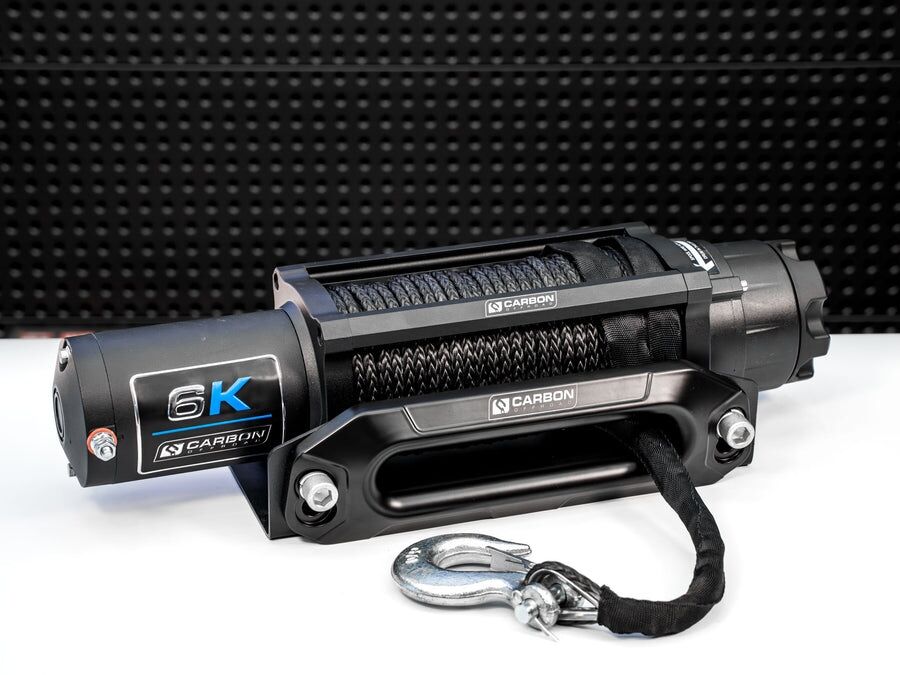

With 6,000 Lbs Of Pulling Capacity And a Generous 26m Synthetic Rope On Its Extended Drum, The Carbon CW-XD6L Is Engineered For Versatile Duty On ATVs, Compact 4Wds, Caravans, Trailers And Boats. Sealed Motor And Geartrain Allows For Flawless Operations In Extreme Conditions. Permanent Magnet Motor Provides Heavy Duty Torque For Increased Pulling Power. Cam Action Disengages Gears For Near Silent Free-Spooling. Mechanical And Dynamic Brake Offers Increased Control And Prevents Rollback.

Please Note This Kit Does Not Include The Winch Cradle In The Pictures.



Specification

Rated Line Pull: 6000 lbs, (2725kg) Single-Line

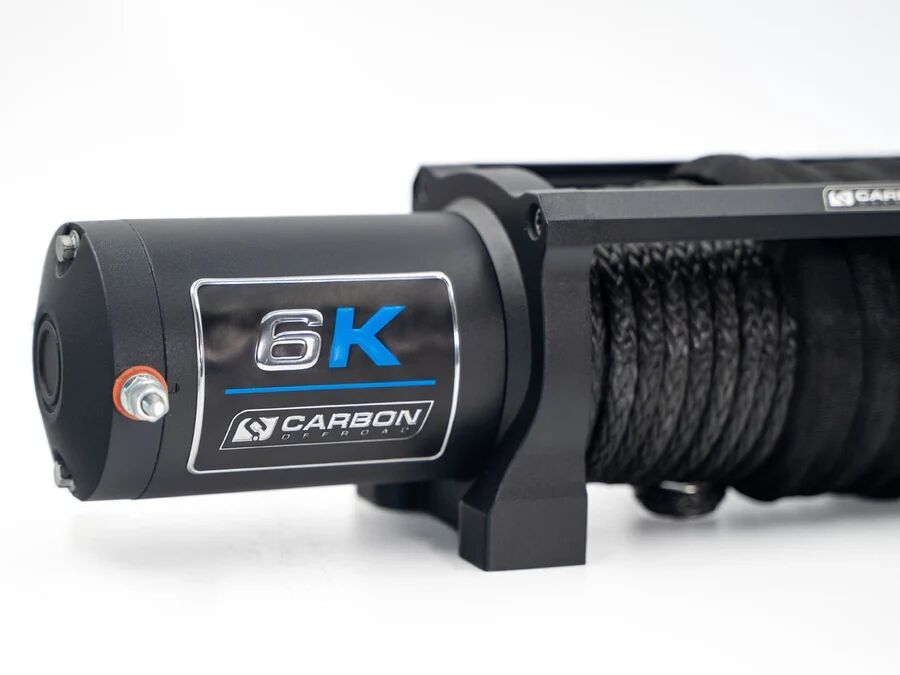

Motor: 12V DC 2.5 HP Permanent Magnet

Remote Control: Handlebar Mini-Rocker

Wireless Remote Control: Included

Geartrain: 3-Stage Planetary

Gear Ratio: 147:1

Clutch: Roller Disc Full Load Automatic

Brake: Automatic Brake In The Motor Bracket

Aluminium Hawse

IP Rating: IP66 For Winch And Solenoid (Excludes Remote Control And Switch)

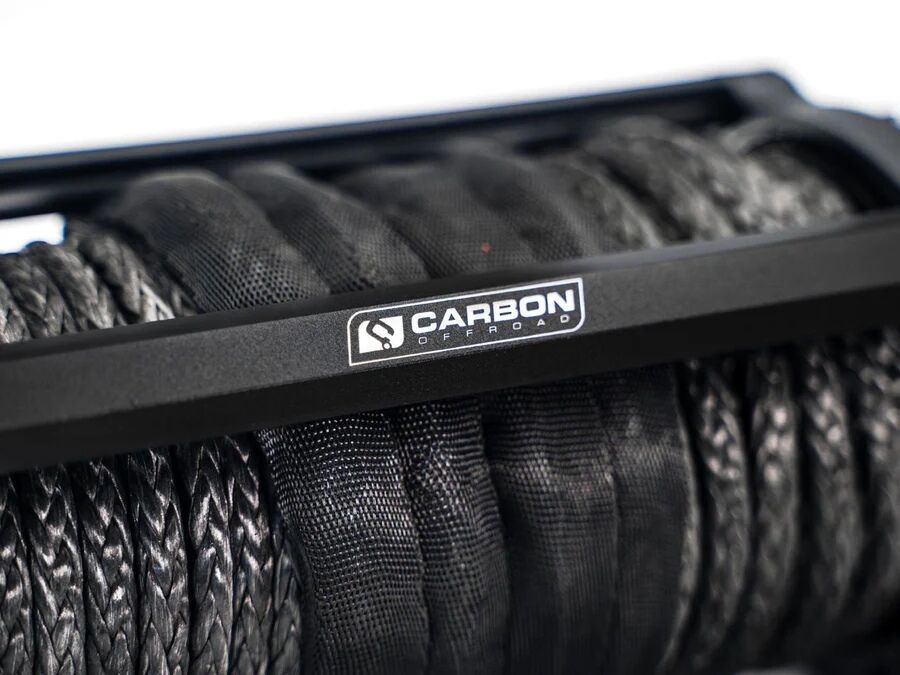

Synthetic Rope: 26m x 6.5mm Diameter

Drum Diameter/Length: 51mm x 208mm

Mounting Bolt Pattern: 254mm x 76mm

Recommended Battery: 650 CCA Minimum For Winching

Winch Dimensions (L x W x H): 473 x 125 x 120mm



Package

1 x Winch

SKU CBN-CW-XD6L
Brand CARBON OFFROAD
Shipping Weight 12.0000kg
Shipping Width 0.170m
Shipping Height 0.230m
Shipping Length 0.530m
Shipping Cubic 0.020723000m3
