Feature

Extreme Duty Construction: Built to the exacting standards of the Scout Pro Extreme Duty Performance Series for maximum reliability, featuring a matte black powder coat finish and 316 stainless steel hardware.

Reliable Clutch System: Features a rotating ring gear clutch operated by a stylish chrome freespool clutch handle with an etched Carbon Offroad logo.

Optimised Winch Drum: The checker-knurled winch drum provides superior grip for the synthetic rope under heavy loads.

MegaPro Upgrades: Includes the Carbon Offroad MegaPro Premium CNC billet type 3 hard anodised multi-position fairlead for superior rope protection.

Specification

Part Number: CW-XD10

Rated Line Pull: 4536kg (10000lbs) single-line

Motor: 12V DC 6.0 HP series wound (24V option available)

Geartrain: 3-Stage Planetary

Gear Ratio: 180:1

Clutch: Rotating ring gear clutch

Brake: Automatic brake in the motor bracket

Synthetic Rope: 24m x 10mm (78.7ft x 3/8")

Fairlead: MegaPro CNC billet type 3 hard anodised

Hardware: 316 stainless steel

Drum Dimensions: 63mm x 224mm (2.48" x 8.8")

Mounting Bolt Pattern: 254mm x 114.3mm (10.0" x 4.5")

Recommended Battery: 650 CCA minimum for winching

Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")

Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8" x 7.9" x 8.7")

Winch Weight (Bare): 19.0kg (41.9 lbs) with synthetic rope attached

Total Kit Weight: 26.7kg (58.9 lbs) including control box, cables, bolts & fairlead

12V DC Performance Specs

Package

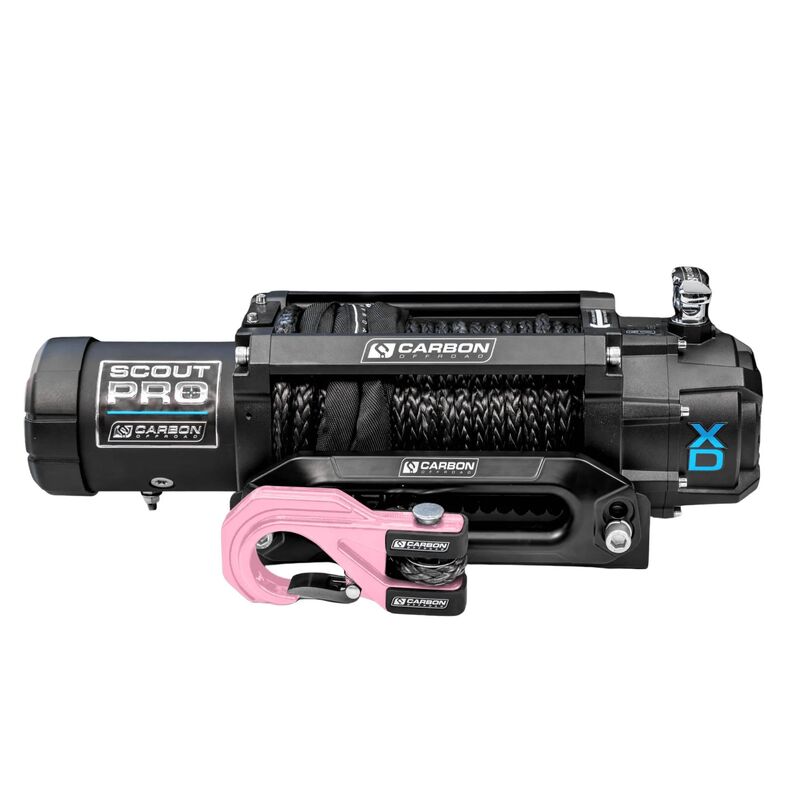

1 x Carbon Offroad Scout Pro XD10 10000lb Winch (CW-XD10)

1 x Synthetic Winch Rope (24m x 10mm, black)

1 x Winch Rope Thimble

1 x MegaPro CNC Aluminium Fairlead

1 x Carbon Offroad MegaPro Winch Hook

1 x Wired Remote Control (3.7m lead)

1 x Wireless Remote Control

1 x Isolator Switch

1 x Winch Mounting Bolt Kit (mounting bolts, nuts, washers, fairlead bolts)
