Fitment

Fit For Mitsubishi Eclipse Laser EVO 4G63 Early 1 2 3 4340 Forged

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts:Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600~800HP
Strength of the fastening (PSI): 200,000 - 230,000 psi Torque: 48ft ≈ 65 NM
Top acceleration: 7000-9000rpm

Dimensions

Center to center length: 150mm
Big end diameter:48mm
Small end diameter: 21mm
Big end width: 28.3mm
Small end width: 28.3mm

Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
-Designed and processed by CNC machine.
-All big and small ends are finished with SUNNEN honing machine
-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
-100% X-rayed, sonic tested and magnafluxed
-Multi-stage heat treated
-Shot peened to relieve stress
-Come with the bronzed bushing suitable for the floating piston pin

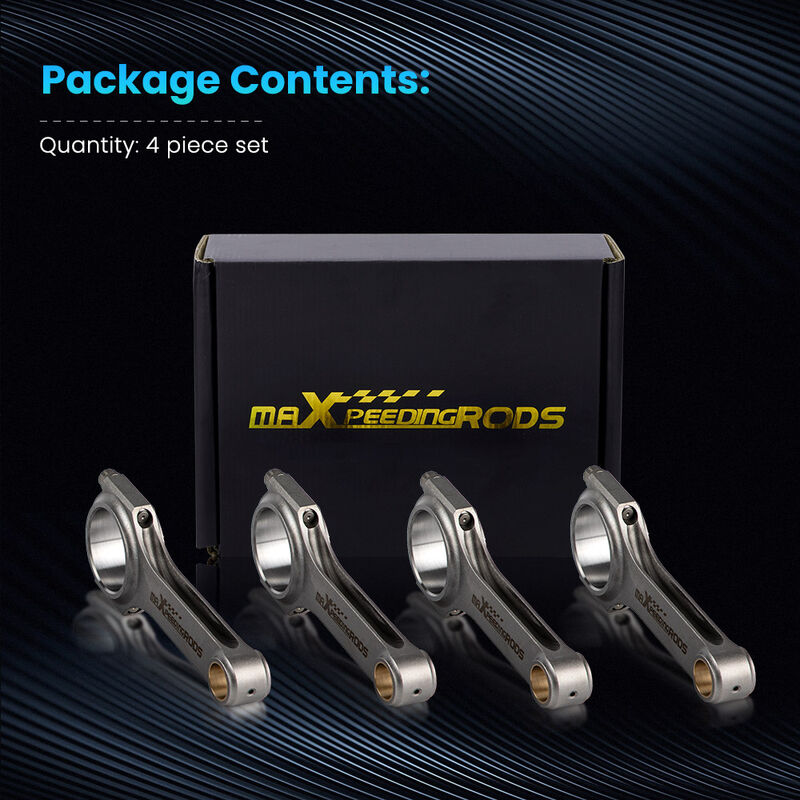

Package

4 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-MIT-150B-21
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
