Specification

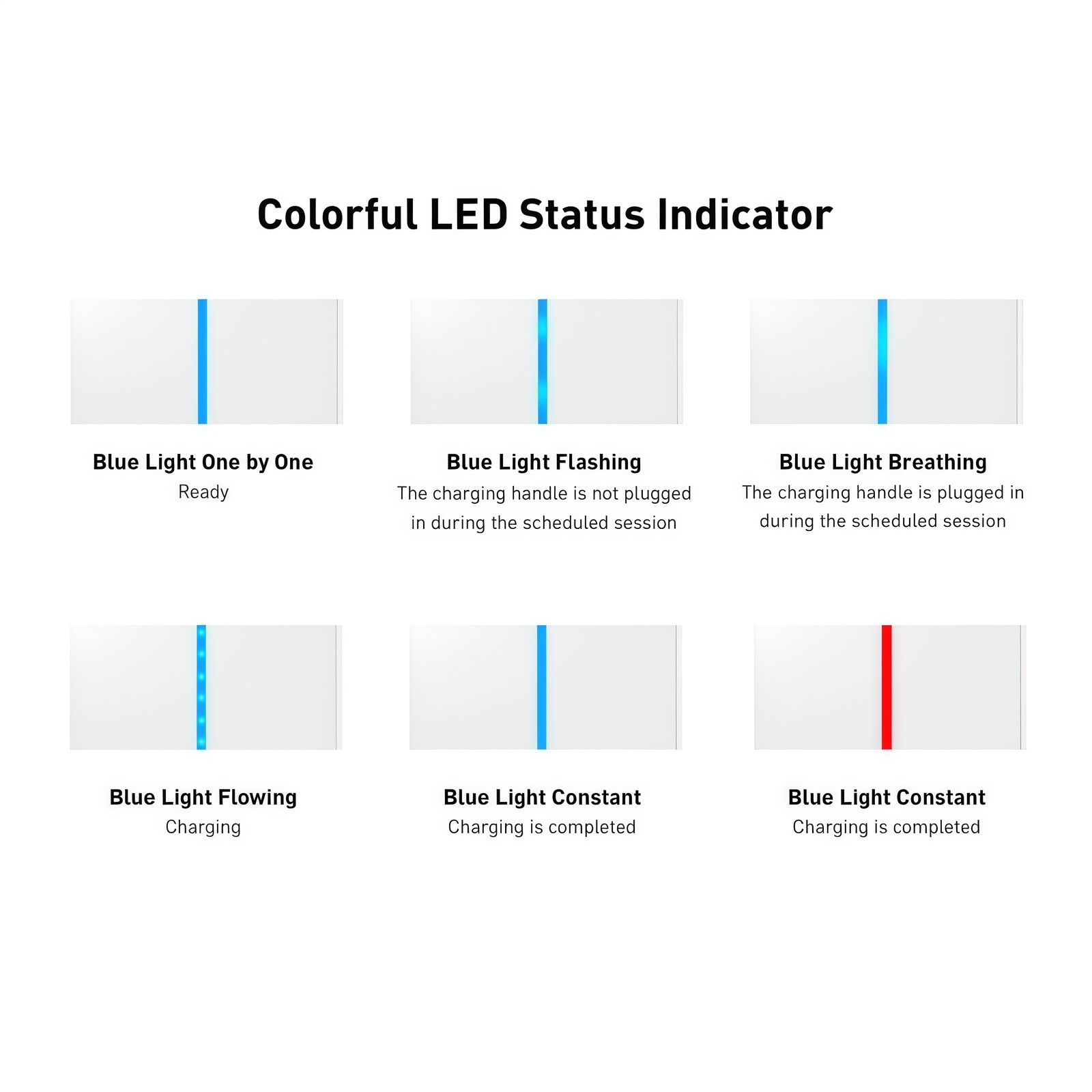

LED Light Status Description

Blue Light One By One Ready

Blue Light Flashing The Charging Handle Is Not Plugged In

During The Scheduled Session

Blue Light Breathing The Charging Handle Is Plugged In During

The Scheduled Session

Blue Light Flowing Charging

Blue Light Constant Charging Is Completed

Red Light Constant Alarm State



Specification

Voltage:230V, 1PH

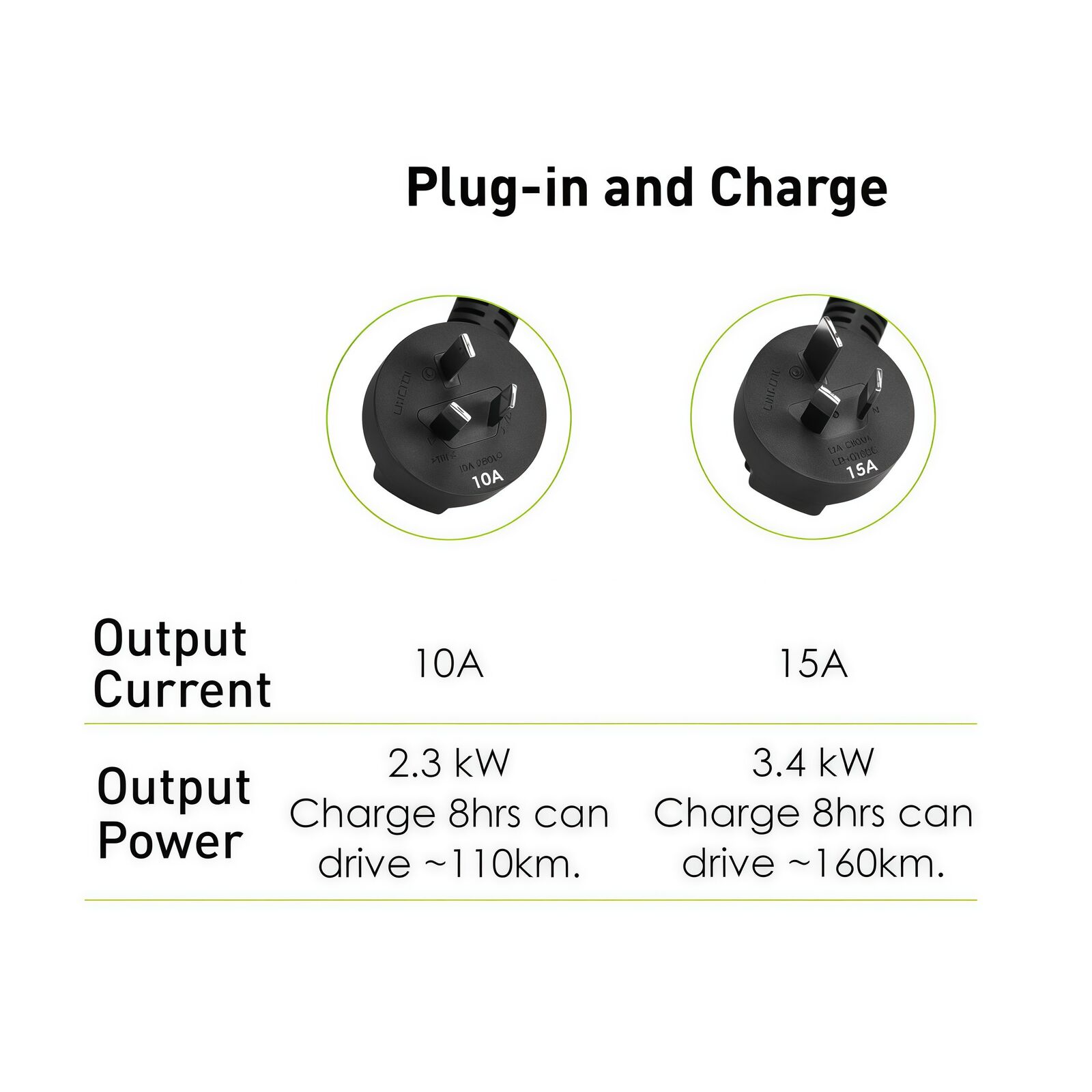

Max. Current:10 A 15 A

Max. Charging Power:2.3 kW 3.4 kW

Grid Frequency:50/60 Hz

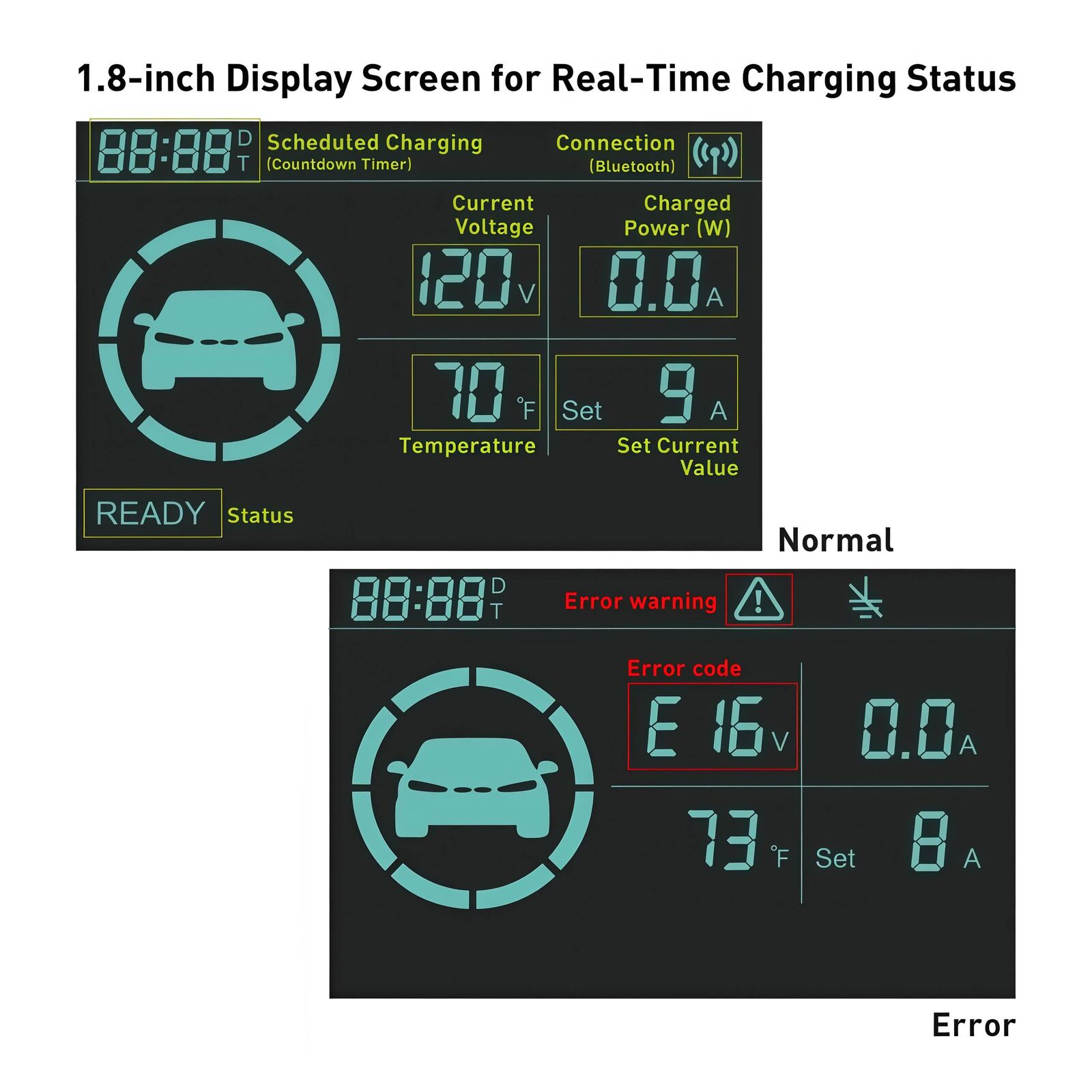

Display:1.8 inch LCD

Dimension:29.8 x 10.6 x 5.3 cm

Weight:4.2 kg

Communication:Bluetooth

AC in Industrial / Household sockets

Charging Cable Type:Type 2

Cable Length:5m

EMS CE Mark (EU)

EMI IEC

Safety CB, IEC, RCM

RF EU, RCM

Electrical Protection

Under Voltage Protection, Over Voltage Protection, Over Load Protection, Over Temp. Protection, Ground

Protection, Leakage Protection

Enclosure Type IP66

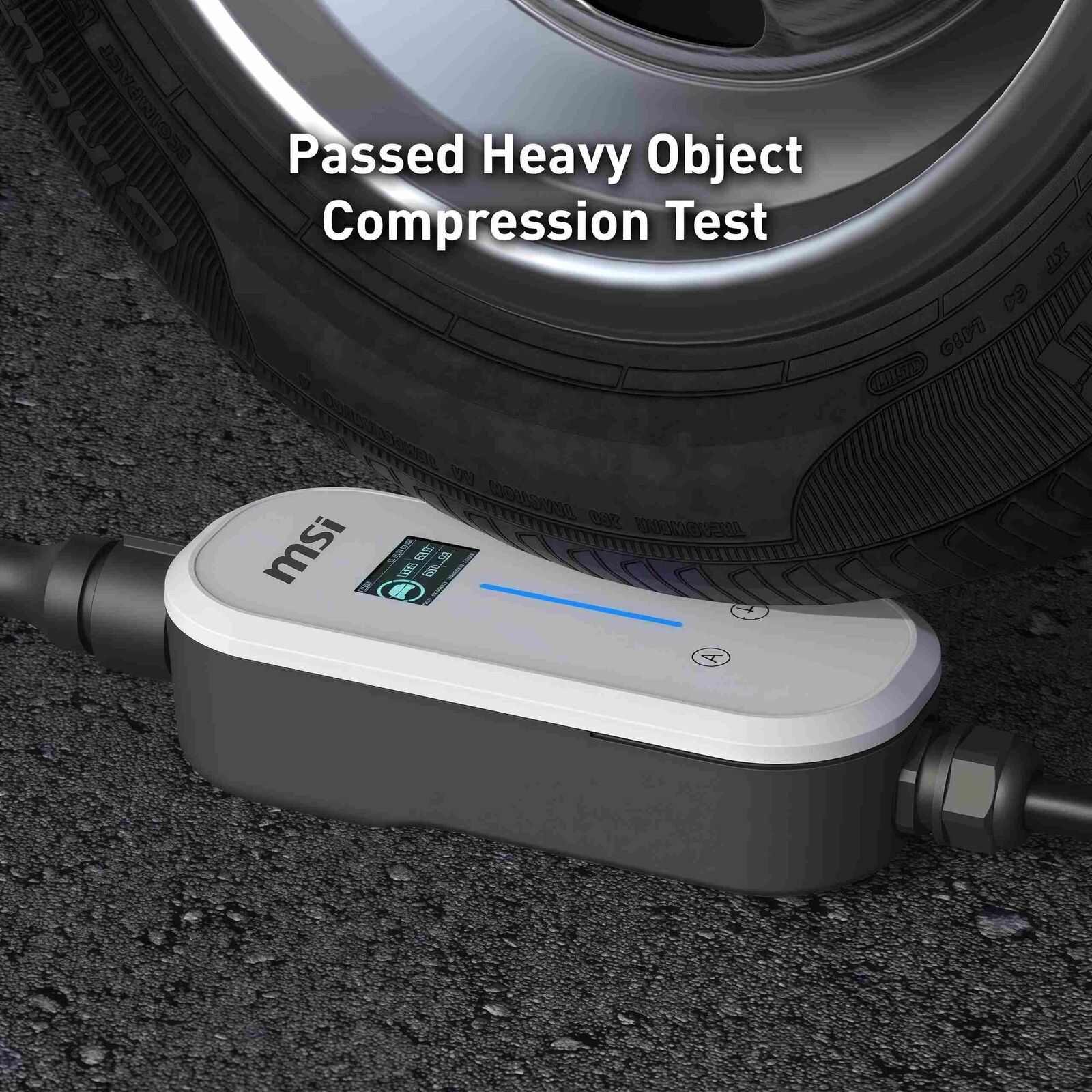

Run Over Test 1.5T

Working Humidity 5 % ~ 95 % RH

Working Altitude <2000 m

Operating Temp. -30℃ ~ +50℃(-22℉~+122℉)





Package

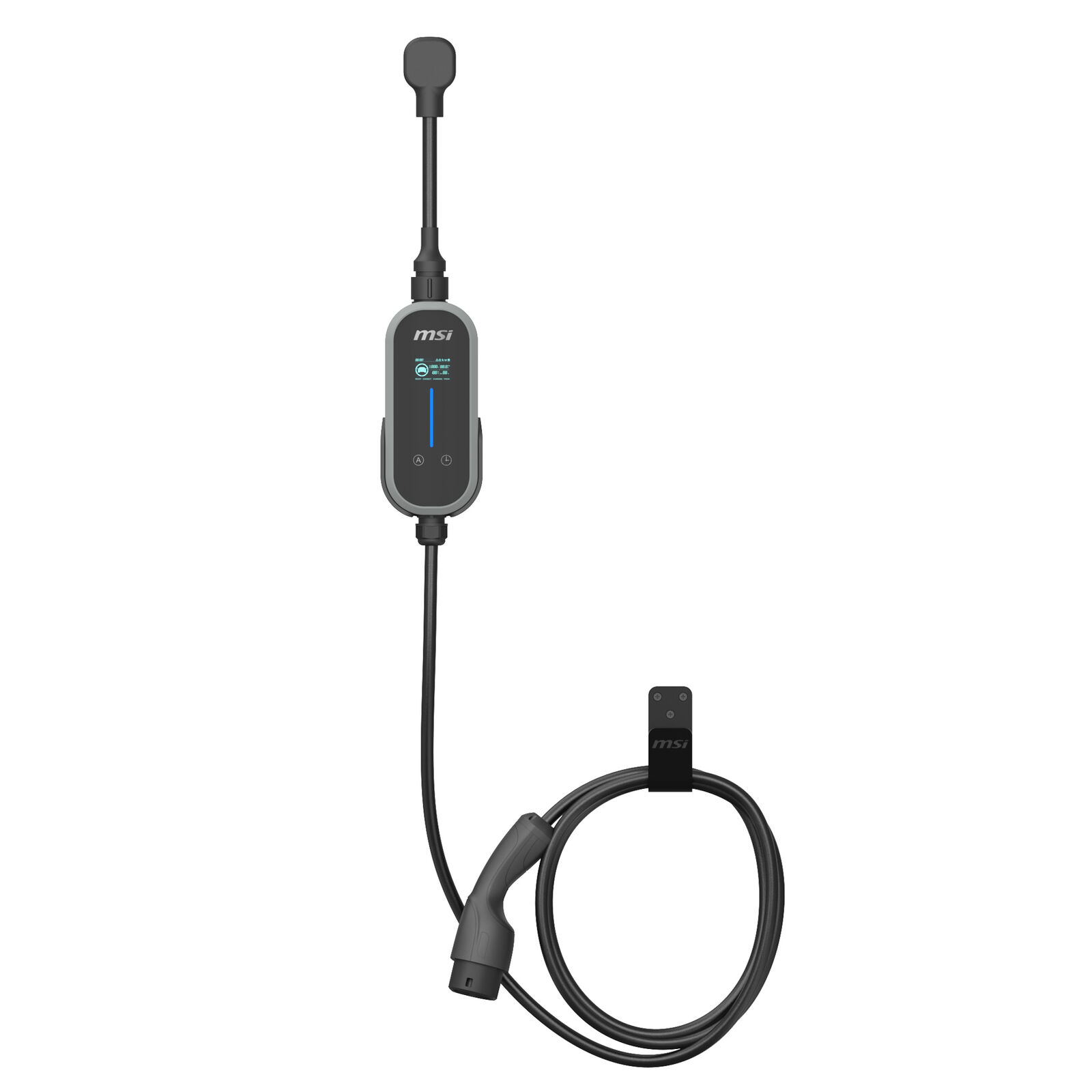

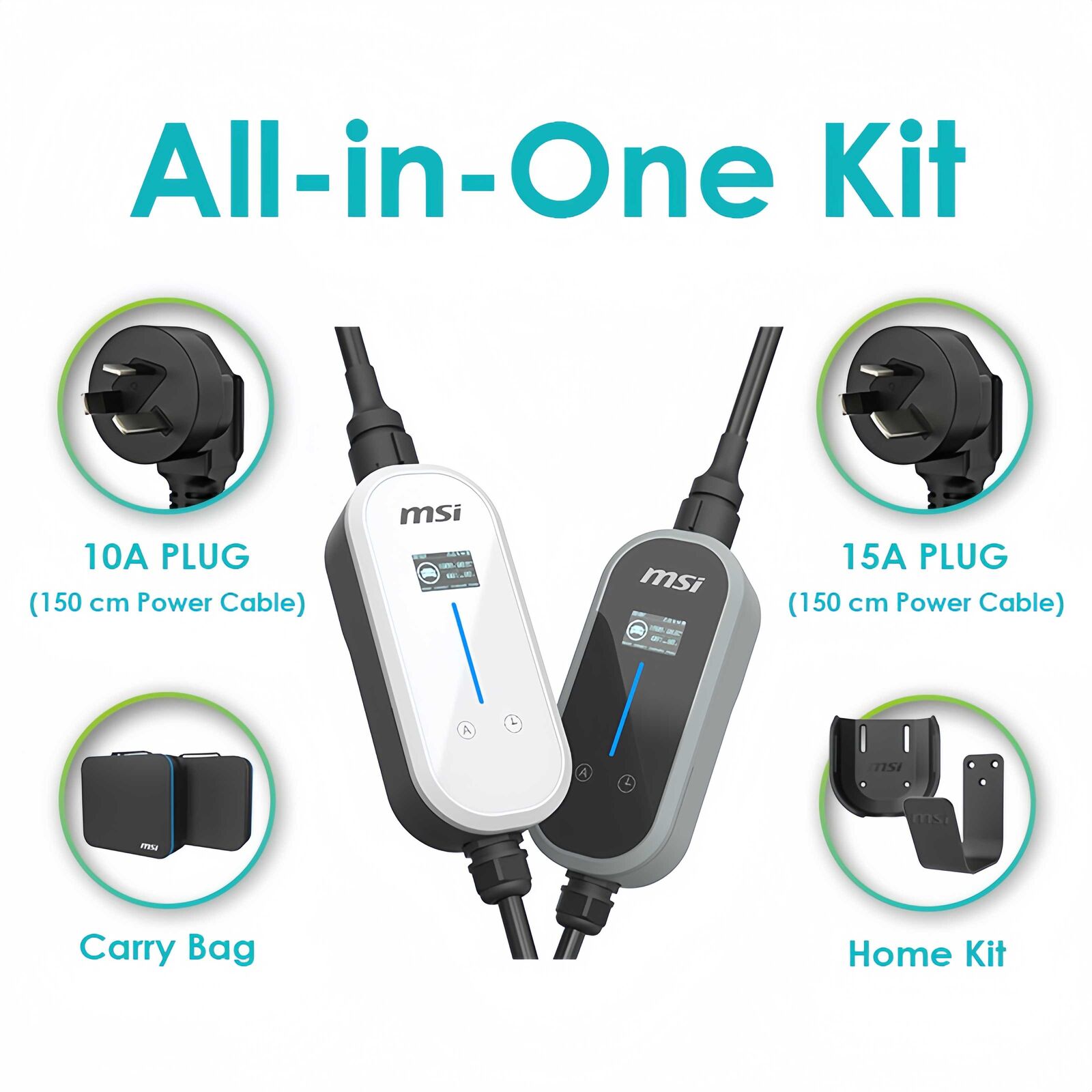

1 x Portable EV Charger

SKU EVCHARGER-GREYEVC-G
Brand MACHTER AUTOPARTS
Shipping Weight 4.2000kg
Shipping Width 0.106m
Shipping Height 0.053m
Shipping Length 0.298m
Shipping Cubic 0.001674164m3
