Specification

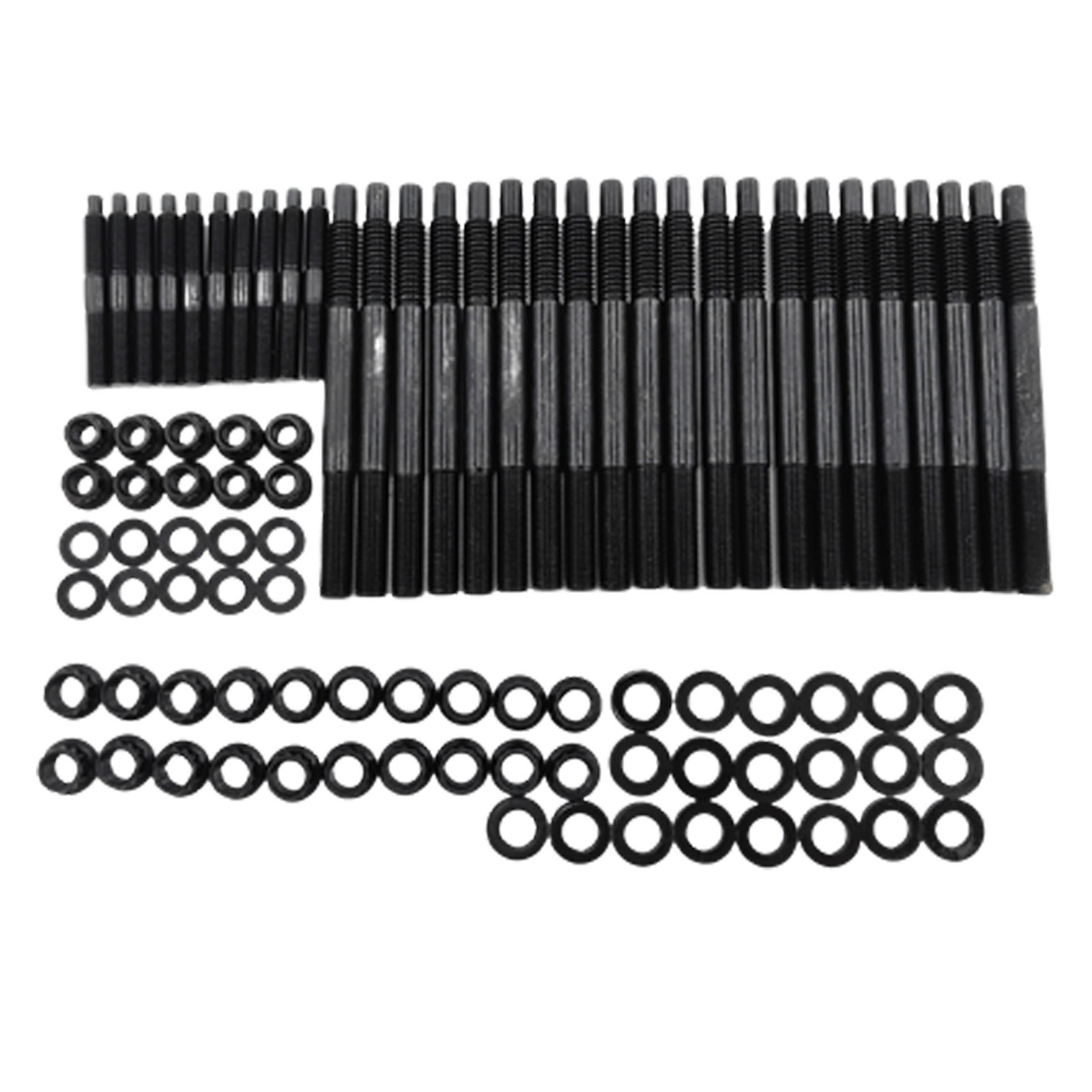

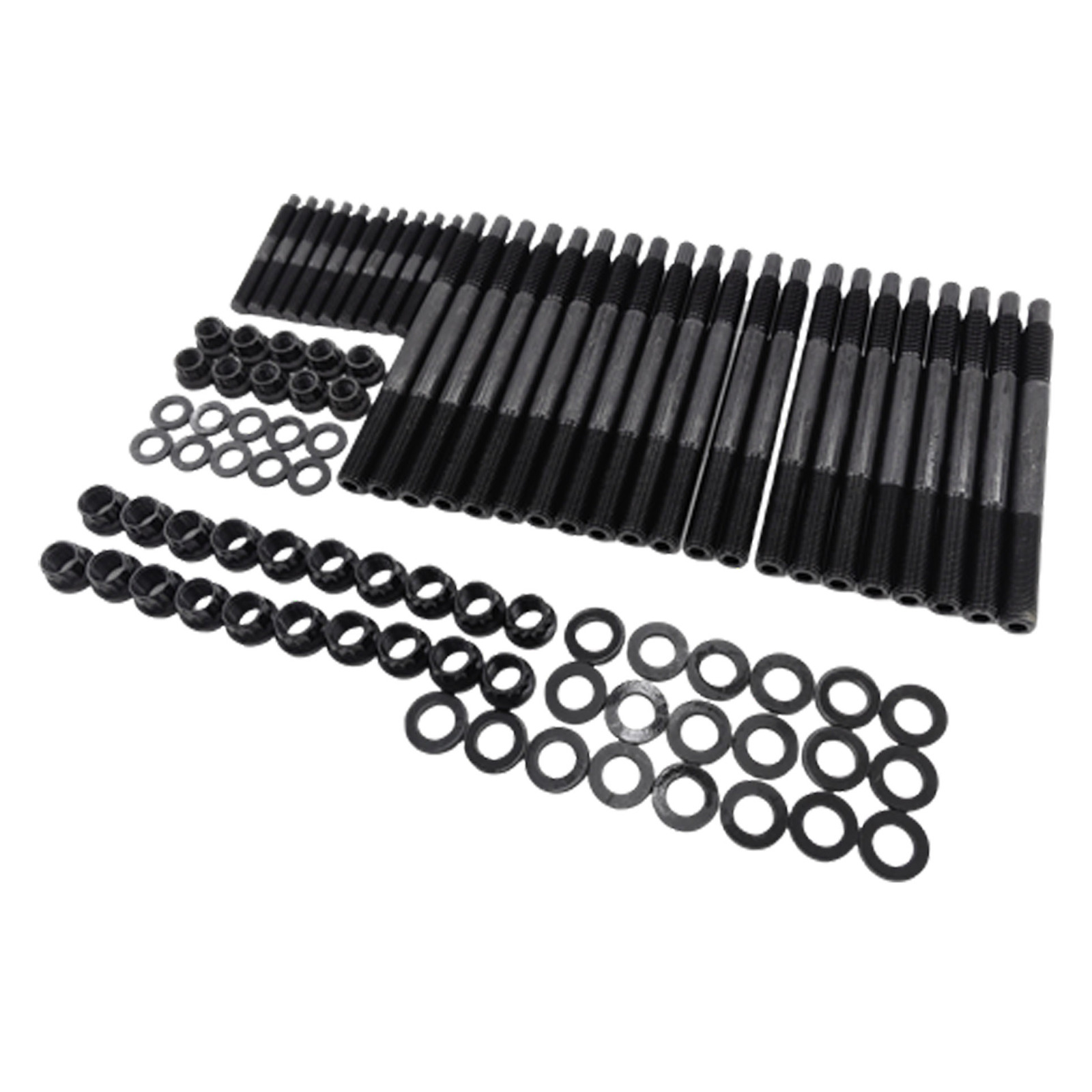

Greatdeal Head Stud Kit with 12 Point Nuts

8740 Grade Material

Fitment

Fit For Holden Chevrolet LS V8 LS1 LS2 LS3 L76 L77 2004-2017

Fit For Holden Caprice VS WH WK Ecotec L36 1996-2004

Fit For Holden Caprice VS WH L67 Surpercharged 1996-2001

Fit For Holden Commodore VS VT VU VX VY Ecotec L36 1996-2004

Fit For Holden Commodore VT VX VY L67 Surpercharged 1997-2004

Fit For Holden Calais VS VT VX VY Ecotec L36 1996-2004

Fit For Holden Calais VS VT VX VY L67 Surpercharged 1996-2004

Fit For Holden Statesman VS WH WK Ecotec L36 1996-2004

Fit For Holden Statesman VS WH WK L67 Surpercharged 1996-2004

Fit For Holden Monaro V2 L67 Surpercharged 2001-2003

Fit For Holden One Tonner VY Ecotec L36 2003-2004

Fit For Holden Crewman VY Ecotec L36 2003-2004

Package

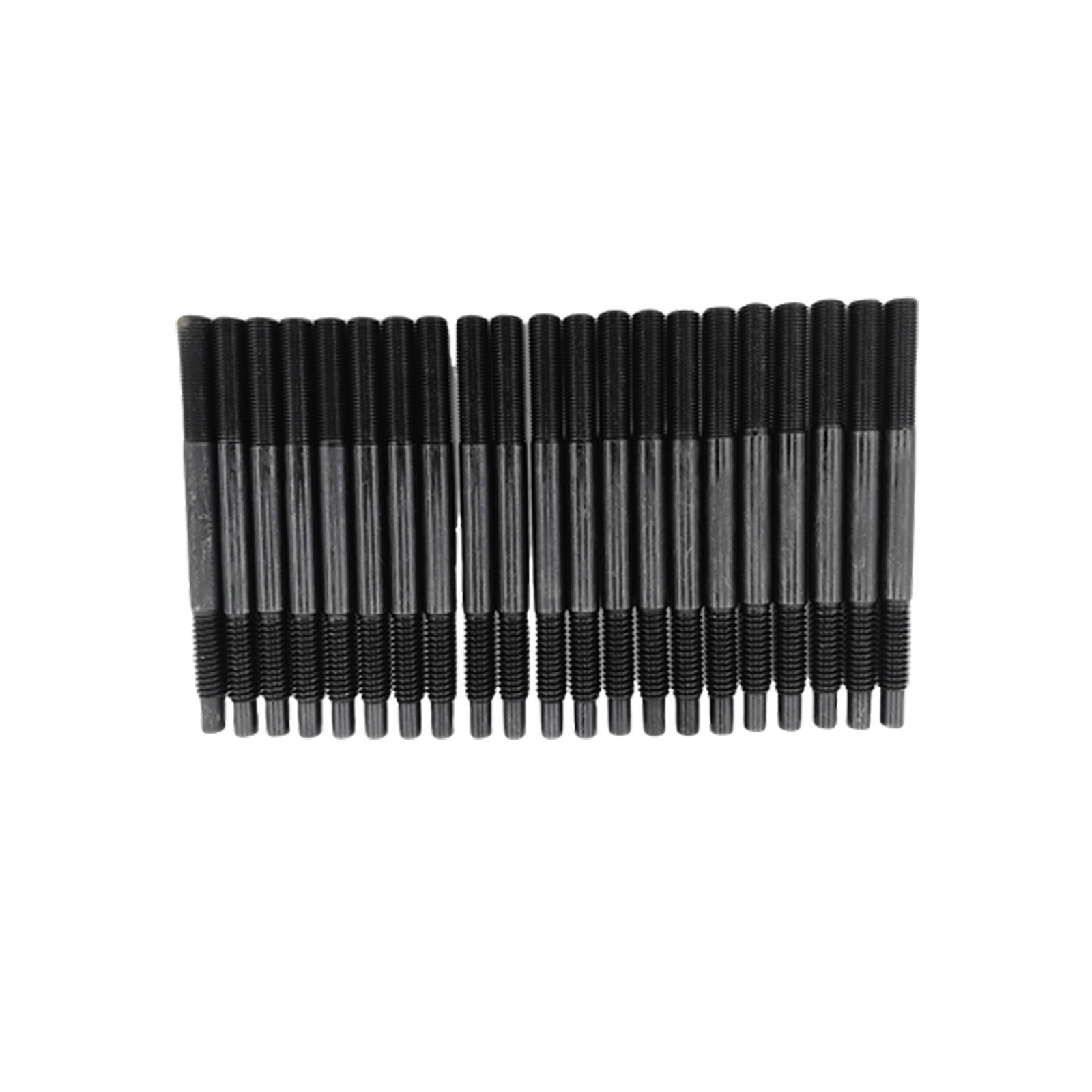

20 x Even Length Studs - 133mm Overall Length, 50mm Shank Length. M11 x 2.00mm Thread Into Engine Block, M11 x 1.25mm Nut End

20 x 12 Point Nuts - M11 x 1.25mm Thread. 18mm Outside Diameter, 11.60mm Height

20 x Flat Washers - 20mm Outside Diameter, 11.10mm Inside Diameter, 3mm Thickness

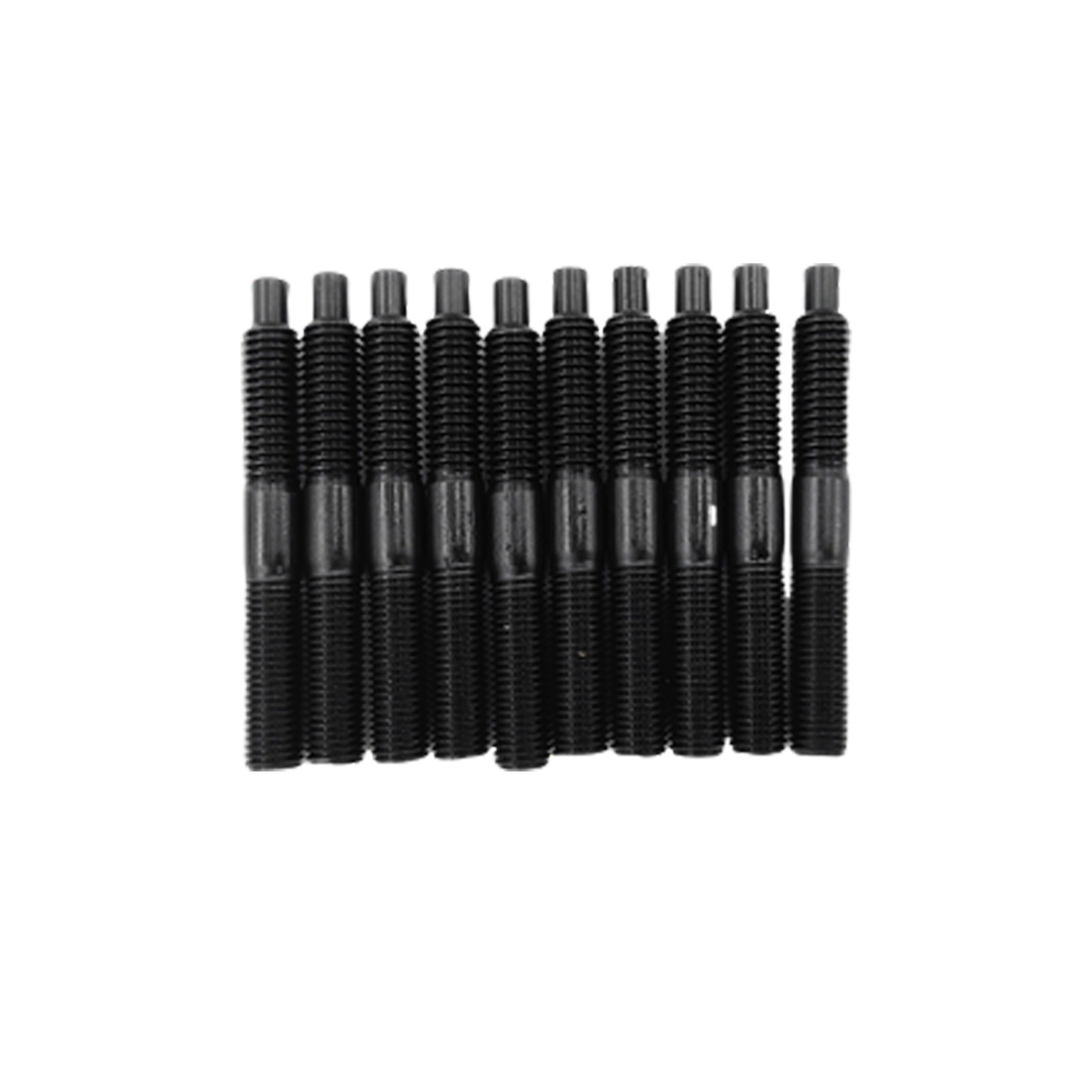

10 x Support Studs - 63.75mm Overall Length, 9mm Shank Length. M8 x 1.25mm Thread Into Engine Block, 7/16"-20 Nut End

10 x 12 Point Nuts - 7/16"-20 Thread. 15.70mm Outside Diameter, 10mm Height

10 x Flat Washers - 15.75mm Outside Diameter, 8.50mm Inside Diameter, 2mm Thickness
