Specification

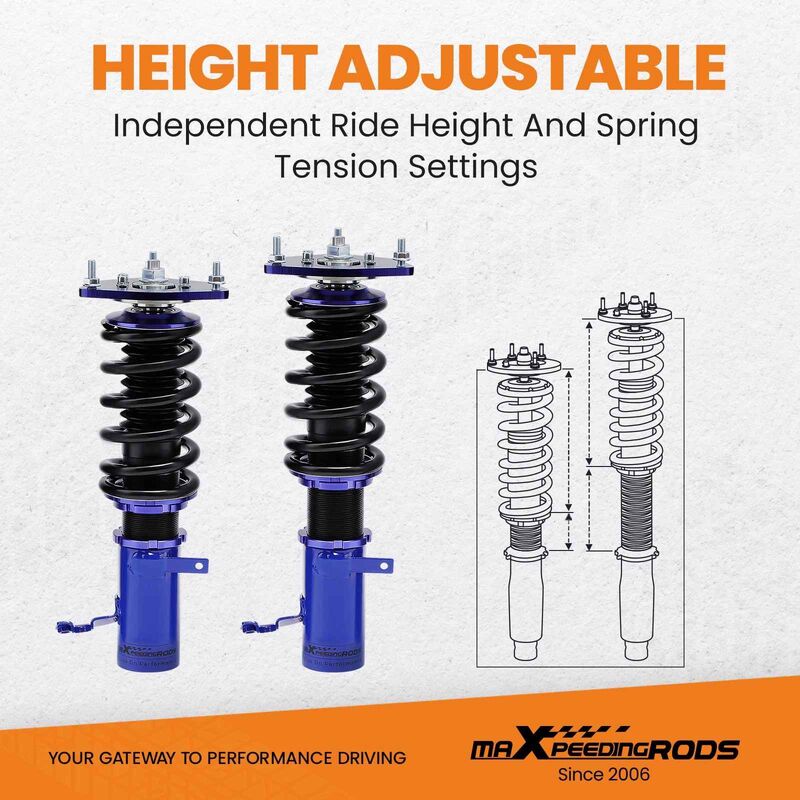

Height adjustable: Yes, lowering 25-75mm depending on the vehicle models

Damping : Not adjustable

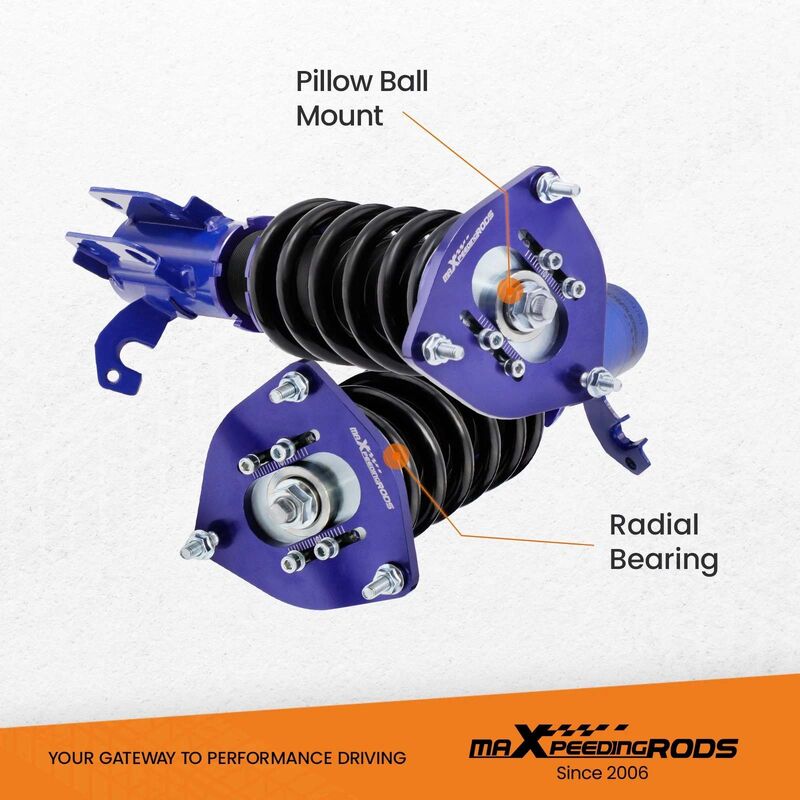

Front top mount: Pillow ball with camber plate

Rear top mount: Pillow ball

Camber adjustable: Available

Spring rate Front: 8 kg/mm (448 lbs/in)

Spring rate Rear: 6 kg/mm (336 lbs/in)

Front spring inner diameter: 70.5 mm

Rear spring inner diameter: 70.5 mm

Spring length Front: 180 mm

Spring length Rear: 230 mm

Spring Preload advised: 7-10 mm

Shock Type: Twin tube

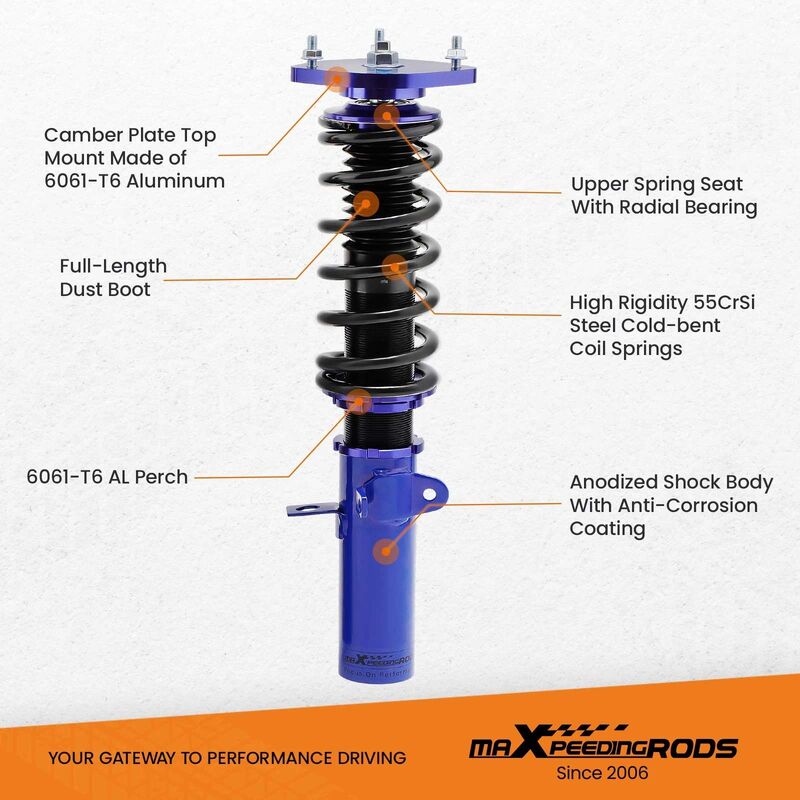

Feature

1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

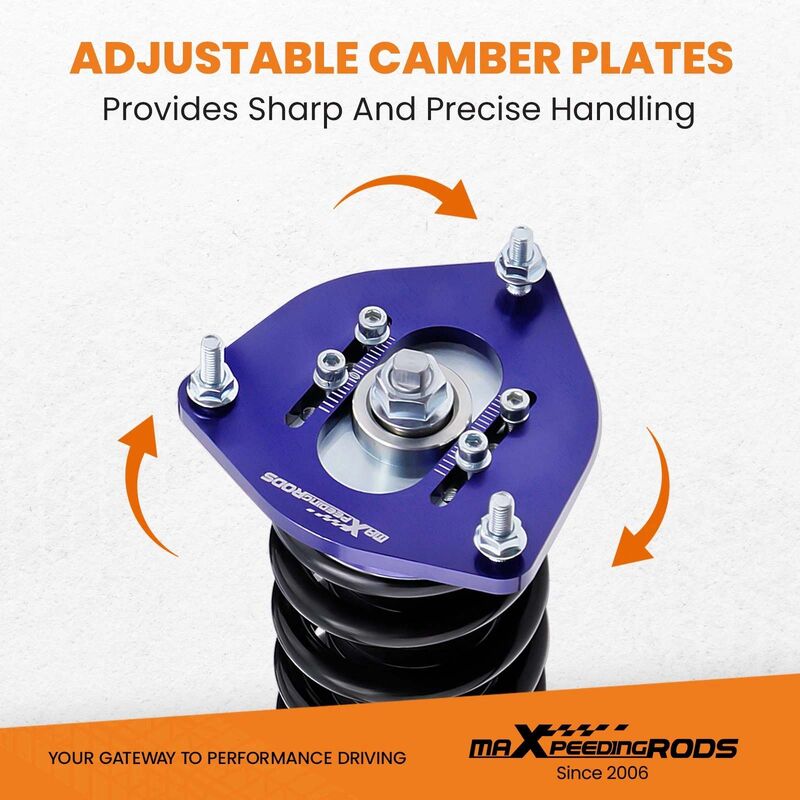

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)

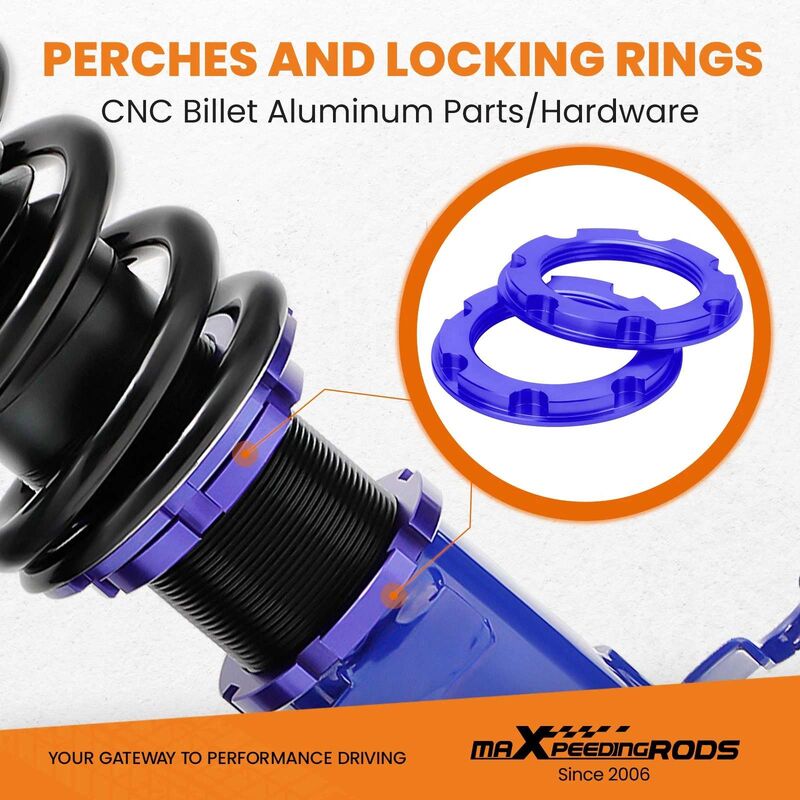

4. CNC machined Aluminum  top mounts and lockers-- - excellent strength, and save weight

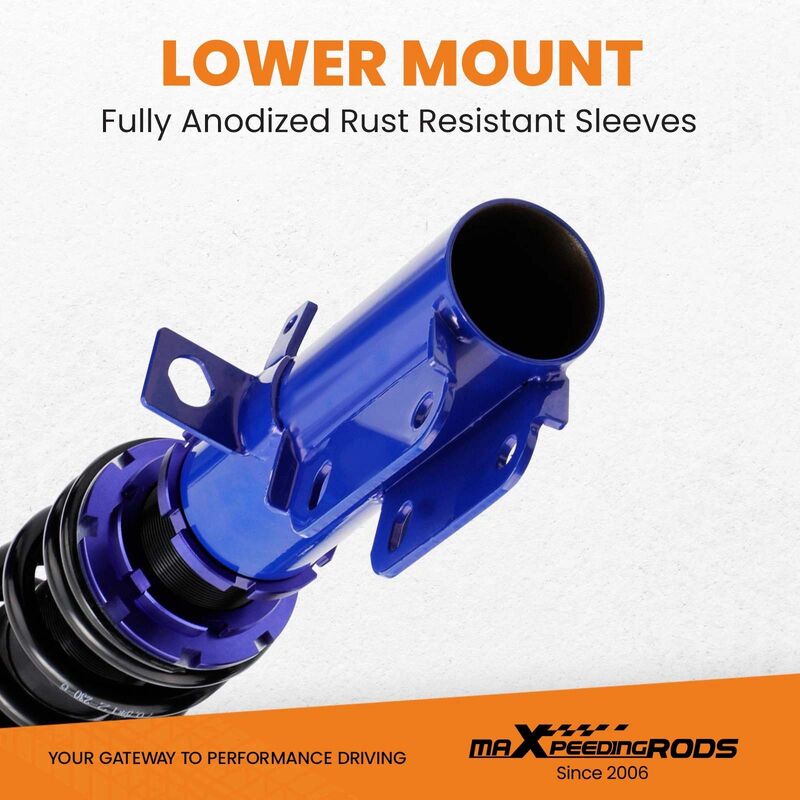

5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable

6. High tensile spring---  600,000 times continuously test to assure its high tensile strength.

7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.

8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

Fitment

Fit For Toyota Corolla E90  1987-1992

Fit For Toyota Corolla E100 1991-1998

Fit For Toyota Corolla E110  1995-2002

Fit For Toyota Corolla AE92  1987-1991

Fit For Toyota Corolla AE101 1992-1998

Fit For Toyota Corolla AE111 1988-2002

Notice: The coilovers kit will "Lower your car" and does not keep to the original ride height.

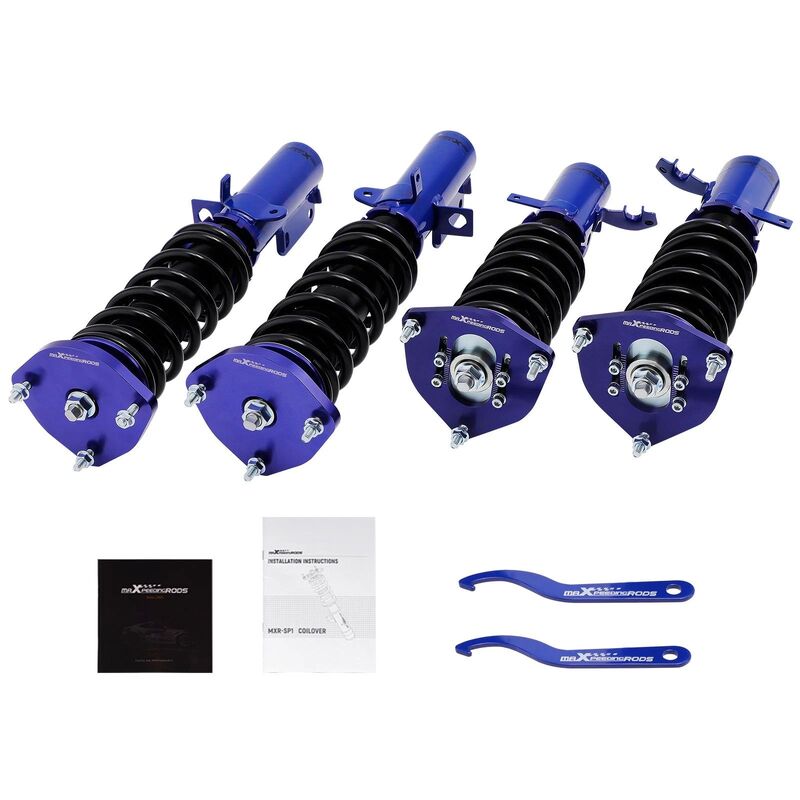

Package

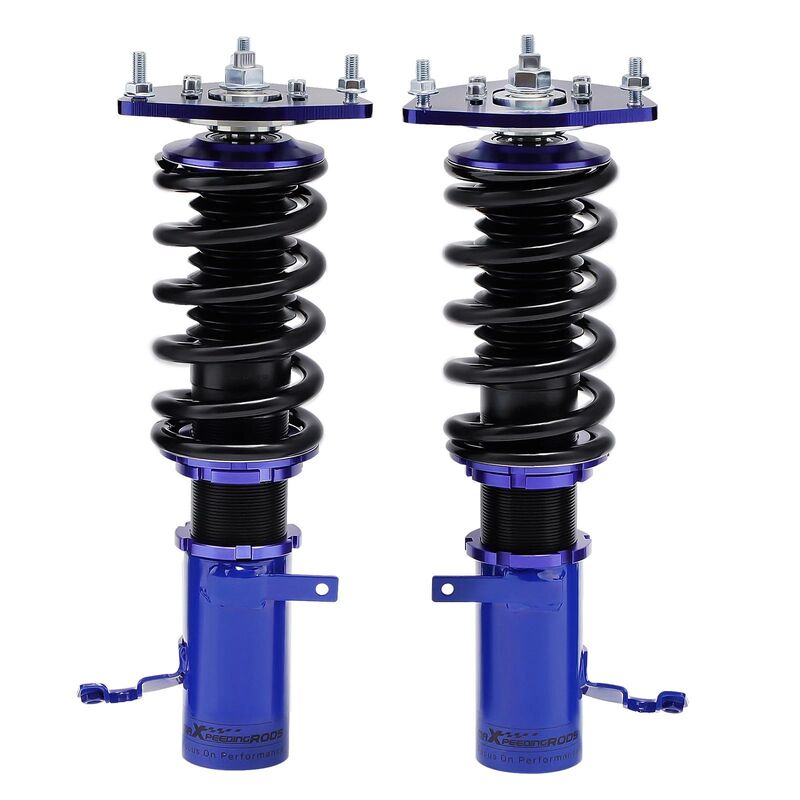

2x Front coil-overs

2x Rear coil-overs

2x C spanners

Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. We suggest regular maintenance for the coil-over, spray with some WD40 every 3-5 months will keep it smooth and clean, which helps to extend the lifetime.
