Fitment

Fit For JDM Fit For Honda Civic CRX Del Sol D16 SOHC ZC VTEC Engines

Specification

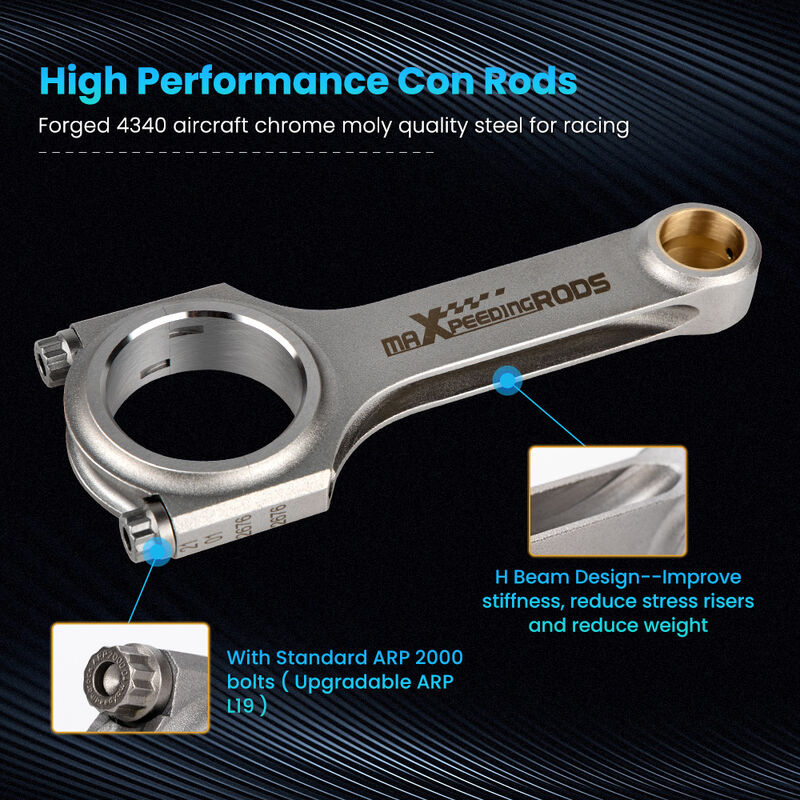

Beam Style: H-beam Street/Strip

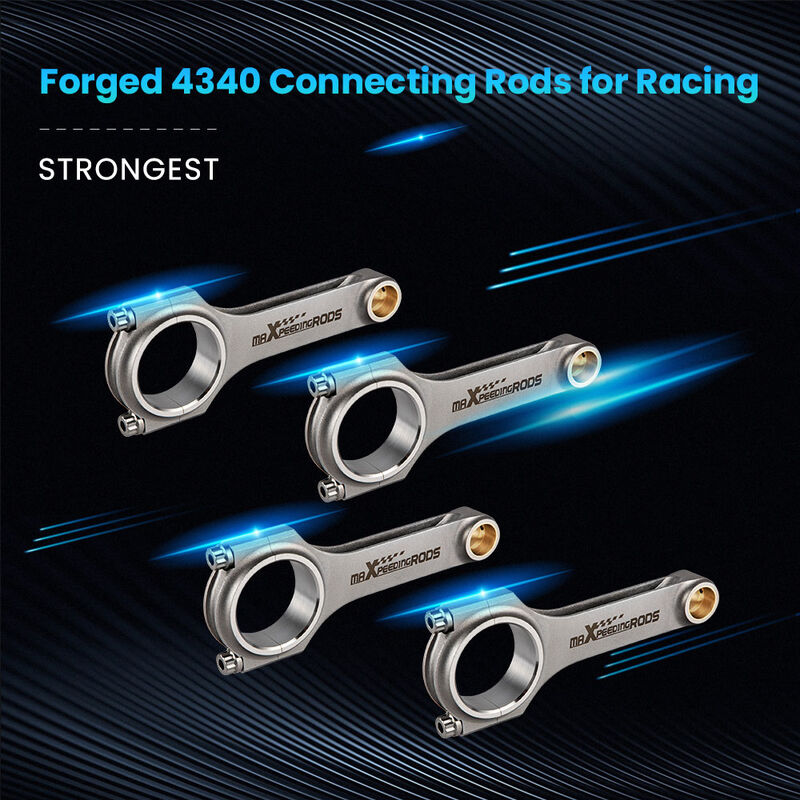

Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

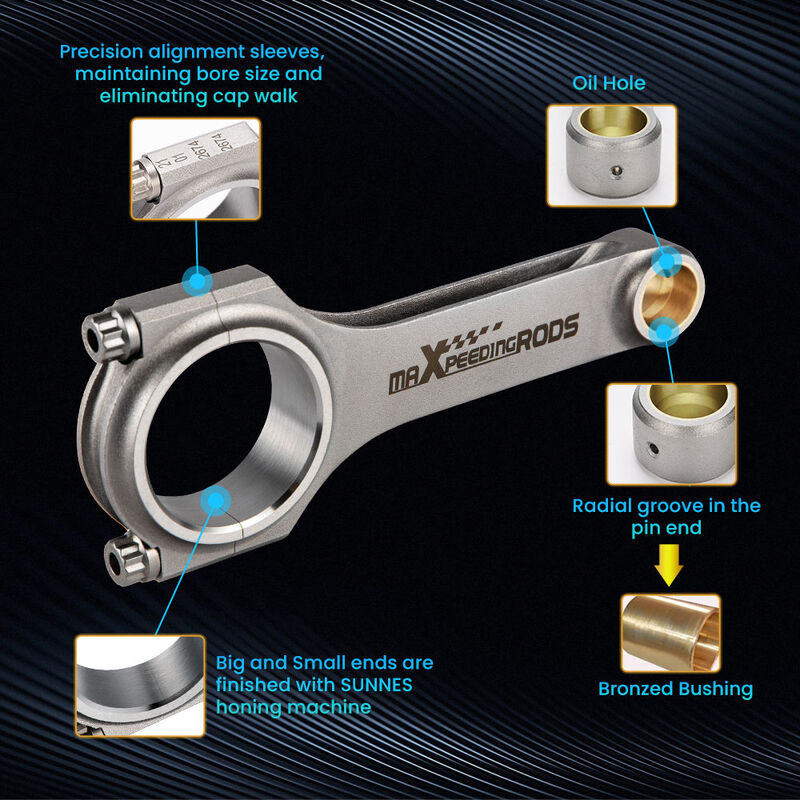

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No

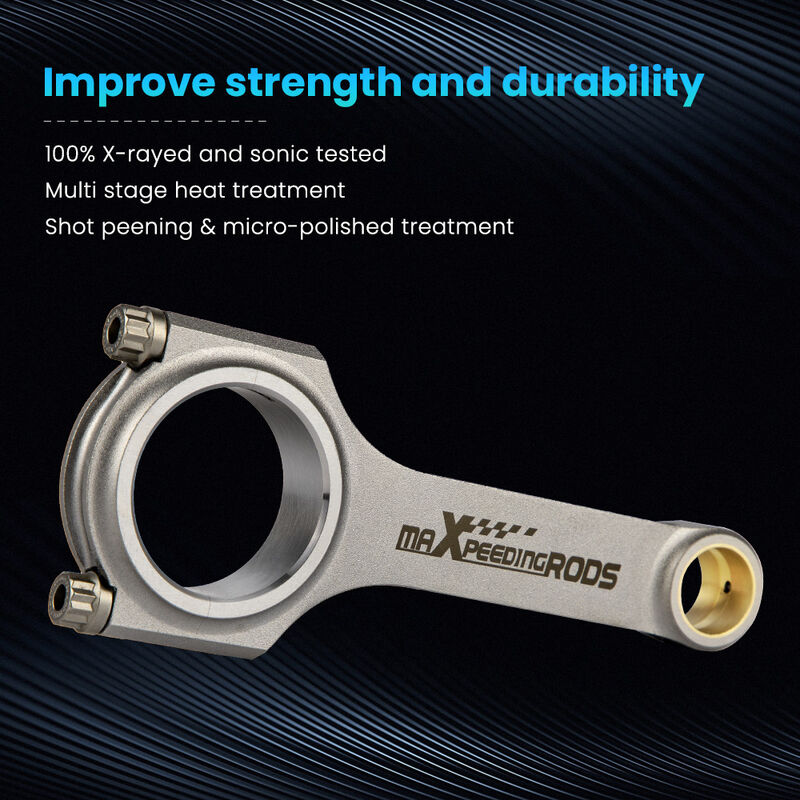

Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

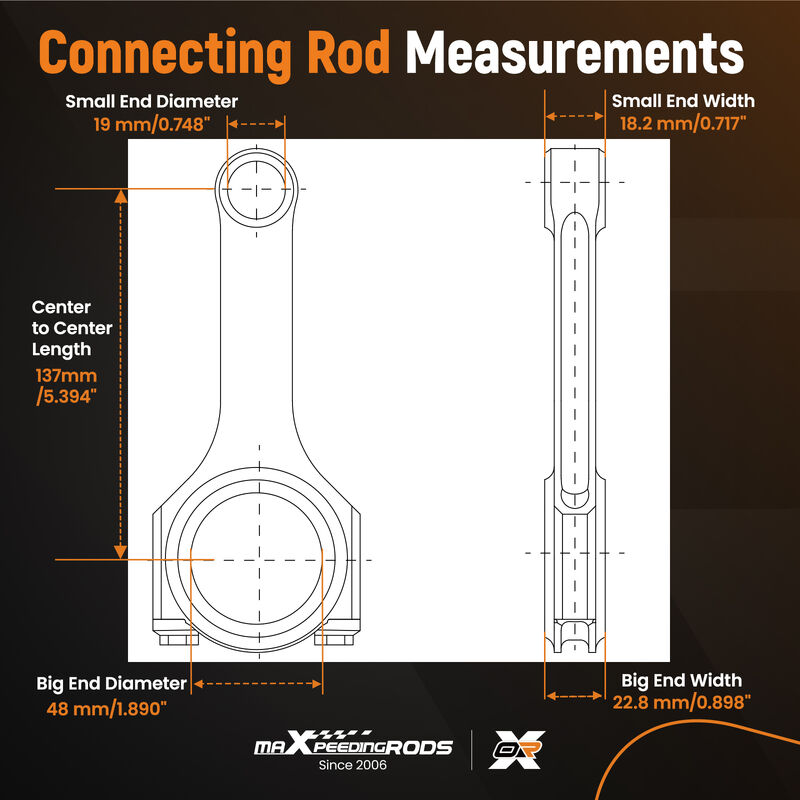

Dimension

Connecting Rod Length Center to Center: 137.00mm/5.394in
Approximate Connecting Rod Weight: 526g
Big End Bore Diameter: 48.00mm/1.890in
Pin End Bore Diameter: 19.00mm/0.748in
Big End Width: 22.80mm/0.898in
Small End Width: 18.20mm/0.717in

Performance Ratings

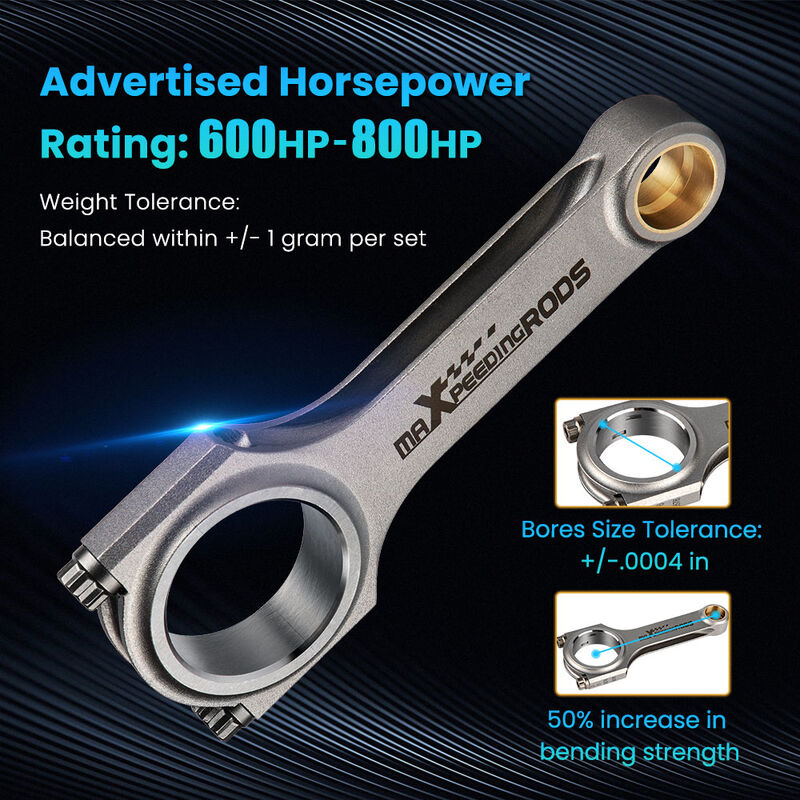

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm

Package

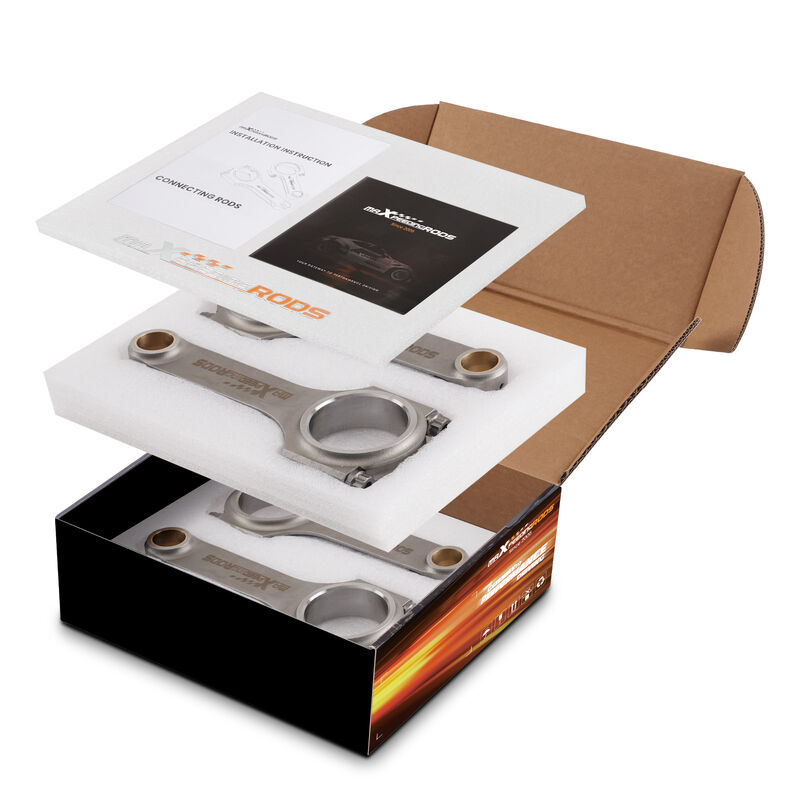

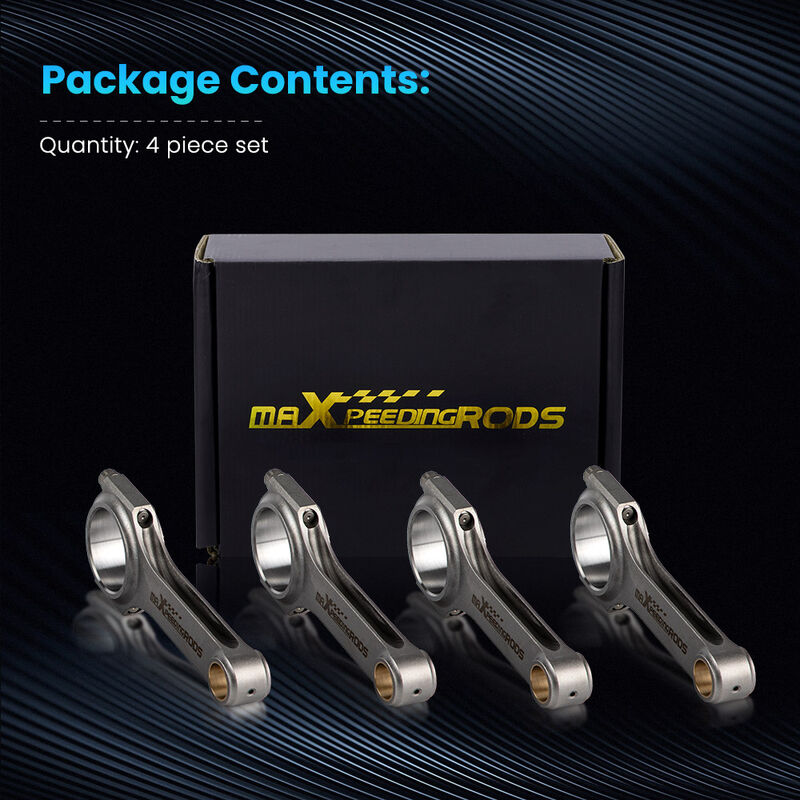

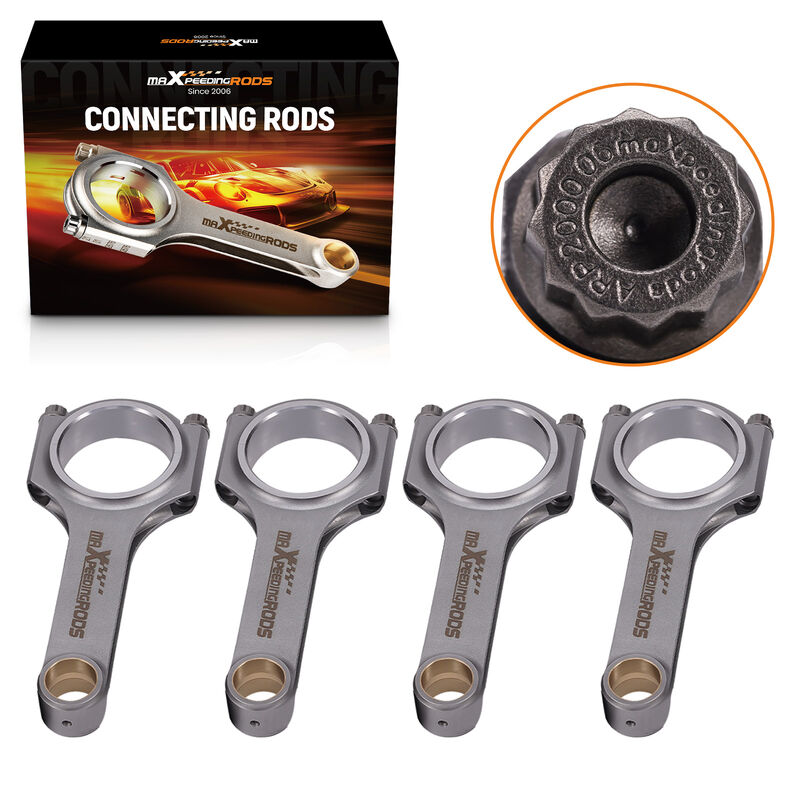

4 x Connecting Rods

SKU MPR-CR-HON-137A-4340
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.300m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.006000000m3
