Fitment

Fit For Audi/VW 1.4L TFSI 1.8T 20V & 2.0L 16V/20V Engines

Specification

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

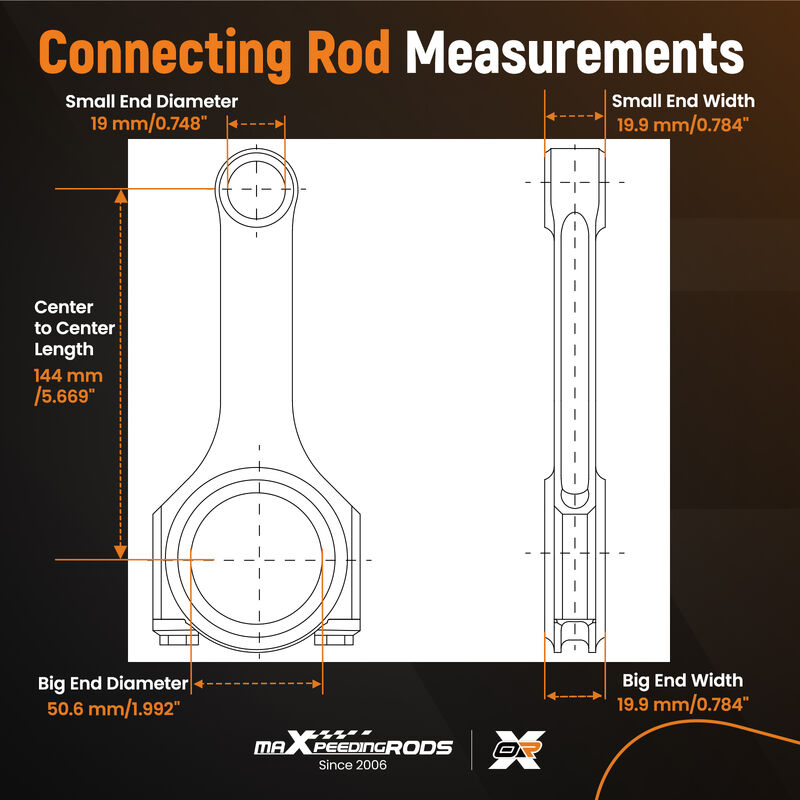

Dimension

Connecting Rod Length Center to Center: 144.00mm/5.670in
Approximate Connecting Rod Weight: 484g
Big End Bore Diameter: 50.60mm/1.992in
Pin End Bore Diameter: 19.00mm/0.748in
Big End Width: 19.90mm/0.784in
Small End Width: 19.90mm/0.784in

Performance Ratings

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 7000rpm

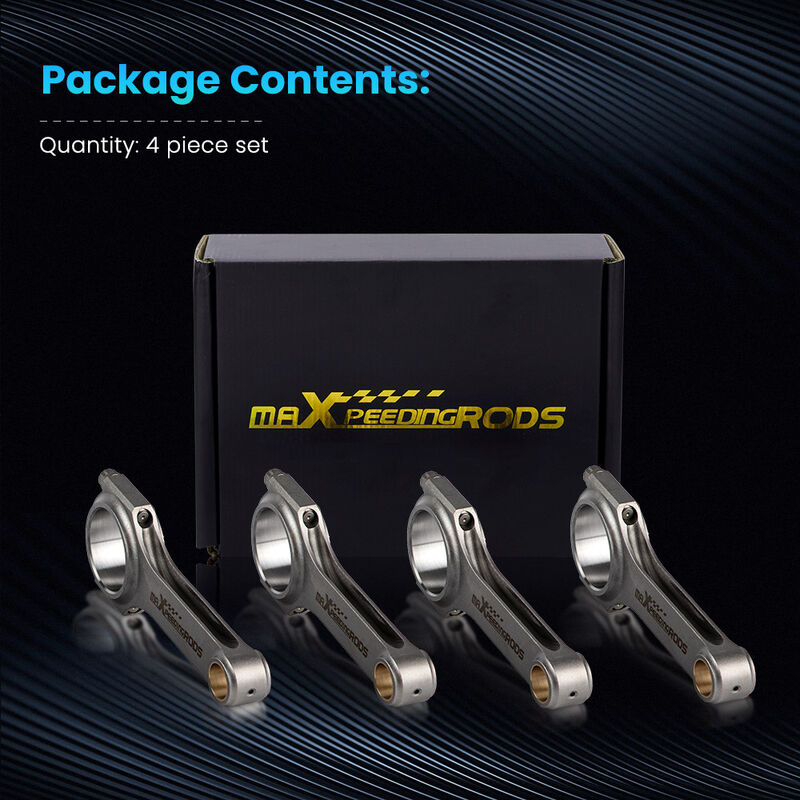

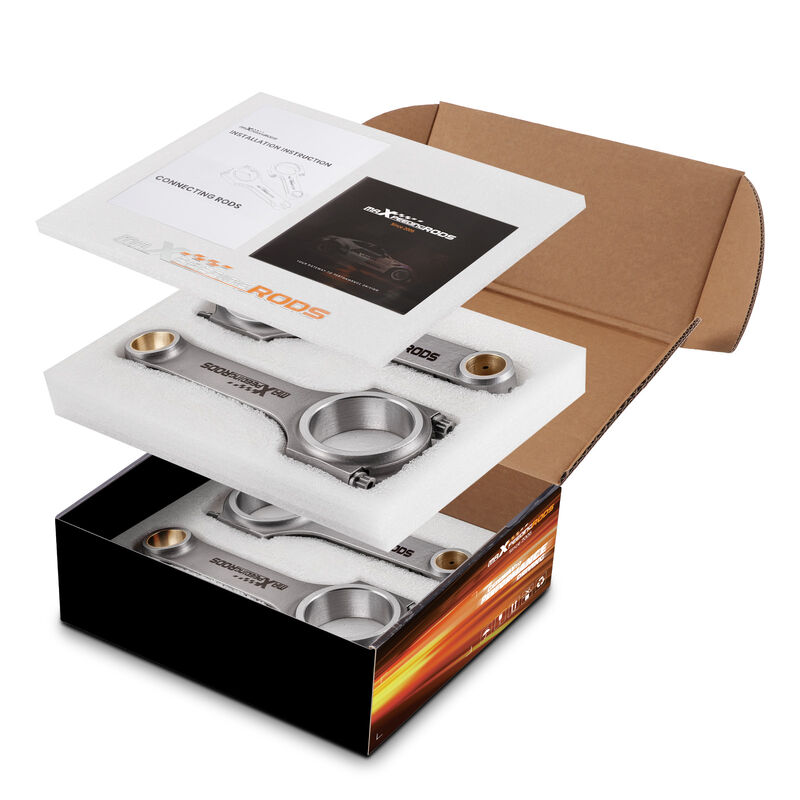

Package

4 x Connecting Rods

SKU MPR-CR-144-19-V2
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
