Fitment

Fit For Volvo S60R 2.5L B5254T2 2004–2009
Fitment Details:
Fit For Volvo S60 - S60 2.5T or S60 2.5T AWD 2003–2009
Fit For Volvo V70 II - V70 2.5T or V70 2.5T AWD 2003–2008
Fit For Volvo XC70 - XC70 2.5T AWD 2003–2007
Fit For Volvo S80 - S80 2.5T 2003–2006
Fit For Volvo XC90 - XC90 2.5T AWD 2003–2012

Specification

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

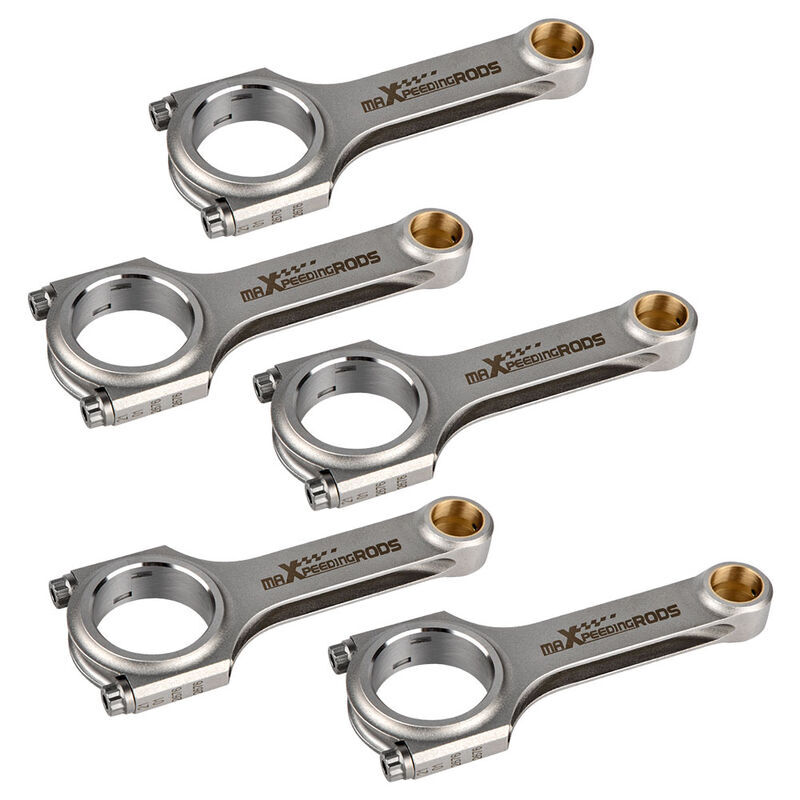

H-beam Conrods Quantity: 5 Pieces as showing in picture
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length: 143mm
Big end diameter: 53mm
Small end diameter: 23mm
Big end width: 25.67mm
Small end width: 25.67mm

Feature

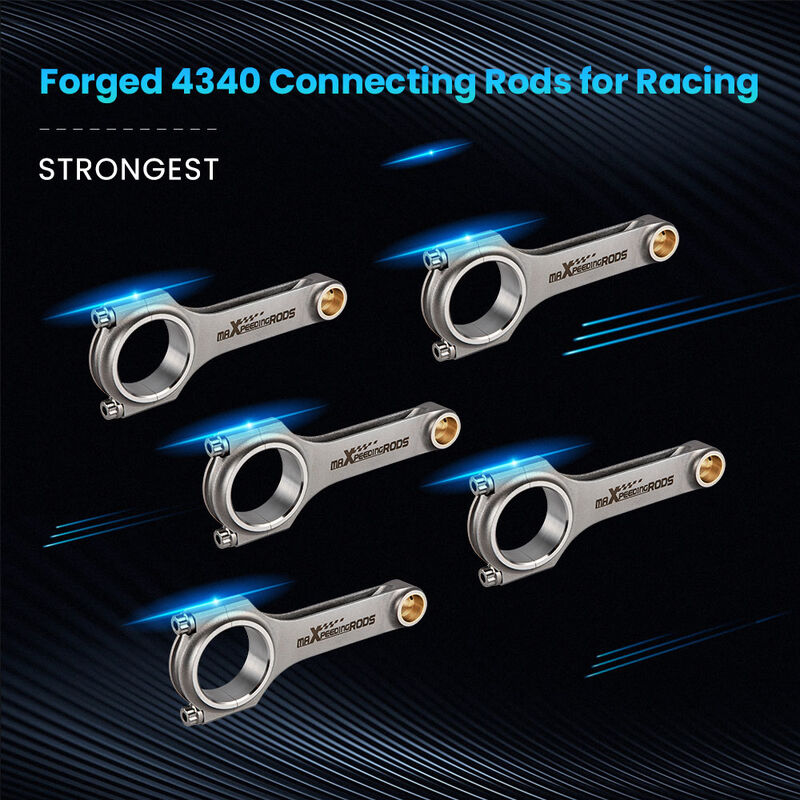

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

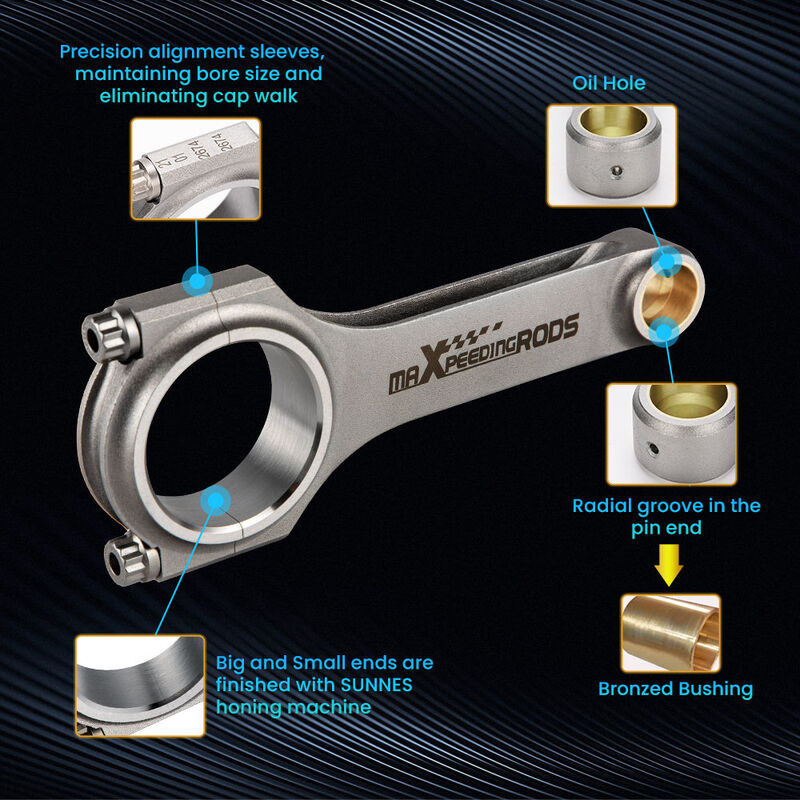

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

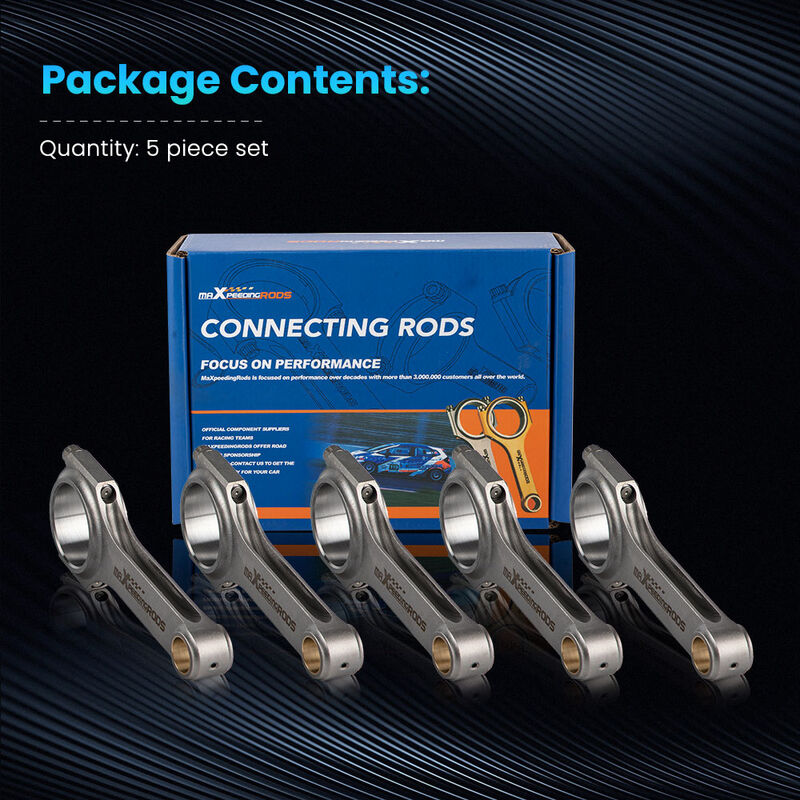

Package

5 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
