Fitment

Fit For Fiat Abarth 850 A112

Pin Type: Floating Pin Piston



Specification

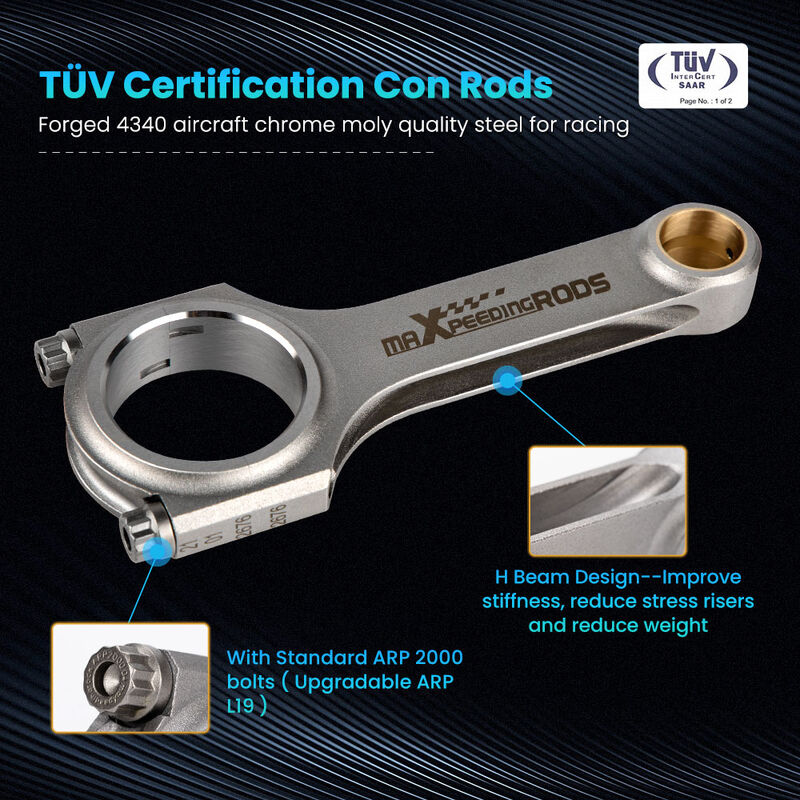

Type: Forged 4340 aircraft chrome moly quality steel for racing

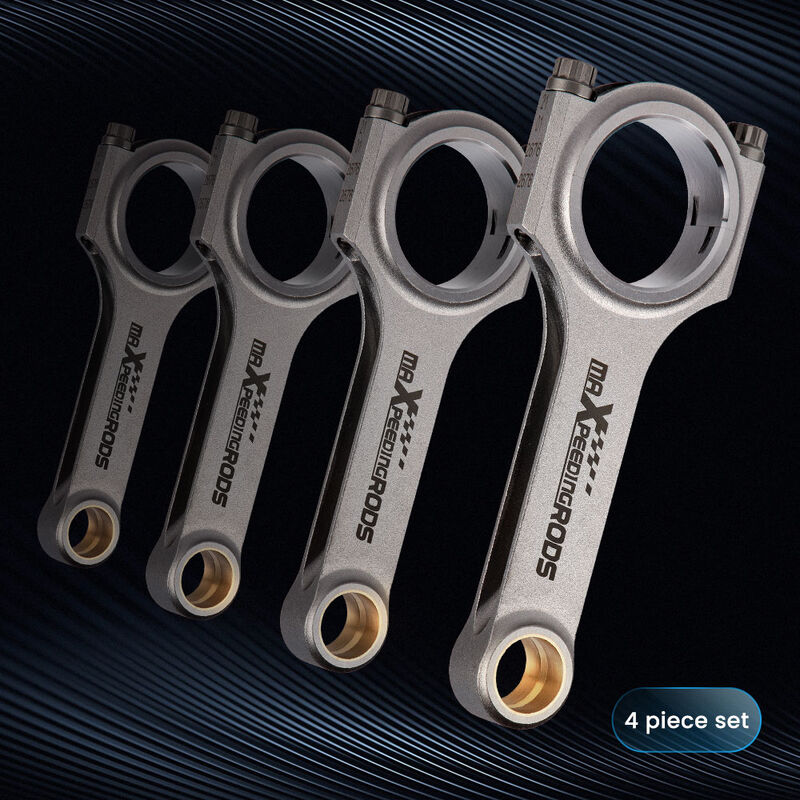

H-beam Conrods Quantity: 4 Pieces as showing in picture

Bolts: Including ARP 2000 5/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

Advertised Horsepower Rating:200HP/piece

Top acceleration: 9000rpm



Dimensions

Center to center length:110mm/4.331"

Big end diameter:43.62mm/1.717"

Small end diameter:18mm/0.709"

Big end width:21.7mm/0.854"

Small end width:21.7mm/0.854"



Feature

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

-Designed and processed by CNC machine.

-All big and small ends are finished with SUNNEN honing machine

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

-100% X-rayed, sonic tested and magnafluxed

-Multi-stage heat treated

-Shot peened to relieve stress

-Come with the bronzed bushing suitable for the floating piston pin



Package

4 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)

Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.


SKU MPR-CR-FIA-110
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.250m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.007500000m3
