Fitment

Fit For Mazda B6 1.6 / B6F Engine :
Fit For Mazda 323 BG / 323F BG models B6F 1989-1994
Fit For Mazda Miata /MX-5 B6 1.6 16-valve DOHC 1989-1993
Fit For Mazda Xedos 6 / Eunos 500 1.6 L B6-9/B6-E I4 1992–1999
Fit For Kia Mentor / Shuma / Spectra 1.6 L B6 I4 1997–2003
Fit For Kia Rio First generation 1.6 L B6 I4 (petrol) 1999–2005
Fit For Mazda Familia / 323 1.6 L B6 I4 1985–1989
Fit For Ford Tonic GT-X Fifth Generation 1985–1989
Fit For Mazda Familia / 323 1.6 L B6 I4 Sixth generation 1989–1994
Fit For Mazda BP 1.8 Engine :
Fit For Mazda Familia GT (European & Australian Market) 1989-1994
Fit For Ford Laser TX3 (Australian Market)1989-1994
Fit For Ford Laser KJ GLXi (Australian Market)1994-1998
Fit For Mazda Artis "LX" VICS jm1 (North America Market)1994-1998
Fit For Mazda Protege LX (with VICS)1990-1994
Fit For Mazda Protege ES (Australian Market: 1994-1998 )1995-1998
Fit For Mazda Infini1990
Fit For Mazda Protege GT (Canadian Market)1990-1991 and 1993
Fit For Mazda 323 (European Market)1990-1993
Fit For Ford Escort GT and LX-E 1991-1996
Fit For Mercury Tracer LTS 1991-1996
Fit For Kia Sephia RS, LS, for GS 1995-1997
Fit For Mazda Familia (Japanese Market) 1994-1998
Fit For Mazda Lantis 1994-1998
Fit For Mazda MX-5/Miata (did not have VICS until 1999) 1994-1997
Fit For Suzuki Cultus Crescent/Baleno/Esteem 1996-1998

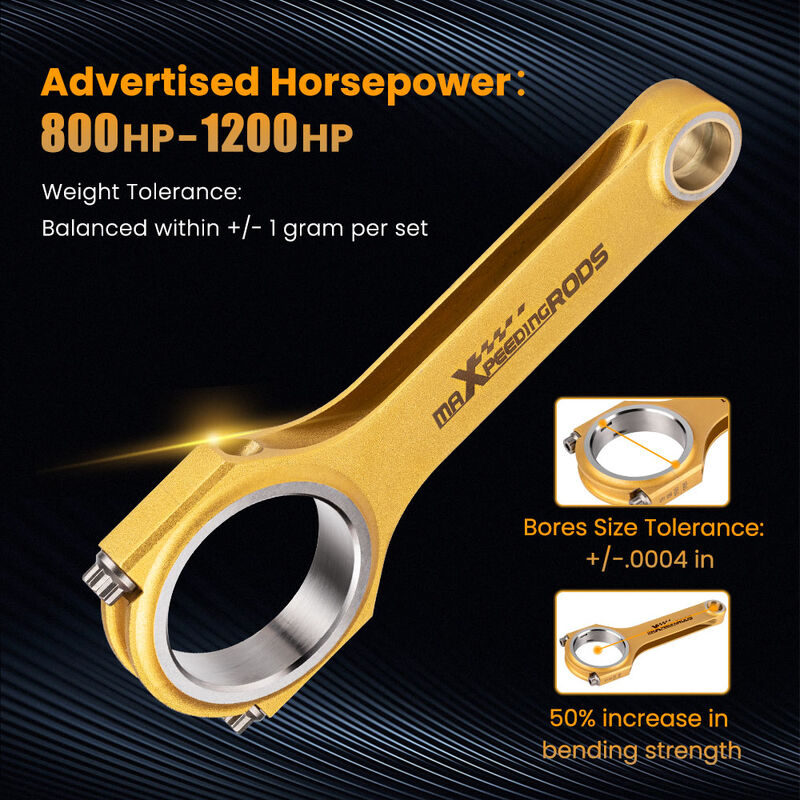

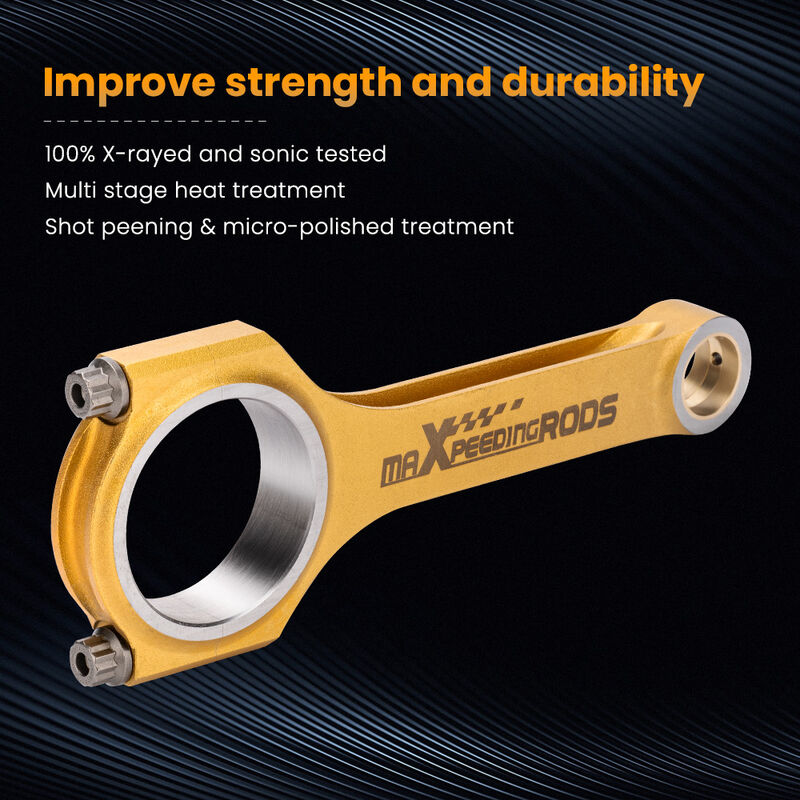

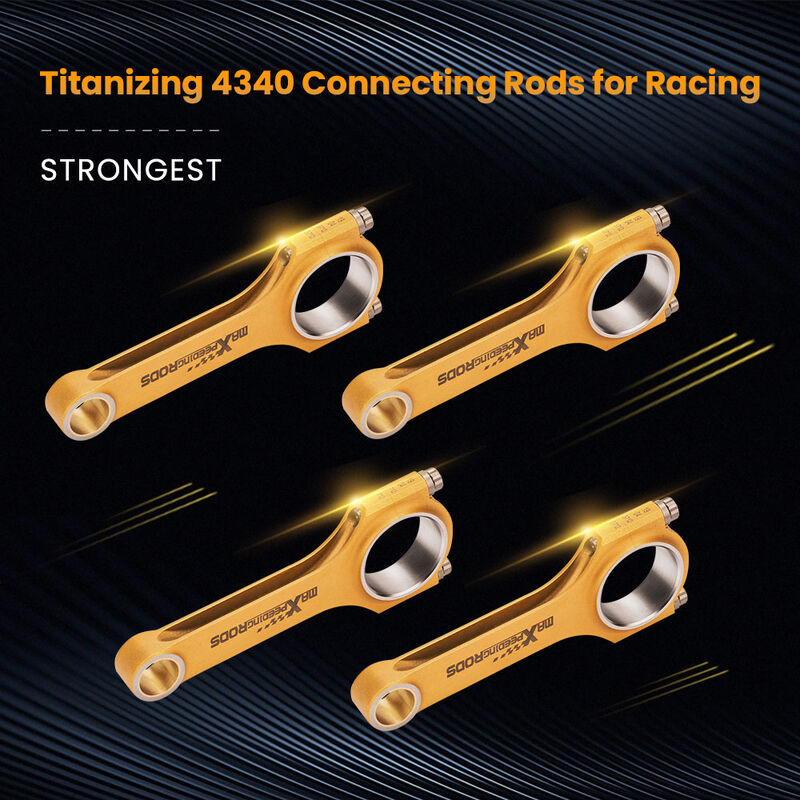

Specification

- Material: Titanizing aircraft chrome moly quality steel

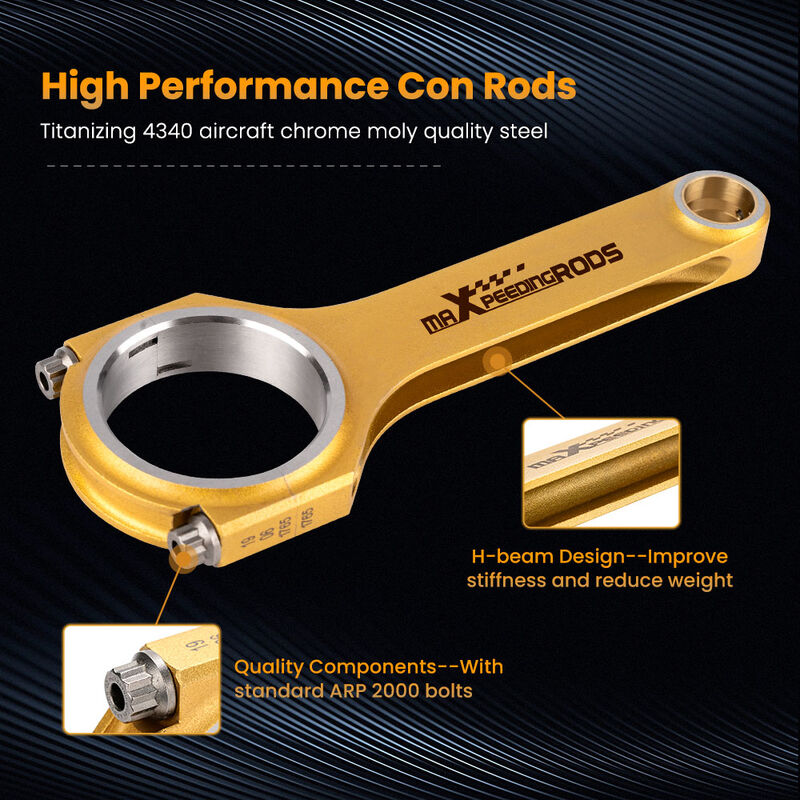

- Type: H-Beam Connecting Rod
- Quantity: Set of 4 Pieces

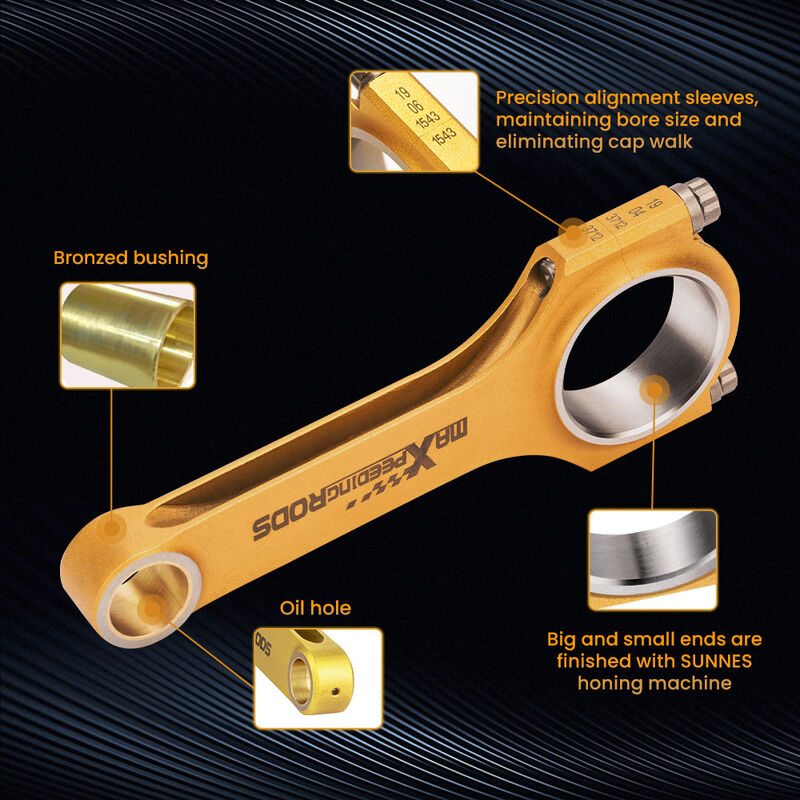

- The big end bores are honed to a +/-.01mm tolerance
- Advertised Horsepower Rating：250HP/piece
- The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
- Weight Tolerance: Balanced to +/- 1 gram in set
- Bolts size: Including Genuine 5/16" ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts

Dimensions

Center to center length: 133mm/ 5.2362 in.
Big end diameter: 48mm/ 1.8898 in.
Small end diameter: 20mm/ 0.7874 in.
Big end width: 21.84mm/ 0.8598 in.
Small end width: 21.84mm/ 0.8598 in

Feature

The density of titanium is significantly lower than that of steel, while maintaining considerable strength, which means that it is lighter than steel, but the strength is very similar.
- Titanizing can further improve the bending strength of the product
- Titanizing will not affect the weight of the connecting rod
- Provide a wear-resistant layer, which greatly prolongs the service life of the parts

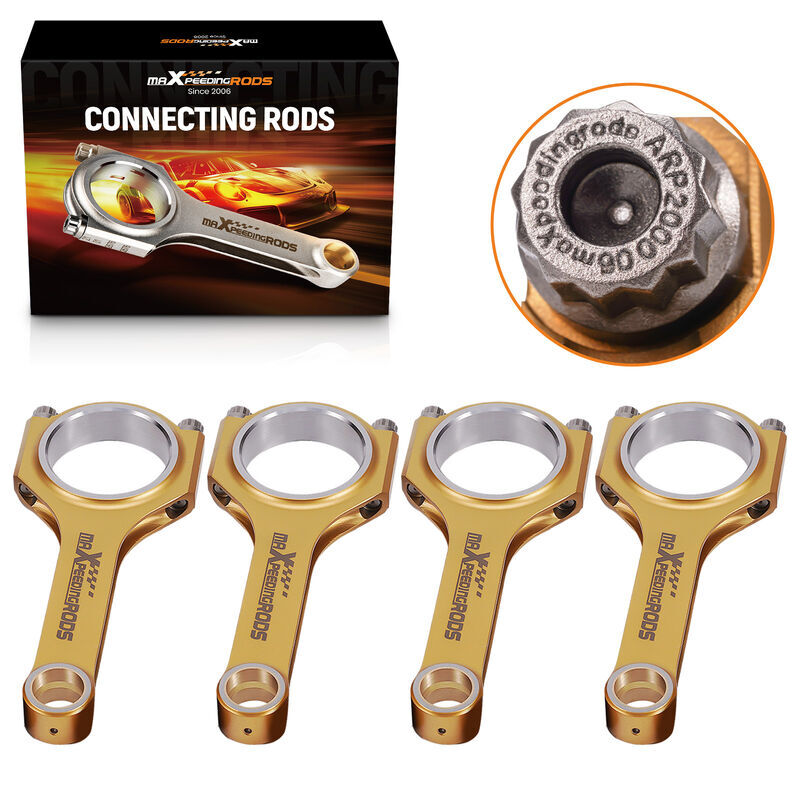

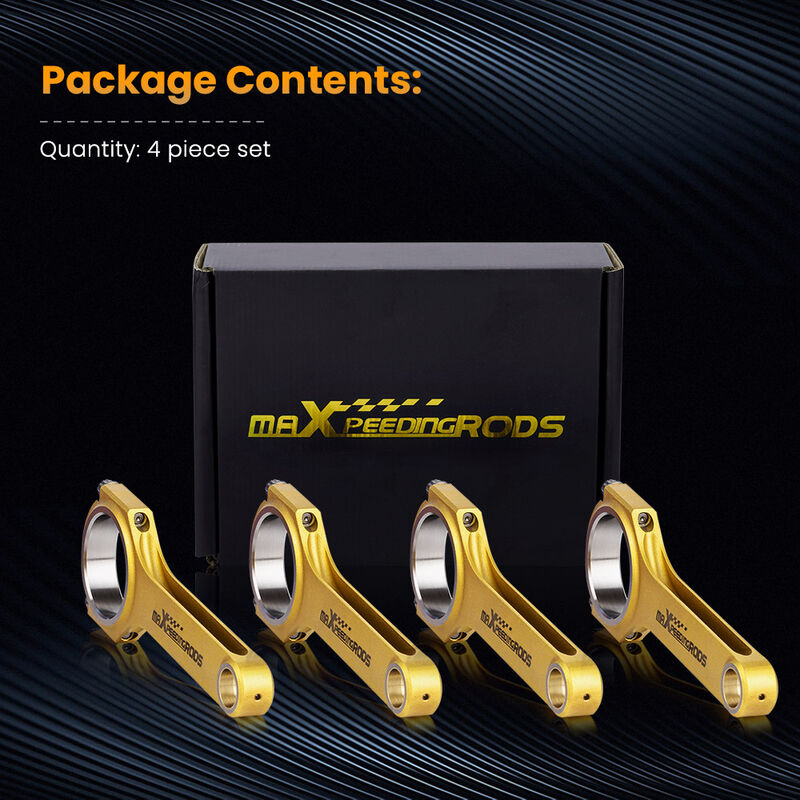

Package

4 x Connecting Rods

Notice

Professional installation is highly recommended (No Instruction Included)
Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
