Fitment

Fit For Nissan Pathfinder R51 2.5 L YD25DDTI 128 kW 2005-2009

Fit For Nissan Pathfinder R51 2.5 L YD25DDTI 140 kW 2010-present

Fit For Nissan Navara D40 2.5 L YD25DDTI 128 kW 2005-2009

Fit For Nissan Navara D40 2.5 L YD25DDTI 140 kW 2010-present

Fit For Nissan Navara D40 2.5 L YD25DDTi 98kW 106 kW 126kW 2005-present

Notice:

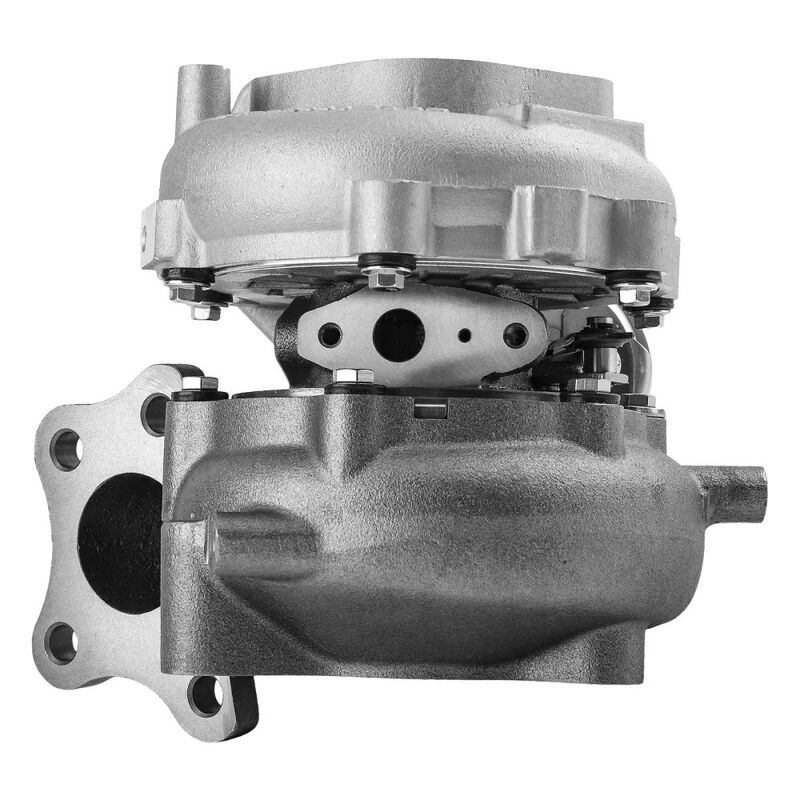

Please Carefully distinguish this Turbo with 14411-EB300.This turbo have 4 bolt exhaust inlet flange which connect with the manifold.

OE/Part number

769708,

769708-1,769708-0001, 769708-5001S,

769708-2,769708-0002, 769708-5002S,

769708-3,769708-0003, 769708-5003S,

769708-4,769708-0004, 769708-5004S,

767720,

767720-1,767720-0001, 767720-5001S,

767720-2,767720-0002, 767720-5002S,

767720-3,767720-0003, 767720-5003S,

767720-4,767720-0004, 767720-5004S,

767720-5,767720-0005, 767720-5005S,

767720-6,767720-0006, 767720-5006S,

14411EB70A, 14411-EB70A, 14411EB70B, 14411-EB70B,

14411EB70C, 14411-EB70C, 14411EB70D, 14411-EB70D,

14411EC00A, 14411-EC00A, 14411EC00B, 14411-EC00B,

14411EC00C, 14411-EC00C, 14411EC00E, 14411-EC00E,

Specification

Turbo Model: For GT2056V, GTA2056V

Eingine code: YD25DDTI

Cooling Type: Water & Oil Cooled

Bearing Type: Journal Bearing / Floating Bearing

Thrust bearings: 270 Degrees

Hosepower: Up to 171HP

Actuator Type:Vacuum actuator

Turbo Type:Individual/VNT

Universal Fitment: No

Finish: Matte

Condition: 100% Brand New

Accessories: You will receive the parts exactly as shown in the picture above

Feature

Product Material

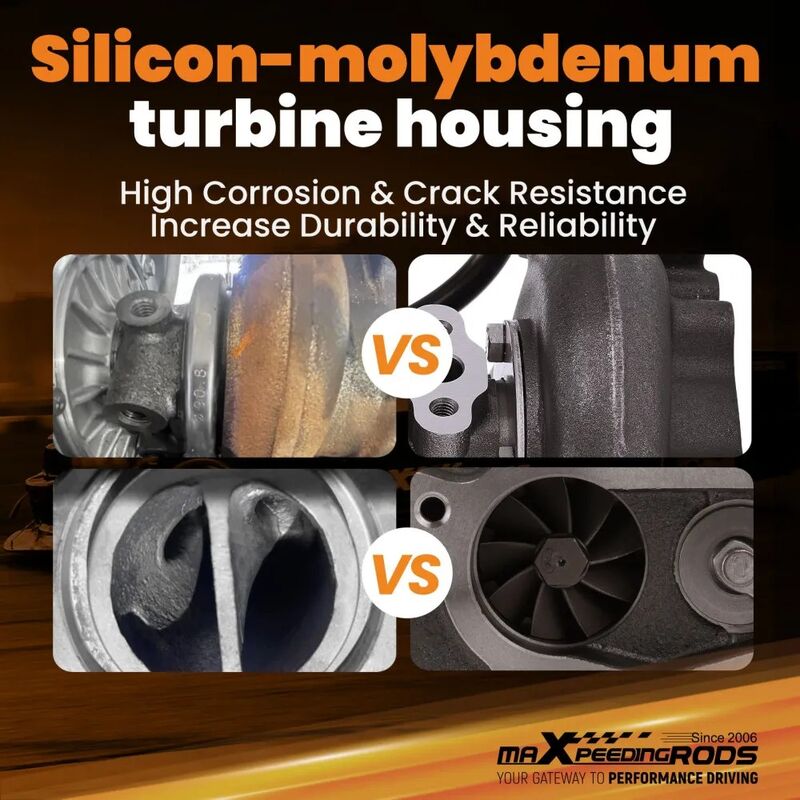

1. Turbine housing: Silicon-Molybdenum - temperature resistant up to 850℃

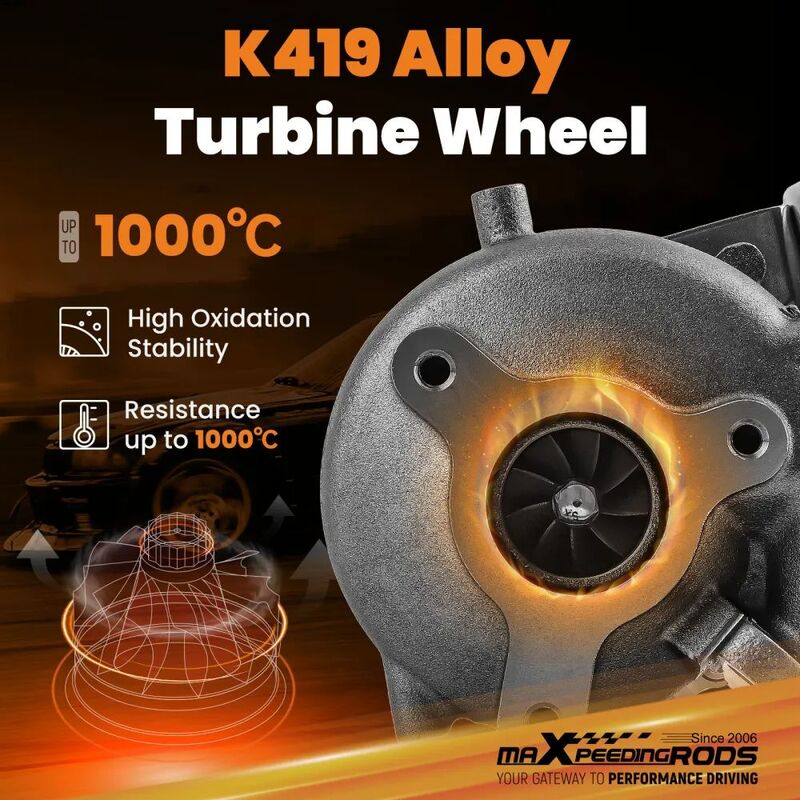

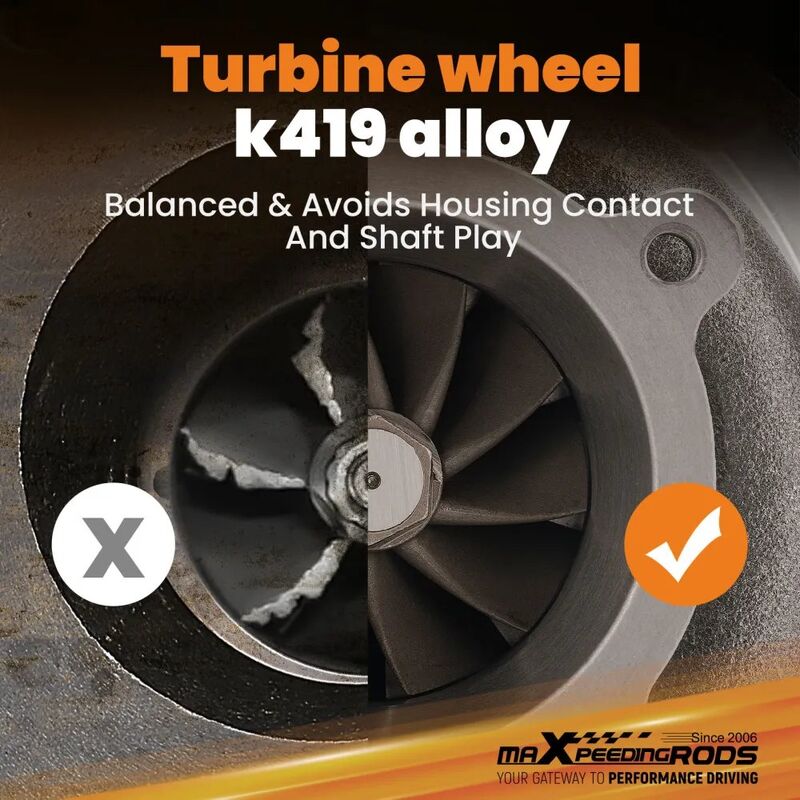

2. Steel Turbine Wheel: K419 alloy - high oxidation stability and resistance up to 1000℃

3. Compressor housing: ZL104 aluminum with lightweight

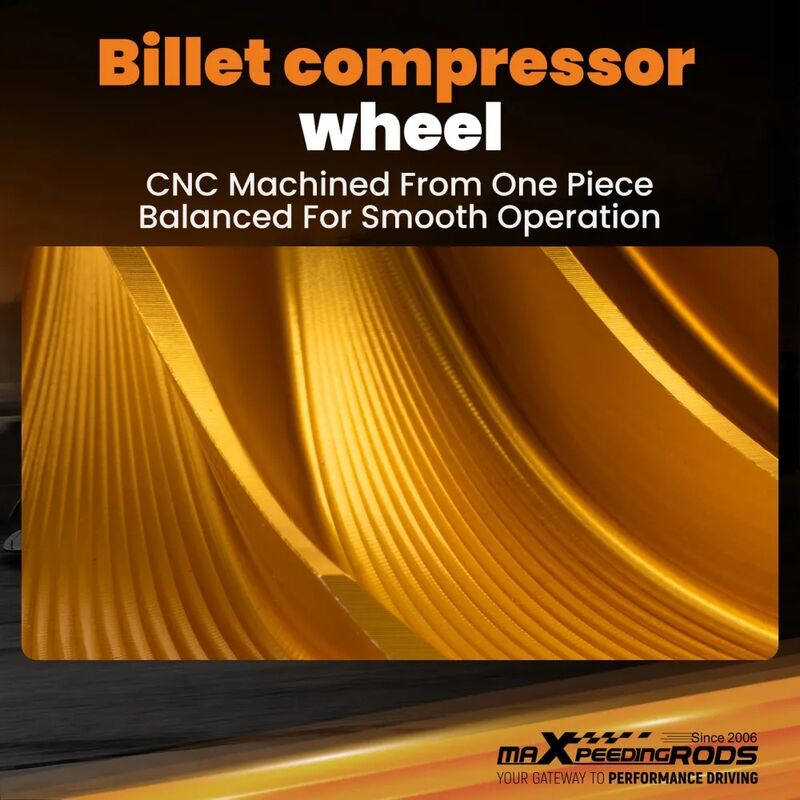

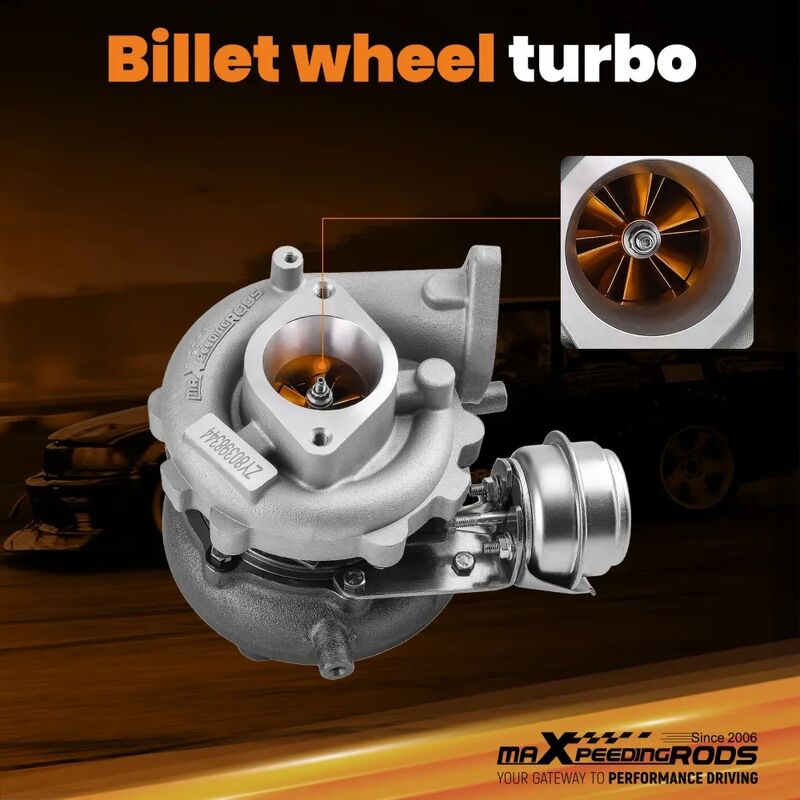

4. Billet compressor wheel: forged full-machined billet aluminum compressor wheels with a larger horsepower range and better boost response

Product

1. OEM fitment turbo with upgraded material

2. Excellent high temperature resistance，high efficiency and durability

3. Rich experience in turbo production and own factory

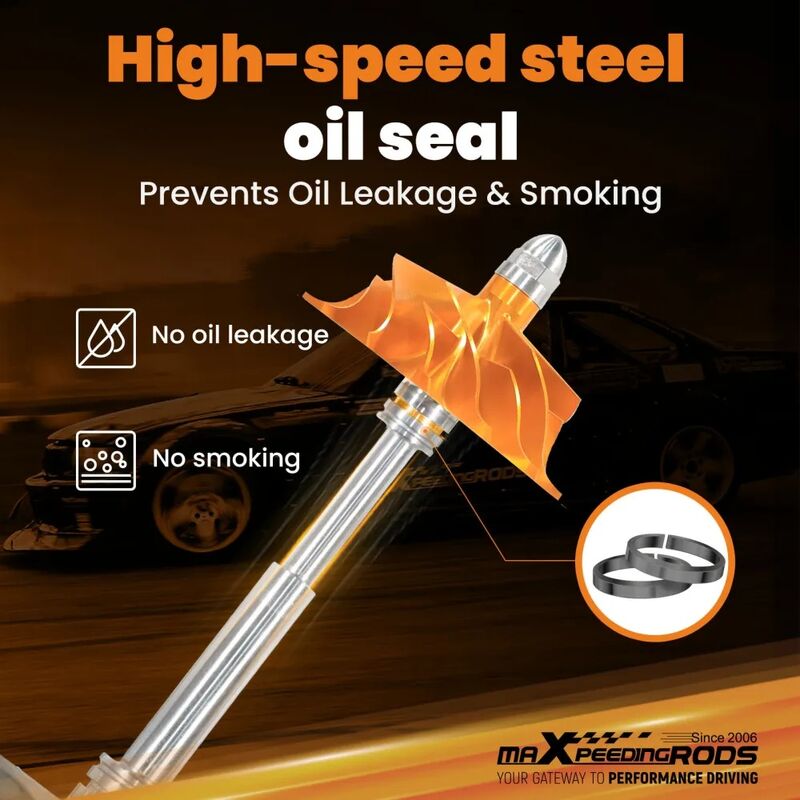

4. High-Speed oil seal ring and Precision clearance

Technology Advantage:

1. 100% balancing Test by TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo testing

3. Advanced Actuator Tester/Programmer

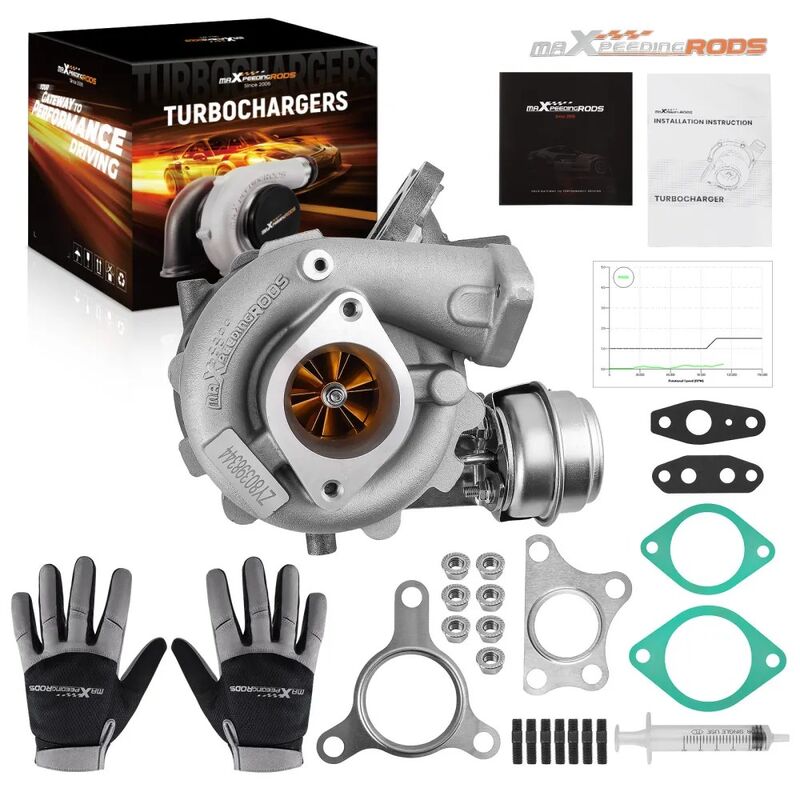

Package

1 x Turbocharger

2 x Flange gaskets

2 x Oil/Water port gaskets

1 x Manual

1 x Brochure

1 x Sticker

Note

Please confirm your original turbo PART NUMBER before Purchasing

Professional installation is highly recommended

Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
