Fitment

Fit For all 4/ 6 cyl 2.5L-3.0L engines

Horse Power: Boost Horse Power up to 500BHP

Notice: This model is a universal turbo. Please confirm whether there is enough space in your car to install this turbo before purchasing.

Feature

Product Material

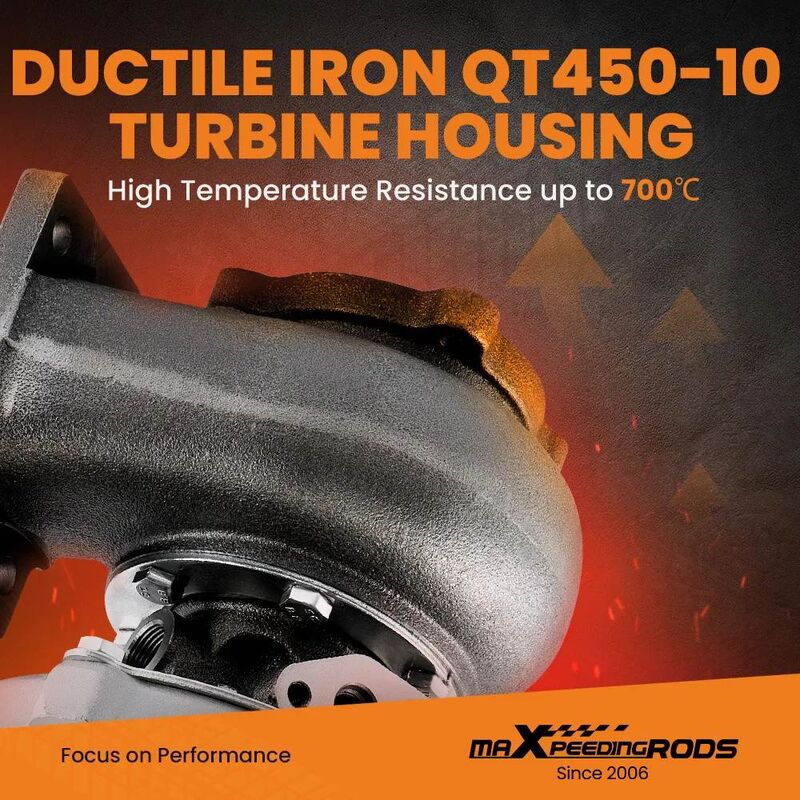

1. Turbine housing: Ductile iron QT450-10 - temperature resistant up to 700℃

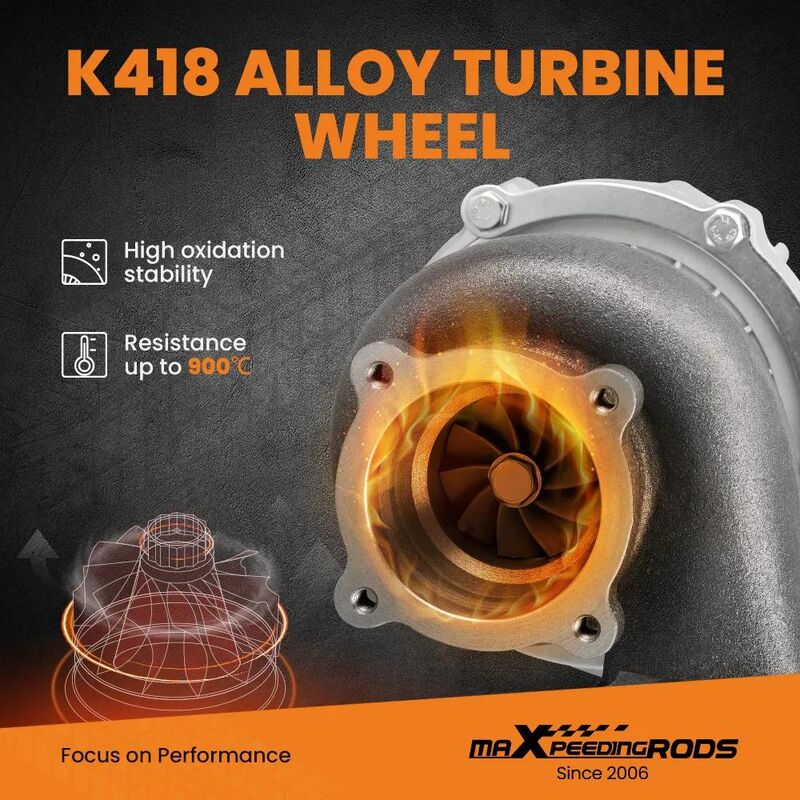

2. Steel turbine wheel: K418 alloy - high oxidation stability and resistance up to 900℃

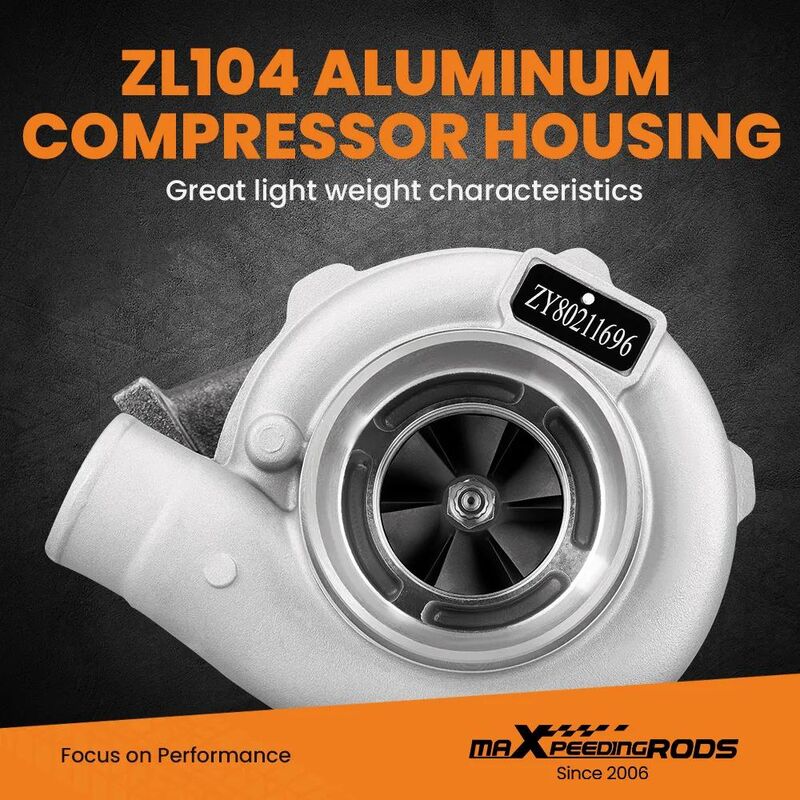

3. Compressor housing: ZL104 aluminum with lightweight

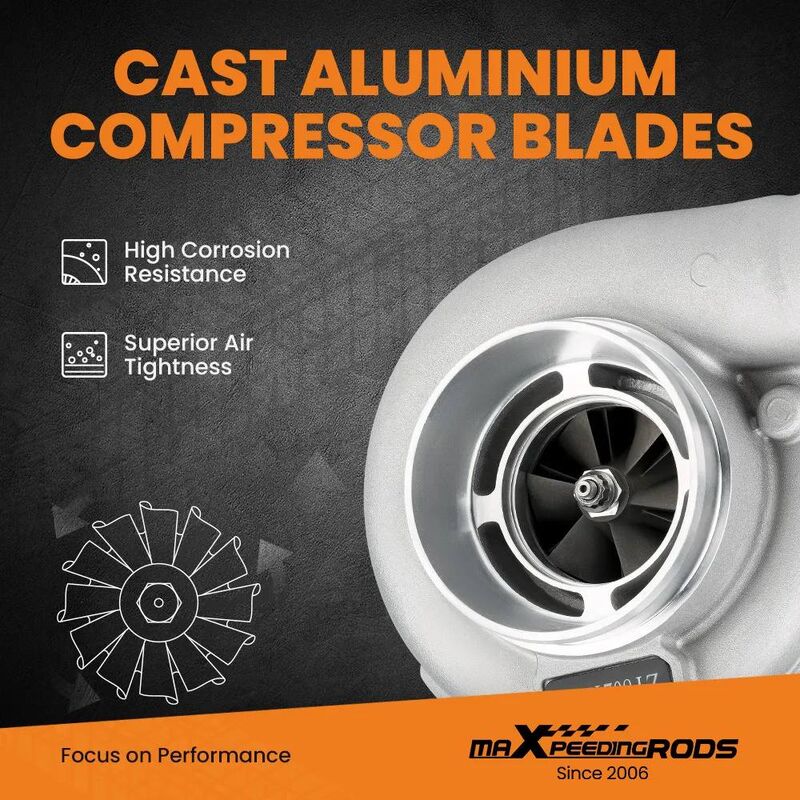

4. Compressor wheel/blades: Cast aluminium blades – superior air tightness & corrosion resistance

Product Features

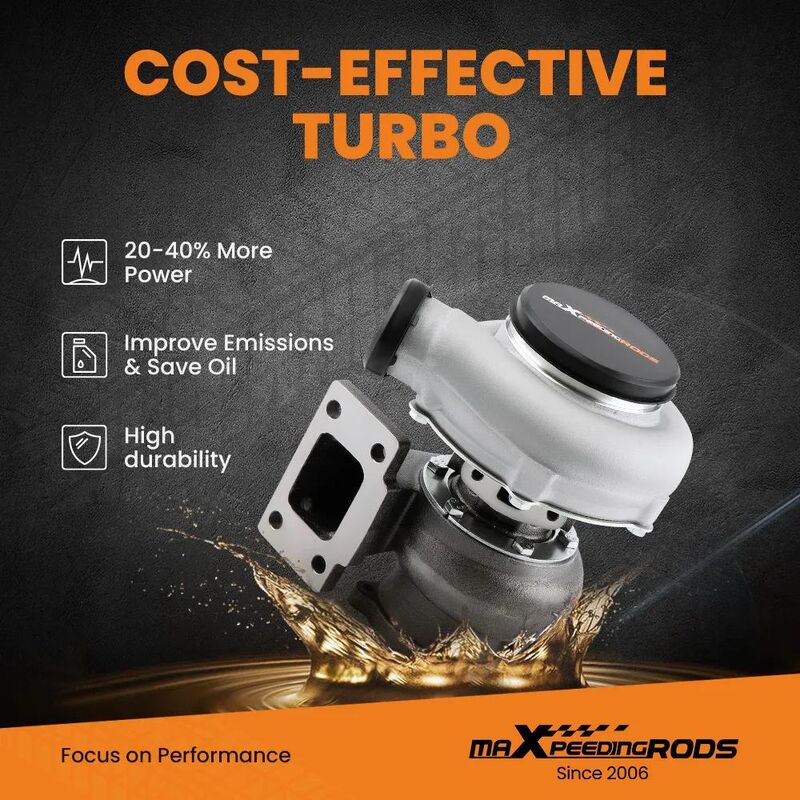

1. Cost-effective turbo increase 20-40% power for your car

2. Rich experience in turbo production and own factory

3. High-Speed oil seal ring and Precision clearance

4. Built for durability and strength

Technology Advantage:

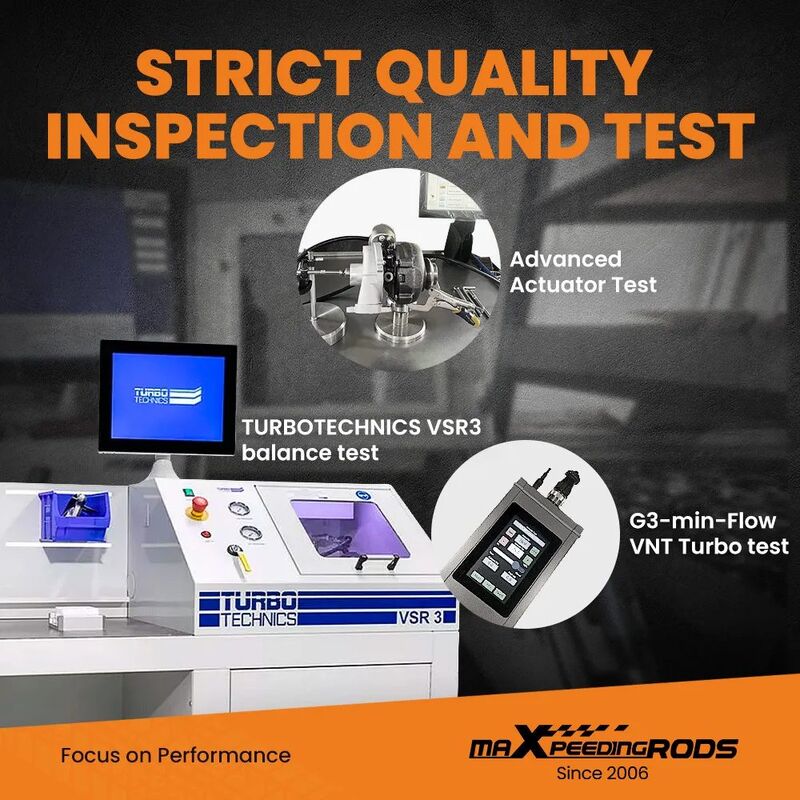

1.100% balancing Test by TURBOTECHNICS VSR3

2. Advanced Actuator Tester/Programmer

Specification

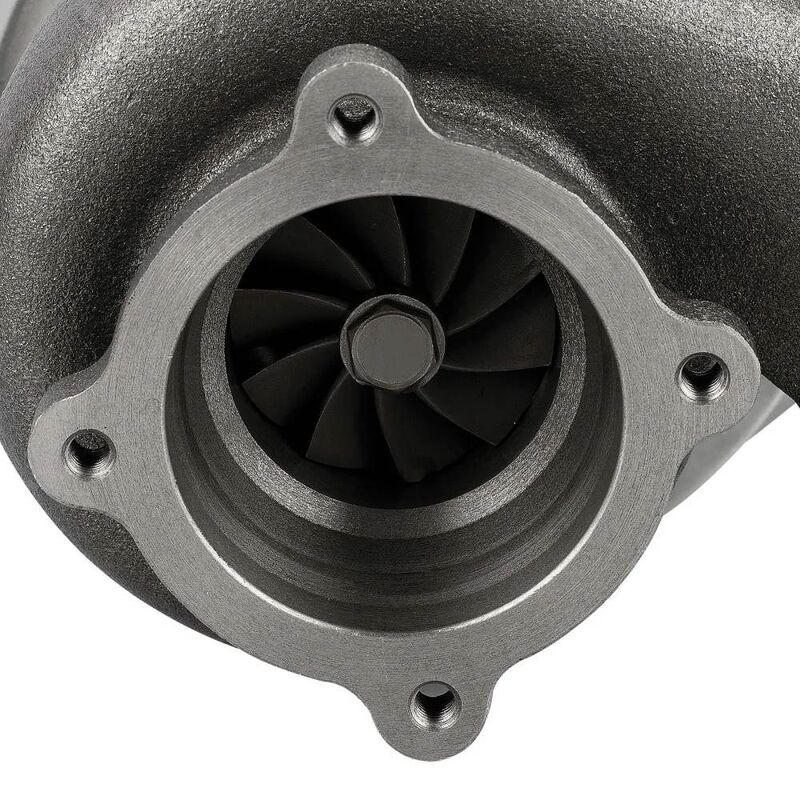

Exhaust Inlet (Turbo Manifold) Flange: Standard T3 Flange

Exhaust Outlet Flange: 4-Bolt Flange

Turbine Trim: 74.2

Turbine Inducer Diameter:  64.8mm

Turbine Exducer Diameter: 55.8mm

Turbine A/R: 0.82

Compressor Trim: 48.1

Compressor Inducer Diameter: 52.7mm

Compressor Exducer Diameter: 76mm

Compressor A/R: 0.6

Oil Inlet: M12*1.25 & 2*M8*1.25

Oil Outlet: 2*M8*1.25

Water: M18*1.5

Wastegate: w/o Wastegate

Thrust bearing: 270 Degrees

Turbo Type: Individual

Bearing: Journal Bearing

Cooling Type: Water + Oil

Accessories: You will get exactly as shown in the picture above

Package

1x Engine Camshaft Timing Locking Tool Kit

Notice

Replace, repair or reconnect air cleaner element per manufacturer's manual to avoid compressor wheel damage.

Make sure the oil drain line is lower than the turbo itself.

Gasoline car must install a water cooling device to avoid overheating.

Ensure exhaust outlet are well sealed by welding

The degree of modification of the universal turbo depends on your individual vehicle.Professional installation is highly recommended.

This Turbo is not vehicle specific. Please check the specifications and verify compatibility prior to placing your order.

Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
