Fitment

Fit For Toyota NR 8NR-FTS 1.2L engine
Fit For Toyota Auris compatible for Corolla E180 1.2L 8NR-FTS VVT-iW 2012–2018
Fit For Toyota C-HR 1.2L 8NR-FTS VVT-iW Turbo I4 2017–present
Fit For Toyota Corolla (E170) Levin 1.2L 8NR-FTS 2013-2018

Specification

TUV Certification Con Rods
Material: Forged 4340 aircraft chrome moly quality steel for racing
Quantity: 4 Pieces a set as showing in picture
Bolts: Including Genuine ARP 2000 3/8" bolts(Note: Extra cost for upgrading to ARP L19 bolts)
Weight Tolerance: Balanced to +/- 1 gram in set
Accessories: You will get exactly as shown in the picture abve
Condition: 100% brand new

Dimensions

Center to center length: 149.2mm
Big end diameter: 45mm
Small end diameter: 20mm
Big end width: xx
Small end width: xx

Feature

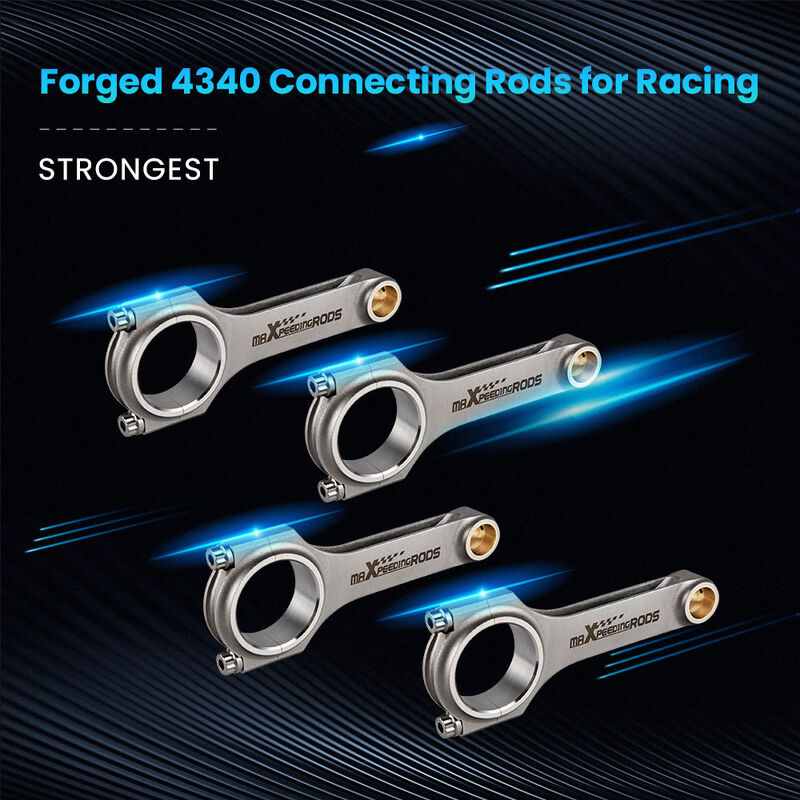

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

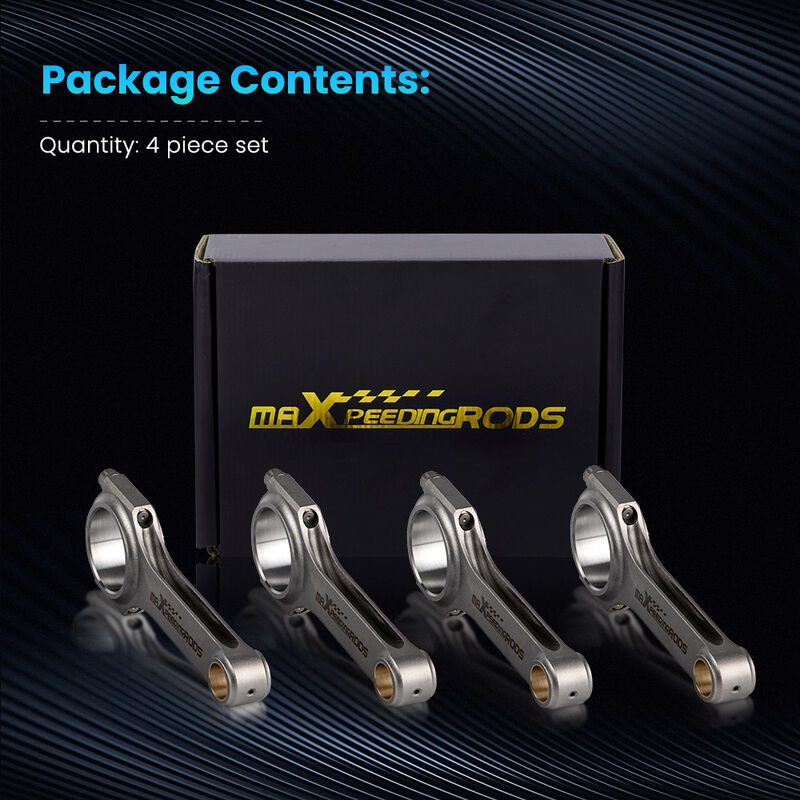

Package

4 x Connecting Rods



Notice

Please confirm your old part number matches up with one of the part numbers above
Professional installation is highly recommended (No Instruction Included)
For any needs please contact us.

SKU MPR-CR-TOY-12T
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.210m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006300000m3
