Fitment

Fit For Nissan Patrol GR GQ Y60 4.2 L TD42 Diesel & Turbo Diesel

- For TB42, TD45, TB45 engine, as far as we know, the port configurations are the same. Please give us your message for the picture with dimensions and we suggest you to double confirm the fitment with a mechanic before buying.

Feature

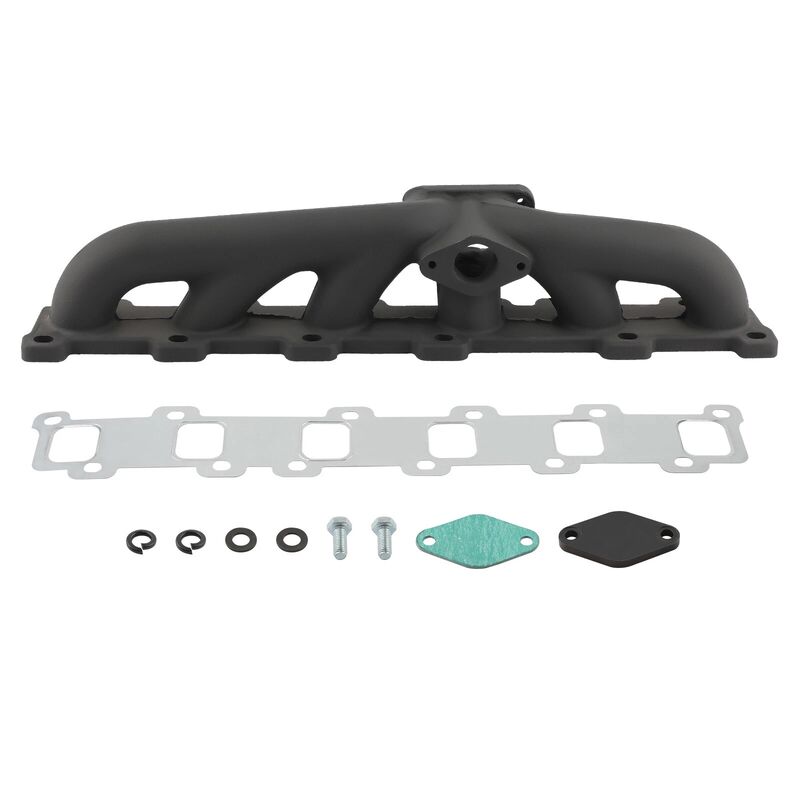

-Manufactured from high quality cast iron for durable usage and sound dampening-Dimensional accuracy, durability, application specific design and corrosion resistant features-Tubes sized and shaped to match cylinder-head exhaust port-Special surface treatment to resist corrosion for an increase in power and -Fully tests under extreme conditions to withstand high temperature and long-life use-Quality fully guaranteed and professional installation recommended.

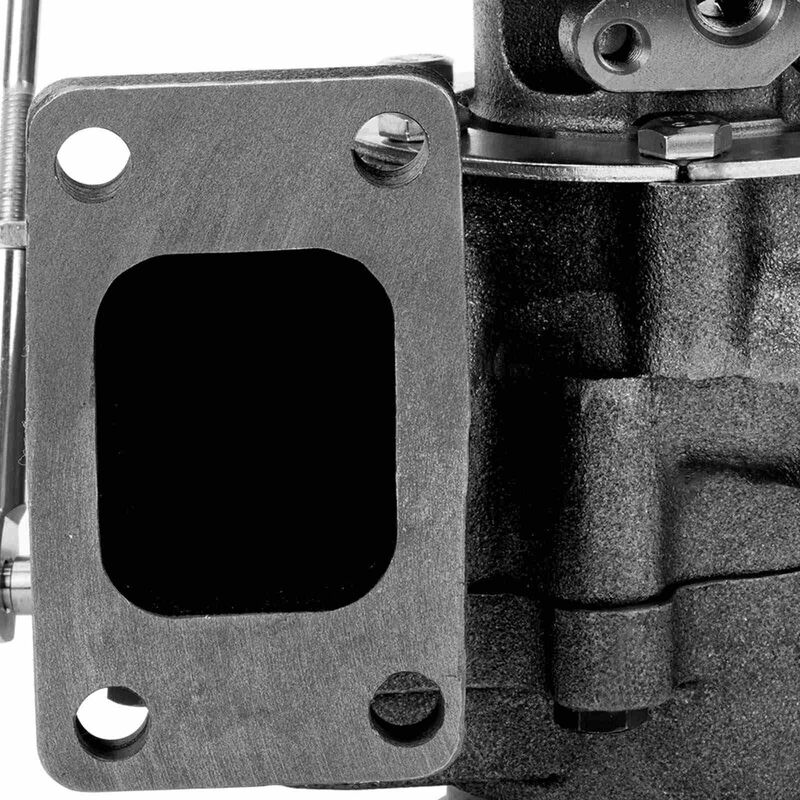

Turbo flange: T3

Mount type: top mount / high mount

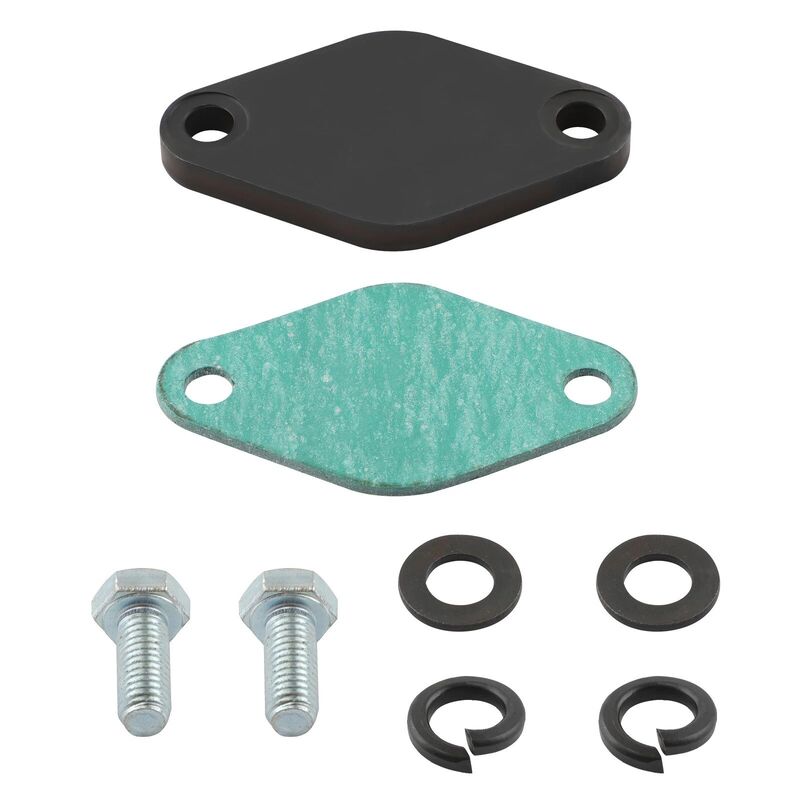

External Wastegate: 38mm. You can plate it off if intending to use internally wastegated Turbo (The blocking plate is included as shown in the picture)

Specification

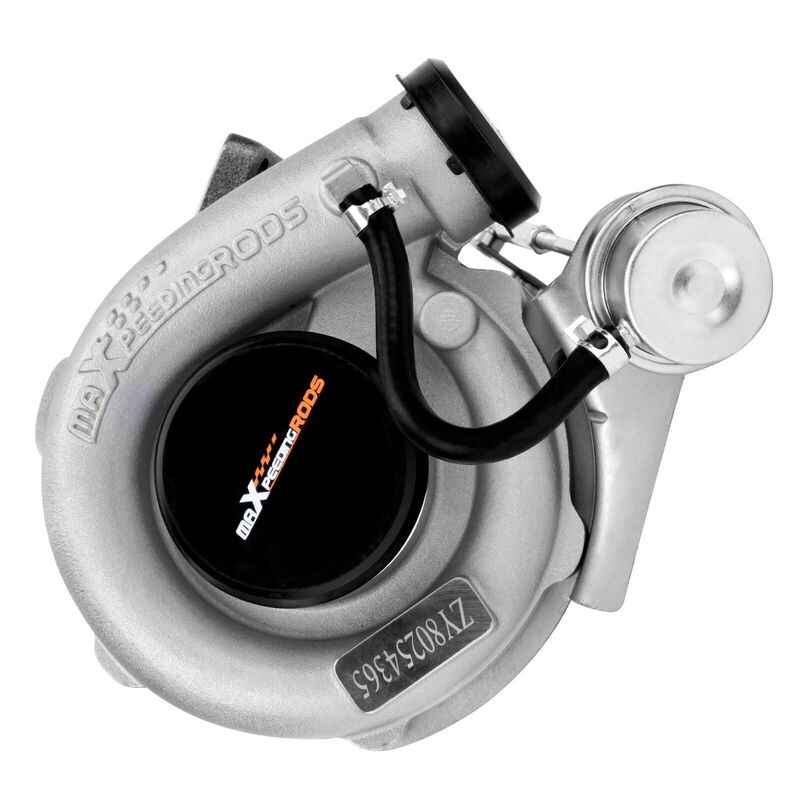

Turbo Details:

Flange: T3

Cooled Type: Oil cooled

Bearing: Journal bearing

Turbine port:  V band

Waste gate actuator: Adjustable from 7.5psi - 14.53 psi

Housr Power: 300-400 HP

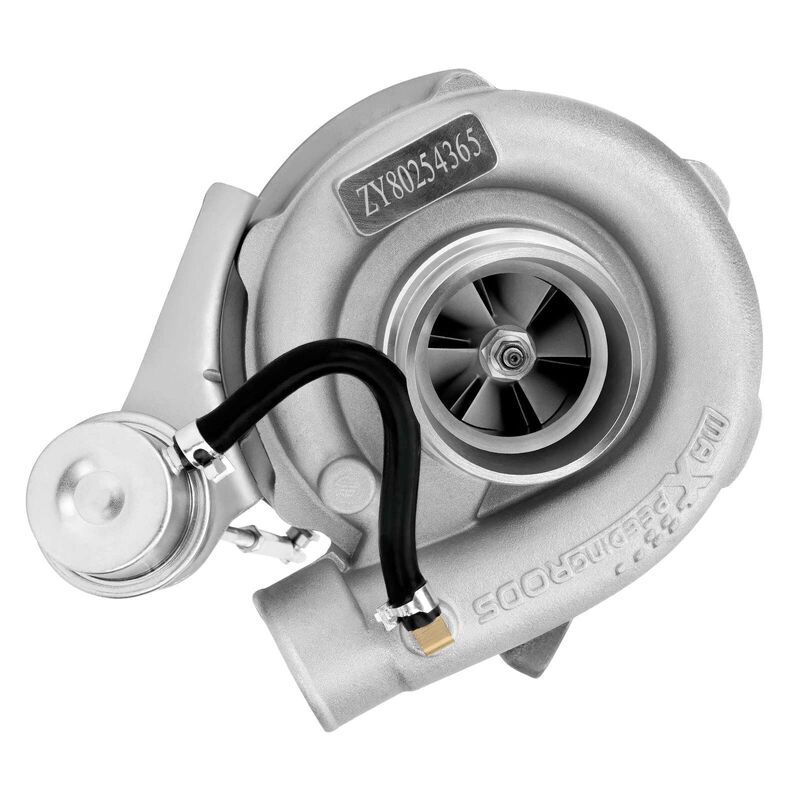

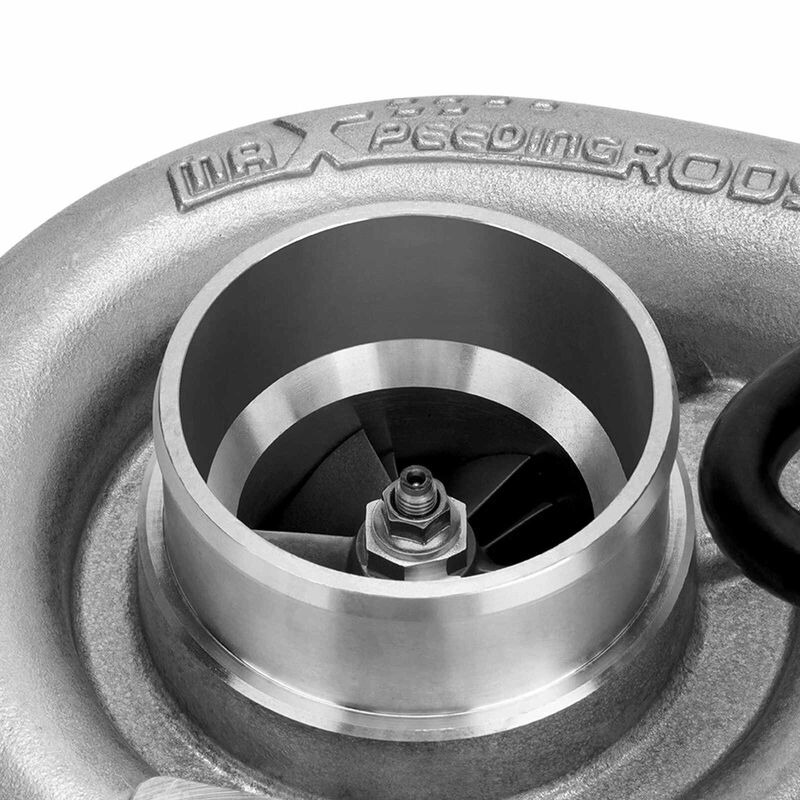

Compressor Wheel: A / R: 0.5 ||Ind:50.5 mm|| Exd:76 mm|| Trim: 44.2

Turbiner Wheel: A / R:0.63 ||Ind:65.5 mm|| Exd:55.9 mm|| Trim: 72.8

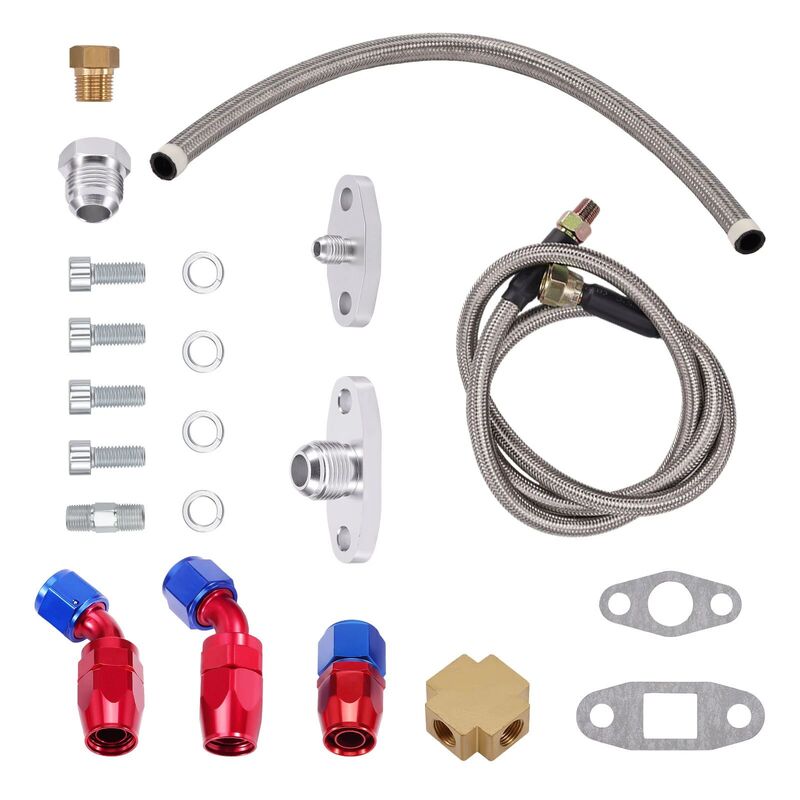

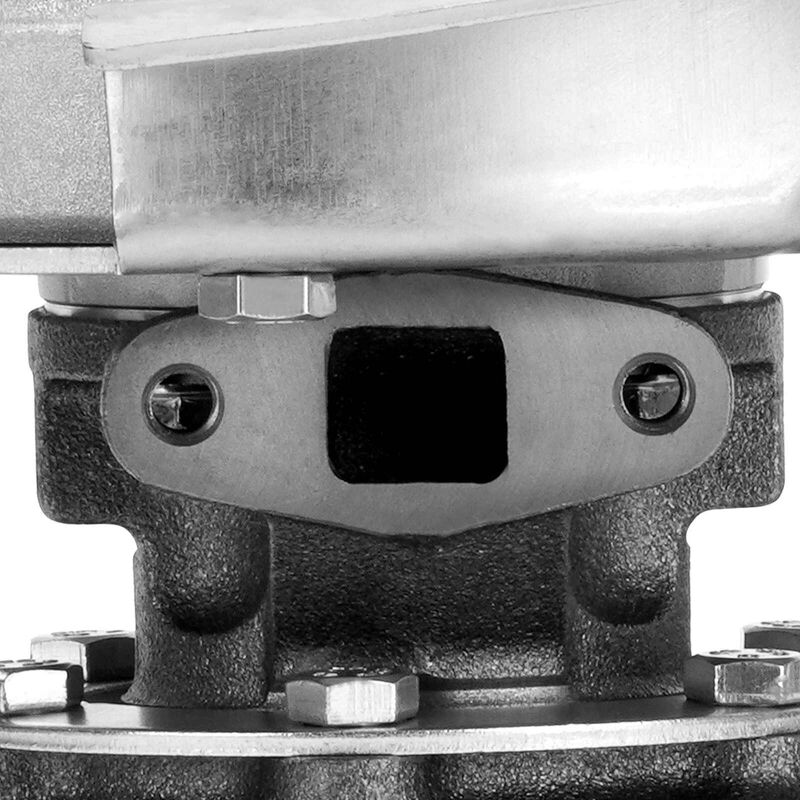

Oil Feed Oil Return Lines Details:

Oil return line length: 550mm

Oil return line inner diameter: ¢21

Oil feed line length: 1000mm

Oil feed line inner diameter: ¢14

Package

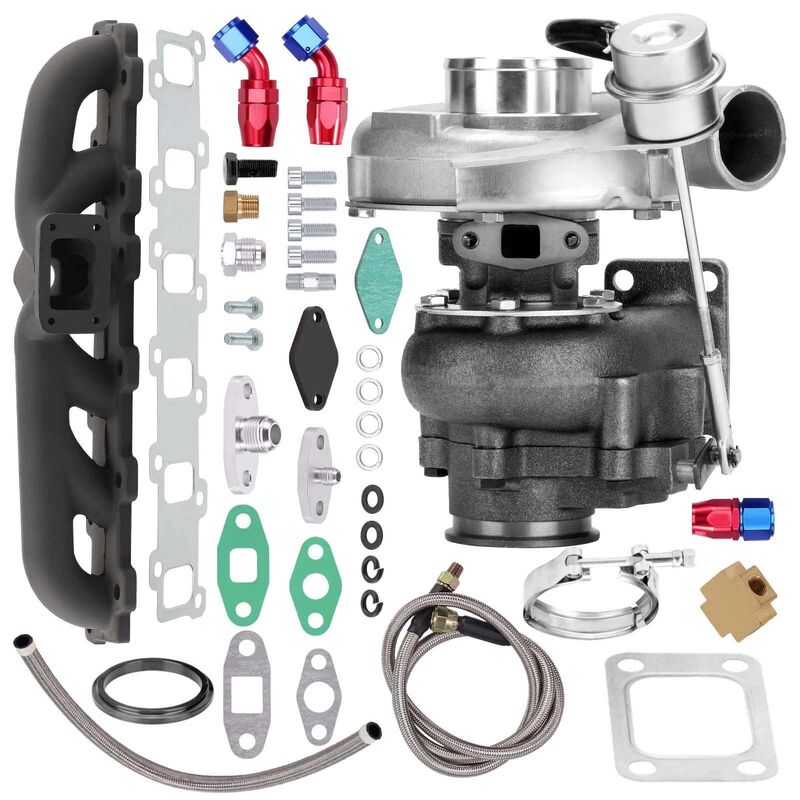

1 x Turbo Manifold And Turbocharger Kit

Notice

- Many dealers and customers have bought this kit. According to their feedbacks, they match well. However, modification may be required.

- This oil line kit is an aftermarket kit. Not all the component parts will be direclt bolt on your car. You may still need some accessaries of your OEM oil line kit.

- No instruction will be included; professional installation and alignment is suggested.

- Please feel free to contact us for whatever we can help.
