High Torque, High Output Gear Reduction Drive Design Spins Your Engine Over Faster.

50% More Cranking Torque

Perfect For High Compression Or Supercharged Engines.

Straight Bolt Mounting Plates, Works With All 153 Tooth Or 168 Tooth Ring-Gears On All Small Block And Big

Block For Chevy V8 And For Chevy V6.

Compact Off-Set Design, Allows More Header And Chassis Clearance.

Capable Of Cranking A 15:1 Compression Engine That Is Up To 700 Cubic Inches.

3HP Motor



Color: Red

Material: Aluminum

Interchange Part Number: for 18493, for 18493N

S114-254S1BX, S114-823SBX, SD114-254S1

Replacement for Pp106, Pe106, 91-25-1201

Hatachi: S13-65C, S13-65S1, S13-65S1BX

Type: 3HP

Tooth Flywheel: 153 and 168

Number of Teeth: 9

Voltage: 12V

Power: 2KW / 2.68HP

Rotation: CW

Starter Size: for Mini Type

Gear OD: 0.988in / 25.1mm

Version: High Torque Version/3-Clocking Positions

Mtg Ear 1 Hole: 10mm Unthreaded

Mtg Ear 2 Hole: 10mm Unthreaded

Mtg Ear 3 Hole: 10mm Unthreaded

Mtg Ear 4 Hole: 10mm Unthreaded



This Starter Motor Comes With 9-Tooth

Fit For Chevy Fits GMC HD Starter Motor 3HP 305 350 454

Fit For Chevy-V8 Small Block, Big Block& V6 with A/T& M/T With 153 or 168 Tooth Ring Gear

OEM(s) Replaced: For Chevrolet, For GMC Motors



1 x Starter Motor

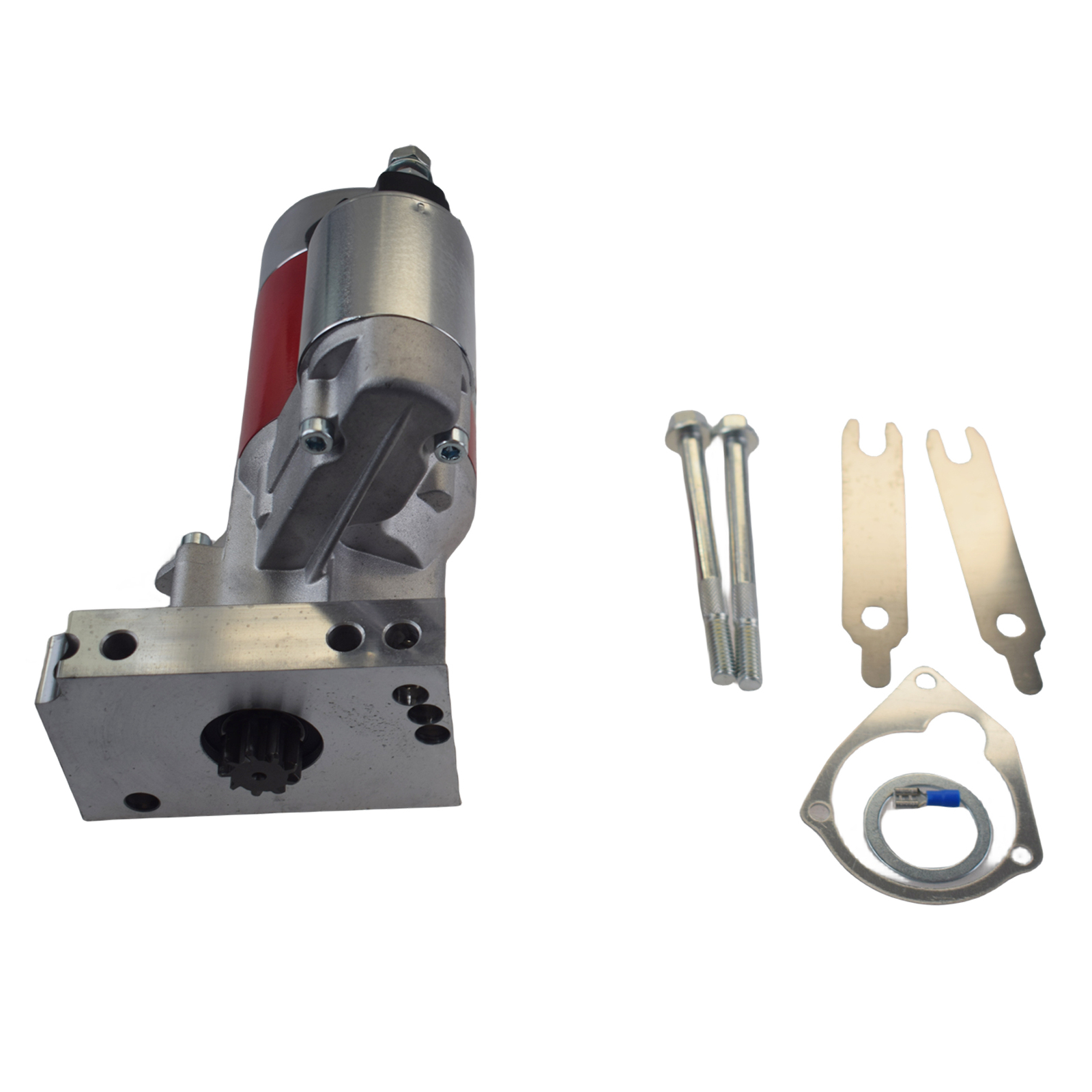

Mounting Pad, Mounts Bolts, Shims & Handware as Picture Shown

Shipping Weight 5.5500kg
Shipping Width 0.190m
Shipping Height 0.145m
Shipping Length 0.290m
Shipping Cubic 0.007990000m3
