Feature

65mm x 65mm Extreme Duty Reinforced Crossbar

Two WLL 2000kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Body-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish.

Top-Mounted Trailer & Anderson Plug Mount.

Class 4 Towbar - 50mm Square Hitch Receiver.

Includes Zinc Tow Ball & Ballmount Rated At 1300kg Towing Capacity / 75kg Ball Weight, Pin & Clip And D-Shackles.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Style: 7 Pin Flat

Type: Plugs & Sockets

Diagnostic Coding: No

Fitting Time [min.]: 40 (UNT367)

Fitting Time [min.]: 45 (TXR817)

Reverse Sensor Cut-Off: Via Dash

Wiring Type: Direct Fit

Includes Trailer Plug: No

Brake Controller Prep: Yes

Ball Weight [kg]: 75

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 1300

Recovery Load-tested: 2000kg WLL

Recovery Points: 2

Tow Ball Mount: L4180TXR

Coating: Textured Powder Coated

Bumper Removed During Fitment: Yes

Bumper Cut Out Required: Yes

Exposure: Partially concealed

Hitch Type: 50mm Square Hitch Receiver

Fitment

Fit For Suzuki Jimny JC74W K15B XL 5 Door 1.5L Petrol SUV Automatic And Manual AWD 11/2018-12/2025

Fit For Suzuki Jimny A6G JC74W K15B XL 1.5L Petrol Wagon AWD 11/2018-12/2025

Fit For Suzuki Jimny JB64 R06A-T 0.7L Petrol Wagon AWD 11/2018-12/2025

Fit For Suzuki Jimny GJ SUV K15B Life 1.5L Petrol SUV Automatic And Manual AWD 11/2018-12/2025

Fit For Suzuki Jimny GJ SUV K15B 1.5L Petrol Wagon AWD 11/2018-12/2025

Fit For Suzuki Jimny A6G A6G415 JB74W SUV K15B 1.5L Petrol SUV AWD 11/2018-12/2025

Package

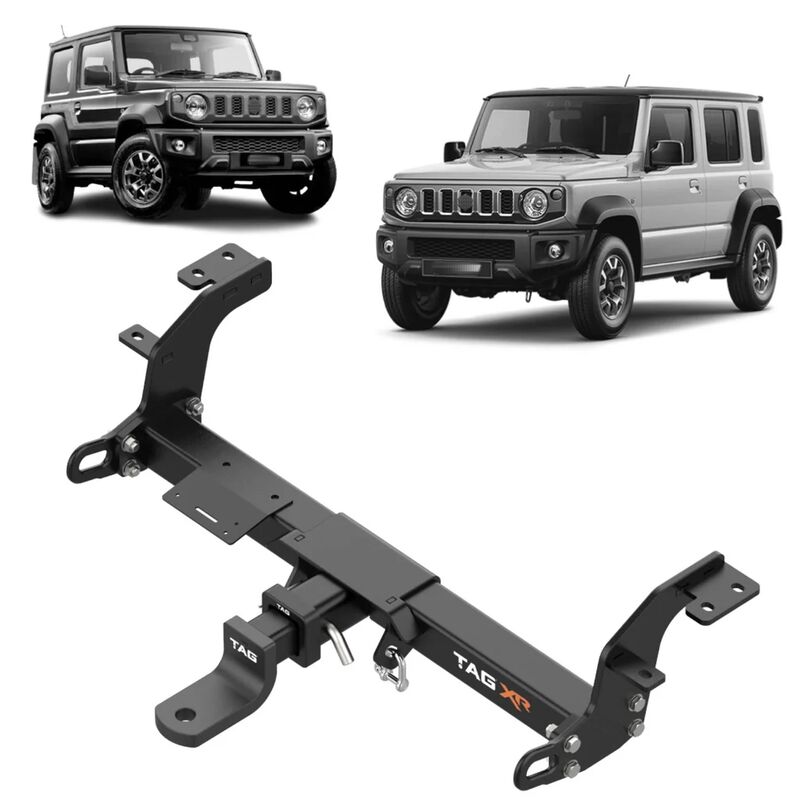

TAG 4x4 Recovery Towbar

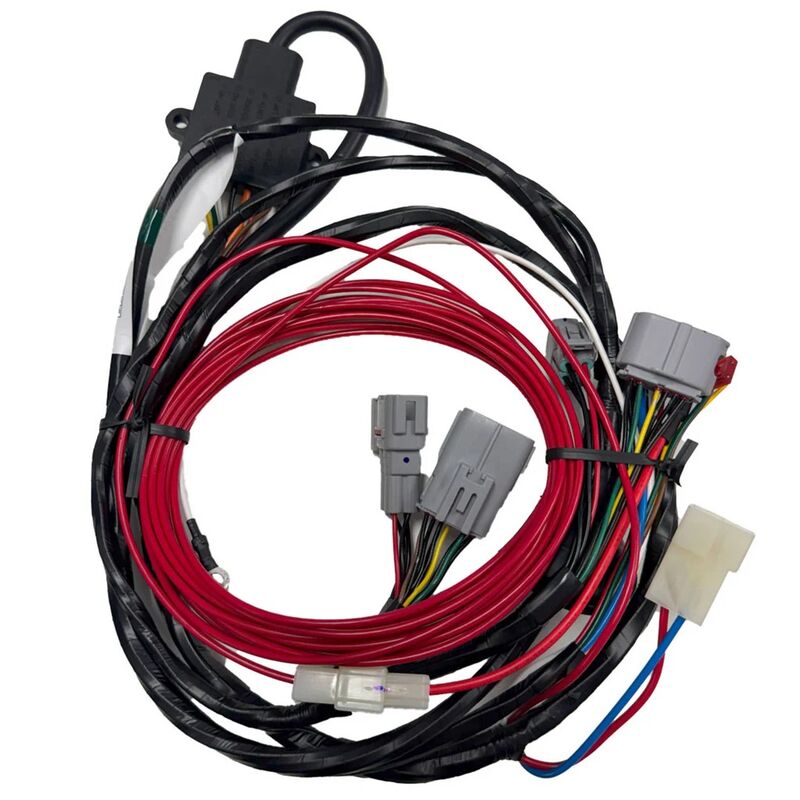

TAG Direct Fit Wiring Harness

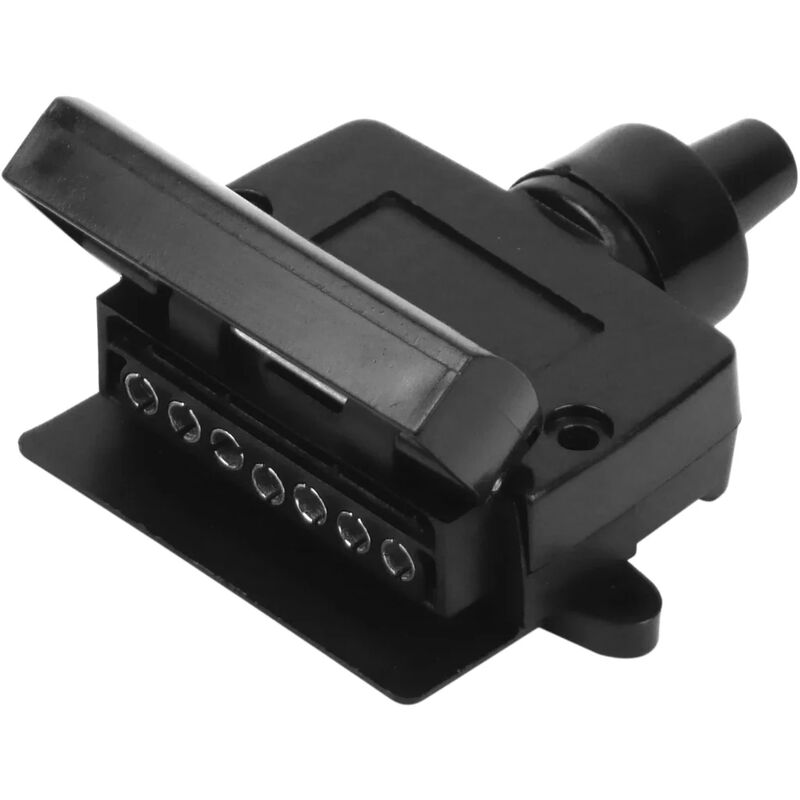

7 Pin Flat Socket
