Feature

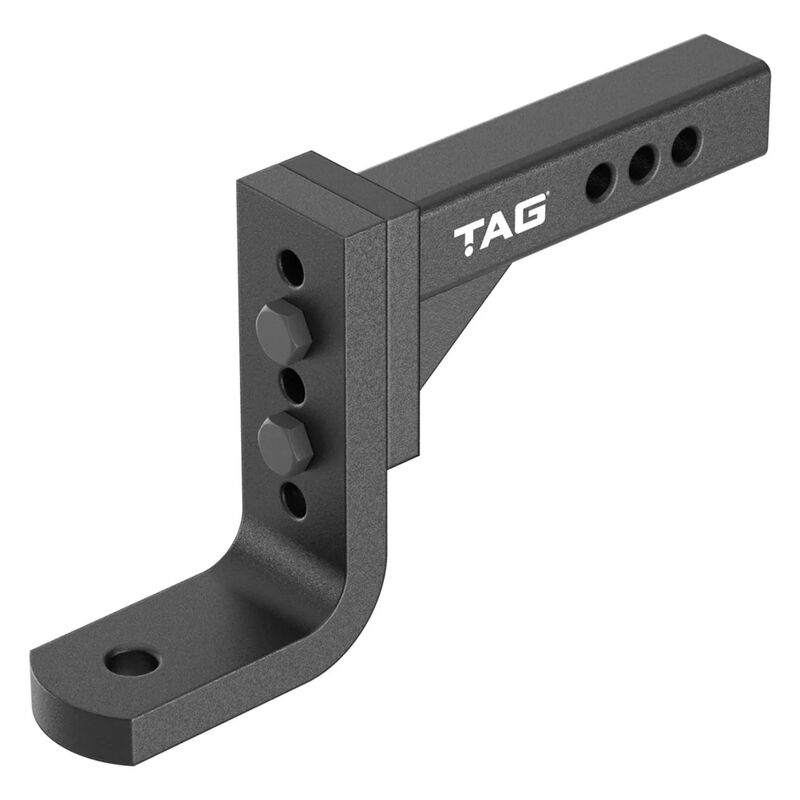

TAG Tow Ball Mounts Are Manufactured Using Drop Forged Steel, CNC Milled And Robotically Welded For Precision And Consistency. Designed To Accompany The TAG Heavy Duty Towbar, Fitting a 50mm Square Hitch Receiver And Available In Multiple Drop/Rise Or Adjustable Configurations. All TAG Tow Ball Mounts Are ADR Compliant, Batch Marked And Powder-Coated For a Premium, Durable Finish.



Specification

Ball Weight [kg]: 350

Tow Ball Mount Class: Heavy Duty (Class 4)

Gross Trailer Weight: 3500

Hitch Type: Heavy Duty 50mm Square

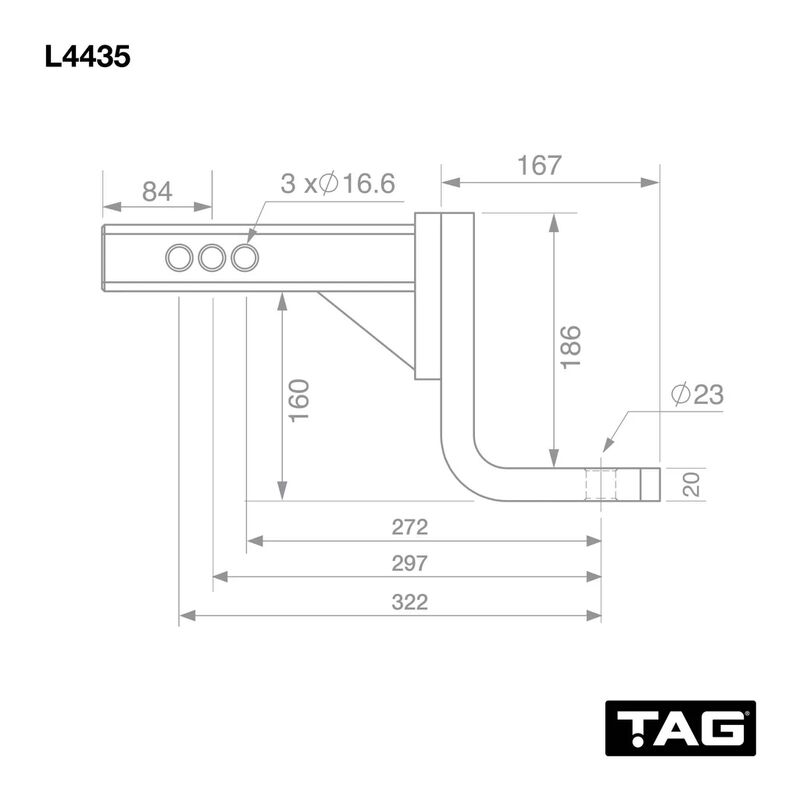

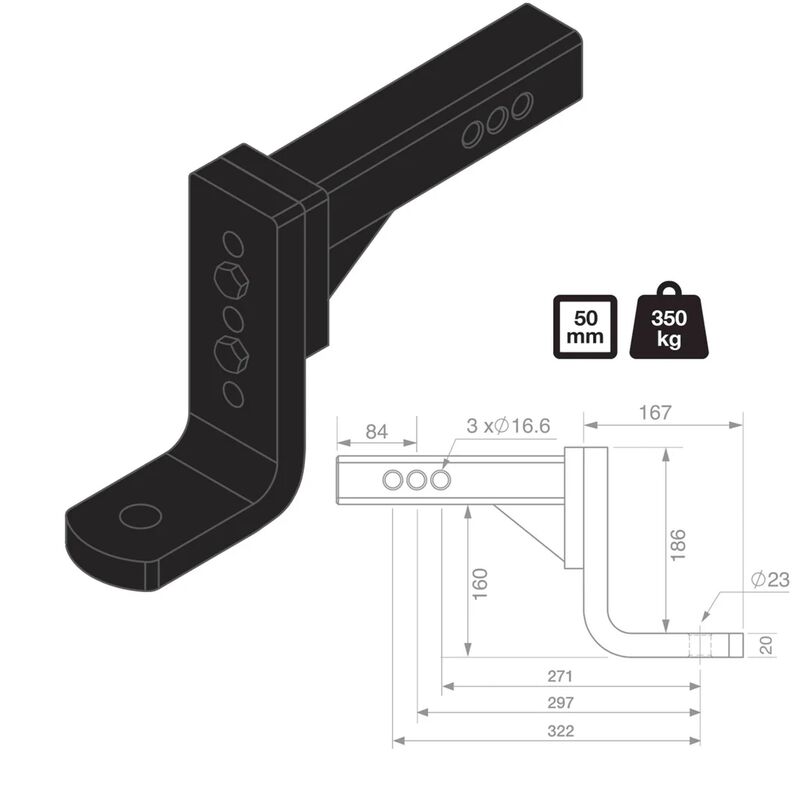

Drop: 160mm

Length (Pin To Ball): 297mm

Front to Pin (mm): 350

Back to Pin (mm): 76

Tongue Face: 90°

Coating: Powder Coated

Adjustable: Adjustable

Tightening Torque [Nm]: 270



Package

1x TAG Tow Ball Mount

SKU SWD-TAG-L4435
Brand TAG
Shipping Weight 50.0000kg
Shipping Width 0.200m
Shipping Height 0.200m
Shipping Length 0.600m
Shipping Cubic 0.024000000m3
