TAG Extended Towbar & Direct Fit Wiring For Toyota Hilux Models with Extended Tray or Canopy 04/2005 - 07/2008
SKU code: SWD-TAG-T7T703-K201
T7T703-K201
Specifications
Style: 7 Pin Flat
Type: Plugs & Sockets
Fitting Time [min.]: 45 (UNT249)
Fitting Time [min.]: 90 (T7T703)
Fog Cut Off: Not Applicable
Diagnostic Coding: Not Required
Fits Vehicle Year From (Month): 04
Fits Vehicle Year From: 2005
Fits Vehicle Year To (Month): 07
Fits Vehicle Year To: 2008
Wiring Option: Direct Fit Harness without Relays
Reverse Sensor Cut Off: Not Applicable
Towbar Class: Heavy Duty (Extended 3-Piece)
Towbar Capacity [kg]: 3500
Hitch Type: 50mm Square Hitch Receiver
Tow Ball Mount: L4045
Coating: Powder Coated
Bumper Removed During Fitment: No
Bumper Cut Out Required: No
Exposure: Exposed
Ball Weight [kg]: 350
Fitment
Toyota Hilux (01/2005 - 07/2008)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN26 | 1KD-FTV | 3.0L | Diesel | D-4D | AWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN26R | 1KD-FTV | 3.0L | Diesel | SR, WORKMATE | Automatic/Manual 4WD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | SR, WORKMATE | Manual RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | TGN16R | 2TR-FE | 2.7L | Petrol | WORKMATE | Automatic/Manual RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | V6 VVTi | AWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | V6 VVTi | AWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | V6 VVTi | RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | V6 VVTi | RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | TGN16R | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | TGN16R | 2TR-FE | 2.7L | Petrol | VVTi | RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN26R | 1KD-FTV | 3.0L | Diesel | SR | Automatic/Manual 4WD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | GGN15R | 1GR-FE | 4.0L | Petrol | SR | Automatic/Manual RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | GGN25R | 1GR-FE | 4.0L | Petrol | SR | Automatic/Manual 4WD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN26R | 1KD-FTV | 3.0L | Diesel | SR | Automatic/Manual 4WD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN16R | 1KD-FTV | 3.0L | Diesel | SR | Manual RWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN26 | 1KD-FTV | 3.0L | Diesel | D | AWD |
| TOYOTA | HILUX | 01/2005 | 07/2008 | Cab Chassis | KUN16 | 1KD-FTV | 3.0L | Diesel | D-4D | RWD |
Heavy Duty Towbar to suit vehicles with an extended tray or canopy while maintaining full towing capacity (3500kg towing, 350kg ball weight). Distance from centre of last bolt hole in chassis to centre of towball is 474mm.
Package

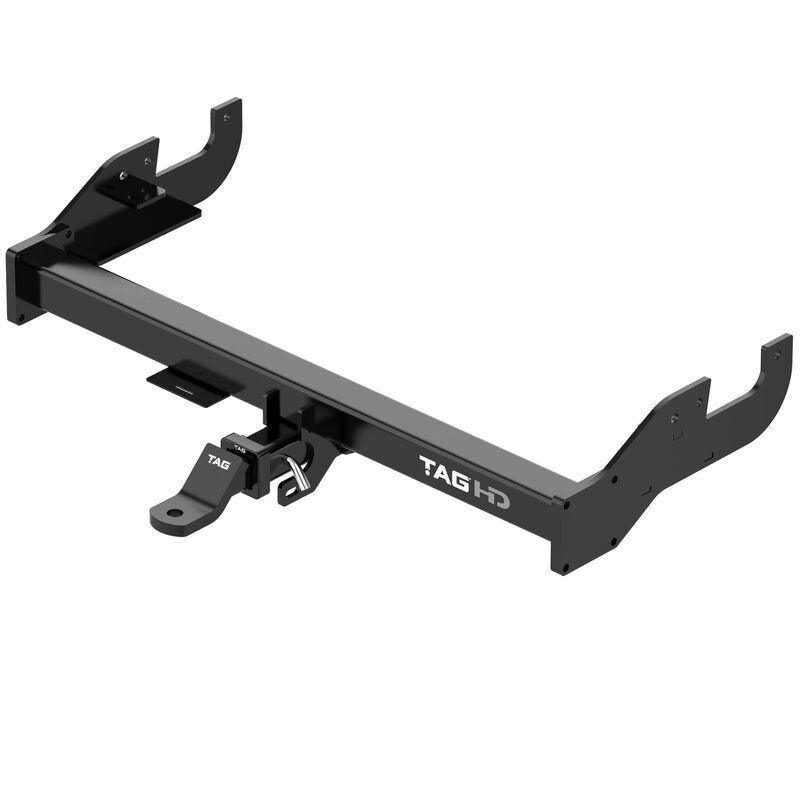

TAG Heavy Duty Extended 3-Piece Towbar

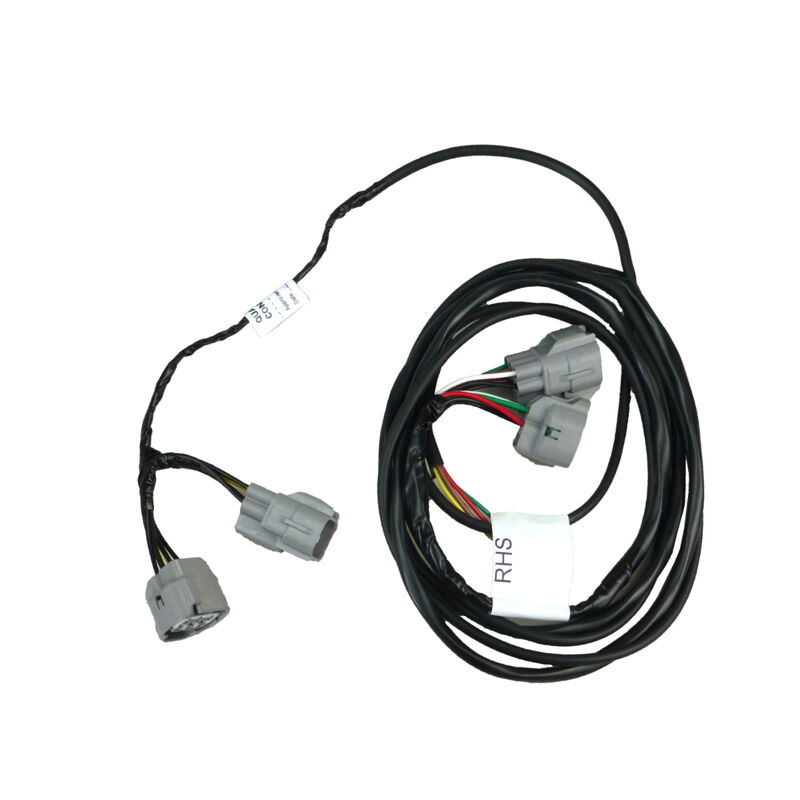

TAG Direct Fit Wiring Harness

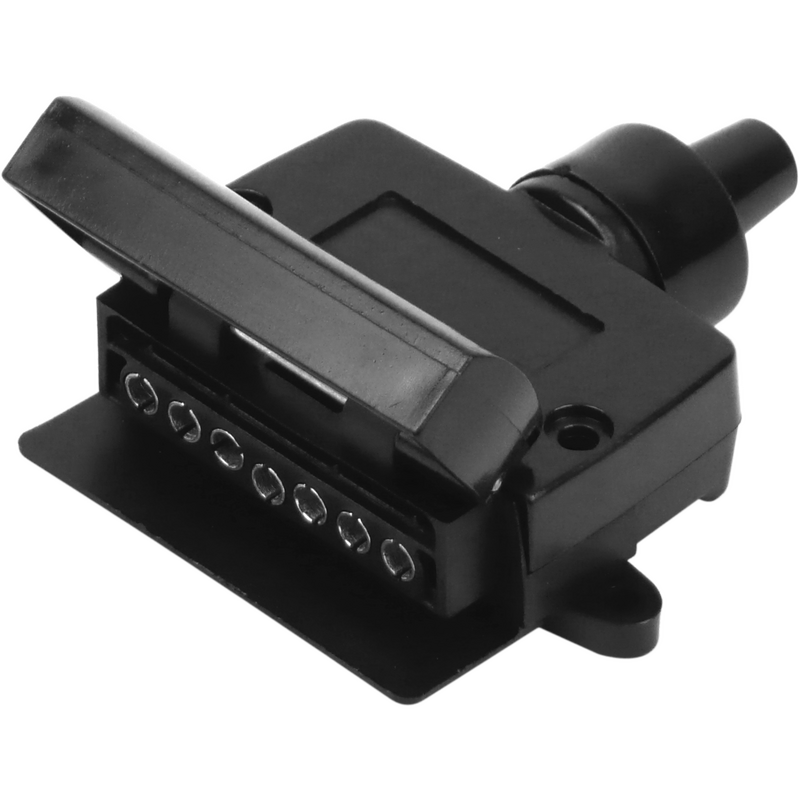

TAG 7 Pin Flat Socket - Vehicle Side
TAG Heavy Duty Towbars are designed and manufactured in Australia and feature:
Extended, 3-Piece Design (Suits Extended Tray or Canopy)
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles
Disclaimer: This is an aftermarket product manufactured by TAG Manufacturing Pty Ltd. It is not a Toyota Genuine part and is not endorsed, approved, or manufactured by Toyota Motor Corporation or Toyota Motor Corporation Australia Limited. Toyota is a registered trademark of Toyota Motor Corporation. Due to the safety-critical nature of towbars and vehicle manufacturing variations, professional installation by a qualified fitter is strongly recommended.
| SKU | SWD-TAG-T7T703-K201 |
| Brand | TAG |
| Shipping Weight | 50.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.300m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.195000000m3 |
