Feature

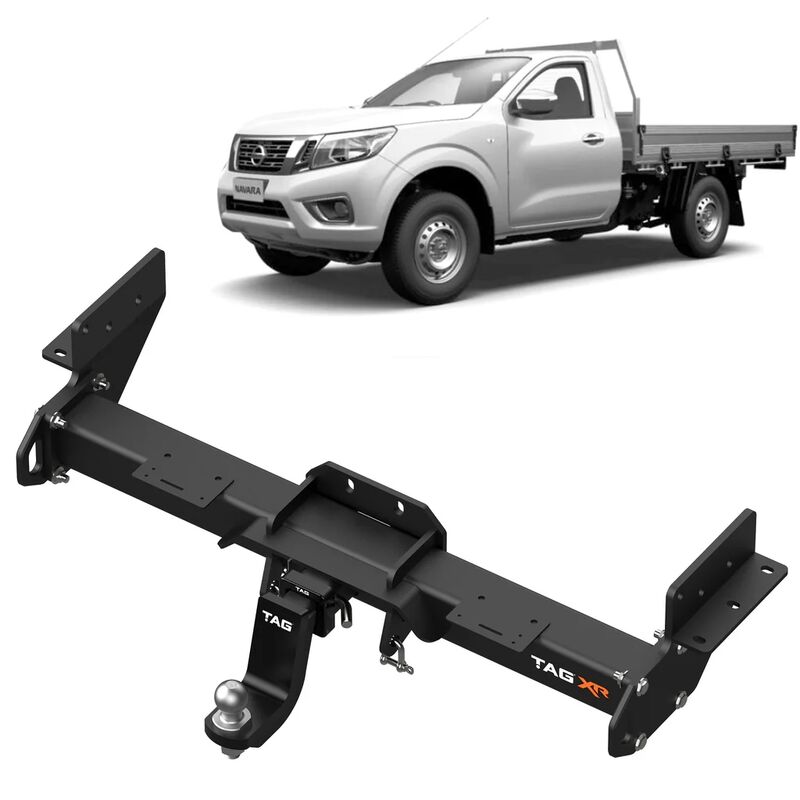

Cab Chassis/Trayback Models.

89mm x 89mm Extreme Duty Reinforced Crossbar.

Two WLL 4500kg Load-Rated Recovery Points Integrated Into Our 3-Piece Design Side-Arms With Bevelled Edges To Suit Soft-Shackles.

Flush Chassis-Mounted Profile For Maximum Offroad Clearance For Improved Departure Angles.

Highly Durable, Textured Extreme Duty Powder Coated Finish.

Dual Top-Mounted Trailer & Anderson Plug Mounts.

Class 4 Towbar - 50mm Square Hitch Receiver.

Includes Zinc Tow Ball & Extreme Duty Drop Hitch Rated At 3500kg Towing Capacity / 350kg Ball Weight, Pin & Clip And D-Shackles.

Note: Make Sure To Determine If The Vehicle Is Towing Power Prepared. To Do This Look At Step 8 In The Instructions. A Power Extension Kit 721149 Might Be Required. The Earthing Point Has Been Moved To The Passengers' Door Side Of The Vehicle. This Was Done From Batch 04/19.

Please Note: A Towbar Is a Safety Critical Item And Not Always a Straightforward Fitment Due To Vehicle Manufacturing Variation. We Strongly Recommend You Get Your Towbar And Wiring Harness Installed By a Professional Towbar Or Vehicle Accessory Fitting Workshop.

Specification

Brake Controller Prep: Yes

Towbar Class: Heavy Duty (4x4 Recovery)

Towbar Capacity [kg]: 3500

Recovery Load-tested: 4500kg WLL

Recovery Points: 2

Hitch Type: 50mm Square Hitch Receiver

Coating: Textured Powder Coated

Exposure: Exposed

Fitting Time [min.]: 60

Ball Weight [kg]: 350

Fitment

Fit For Nissan Navara D23 NP300 Cab Chassis QR25DE 2.5L Petrol DX RWD Automatic And Manual 03/2015-05/2021

Fit For Nissan Navara D23 Cab Chassis YS23DDT 2.3L Diesel dCi 4WD RWD 03/2015-05/2021

Fit For Nissan Navara D23 NP300 Cab Chassis YS23DDT 2.3L Diesel DX RX 4WD Automatic And Manual 03/2015-05/2021

Fit For Nissan Navara D23 NP300 Cab Chassis YS23DDT 2.3L Diesel RX King Cab RX 4WD RWD Manual 03/2015-05/2021

Package

XR Towbar

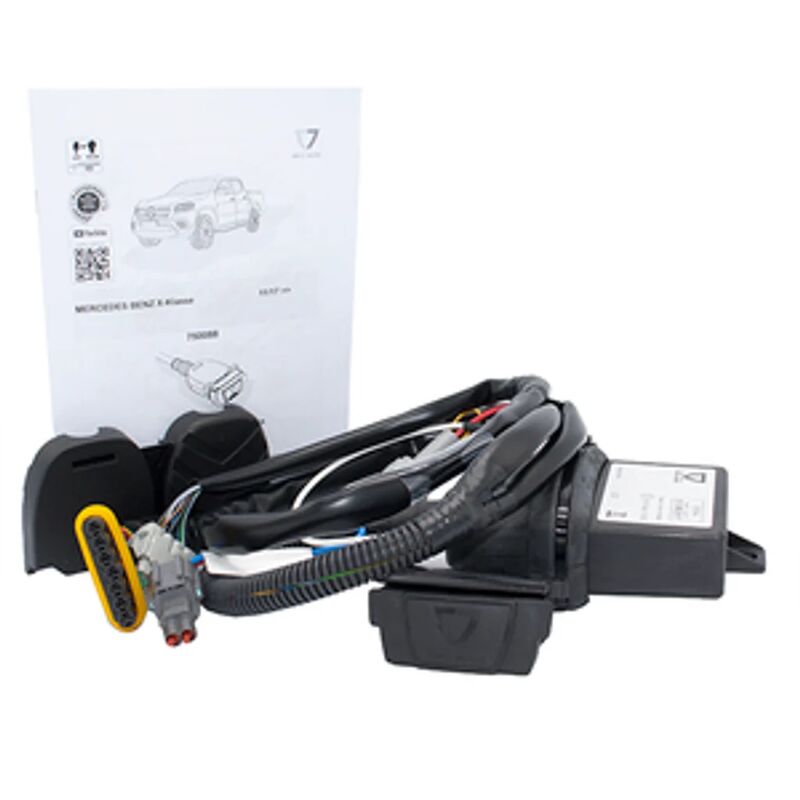

Direct Fit Wiring

7 Pin Flat Plug
