TAG Heavy Duty Towbar & Direct Fit Wiring For Ford Transit Custom AV Tourneo Volkswagen Transporter 2023-On
SKU code: SWD-TAG-T7F872-K102
T7F872-K102
Feature

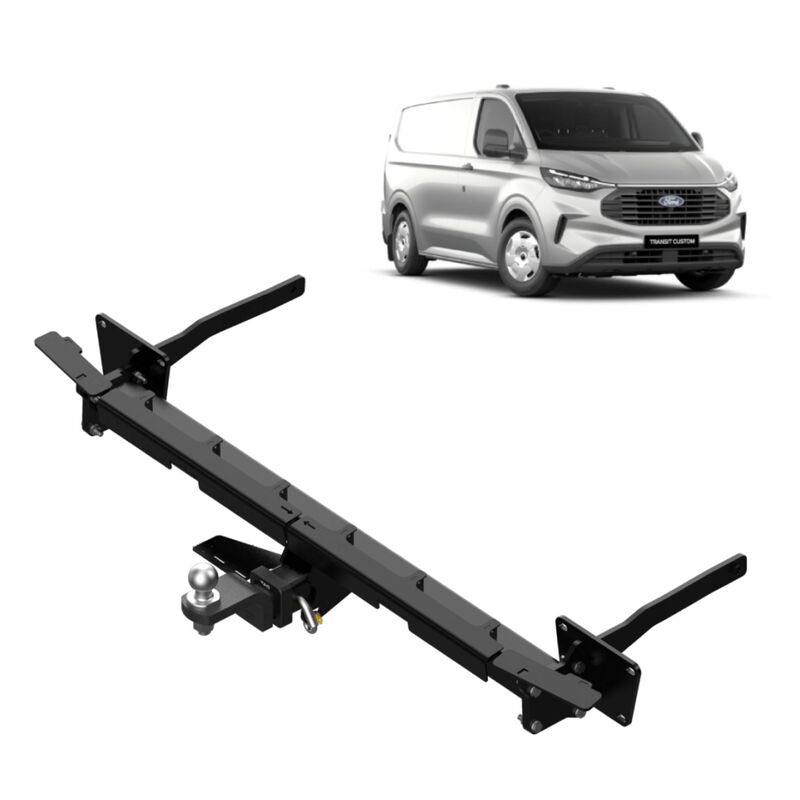

TAG Heavy Duty Towbars are designed and manufactured in Australia.
3-Piece Design for easier installation
Class 4 Towbar - 50mm Square Hitch Receiver
Durable Powder Coated Finish
Towbar includes Tow Ball, Tow Ball Mount, Pin & Clip and D-Shackles
Specifications
Style: 7 Pin Flat
Type: Plugs & Sockets
Diagnostic Coding: Optional
Fitting Time [min.]: 60 (BR-712485)
Fitting Time [min.]: 90 (T7F872)
Reverse Sensor Cut-Off: Automatic
Wiring Type: Direct Fit
Includes Trailer Plug: No
Reed Switch: Normally Closed Circuit
Brake Controller Prep: Yes
CAN Bus Support: yes
Towbar Class: Heavy Duty (3-Piece Design)
Towbar Capacity [kg]: 2500
Ball Weight [kg]: 200
Tow Ball Mount: L4120
Coating: Powder Coated
Hitch Type: 50mm Square Hitch Receiver
Bumper Removed During Fitment: Yes
Bumper Cut Out Required: Yes
Exposure: Concealed
Wiring: Vehicle specific wiring harness to function with AV series Ford Transit Custom van.

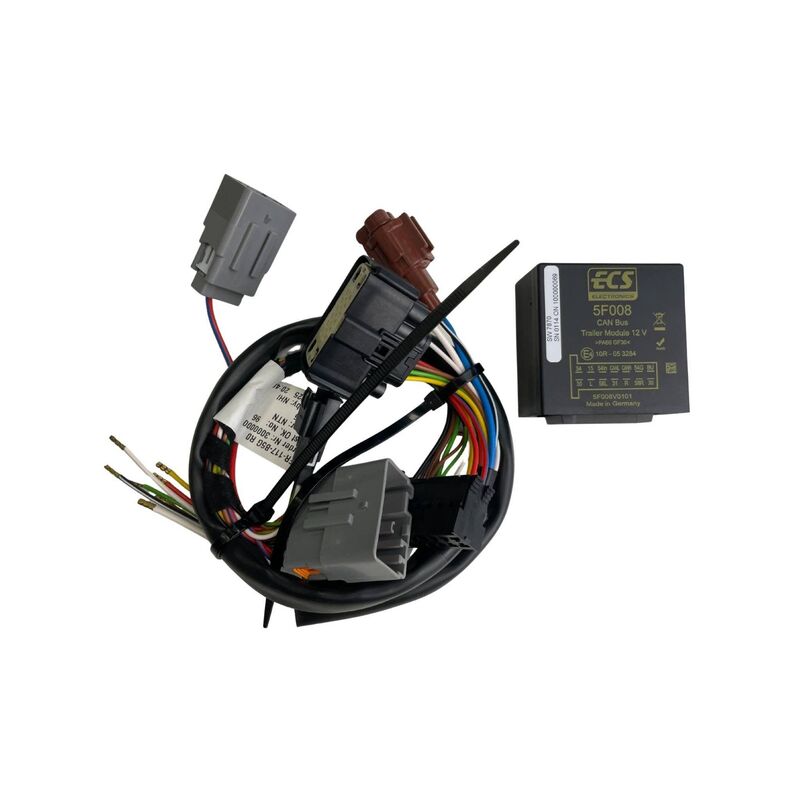

Wiring Harness: CAN-Bus Wiring Harness. For vehicles with trailer prep, Coding is optional to work with all vehicle features.

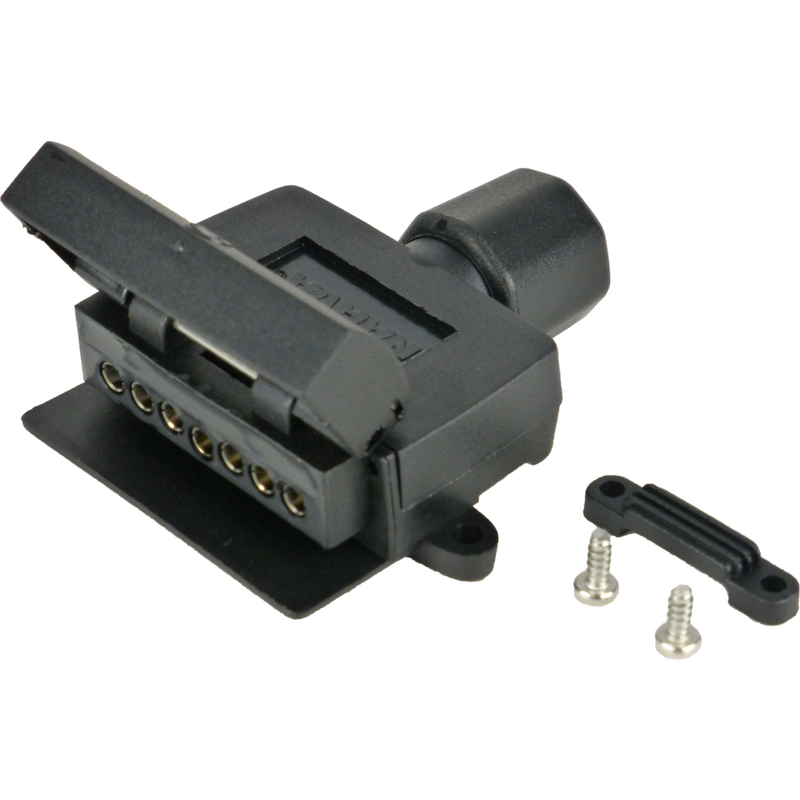

Kit will come with a 7 Pin Large round European style trailer plug. Use part number UNTA020 for easy adaptor to the Australian standard 7 Pin Flat plug. Or this can be rewired into a UNT032BLIS if preferred.
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Fitment
Ford Transit Custom (07/2023 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| FORD | TRANSIT CUSTOM | 02/2024 | - | Van | . | 2.0L | Diesel | 300L | Automatic FWD |
| FORD | TRANSIT CUSTOM | 07/2023 | - | Van | RXXTA | 2.0L | Diesel | 320L | Automatic FWD |
| FORD | TRANSIT CUSTOM | 07/2023 | - | Van | RXXTA | 2.0L | Diesel | 320S | Automatic FWD |
Ford Tourneo (05/2024 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| FORD | TOURNEO | 05/2024 | - | Bus | AV | DC | 2.0L | Diesel | TDCi | FWD |
Volkswagen Transporter (07/2024 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| VOLKSWAGEN | TRANSPORTER | 02/2025 | - | Van | T7 | 2.0L Turbo Diesel | 2.0L | Diesel | TDI390 Lite SWB | Automatic FWD |
| VOLKSWAGEN | TRANSPORTER | 02/2025 | - | Van | T7 | 2.0L Turbo Diesel | 2.0L | Diesel | TDI390 LWB | Automatic FWD |
| VOLKSWAGEN | TRANSPORTER | 02/2025 | - | Van | T7 | 2.0L Turbo Diesel | 2.0L | Diesel | TDI390 LWB 4MOTION | Automatic 4WD |
| VOLKSWAGEN | TRANSPORTER | 02/2025 | - | Van | T7 | 2.0L Turbo Diesel | 2.0L | Diesel | TDI390 SWB | Automatic FWD |
| VOLKSWAGEN | TRANSPORTER | 02/2025 | - | Van | T7 | 2.0L Turbo Diesel | 2.0L | Diesel | TDI390 SWB 4MOTION | Automatic 4WD |
| VOLKSWAGEN | TRANSPORTER | 07/2024 | - | Van | TWD, TWE, TWM, TWN, TWV, TWW | EECA(ELRA) | Electric | e-Transporter | RWD |
| VOLKSWAGEN | TRANSPORTER | 07/2024 | - | Van | TVD, TVE, TVM, TVN, TVV, TVW | DZJA(BKAA) | 2.0L | Diesel | TDI | AWD |
| VOLKSWAGEN | TRANSPORTER | 07/2024 | - | Van | TVD, TVE, TVM, TVN, TVV, TVW | DZJA(BKFA) | 2.0L | Diesel | TDI | FWD |
Package
1 x Towbar
| SKU | SWD-TAG-T7F872-K102 |
| Brand | TAG |
| Shipping Weight | 50.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.300m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.195000000m3 |
