TAG Heavy Duty Towbar & Direct Fit Wiring Kit For Mazda BT-50 Isuzu D-MAX 07/2020 - On
SKU code: SWD-TAG-T7H765-K201
T7H765-K201
Feature
Designed and manufactured in Australia
3 Piece Design
Factory Mounting Points for ease of fitment
Durable Powder Coated Finish
Class 4, 50mm x 50mm Hitch Receiver
Towbar includes - Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications
Diagnostic Coding: Not Required
Reverse Sensor Cut Off: Automatic
Wiring Option: Direct Fit ECU
Fitting Time [min.]: 30 (UNT351)
Fitting Time [min.]: 60 (T7H765)
Ball Weight [kg]: 350
Towbar Class: Heavy Duty (3-Piece Design)
Towbar Capacity [kg]: 3500
Hitch Type: 50mm Square Hitch Receiver
Tow Ball Mount: L4045
Coating: Powder Coated
Bumper Removed During Fitment: No
Bumper Cut Out Required: No
Exposure: Partially Concealed
Fitment
Isuzu D-MAX (06/2020 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| ISUZU | D-MAX | 10/2021 | - | Cab Chassis | TFR, TFS | RZ4E-TC | 1.9L | Diesel | RWD | |
| ISUZU | D-MAX | 07/2020 | - | Cab Chassis | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD | |
| ISUZU | D-MAX | 07/2020 | - | Cab Chassis | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual RWD | |
| ISUZU | D-MAX | 07/2020 | - | Single Cab | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD | |
| ISUZU | D-MAX | 07/2020 | - | Single Cab | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual RWD | |
| ISUZU | D-MAX | 07/2020 | - | Ute | TFS40 | 4JJ3-TCX | 3.0L | Diesel | CRD | Automatic/Manual 4WD |
| ISUZU | D-MAX | 07/2020 | - | Ute | TFR40 | 4JJ3-TCX | 3.0L | Diesel | LS-U, SX | Automatic RWD |
| ISUZU | D-MAX | 07/2020 | - | Ute | TFS40 | 4JJ3-TCX | 3.0L | Diesel | LS-U, SX SPACECAB | Automatic/Manual 4WD |
| ISUZU | D-MAX | 07/2020 | - | Ute | TFS40 | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD |
| ISUZU | D-MAX | 07/2020 | - | Ute | TFS | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual 4WD |
| ISUZU | D-MAX | 07/2020 | - | Ute | TFR40 | 4JJ3-TCX | 3.0L | Diesel | SX | Automatic/Manual RWD |
| ISUZU | D-MAX | 07/2020 | - | Ute | TFR40 | 4JJ3-TCX | 3.0L | Diesel | SX SPACECAB | Automatic RWD |
| ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS | 3.0L | Diesel | DDI | 4WD |
| ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS | 4JJ3-TCX | 3.0L | Diesel | DDI | AWD |
| ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS | 4JJ3-TCX | 3.0L | Diesel | DDI | RWD |
| ISUZU | D-MAX | 06/2020 | - | Cab Chassis | TFR, TFS (TFR40J) | 4JJ3-TCX | 3.0L | Diesel | DDI | RWD |
Mazda BT-50 (07/2020 - on)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| MAZDA | BT-50 | 11/2021 | - | Cab Chassis | TF | RZ4E-TC | 1.9L | Diesel | AWD | |
| MAZDA | BT-50 | 11/2021 | - | Cab Chassis | TF | RZ4E-TC | 1.9L | Diesel | RWD | |
| MAZDA | BT-50 | 11/2021 | - | Cab Chassis | 819C | RZ4E-TC | 2.0L | Diesel | XS | Automatic RWD |
| MAZDA | BT-50 | 11/2021 | - | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4WD | |
| MAZDA | BT-50 | 11/2021 | - | Ute | 819C | RZ4E-TC | 2.0L | Diesel | XS | Automatic 4WD |
| MAZDA | BT-50 | 11/2021 | - | Ute | B19C | RZ4E-TC | 2.0L | Diesel | XS | Automatic RWD |
| MAZDA | BT-50 | 01/2021 | - | Ute | TF | RZ4E-TC | 1.9L | Diesel | 4x2 | RWD |
| MAZDA | BT-50 | 08/2020 | - | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT | Automatic/Manual 4WD |
| MAZDA | BT-50 | 08/2020 | - | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT | Automatic/Manual 4WD |
| MAZDA | BT-50 | 08/2020 | - | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT | Automatic RWD |
| MAZDA | BT-50 | 08/2020 | - | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT | Automatic RWD |
| MAZDA | BT-50 | 08/2020 | - | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT FREESTYLE | Automatic/Manual 4WD |
| MAZDA | BT-50 | 08/2020 | - | Cab Chassis | B30B | 4JJ3-TCX | 3.0L | Diesel | XT FREESTYLE | Automatic RWD |
| MAZDA | BT-50 | 08/2020 | - | Ute | B30B | 4JJ3-TCX | 3.0L | Diesel | GT, XT, XTR | Automatic/Manual 4WD |
| MAZDA | BT-50 | 08/2020 | - | Ute | B30B | 4JJ3-TCX | 3.0L | Diesel | XT, XTR | Automatic RWD |
| MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF | 4JJ3-TCX | 3.0L | Diesel | 4WD | |
| MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF (TFS40JDR, TFS40JPR) | 4JJ3-TCX | 3.0L | Diesel | AWD | |
| MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF | 4JJ3-TCX | 3.0L | Diesel | RWD | |
| MAZDA | BT-50 | 07/2020 | - | Cab Chassis | TF (TFR40JDR, TFR40JPR) | 4JJ3-TCX | 3.0L | Diesel | RWD |
Note: Premium Powder Coated 3-Piece Towbar and direct fit wiring harness to suit tub and tray models with or without Rear Bumper Step.
Package

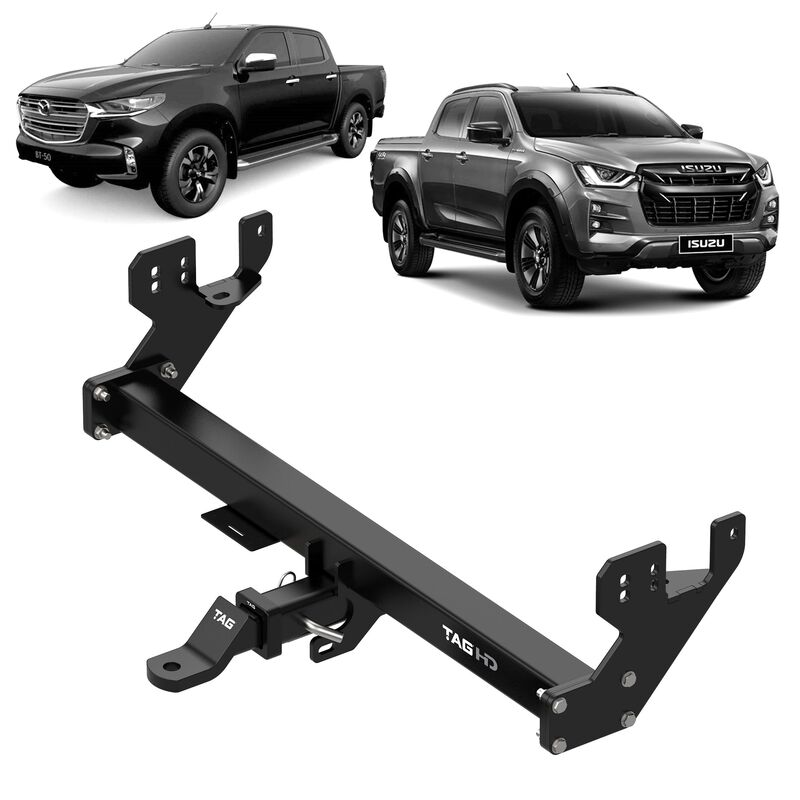

TAG Heavy Duty 3-Piece Towbar

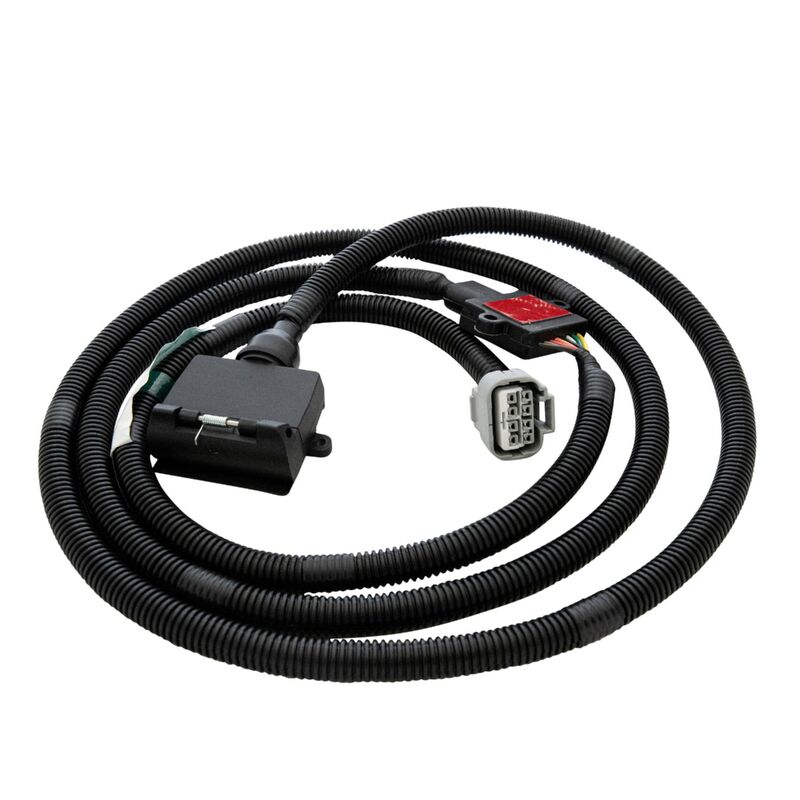

TAG Direct Fit Wiring Harness
TAG 7 Pin Flat Socket - Vehicle Side
| SKU | SWD-TAG-T7H765-K201 |
| Brand | TAG |
| Shipping Weight | 50.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.300m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.195000000m3 |
