TAG Heavy Duty Towbar Fit For Subaru Forester 03/2008 - 04/2013
SKU code: SWD-TAG-T4S516-K201
T4S516-K201
Feature
Factory Mounting Points for ease of fitment
Durable Powder Coated Finish.
Class 4,50mm x 50mm Hitch Receiver
Towbar includes - Tow Ball, Tow Ball Mount, Hitch Pin & R-Clip and D-Shackles
Please Note: A towbar is a safety critical item and not always a straightforward fitment due to vehicle manufacturing variation. We strongly recommend you get your towbar and wiring harness installed by a professional towbar or vehicle accessory fitting workshop.
Specifications
Style: 7 Pin Flat
Type: Plugs & Sockets
Reverse Sensor Cut Off: Not Applicable
Diagnostic Coding: Not Required
Fog Cut Off: Not Applicable
Wiring Option: Direct Fit Wiring Harness
Fitting Time [min.]: 30 (UNT276)
Fitting Time [min.]: 60 (T4S516)
Ball Weight [kg]: 110
Towbar Class: Heavy Duty
Towbar Capacity [kg]: 1400
Hitch Type: 50mm Square Hitch Receiver
Tow Ball Mount: L4120
Coating: Enamel Immersion Dipped
Bumper Removed During Fitment: Yes
Bumper Cut Out Required: Yes
Exposure: Concealed
Fitment
Subaru Forester (03/2008 - 09/2013)
| Make | Model | From | To | Body | Series | Engine | Variant | Drivetrain |
|---|---|---|---|---|---|---|---|---|
| SUBARU | FORESTER | 12/2011 | 12/2013 | Wagon | SH | EE20 | 2.0L | Diesel | 2.0D | Manual AWD |
| SUBARU | FORESTER | 03/2011 | 09/2013 | SUV | SH | FB25 | 2.5L | Petrol | AWD | |
| SUBARU | FORESTER | 02/2011 | 12/2013 | Wagon | SH | EJ255 | 2.5L | Petrol | S-EDITION | Automatic/Manual AWD |
| SUBARU | FORESTER | 02/2011 | 04/2013 | Wagon | SH9 | EJ255 | 2.5L | Petrol | Turbo | AWD |
| SUBARU | FORESTER | 02/2011 | 12/2013 | Wagon | SH | FB25 | 2.5L | Petrol | X| XS | Automatic/Manual AWD |
| SUBARU | FORESTER | 01/2009 | 04/2013 | Wagon | SH9 | EJ25 | 2.5L | Petrol | AWD | |
| SUBARU | FORESTER | 09/2008 | 04/2013 | Wagon | SHD, SHH, SHN | EE20Z | 2.0L | Diesel | D | AWD |
| SUBARU | FORESTER | 06/2008 | 04/2013 | Wagon | SH9 | EJ255 | 2.5L | Petrol | AWD | |
| SUBARU | FORESTER | 06/2008 | 04/2013 | Wagon | SH9 | EJ255 | 2.5L | Petrol | AWD | |
| SUBARU | FORESTER | 03/2008 | 12/2013 | Wagon | SH | EJ255 | 2.5L | Petrol | XT | Automatic/Manual AWD |
| SUBARU | FORESTER | 06/2010 | 12/2011 | Wagon | SH | EE20 | 2.0L | Diesel | 2.0D | Manual AWD |
| SUBARU | FORESTER | 03/2008 | 12/2011 | Wagon | SH | EJ253 | 2.5L | Petrol | Automatic/Manual AWD |
Package

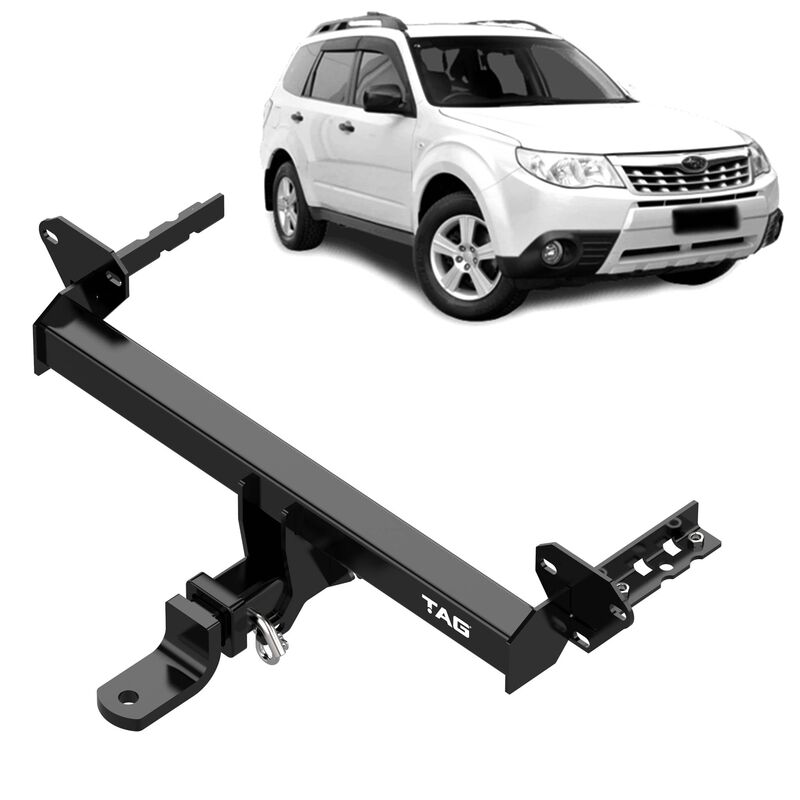

TAG Heavy Duty Towbar

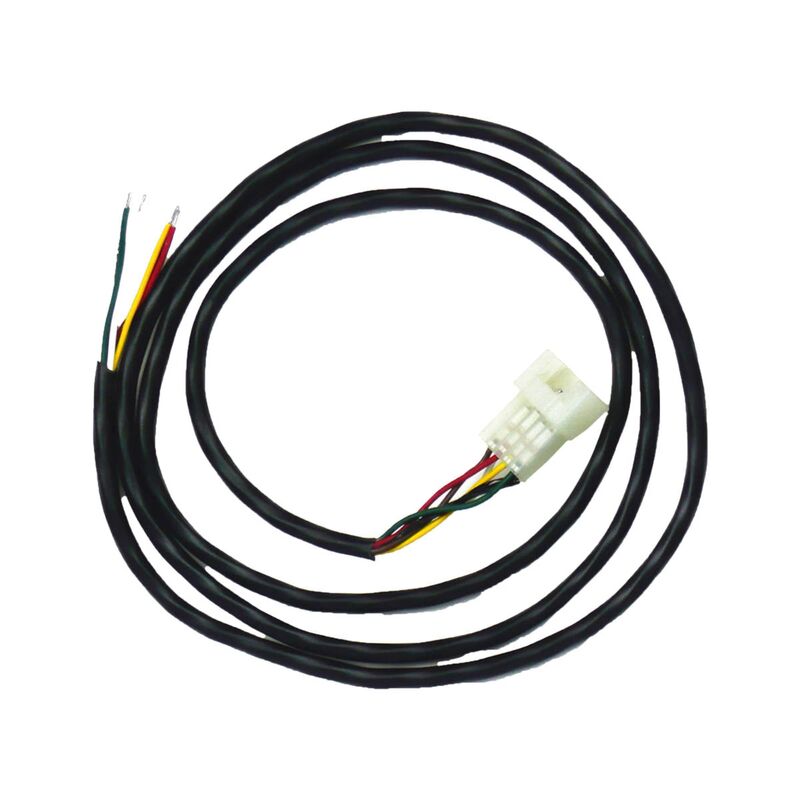

TAG Direct Fit Wiring Harness

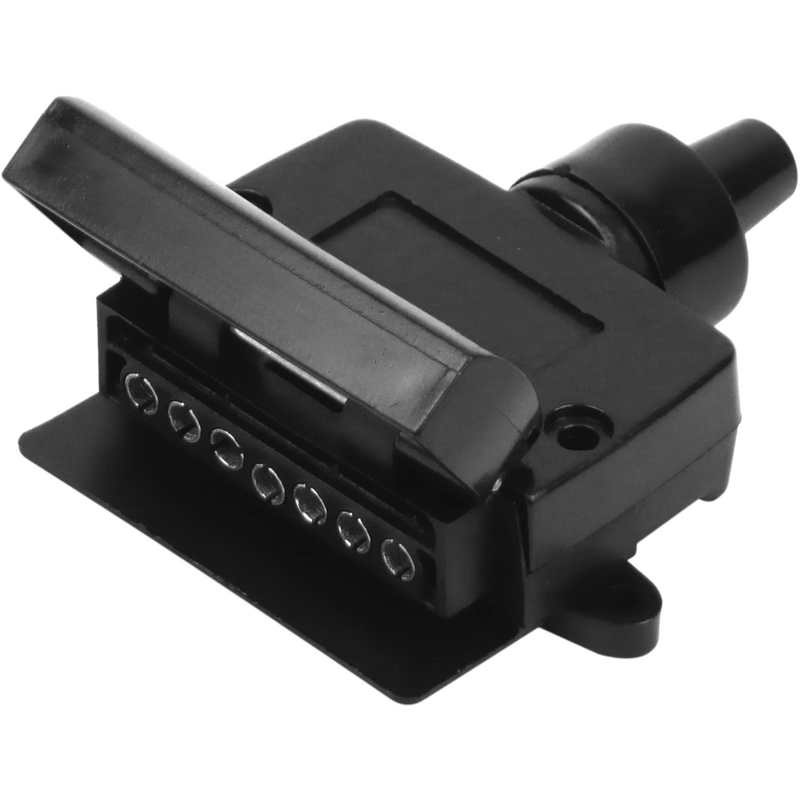

TAG 7 Pin Flat Socket - Vehicle Side
| SKU | SWD-TAG-T4S516-K201 |
| Brand | TAG |
| Shipping Weight | 50.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.300m |
| Shipping Length | 1.300m |
| Shipping Cubic | 0.195000000m3 |
