OEM Part Numbers

L3K9-12-4X0C, L3K9-11-316, L3K9-14-143, L3K9-12-671

L3K9-12-201A, L3K9-14-151, L3K9-12-425, L3K9-11-316

L3K9-12-500A, L3K9-14-500, L3K9-12-614, L3K9-14-614

L3K9124X0C, L3K911316, L3K914143, L3K912671

L3K912201A, L3K914151, L3K912425, 1S7Z6K254AA

L3K912500A, L3K914500, L3K912614, L3K914614

1L5Z6268AA 1S7Z6A895AA

Fitment

Fit For Mazda CX-7 2.3L Turbo 2007-2012

Fit For Mazda 3 2.3L Turbo 2007-2012

Fit For Mazda 6 2.3L Turbo  2006-2007

Fit For Mazda Speed 3 2.3L Turbo 2006-2012

Fit For Mazda Speed 6 2.3L Turbo 2005-2007

Note：The VVT Cam Gear Looks Slightly Different From The Original, But Still Fits For CX-7 And Will Not Affect The Use.

Package

1 x Timing Chain (138 Links)

1 x Oil Pump Chain (60 Links)

1 x VVT Actuator (40 Teeth )

1 x Cam Gear

2 x Crank Gear

1 x Oil Pump Gear

1 x Tensioner

1 x Timing Chain Guide (Left)

1 x Timing Chain Guide (Right)

1 x Tensioner (Oil Pump)

1 x Oil Chain Guide (Oil Pump)

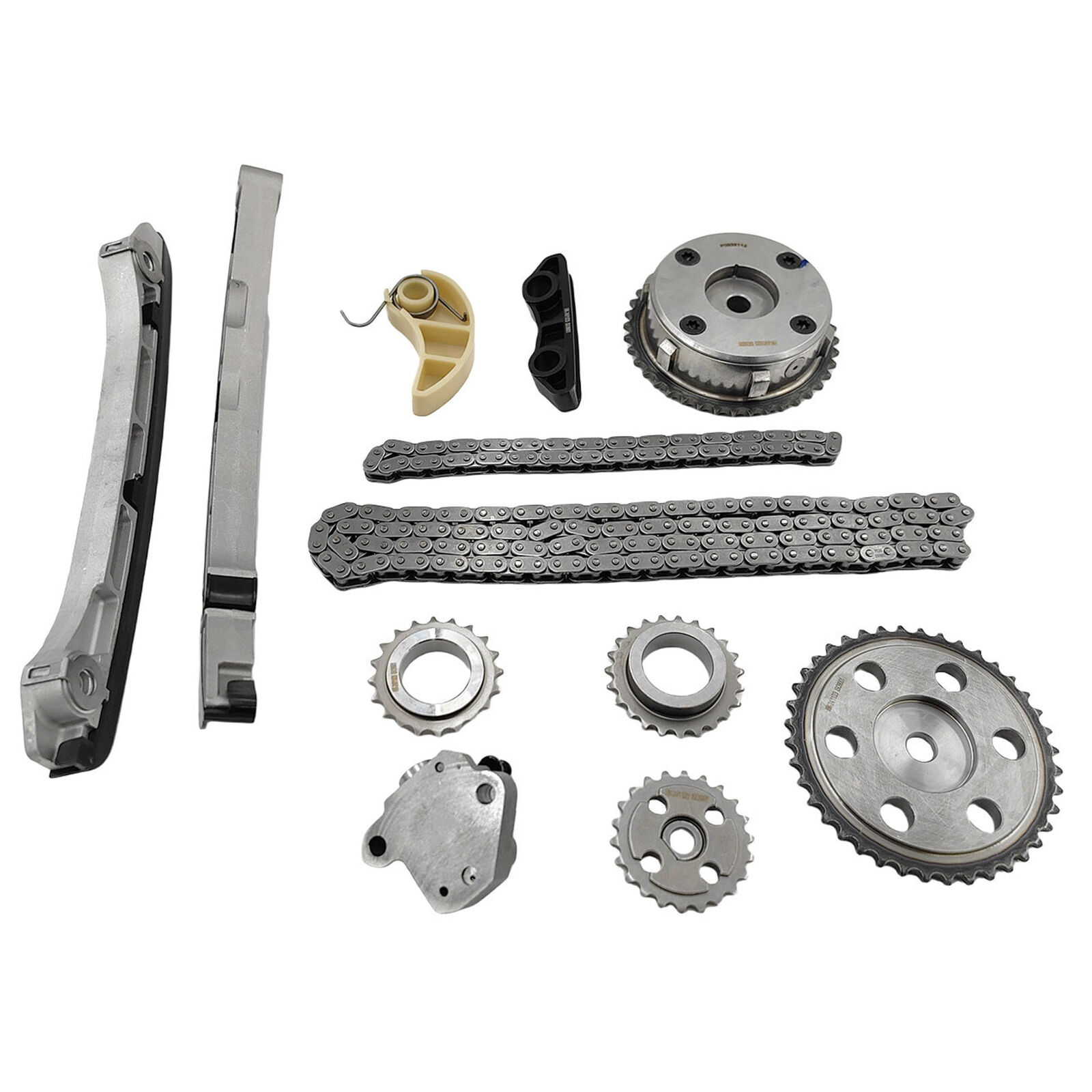

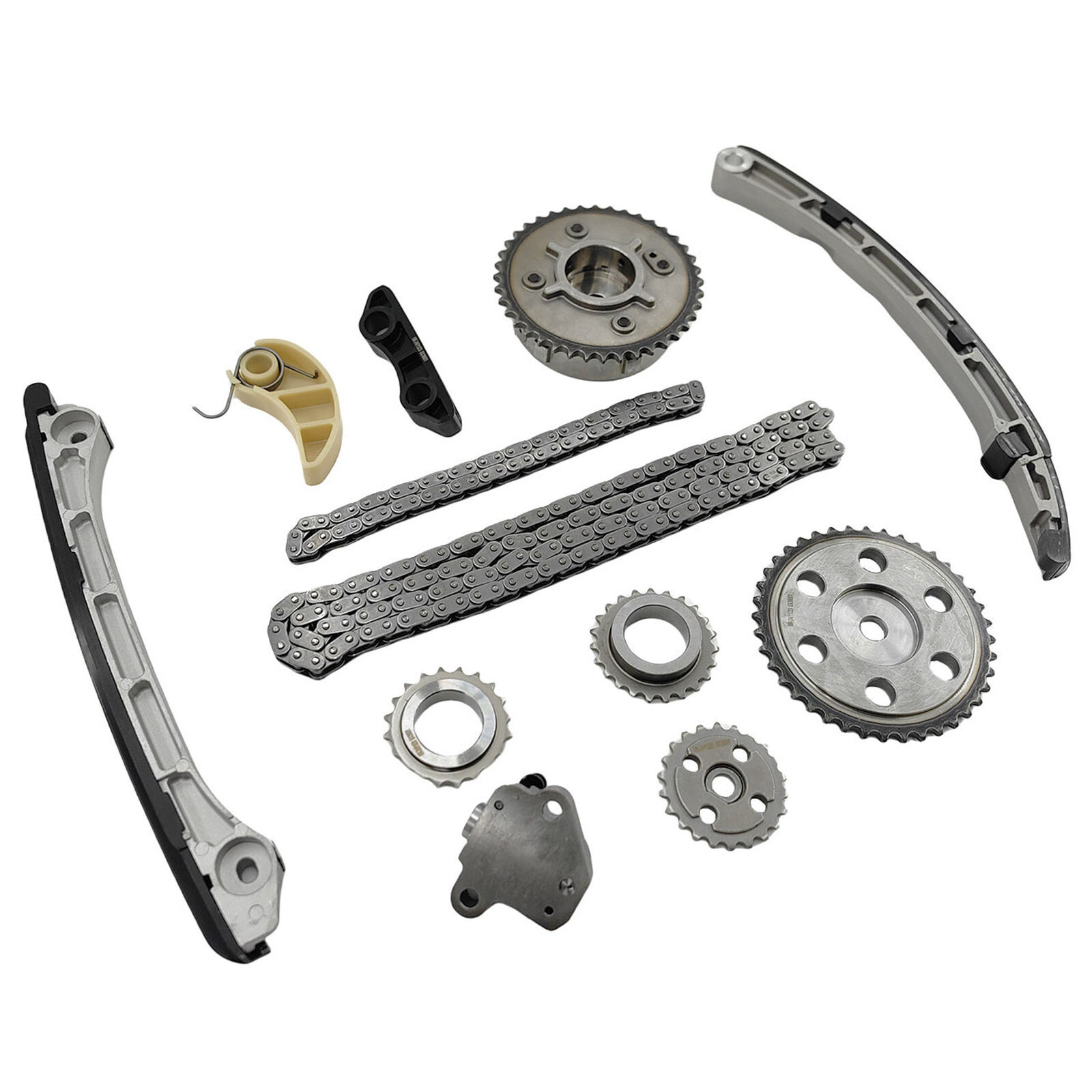

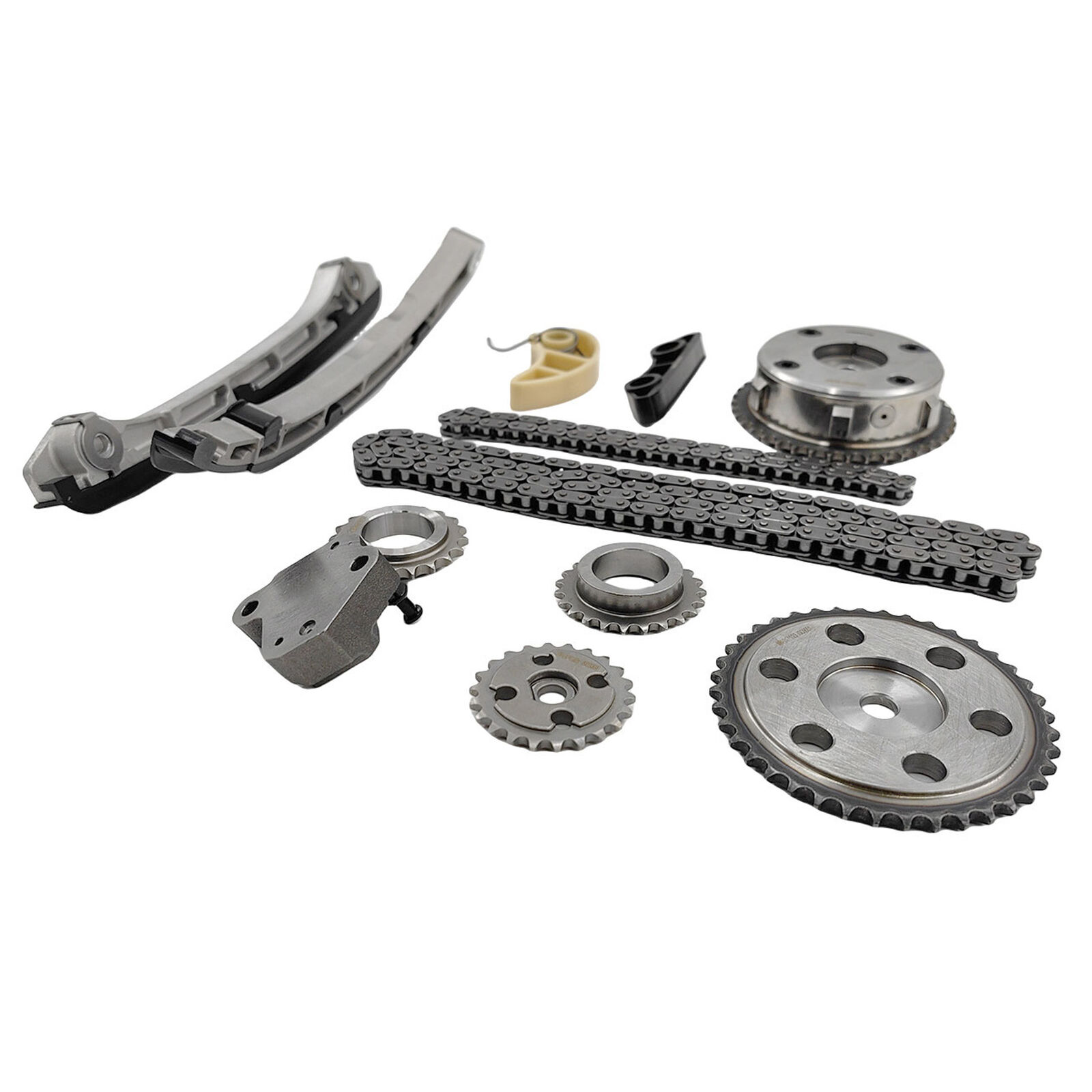

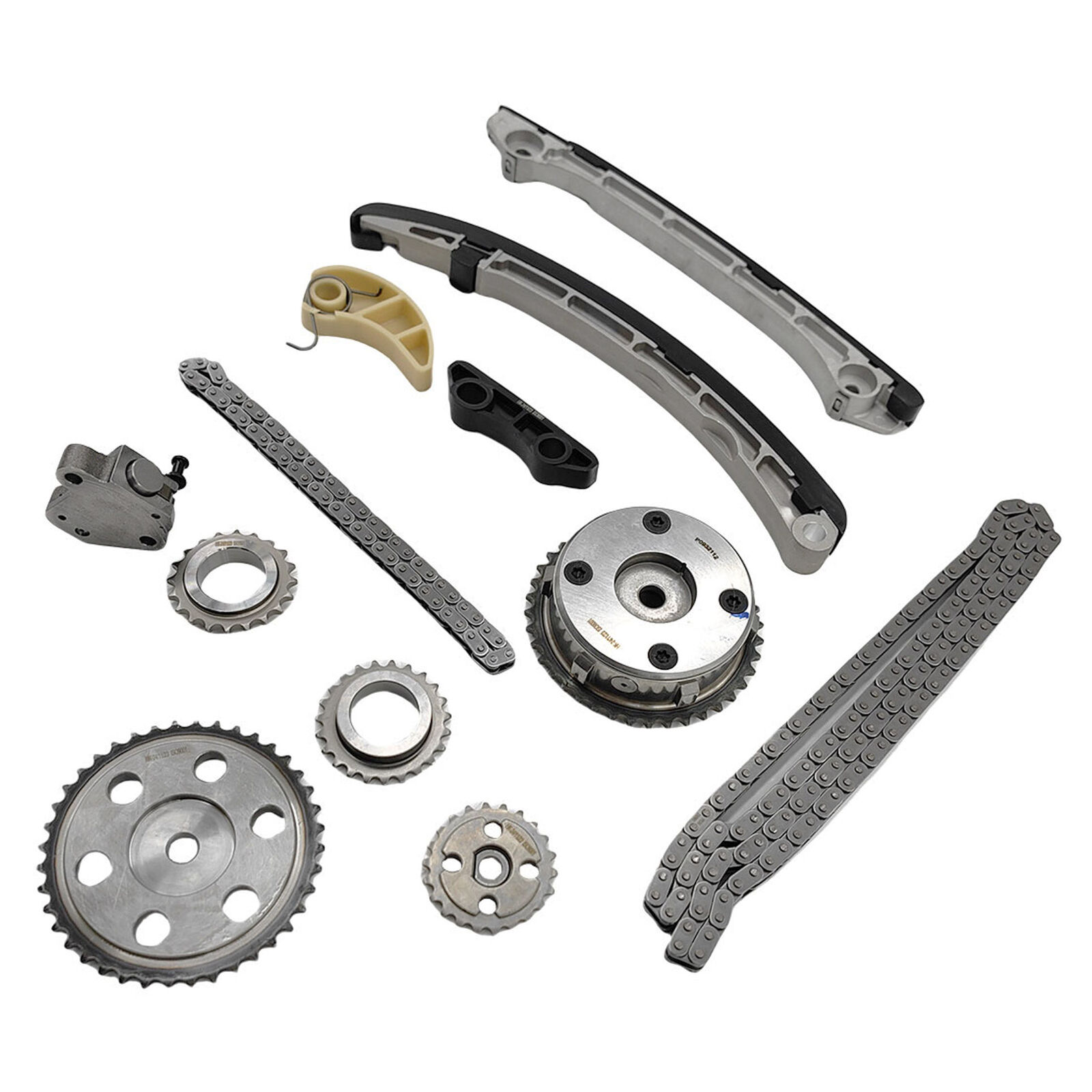

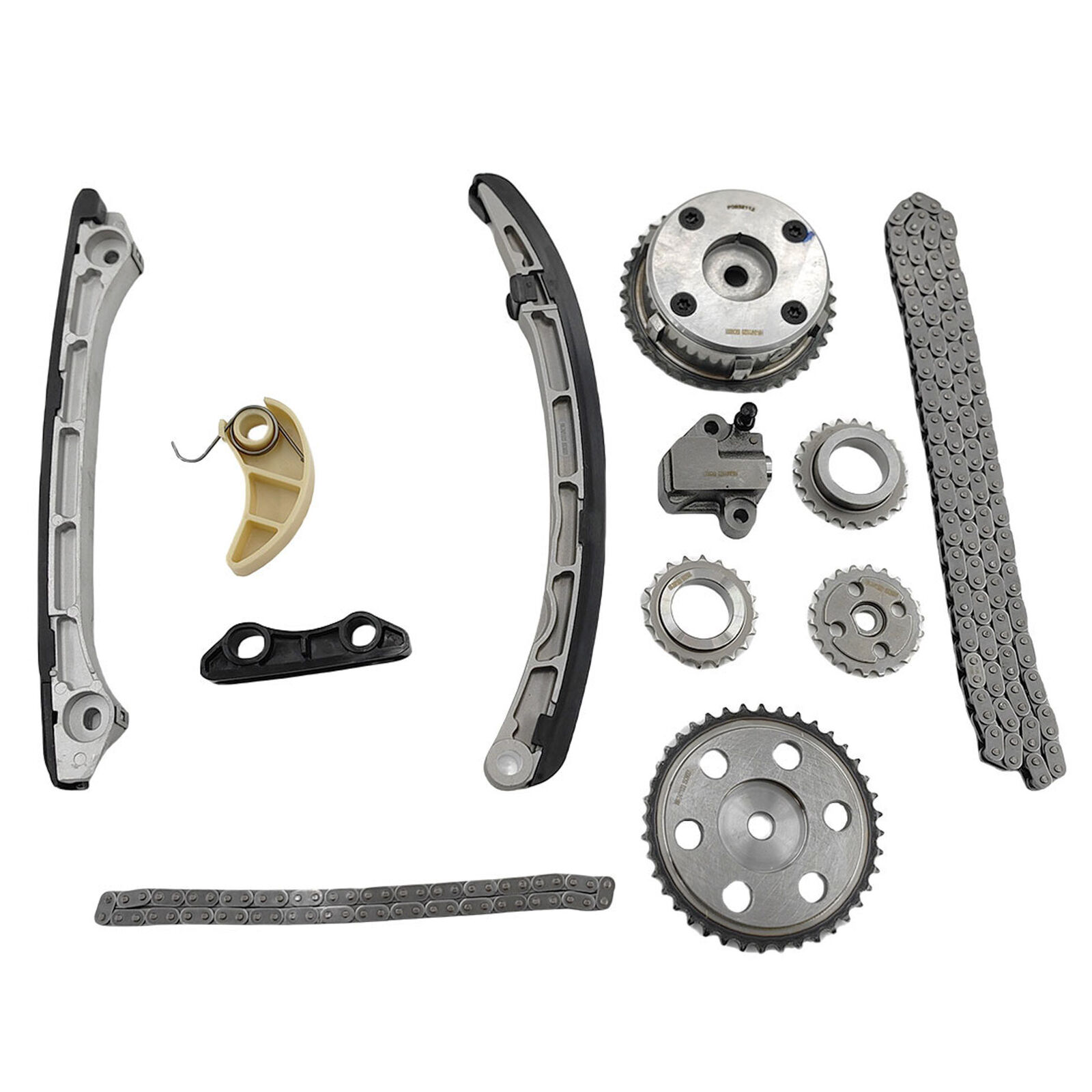

Just As Piactures Shown
