Feature

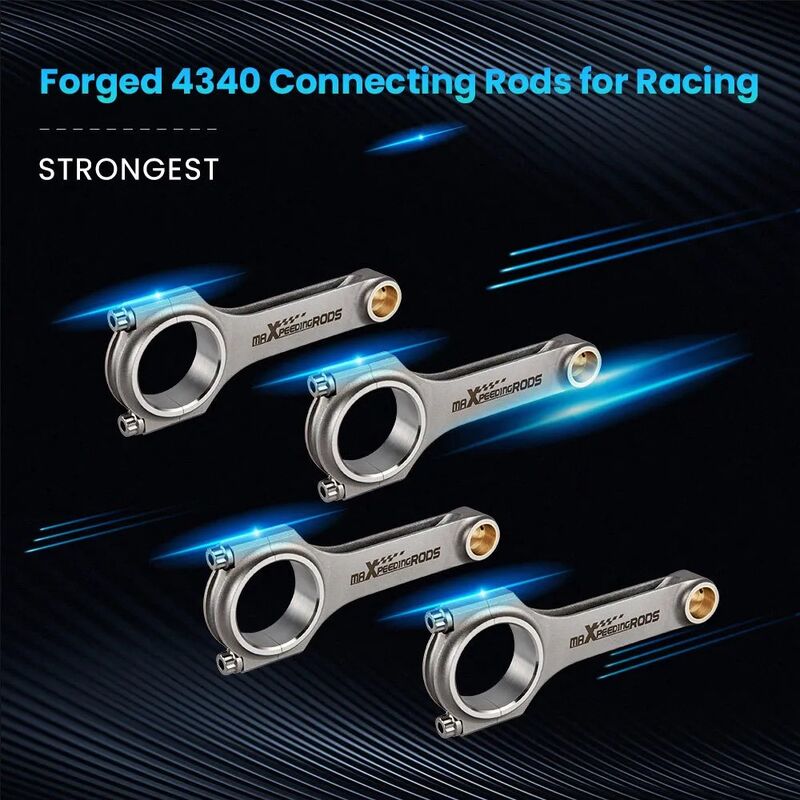

-Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.

-Designed and processed by CNC machine.

-All big and small ends are finished with SUNNEN honing machine.

-Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk.

-100% X-rayed, sonic tested and magnafluxed.

-Multi-stage heat treated.

-Shot peened to relieve stress.

-Come with the bronzed bushing suitable for the floating piston pin.

Specification

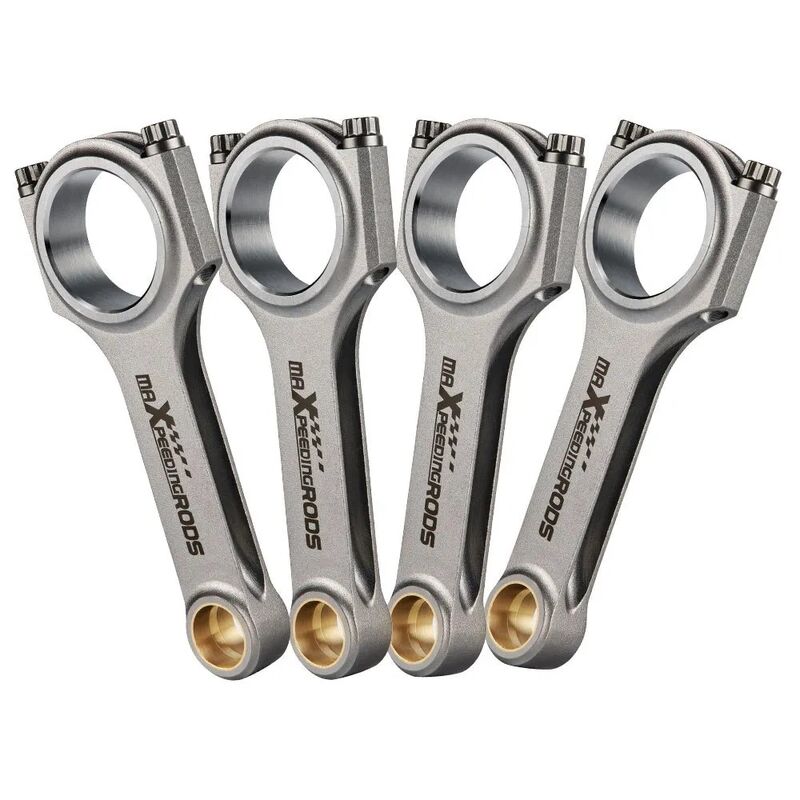

Performance Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 4 Pieces a set

Bolts: Including Genuine 5/16" ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: 5/16"

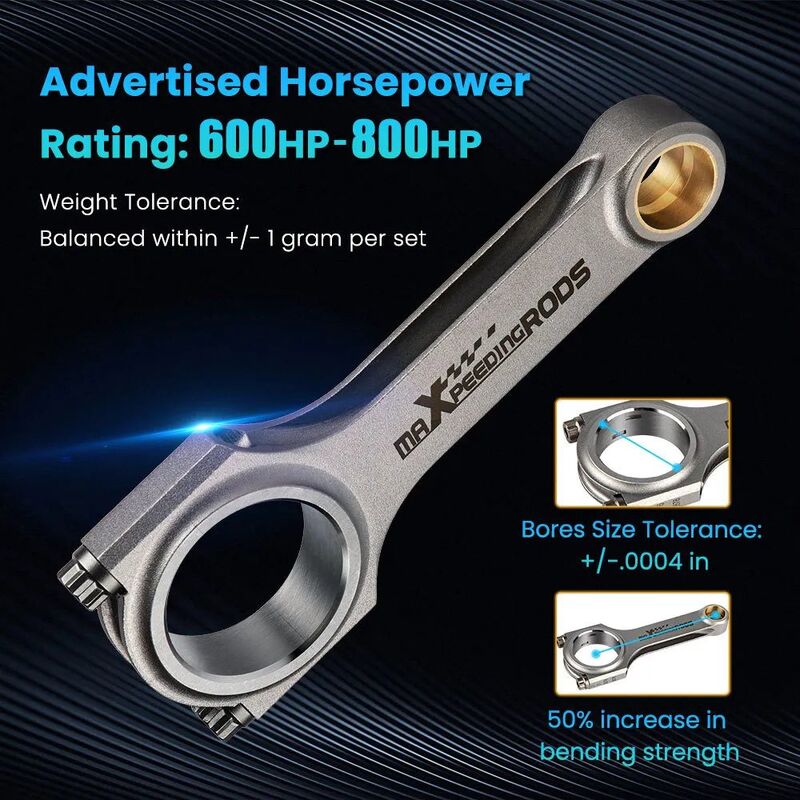

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 7000rpm

Center to center length:146.05mm/5.75"

Big end diameter:48.15mm/1.896"

Small end diameter:20.65mm/0.813"

Big end width:26.2mm/1.031"

Small end width:22.5mm/0.886"

Fitment

Fit For Austin Fit For Mini Cooper S 1275cc plus

Notice：Big end diameter: 48.15mm/1.896"

Pin Type: Floating Pin Piston

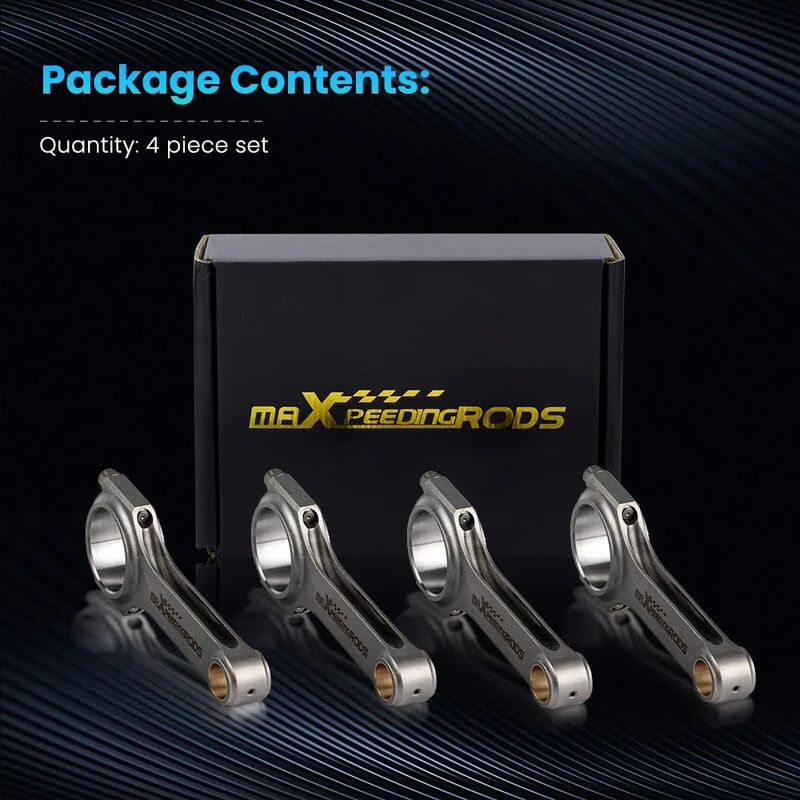

Package

4 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)

Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

Learn more about CUSTOM SERVICE
