Feature

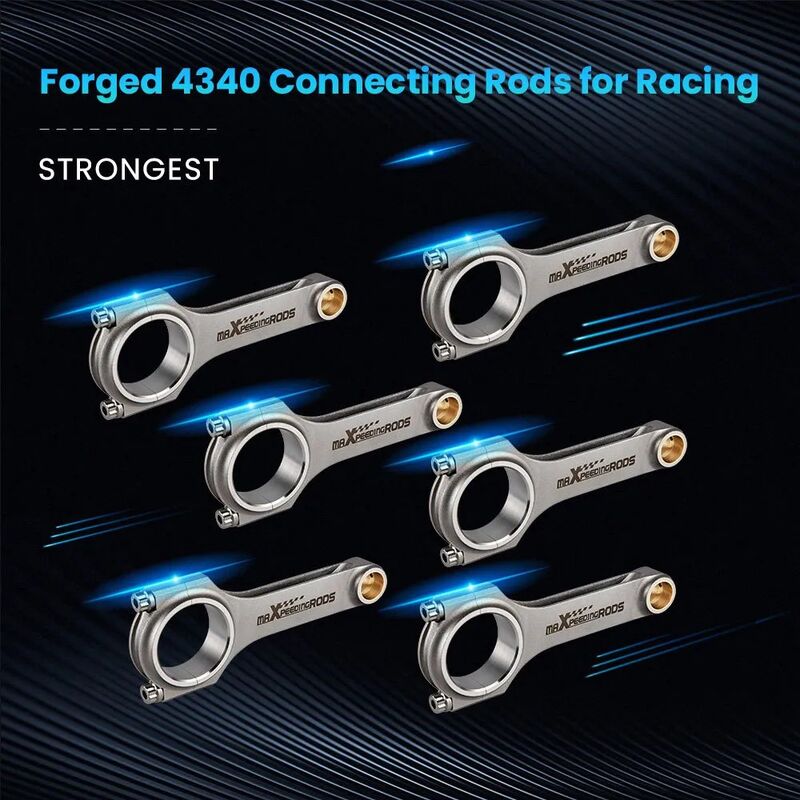

Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing.

Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine.

Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk.

100% X-rayed, sonic tested and magnafluxed.

Multi-stage heat treated.

Shot peened to relieve stress.

Come with the bronzed bushing suitable for the floating piston pin.

Specification

TÜV Certification Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 6 Pieces a set

Bolts: Including Genuine ARP 2000 5/16" bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: 5/16"

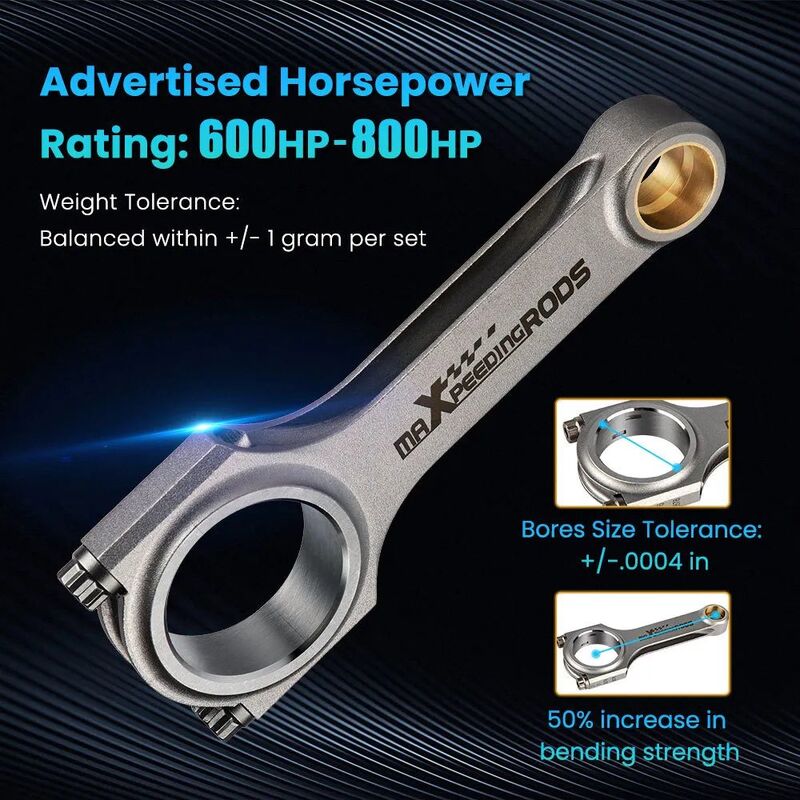

Tolerance: Balanced to +/1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 7000rpm

Center to center length: 153 mm

Big end diameter: 58.85mm

Small end diameter: 22mm (taper)

Big end width: 20.10mm

Small end width: 20.10mm

Fitment

Fit For Audi 3.0L TFSI Supercharged DOHC V-6

Fit For Volkswagen 3.0 DOHC V6 TDI Engine

Details fitment Engine 3.0 DOHC V6:

Fit For Audi B7 A4, B8 A4, Q7, C6 A6, D3 A8

Fit For Volkswagen Phaeton, Touareg

Fit For Porsche Cayenne

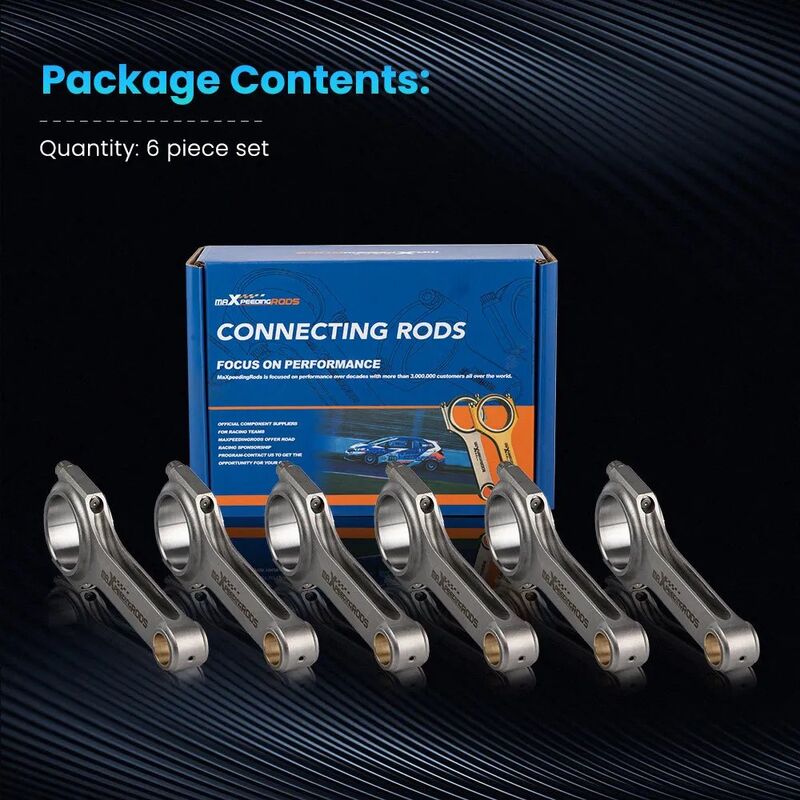

Package

6 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
