Feature

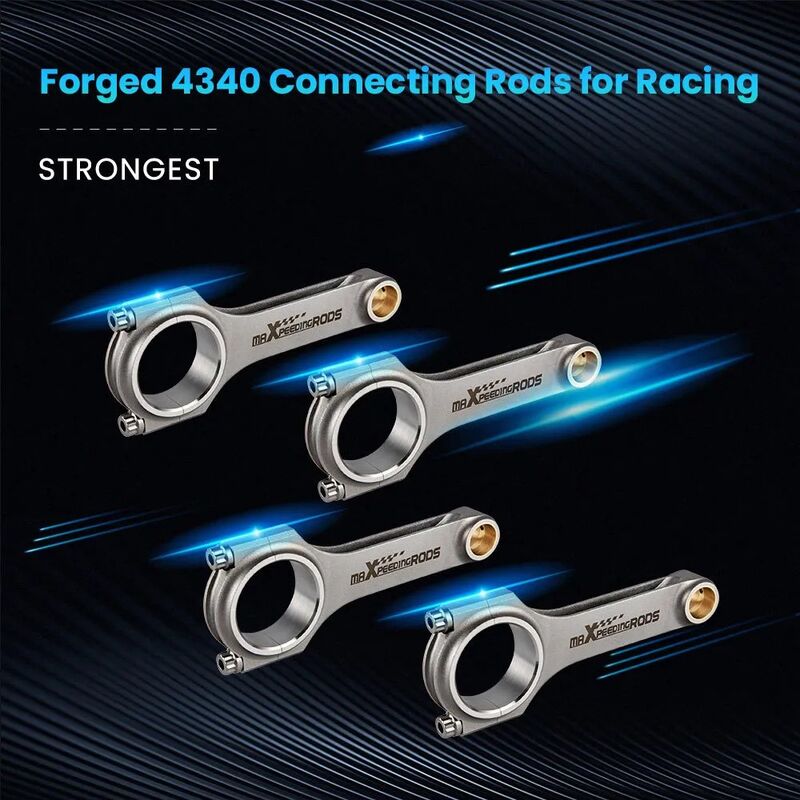

1. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；

2. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；

3. H-Beam design reduces weight without compromising strength；

4.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；

5.High precision CNC machined,Precision rod cap alignment dowels；

6.Bores finished to +/- .01 mm；

7.Balanced to within +/- 1 g per rod；

8. Each rod is magnetic particle tested to ensure free of flaws；

9. Use X-rayed, sonic tested；

10.Custom Service.

Specification

Type: Forged 4340 aircraft chrome moly quality steel for racing

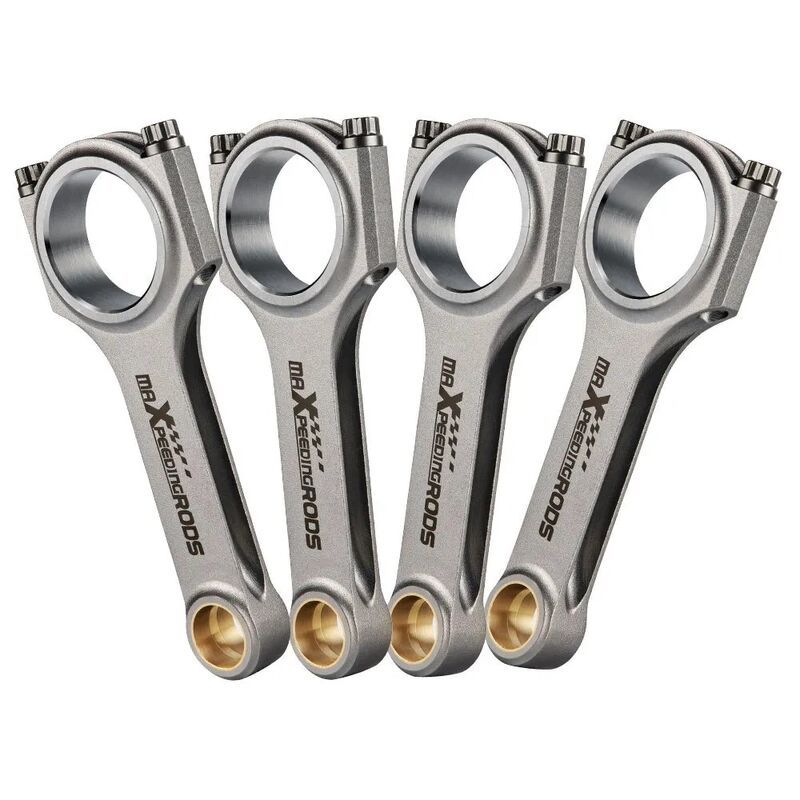

H-beam Conrods Quantity: 4 Pieces as showing in picture

Bolts: Including ARP 2000 5/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

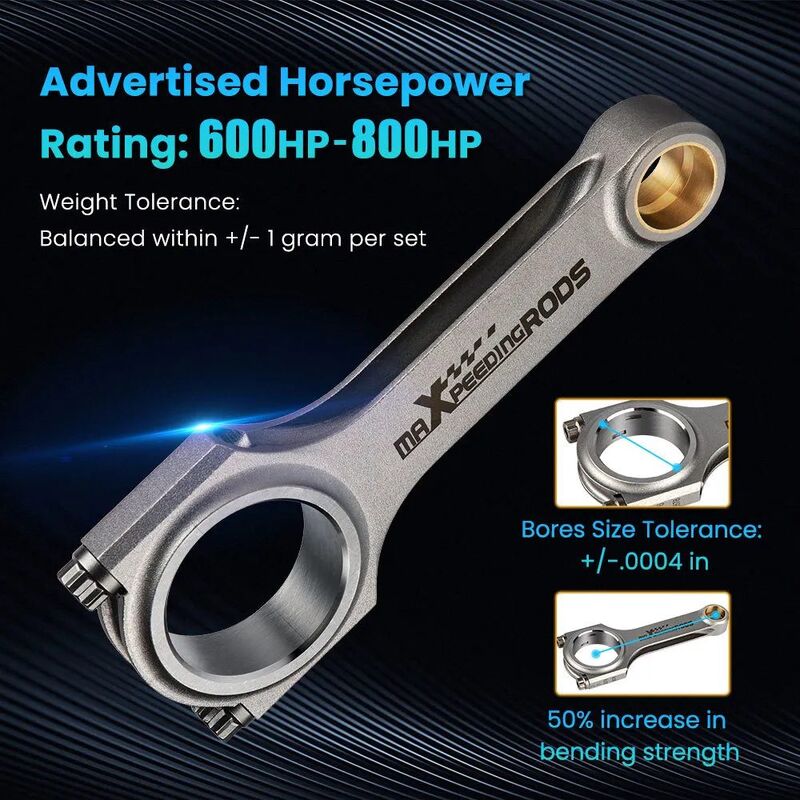

Advertised Horsepower Rating:200HP/piece

Top acceleration: 9000rpm

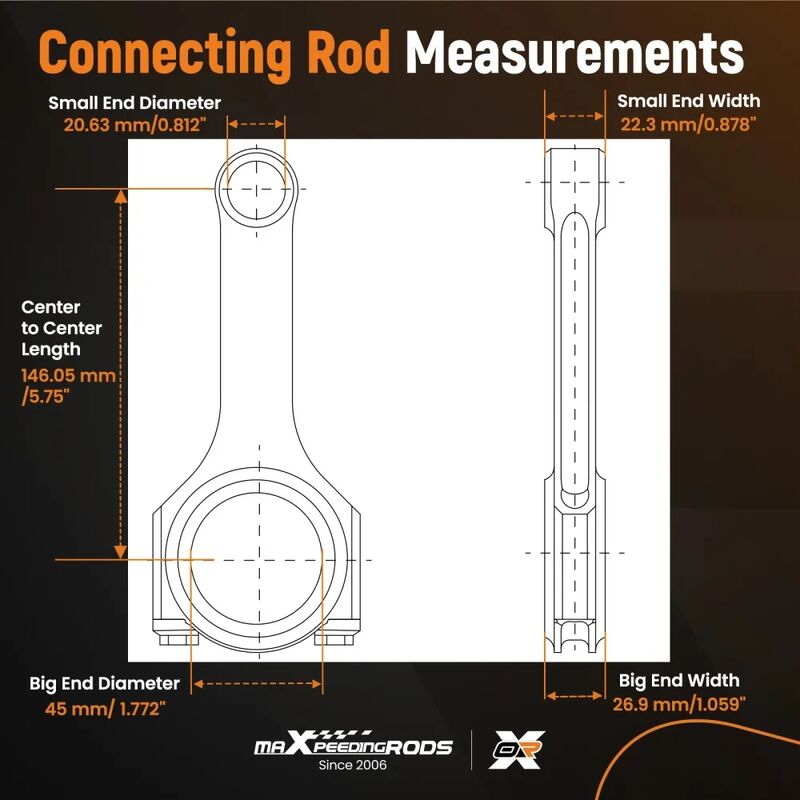

Center to center length:146.05mm/5.75"

Big end diameter:45mm/1.772"

Small end diameter:20.63mm/0.812"

Big end width:26.9mm/1.059"

Small end width:22.3mm/0.878"

Fitment

Fit For Austin Fit For Mini Cooper S 1275cc A series

Notice：Big end diameter:45mm/1.772"

Fit For Austin/Fit For Morris Fit For Mini Cooper S 1964-1971

Fit For Mini Marcos 1965-1974

Fit For Austin-Healey Sprite MkIV 1966-1970

Fit For MG Midget MkIII 1966-1974

Fit For MG 1300/Fit For Wolseley 1300 1967-1968

Fit For Riley Kestrel 1300 1967-1968

Fit For Vanden Plas Princess 1300 1967-1968

Fit For Morris 1300 1967-1973

Fit For Austin 1300 1967-1974

Fit For MG 1275/Fit For Riley 1275 1967

Fit For Wolseley 1275 1967

Fit For Vanden Plas Princess 1275 1967

Fit For Riley Kestrel 1300/Fit For Riley 1300 1968-1969

Fit For Austin America (automatic) 1968-1971

Fit For Wolseley 1300 (manual) 1968-1973

Fit For MG 1300 MkII 1968-1973

Fit For Vanden Plas Princess 1300 (manual) 1968-1974

Fit For MG 1300/Fit For Riley Kestrel 1300 1968

Fit For Morris 1300GT 1969-1971

Fit For Mini Moke Californian Australian only 1971-1982

Fit For Mini 1275GT 1969-1974

Fit For Austin 1300GT 1969-1974

Fit For Morris Marina 1971-1980

Fit For Austin Sprite 1971

Fit For Austin Allegro 1973-1980

Fit For Mini 1275GT 1974-1980

Pin Type: Floating Pin Piston

Package

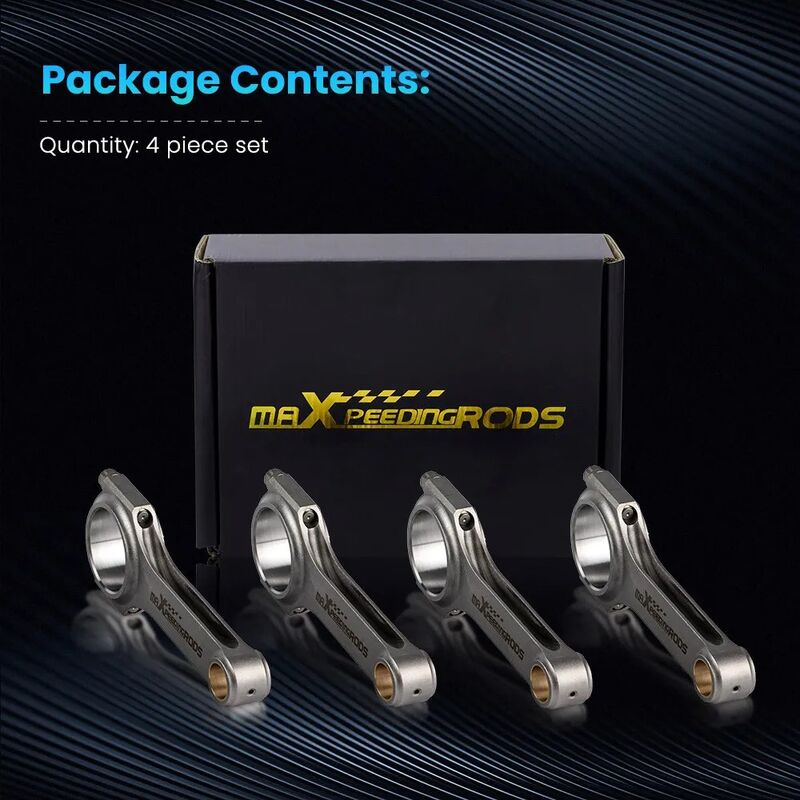

4 x Connecting Rods

Note

Professional installation is highly recommended.

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
