Feature

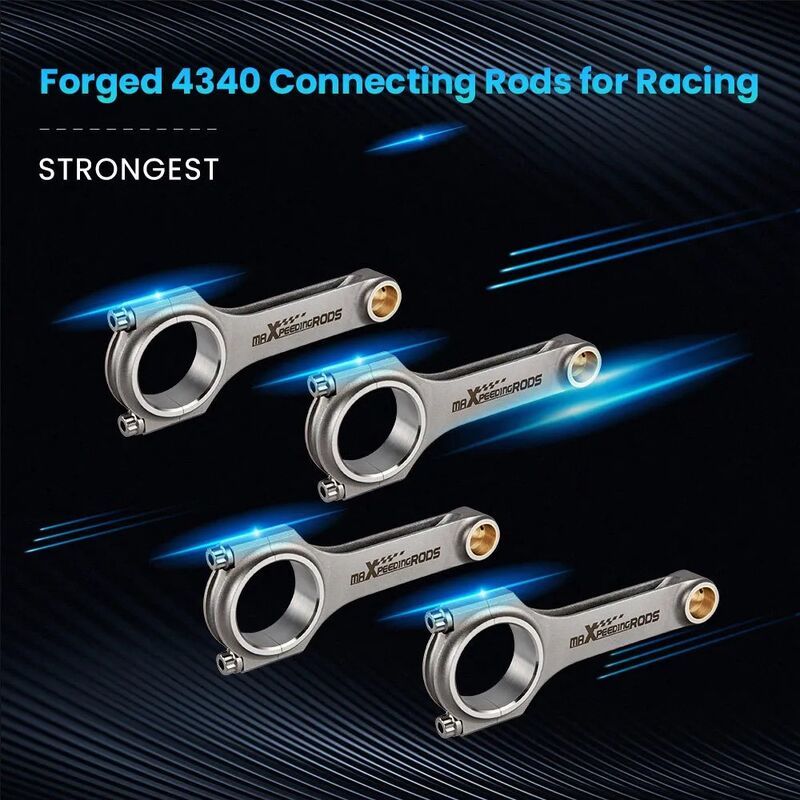

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

- Designed and processed by CNC machine.

All big and small ends are finished with SUNNEN honing machine

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

- 100% X-rayed, sonic tested and magnafluxed

- Multi-stage heat treated

- Shot peened to relieve stress

- Come with the bronzed bushing suitable for the floating piston pin

Specification

TÜV Certification Con Rods

Type: Forged 4340 aircraft chrome moly quality steel for racing

H-beam Conrods Quantity: 4 Pieces a set

Bolts: Including Genuine 3/8" ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: 3/8"

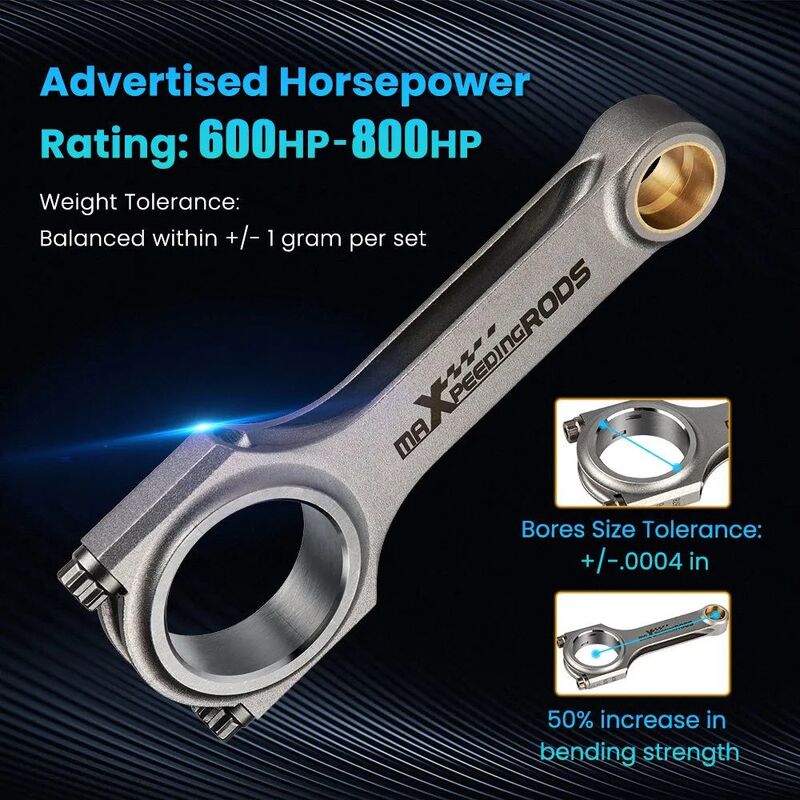

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 9000rpm

Center to center length: 127.4mm

Big end diameter: 47.2mm

Small end diameter: 18mm

Big end width: XX

Small end width: XX

Fitment

Fit For Chevrolet Malibu / Fit For Buick Envision Fit For GM SGE 1.5 T LF

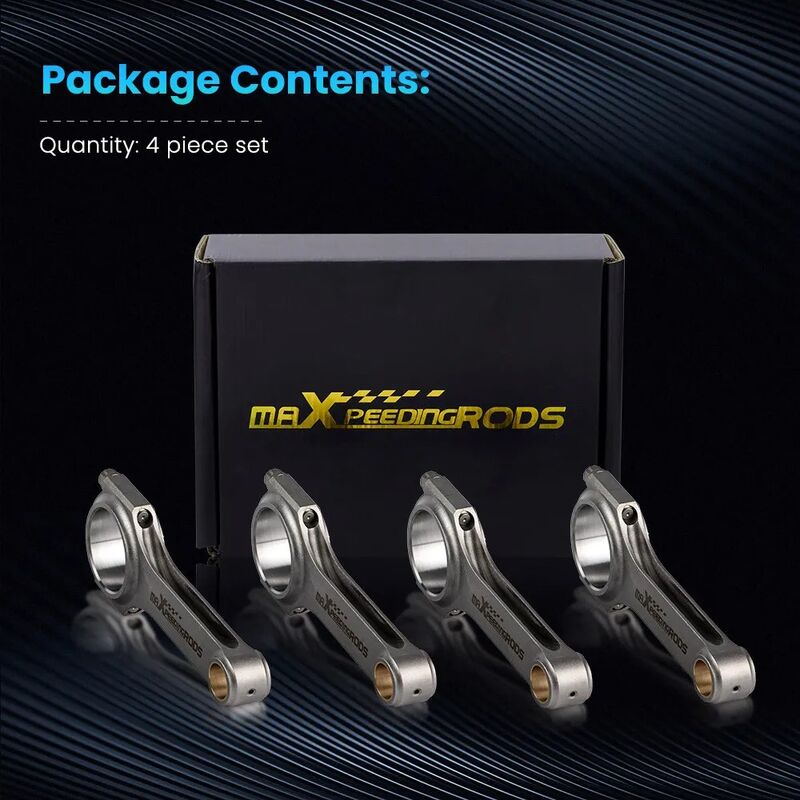

Package

4 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included).

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

Learn more about CUSTOM SERVICE.
