Feature

1. TüV Certification Con Rods；

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；

3. Genuine ARP 2000 bolts,Optional ARP L19 fasteners available as an upgrade；

4. H-Beam design reduces weight without compromising strength；

5. Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove the potential for stress risers；

6.100% CNC machined, Precision rod cap alignment dowels；

7. Bores finished to +/- .01 mm；

8. Balanced to within +/- 1 g per rod；

9. Each rod is magnetic particle tested to ensure free of flaws；

10.100% X-rayed, sonic tested；

11. Custom Service.

Specification

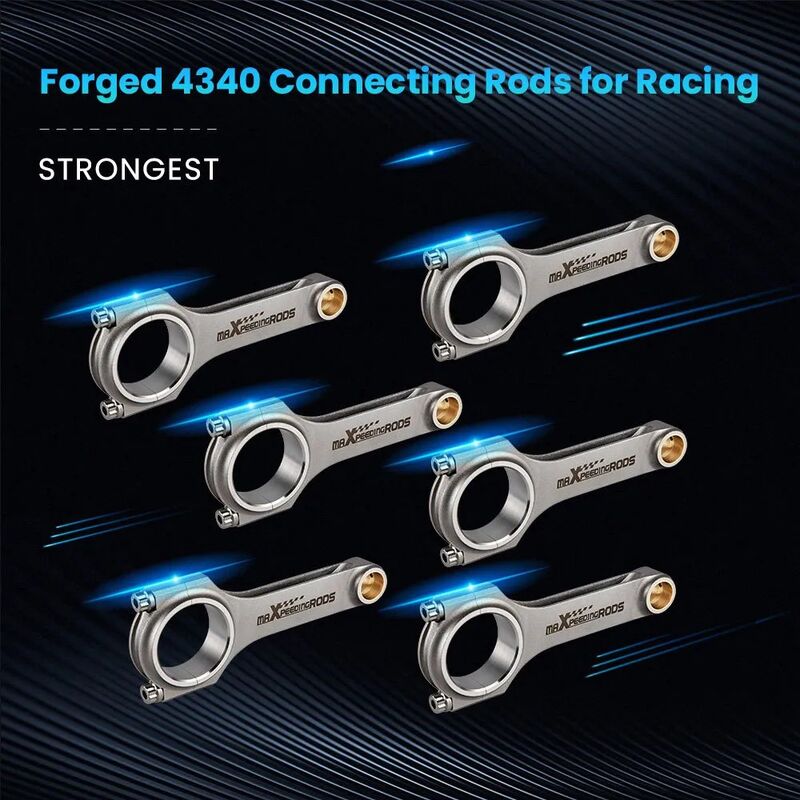

Type: Forged 4340 aircraft chrome moly quality steel for racing

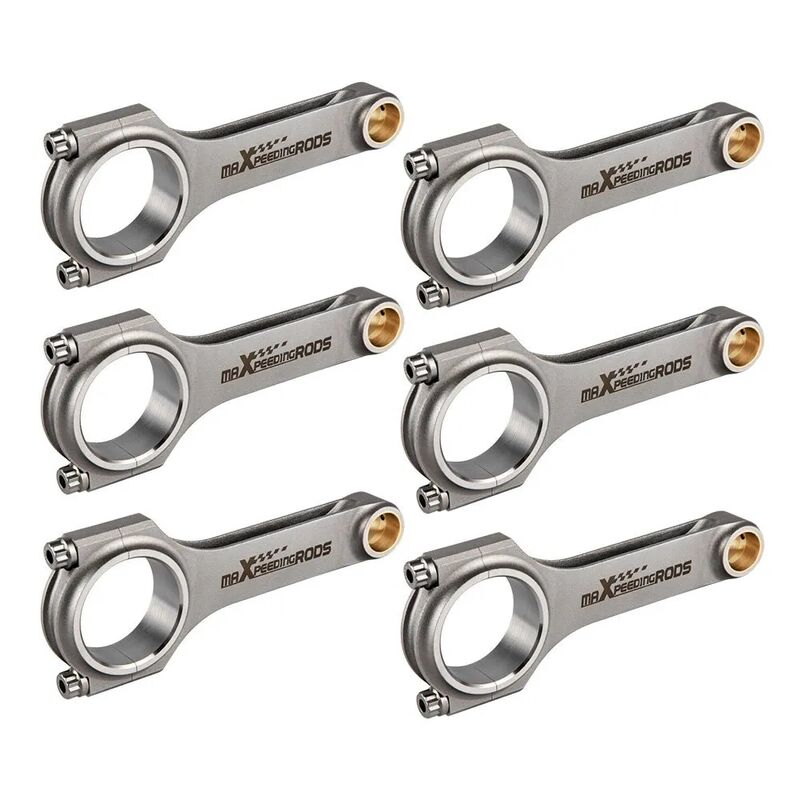

H-beam Conrods Quantity: 6 Pieces as showing in picture

Bolts: Including ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: Genuine ARP 2000 5/16" bolts

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: Advertised Horsepower Rating:200HP/piece

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 28ft

Top acceleration: 9000rpm

Center to center length: 154mm/6.063in

Big end diameter:56.8mm/2.236in

Small end diameter:21mm/0.827in

Big end width:20.1mm/0.791in

Small end width: 21.9mm/0.862in

Fitment

Fit For Audi A4 RS4 V6 Quattro

Fit For the Fit For Audi RS4 B5 AZR/ASJ

Note: Please confirm the dimensions before purchasing the connecting Rods

Note the Big end diameter:56.8mm/2.236in

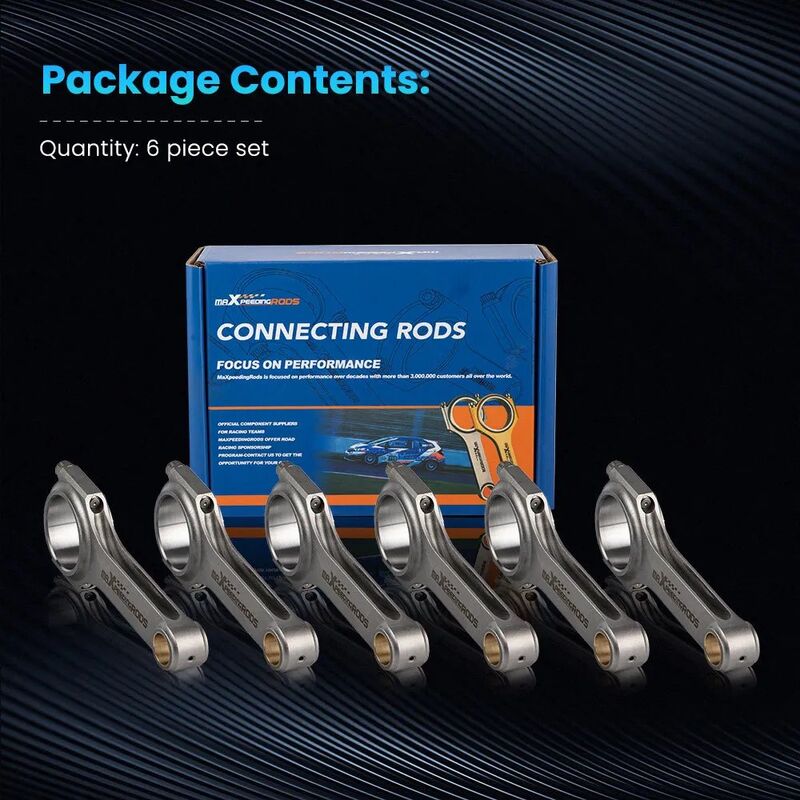

Package

6 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included).

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
