Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing

- Designed and processed by CNC machine.

- All big and small ends are finished with SUNNEN honing machine

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

- 100% X-rayed, sonic tested and magnafluxed

- Multi-stage heat treated

- Shot peened to relieve stress

- Come with the bronzed bushing suitable for the floating piston pin

Specification

Performance Con Rods

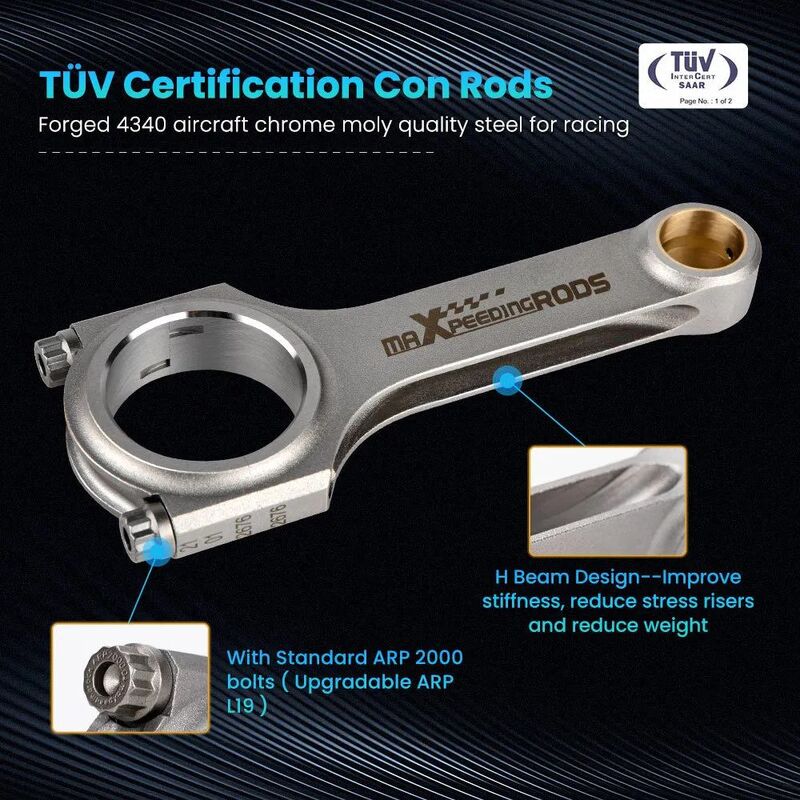

Type: Forged 4340 aircraft chrome moly quality steel for racing

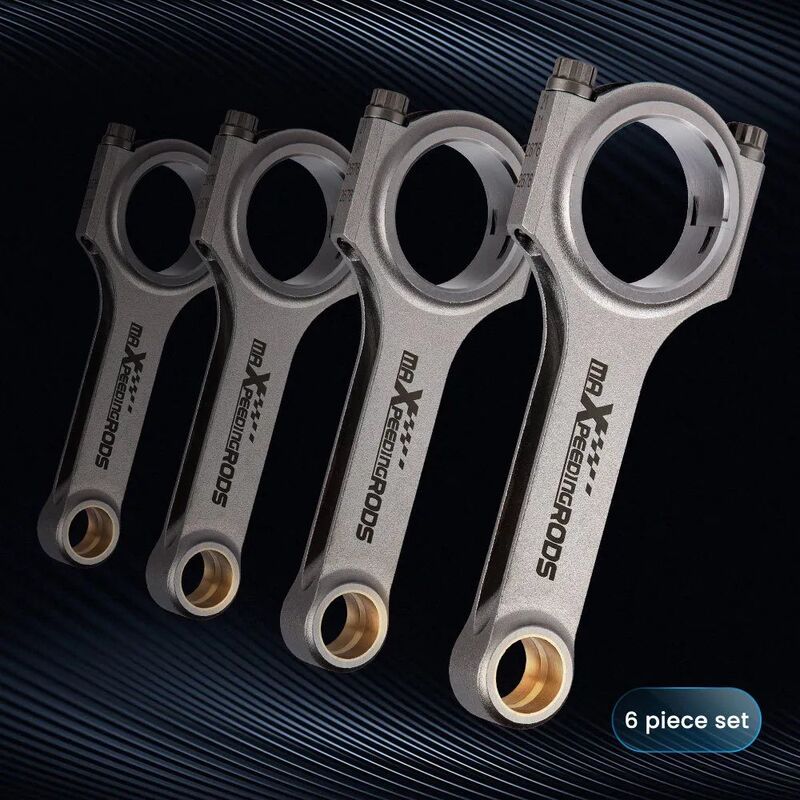

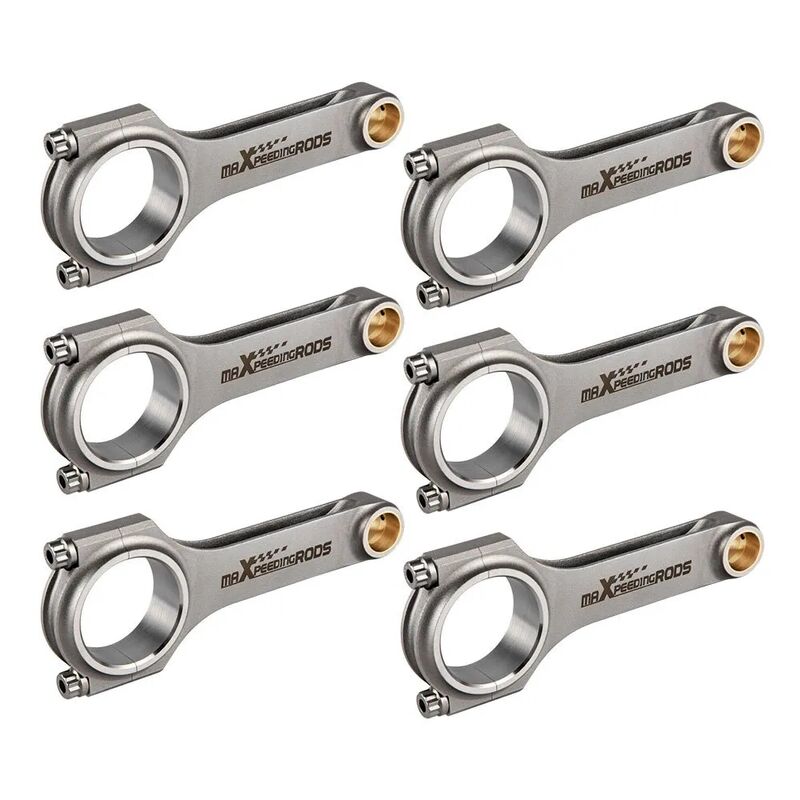

H-beam Conrods Quantity: 6 Pieces as showing in picture

Bolts: Including Genuine ARP 2000 bolts

Note: Extra cost for upgrading to ARP L19 bolts

Bolts Size: Genuine ARP 2000 5/16" bolts

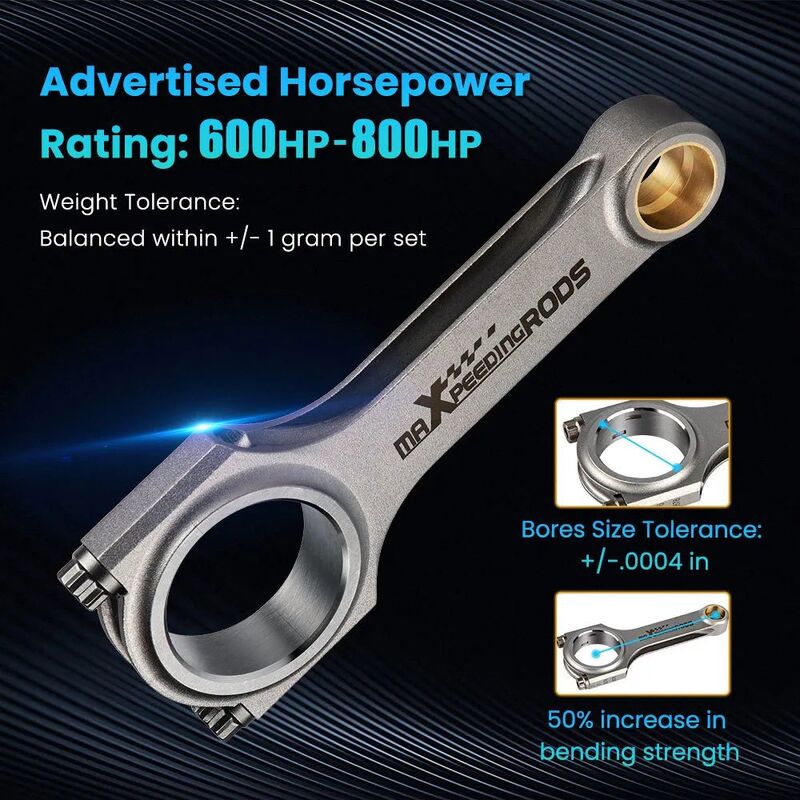

Tolerance: Balanced to +/- 1 gram in set

Piston Bolt Hole: +-4/1000mm

Power: 600hp ~ 800PS per set

Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM

Top acceleration: 7000rpm

Center to center length: 154mm

Big end diameter: 57.6mm

Small end diameter: 21mm

Big end width: 20.1mm

Small end width: 22mm

Fitment

Fit For Audi B5 S4 quattro 2.7T

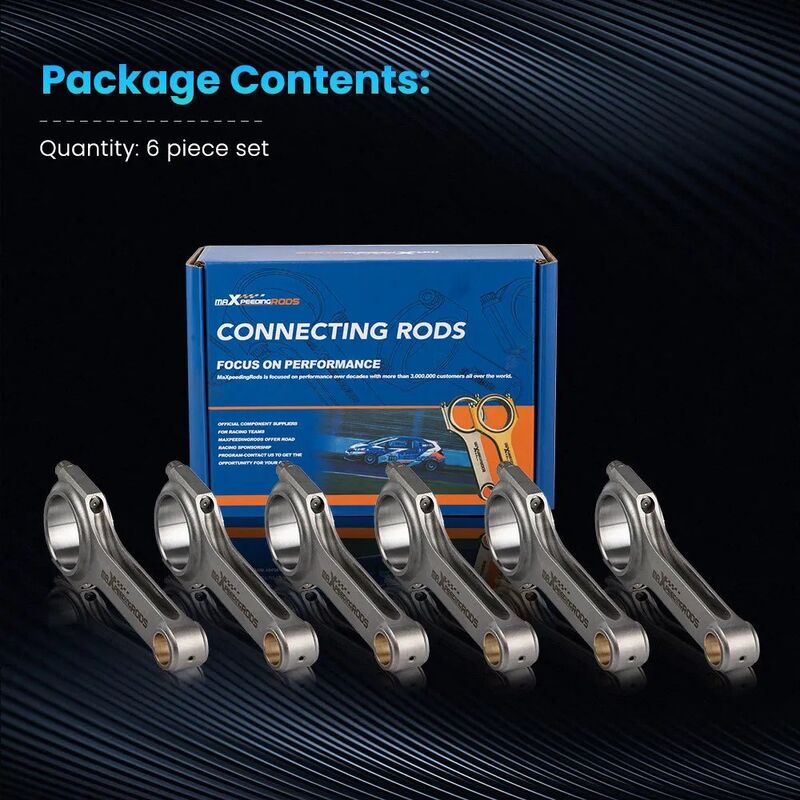

Package

6 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)
