Product Description

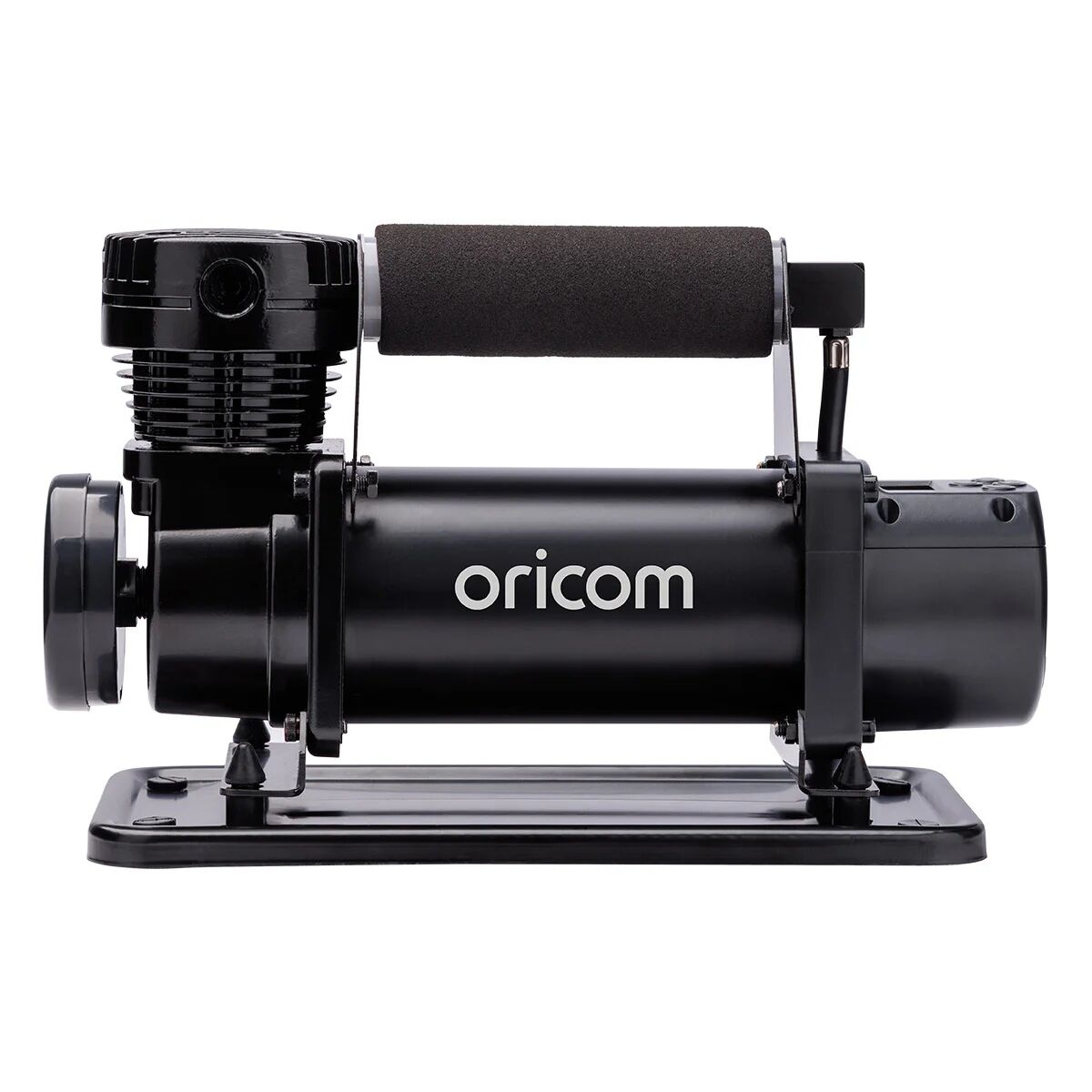

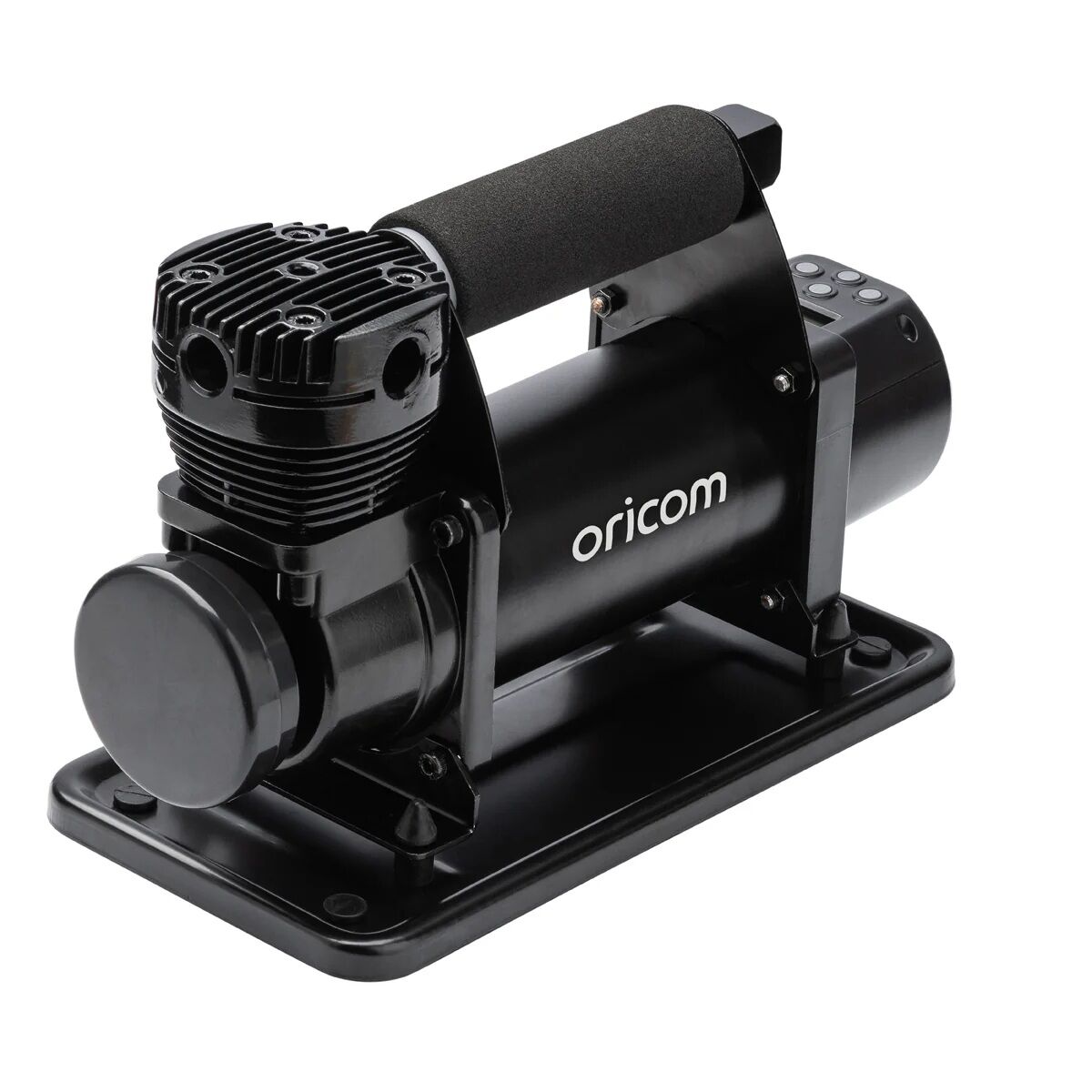

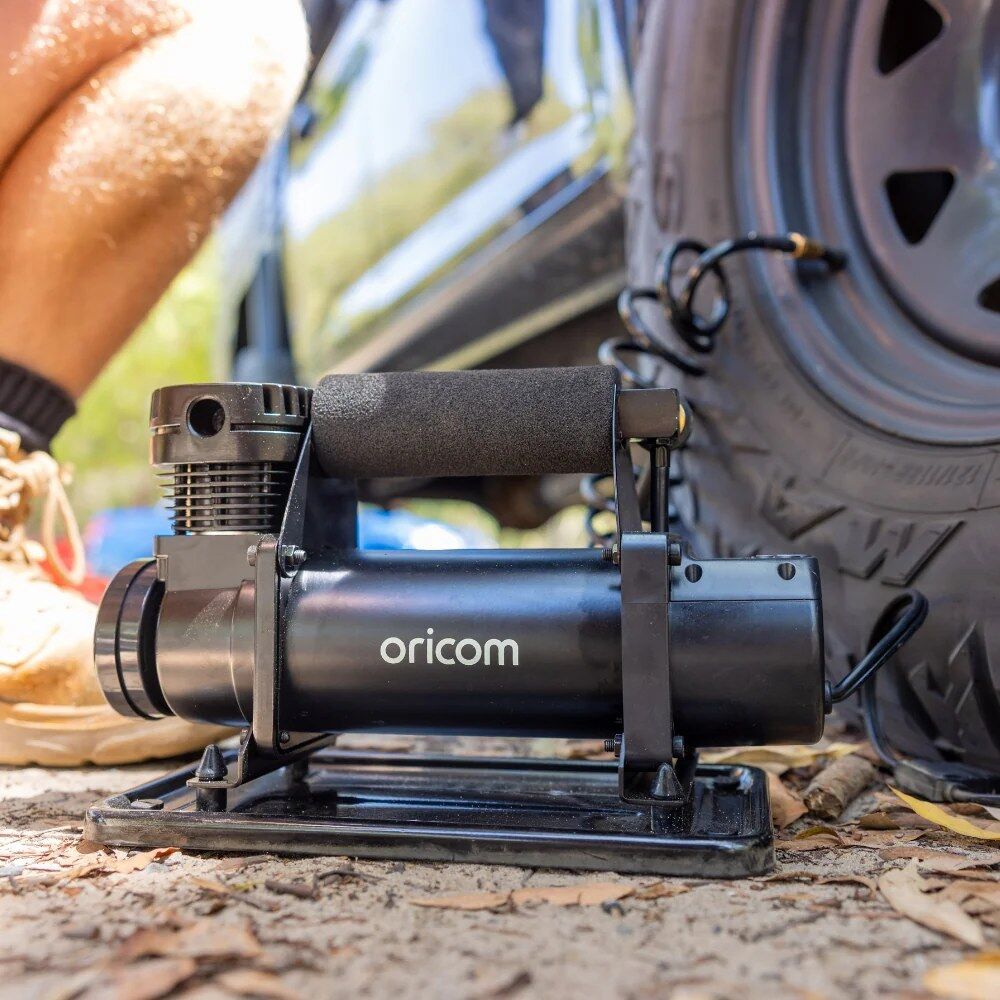

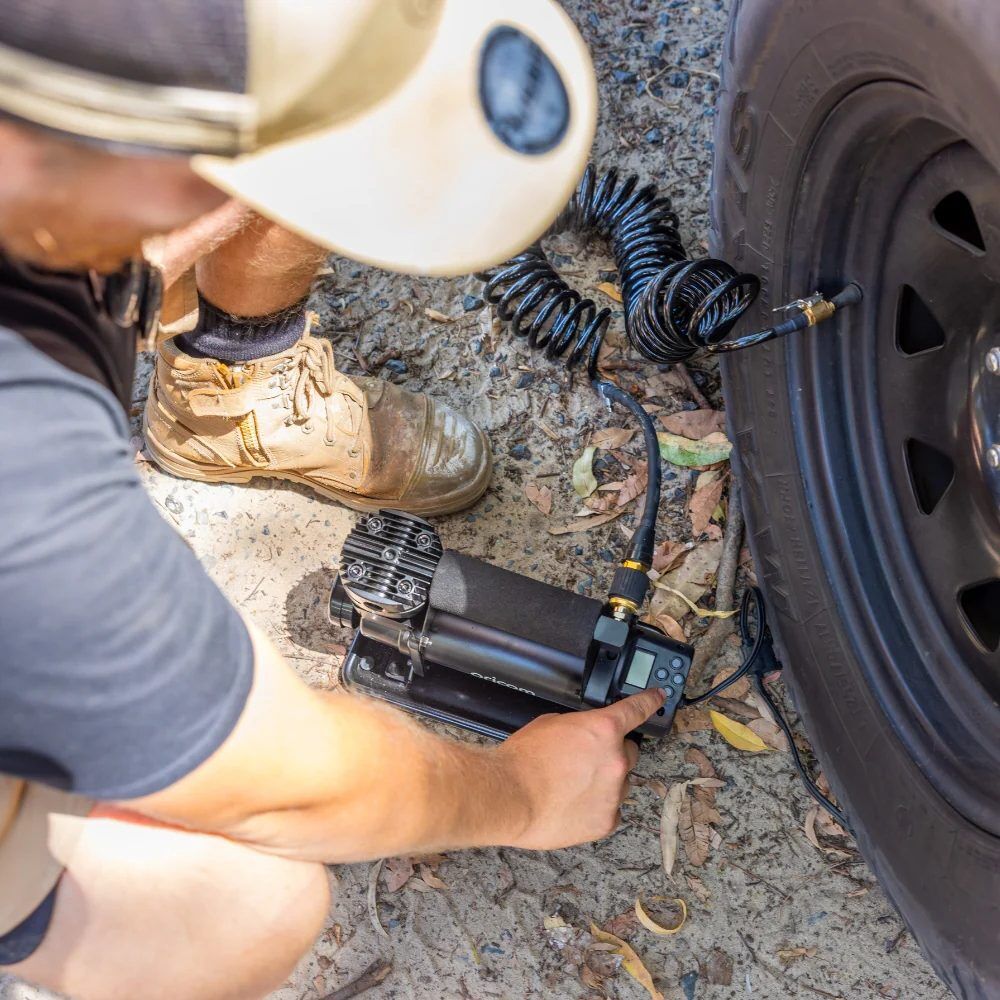

The Oricom AIR20 Is a High-Performance Portable Air Compressor, Delivering Quick Inflation With a 200PSI Max Pressure And 70L/min Max Air Flow Rate, Perfect For 4WDs And Off-Road Vehicles. Durable Air Filter, Automatic Shut-Off, And Thermal Protection, Ensures Safe, Reliable Inflation.

Features

Max Pressure Of 200 PSI - Ample Pressure For Inflating a Variety Of Vehicle Tyres, From Standard To High-Performance Off-Road Tyres.

Air Flow Rate Of 70L/min (0 PSI) - Fast Inflation From Completely Deflated Tyres, Reducing Waiting Time And Enhancing Efficiency.

Thermally Protected Motor (Shuts Off At 115°C) - Prevents Overheating By Automatically Turning Off The Compressor When It Reaches High Temperatures.

Max Working Pressure Of 150 PSI - Delivers Reliable Inflation For Heavy-Duty Tyres Under Demanding Conditions.

Automatic Shut-Off Pressure Switch (120-150 PSI) - Prevents Over-Inflation By Automatically Stopping Once The Desired Pressure Is Reached.

3m Power Cable With Battery Clamps - Ensures a Secure, Direct Connection To Your Vehicle’ s Battery For Reliable Power.

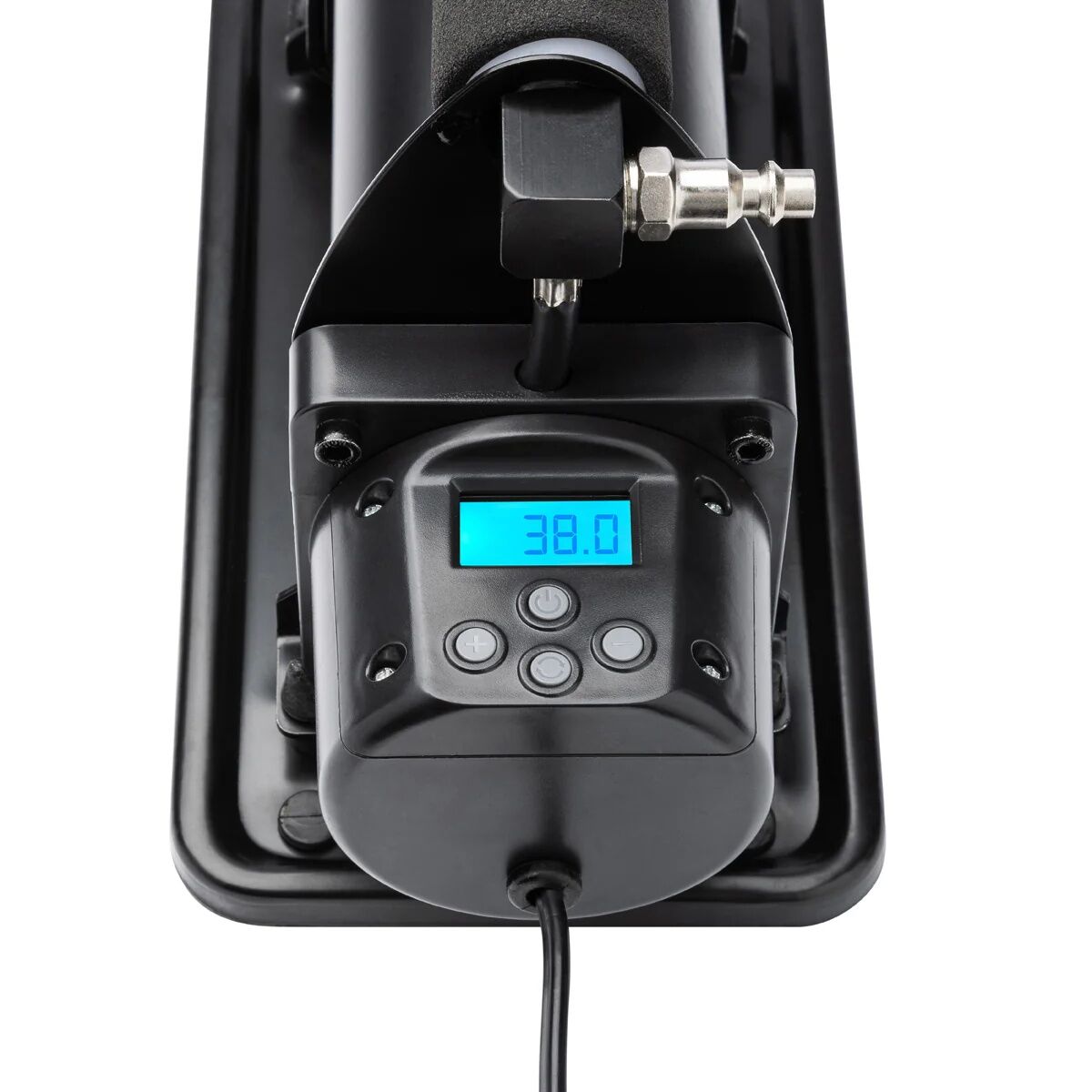

Integral Digital Pressure Gauge - Allows For Accurate Tyre Pressure Monitoring.

Specifications

Cylinder Diameter (Bore): 40mm

Voltage: 12-13.8VDC

Current Draw Under Load: 32A

Current Draw No Load: 18A

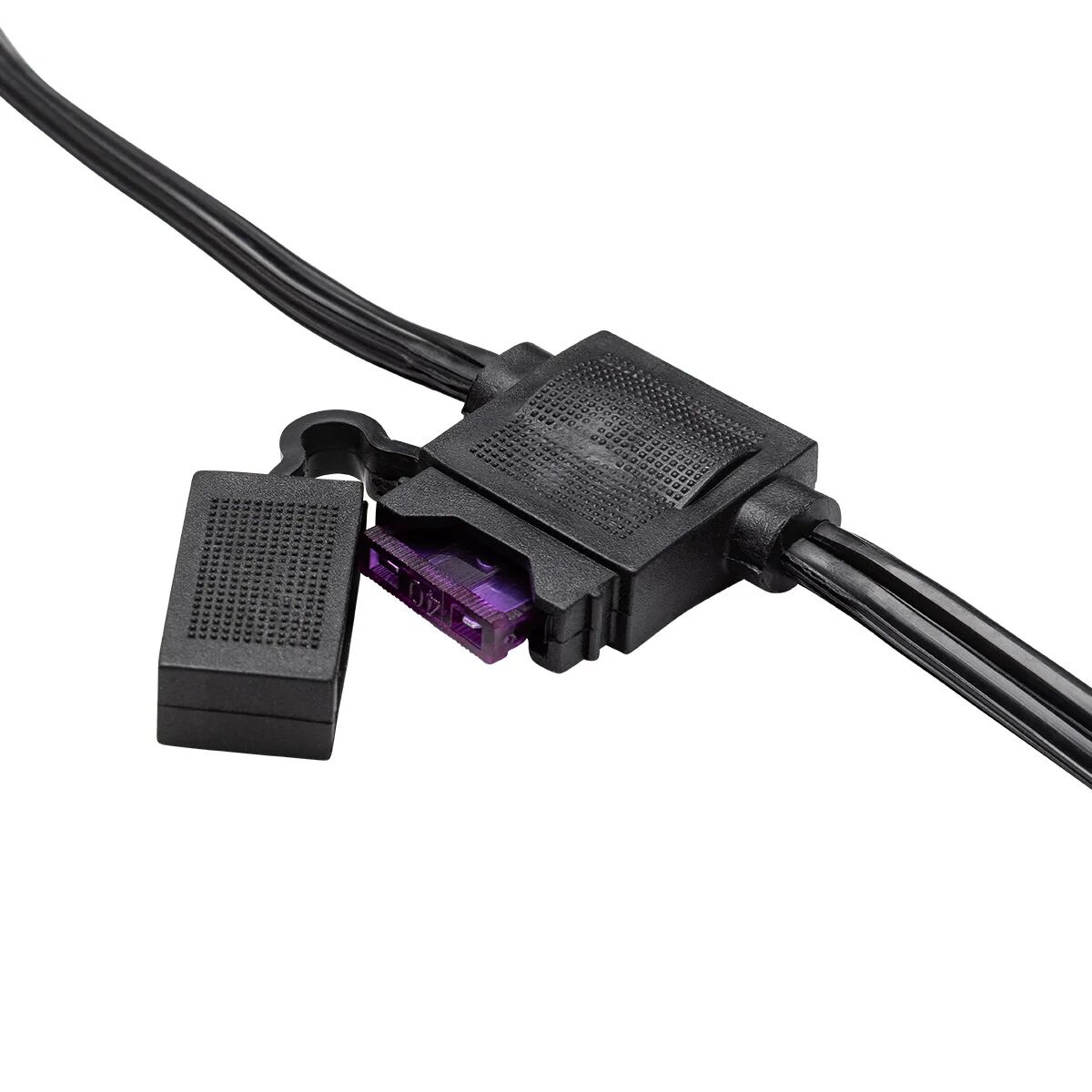

In line Fuse Supplied: 40A

Washable Air Filter: Yes

Max Pressure: 200PSI

Max Working Pressure: 150PSI

Duty Cycle Working 30mins - Rest 30mins

Air Flow Under Load: 48L/min(40PSI)

Air Flow Rates: 70 L/min (0PSI) 50 L/min (29PSI)

Automatic Shut-Off Upon Reaching Pressure Set on Display

Thermal Protection: Automatically Shuts Off at 115°C to Prevent Overheating

Connection to Battery: 3m Cable with Battery Clamps

Hose Length: 7.5m

Hose Connector Type NPT ¼" Quick Connect

Tested to Meet Safety Standards: AS/NZS 60335.1:2020-tAl:2021 ond EMC compliant with EN/IEC 55014-1:2021

Package

1 x Digital Air Compressor

1 x Washable Air Filter

1 x Integral Digital Pressure Gauge With Auto Shut Off

1 x 7.5m Inflation Hose with ¼" NPT Quick Connect Fitting

1 x 3m Power Cable with Battery Clamps

3 x Inflation Nozzles

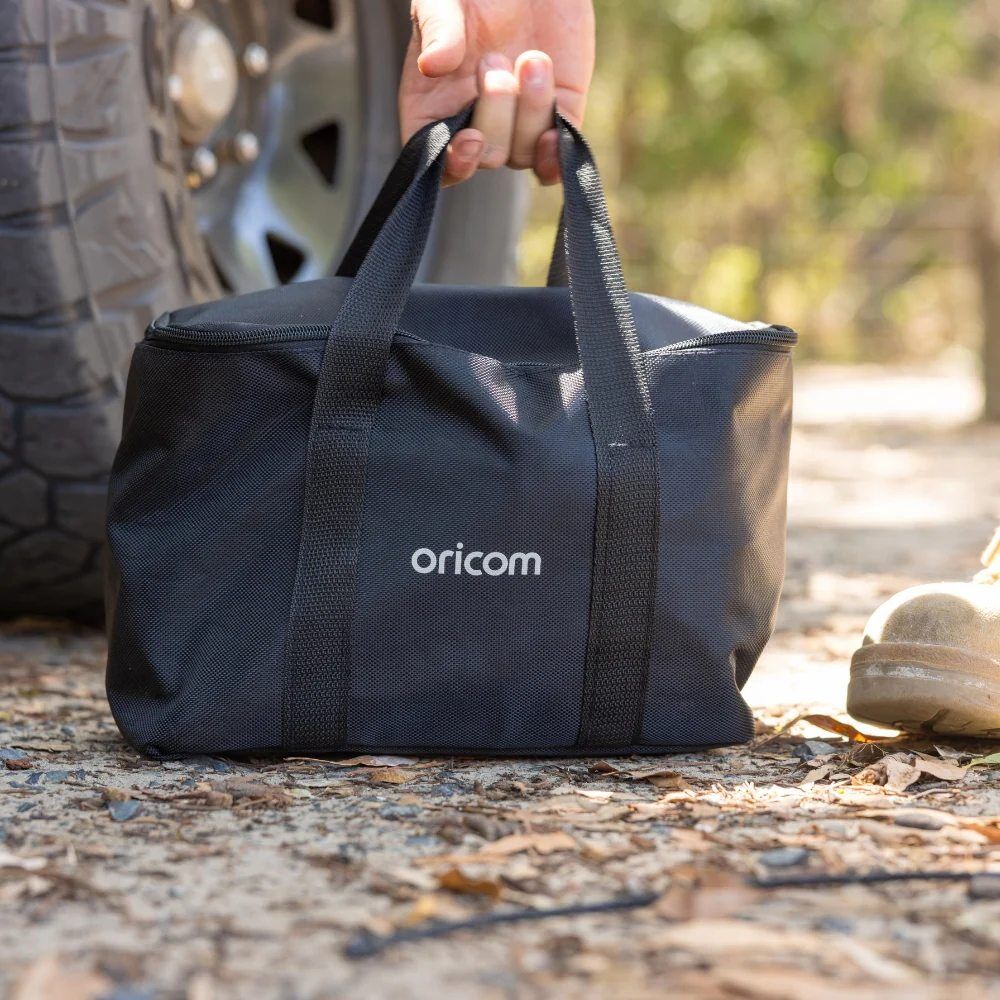

1 x Carry Bag
