Feature

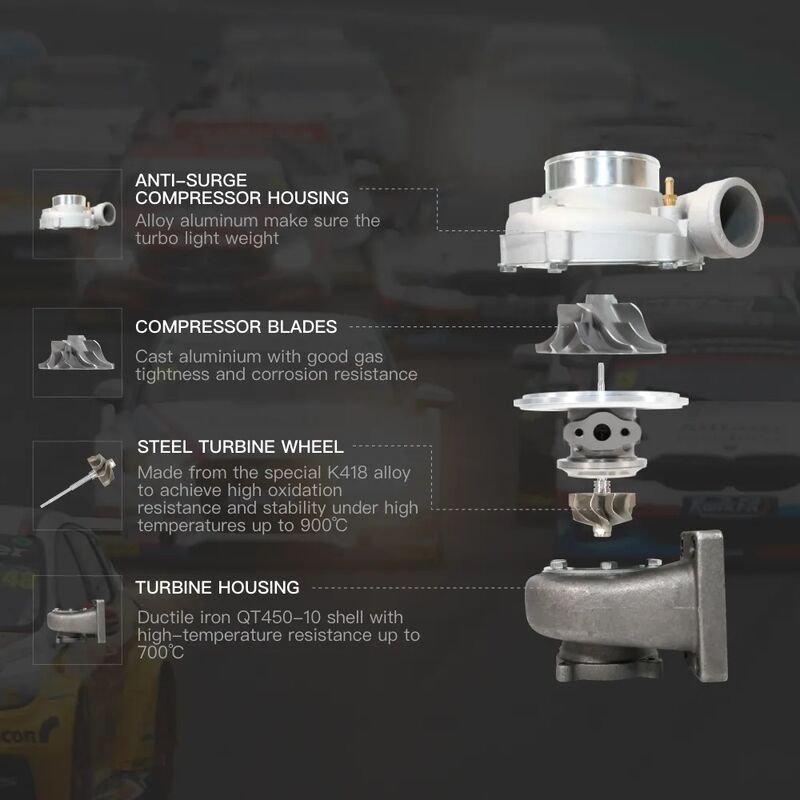

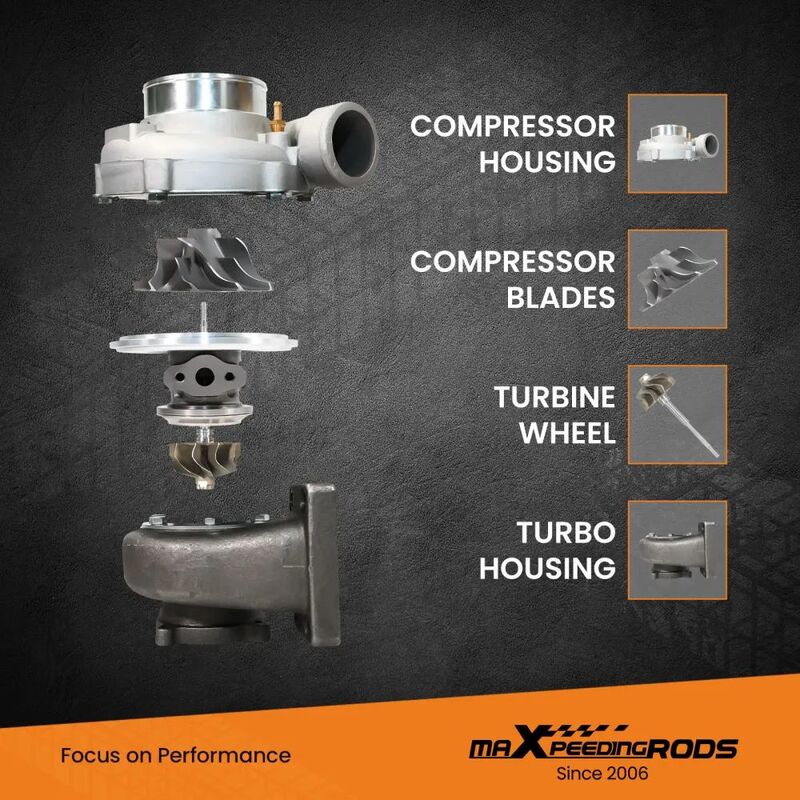

Product Material

1. Turbine Housing: Ductile Iron QT450-10 - Temperature Resistant Up To 700℃

2. Steel Turbine Wheel: K418 Alloy - High Oxidation Stability And Resistance Up To 900℃

3. Compressor Housing: ZL104 Aluminum With Lightweight

4. Compressor Wheel/Blades: Cast Aluminium Blades - Superior Air Tightness & Corrosion Resistance

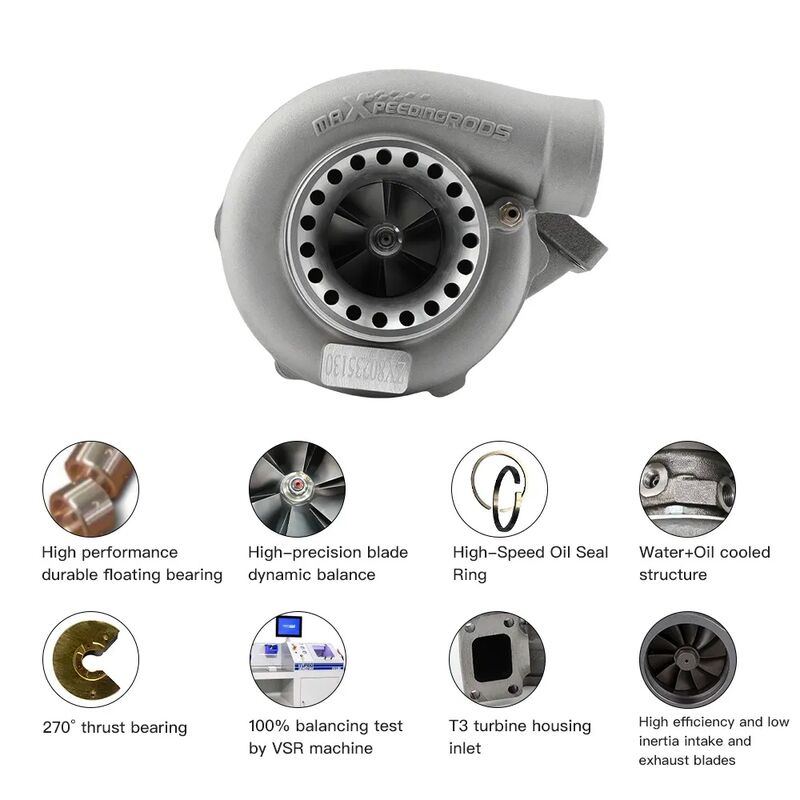

Product Performance

1. Cost-Effective Turbo Increase 20-40% Power For Your Car

2. Rich Experience In Turbo Production And Own Factory

3. High-Speed Oil Seal Ring And Precision Clearance

4. Built For Durability And Strength

Technology Advantage

1. 100% Balancing Test By TURBOTECHNICS VSR3

2. G3-min-Flow VNT Turbo Testing

3. Advanced Actuator Tester/Programmer

Specification

Turbine Side:

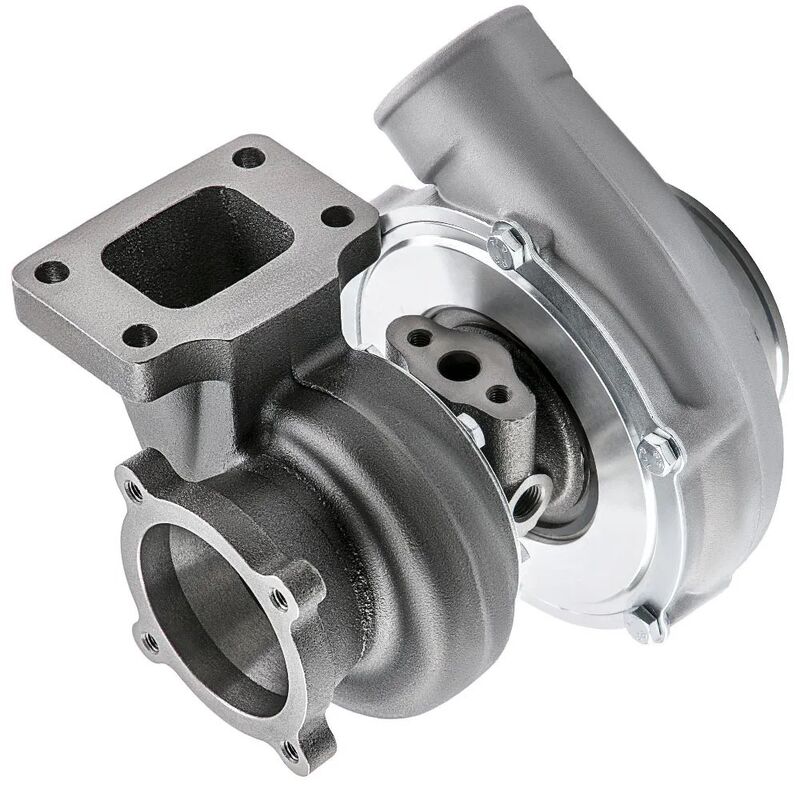

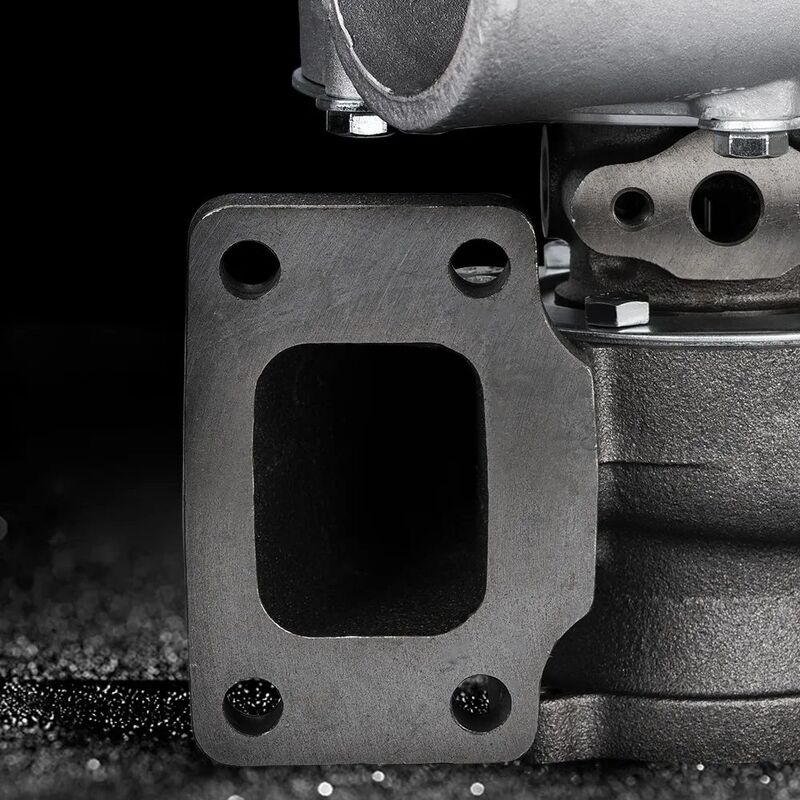

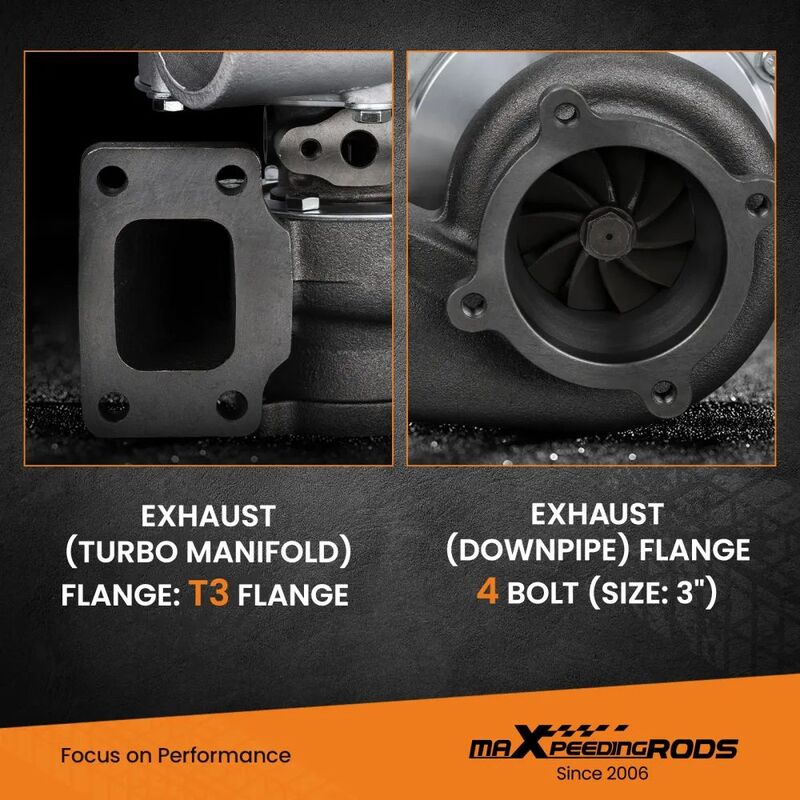

Exhaust Inlet Flange: T3 Flange

Exhaust Outlet Flange: 4-Bolt

Turbine Trim: 84.2

Turbine A/R: 0.63

Turbine Inducer Diameter: 68mm

Turbine Exducer Diameter: 62.4mm

Compressor Side:

Compressor Trim: 56.9

Compressor A/R: 0.7

Compressor Inducer Diameter: 61.5mm

Compressor Exducer Diameter: 81.5mm

Compress Inlet Size(Air intake): 4 inch (103.5mm)

Compressor Outlet Size: 2.5 inch (63.6mm)

Bearing Type: Wet Float

Thrust bearing: 270 degree

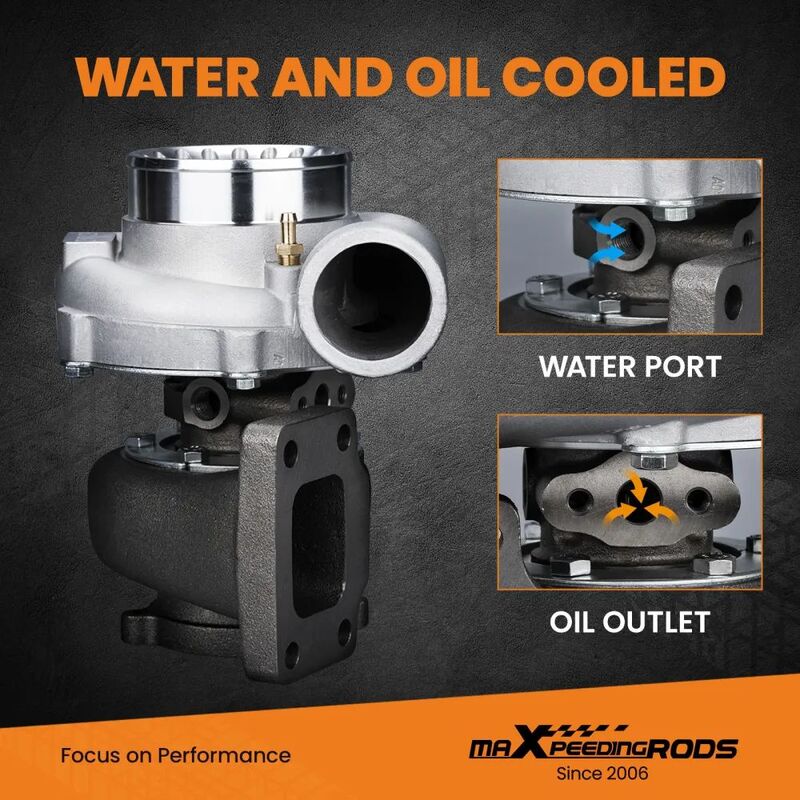

Cooling Type: Water + Oil Cooling

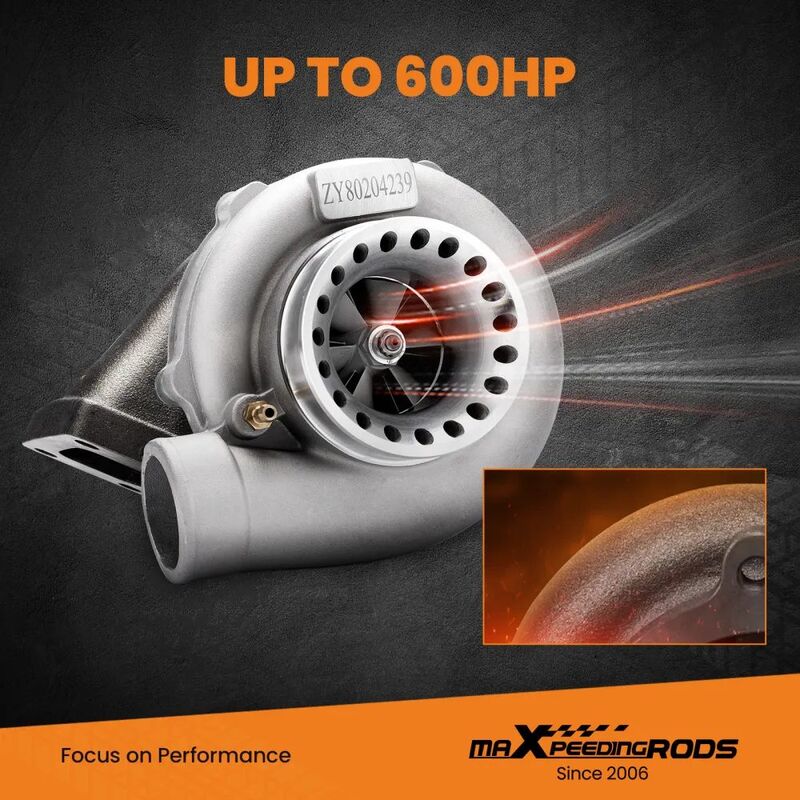

Horse Power: Up to 600HP

Turbo Type: Individual

Universal Fitment: Yes

Finish:Matte

Wastegate:External Wastegate

Oil Inlet: M10*7/16-24

Oil Outlet: M14.1 & 2*M8*1.25

Water: M14*1.5

Maximum PSI: 22

Condition: 100% Brand New

Accessories: You Will Get Exactly As Shown As Picture Above

Fitment

Perfect For All 4/6 Cylinder And 2.5L-6.0L Engines

Capable Of Boosting Horse Power Up To 600HP

Note:

1. Please Confirm That There Is Enough Space In Your Car To Install This Turbo Before Purchasing.

2. Lack Of Oil Will Cause The Turbocharger Shaftplay And Damage, Please Adjust The Oil Pressure And Ensure That The Turbocharger Is Fully Lubricated.

Package

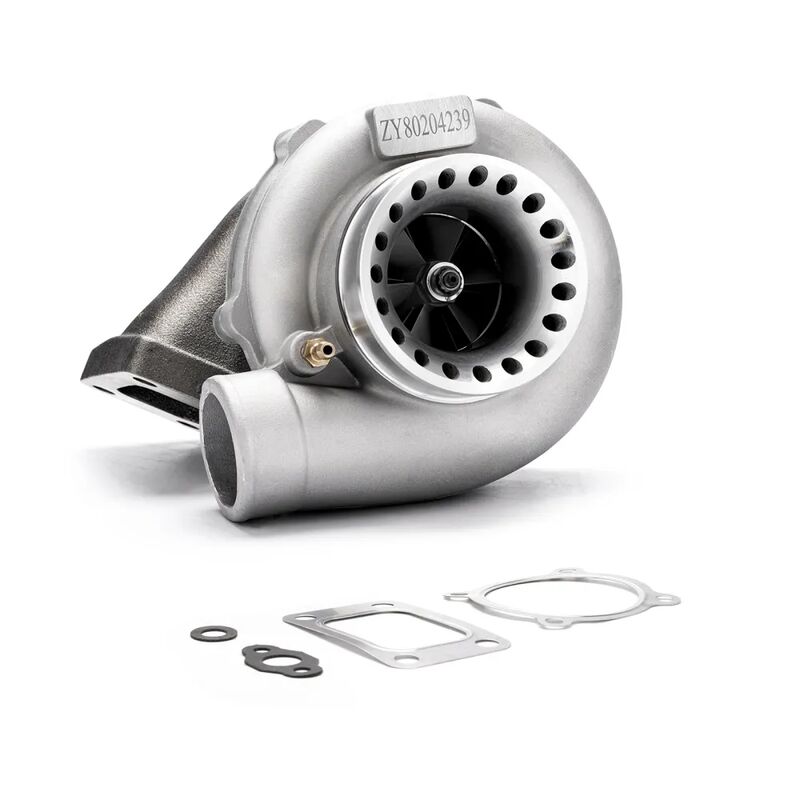

1 x Turbocharger

2 x Flange gaskets

2 x Oil feed/drain gaskets

1 x Manual

1 x Brochure

1 x Sticker

Note

Replace, Repair Or Reconnect Air Cleaner Element Per Manufacturer's Manual To Avoid Compressor Wheel Damage.

Make Sure The Oil Drain Line Is Lower Than The Turbo Itself.

Gasoline Car Must Install a Water Cooling Device To Avoid Overheating.

Ensure Exhaust Outlet Are Well Sealed By Welding

The Degree Of Modification Of The Universal Turbo Depends On Your Individual Vehicle.Professional Installation Is Highly Recommended.

This Turbo Is Not Vehicle Specific. Please Check The Specifications And Verify Compatibility Prior To Placing Your Order.

Before Installing The New Turbocharger, The Cause That Led To The Failure Of The Turbo Must Be Analyzed And Eliminated (e.g. Insufficient Oil Supply, Foreign Bodies In The Intake Area, Crankcase Ventilation Without Function, Etc.)!
