Feature

Unmatched Pulling Power: Features a massive 12000lb (5450kg) single-line pull driven by a 24V DC 6HP series wound motor.

IP68 Ingress Protection: Rated to withstand dust, dirt, and submersion under freshwater for 30 minutes up to 1.5m depth (not during operation).

Durable Geartrain: Equipped with a 3-stage planetary geartrain and a 218:1 gear ratio for reliable performance.

Complete Installation Kit: Includes an ultra sexy CNC'd anodised alloy signature Carbon fairlead paired with our robust MegaPro hook, plus an isolator switch with extra cabling for safety when not in use.

Upgrade Compatible: Fully compatible with the Carbon Offroad Air Freespool Clutch Upgrade, specifically designed for use with Carbon Offroad 12K and Scout Pro winches.

Specification

Part Number: CW-12KV3XWO-24V

Rated Line Pull: 12000lbs single-line

Motor: 24V DC 6HP series wound motor

Geartrain: 3-Stage Planetary

Gear Ratio: 218:1

Clutch (Free Spooling): Rotating Ring Gear clutch with manual pull and twist handle

Brake: Full load automatic brake (installed in motor housing end plate)

Drum Diameter/Length: 63mm x 224mm

Mounting Bolt Pattern: 254mm x 114.3mm

Recommended Battery: 650 CCA minimum for winching

Winch Dimensions (L x W x H): 538 x 158 x 187mm (21.2" x 6.2" x 7.4")

Packing Dimensions (L x W x H): 580 x 200 x 220mm (22.8" x 7.9" x 8.7")

Winch Weight (Version 3): 19.7kg (with synthetic rope attached)

Total Kit Weight: 26.65kg (including rope, control box, cables, bolts & fairlead)

Package

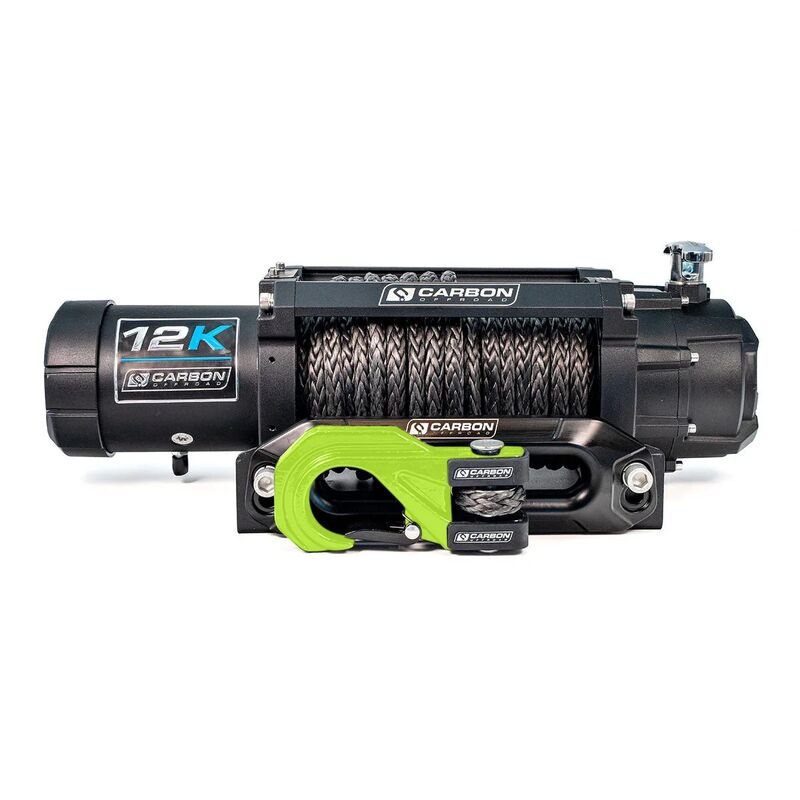

1 x Carbon 12K Winch V3X (24V)

1 x MegaPro Hook

1 x Synthetic Rope (24m x 10mm diameter)

1 x CNC Billet Alloy Black Anodised Fairlead

1 x Wired Remote Control (12ft/3.7m lead)

1 x Wireless Remote Control

1 x Isolator Switch and Cabling

1 x Mounting Hardware Set
