Feature

Waterproofing: IP68 rating.

Motor Breather: Breathable membrane motor breather.

Control: Wireless and wired remotes included.

Mounting: Multi-fit bracket system.

Safety: Included isolator switch with extra cabling.



Specification

Rated Line Pull: 9072kg (20000lbs)

Motor: 7 HP

Gear Ratio: 354:1

Drum Dimensions: 88mm x 224mm (3.5" x 8.8")

Mounting Bolt Pattern: 254mm x 114.3mm (10.0" x 4.5")

Winch Dimensions: 579mm x 192mm x 224mm (22.8" x 7.6" x 8.8")

Packing Dimensions: 640mm x 250mm x 345mm (25.2" x 9.8" x 13.6")

Installed Weight: 37kg (81.6lbs)



Package

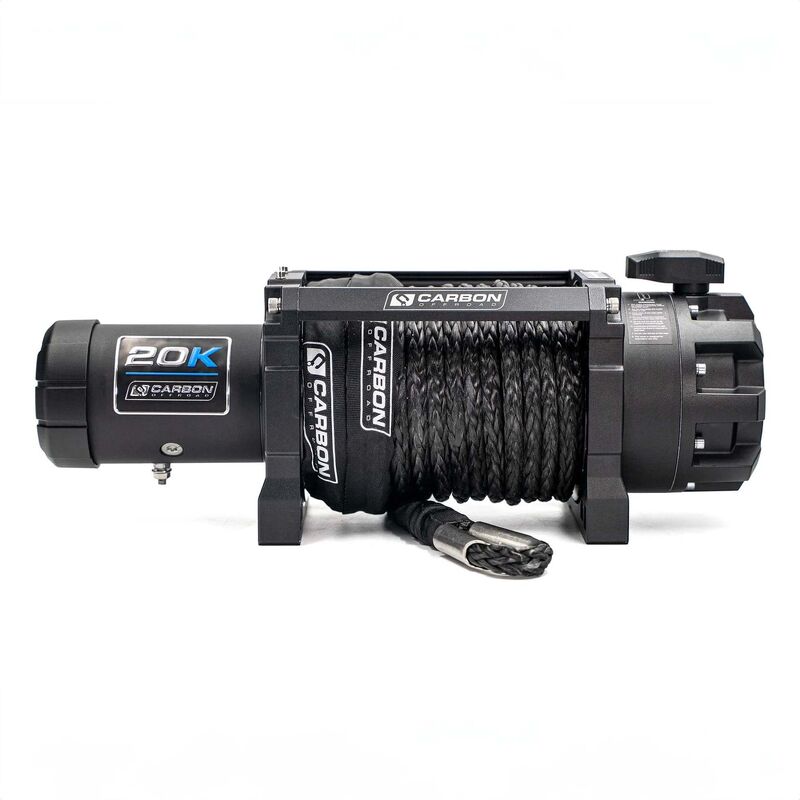

1 x Carbon Scout Pro 20000lb Extreme Duty Truck Winch - BYO Hook

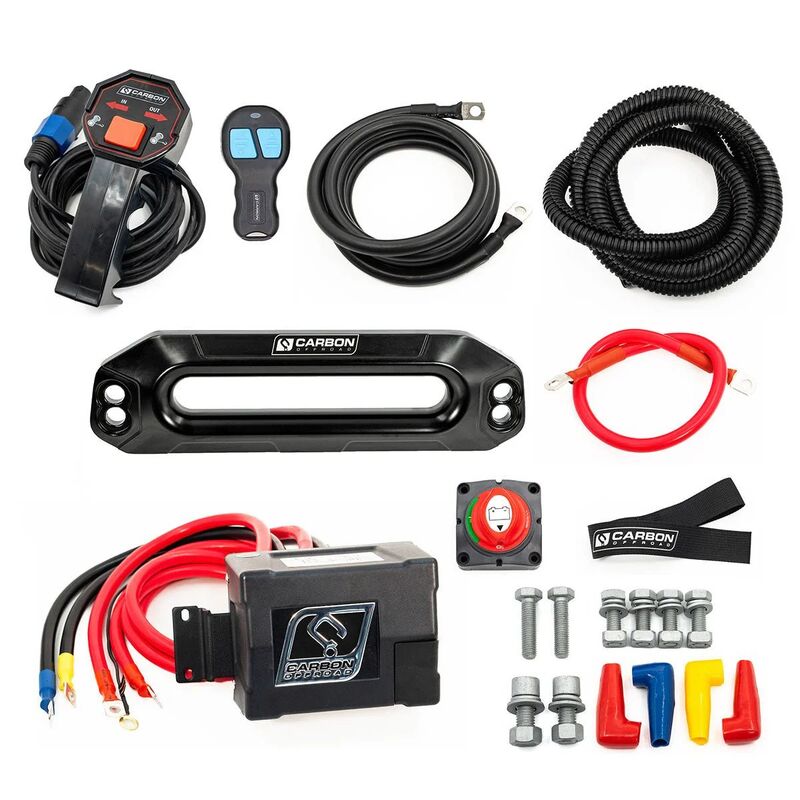

1 x Winch Accessory Kit

1 x Wired Remote Control

1 x Wireless Remote Control

1 x Isolator Switch with Extra Cabling

SKU CBN-CW-XD20v3-BYOH
Brand CARBON OFFROAD
Shipping Weight 38.0000kg
Shipping Width 0.250m
Shipping Height 0.350m
Shipping Length 0.640m
Shipping Cubic 0.056000000m3
