Feature

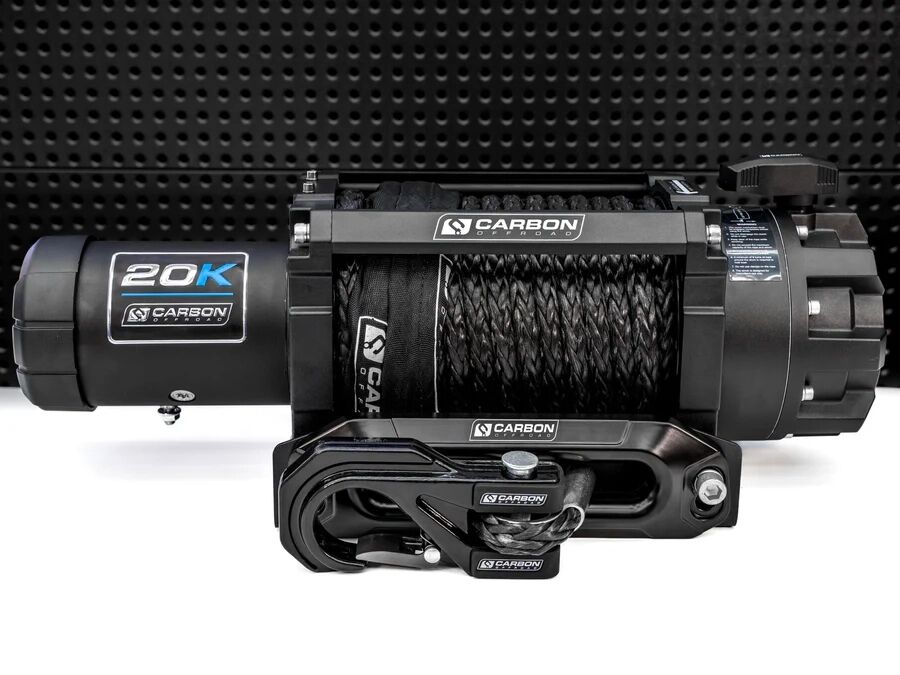

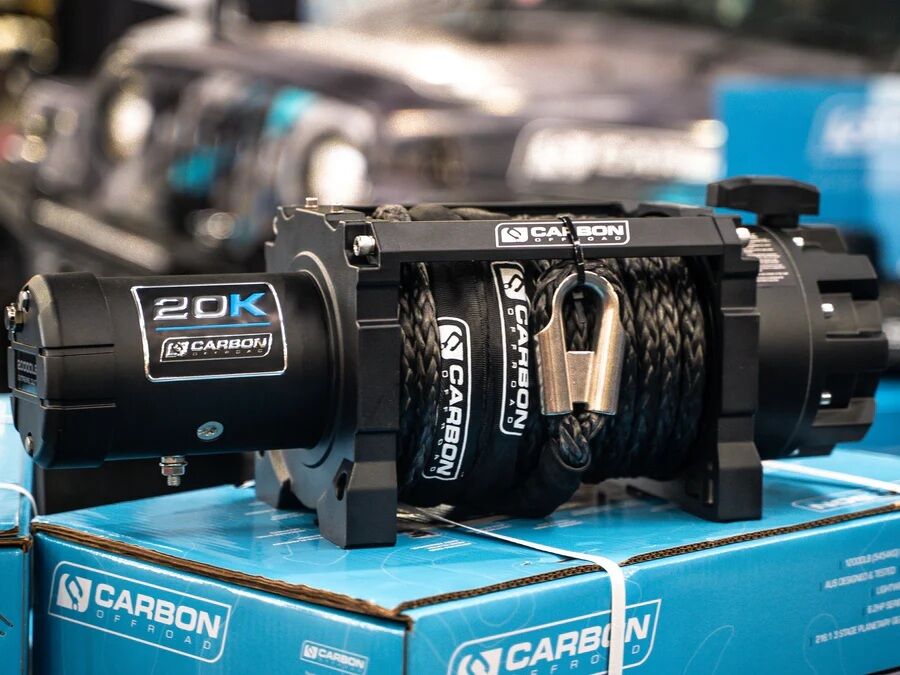

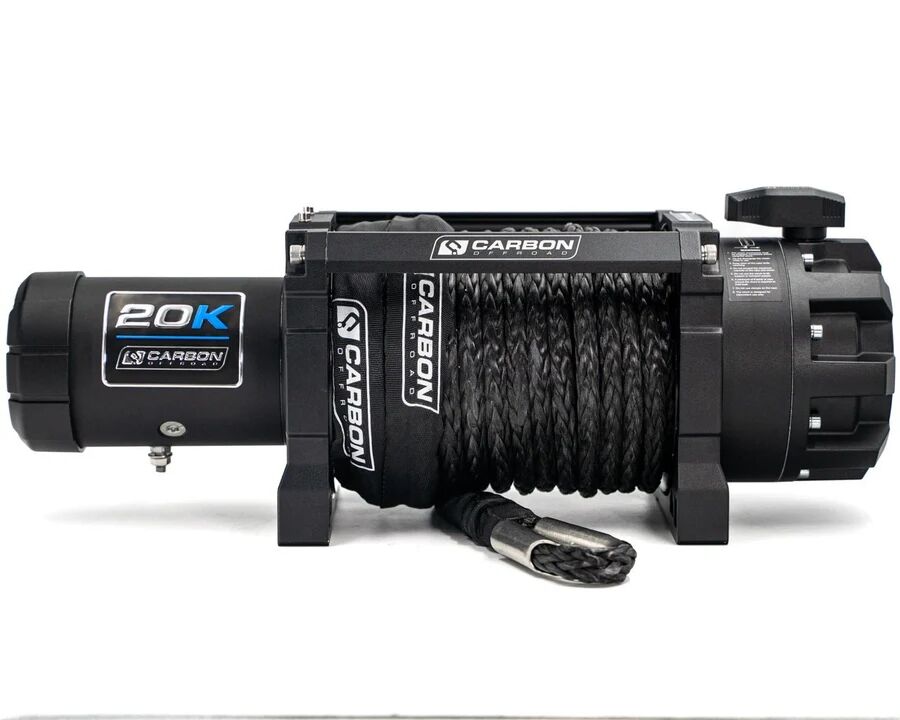

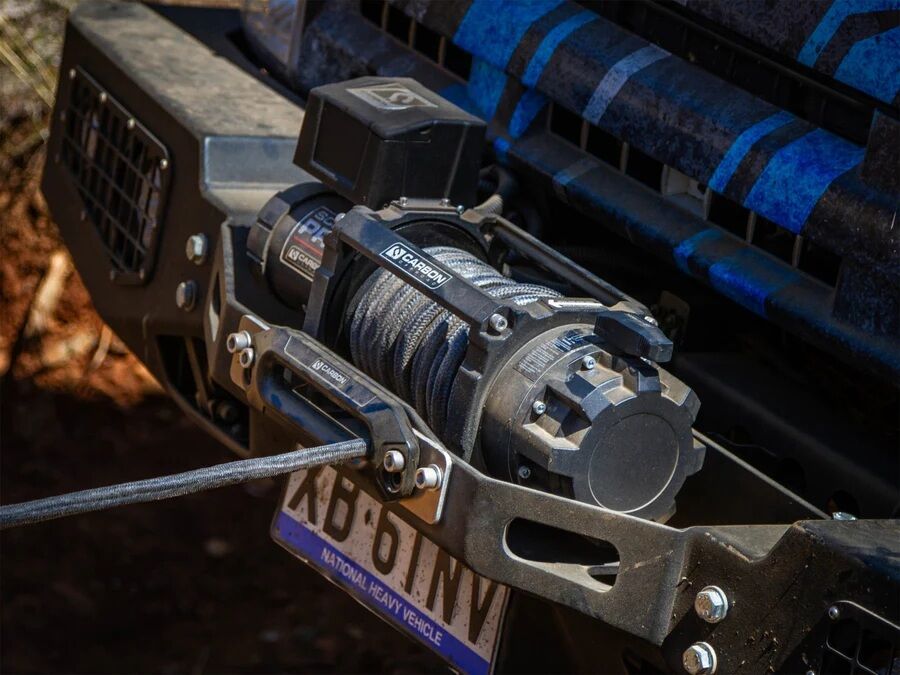

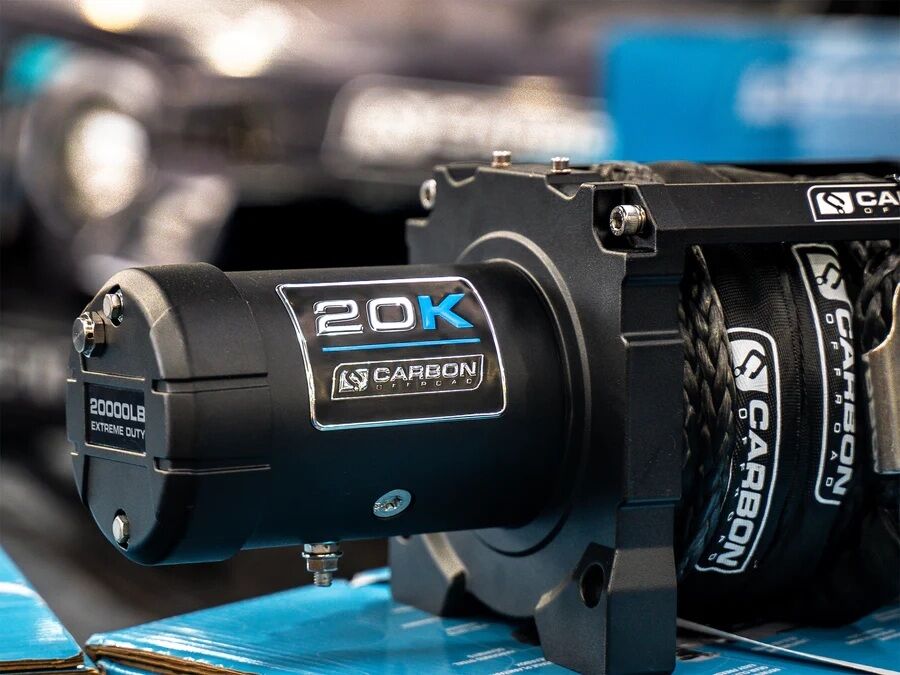

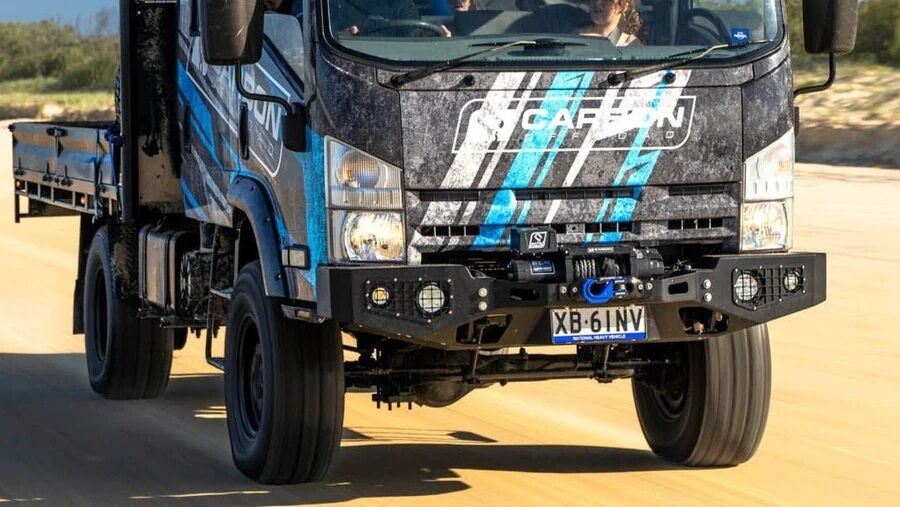

With a Massive 20,000 Lbs Of Pulling Capacity, The Carbon CW-XD20 Is Engineered To Handle The Most Demanding Tasks. Whether You're Hauling Heavy Trailers, Or Recovering Heavy Vehicles Or Tackling Extreme Terrain This Winch Has The Power To Get You Through. If You Own a Large Offroad Vehicle, This Is The Winch You've Been Waiting For. With Its Unmatched Power, Durability And Safety Features, It Is The Perfect Tool To Conquer Any Terrain And Make Your Offroad Adventures Unforgettable.



Specification

Rated Line Pull: 20000 lbs, (9072kg) Single-Line

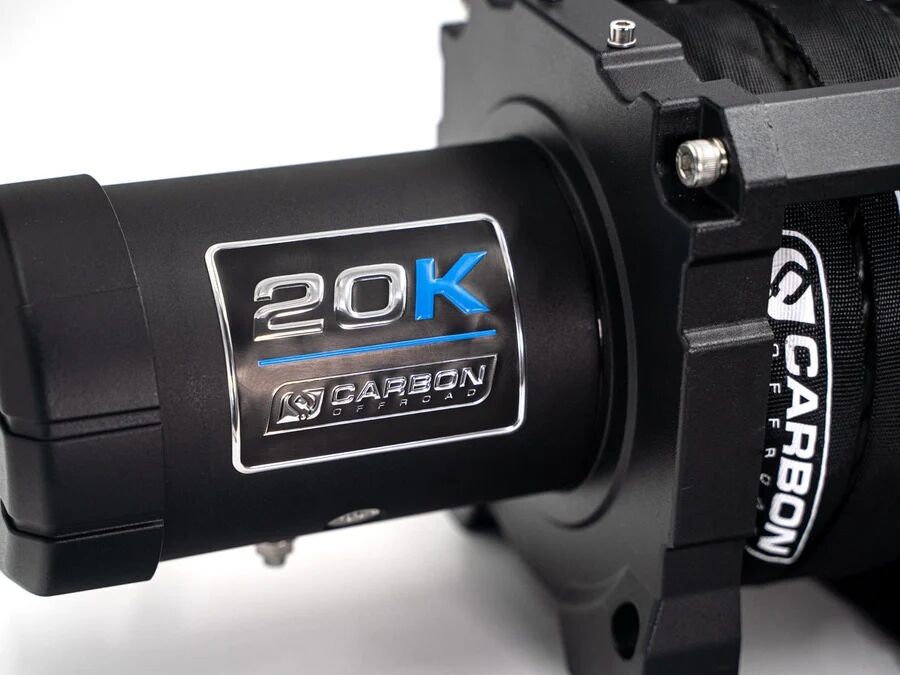

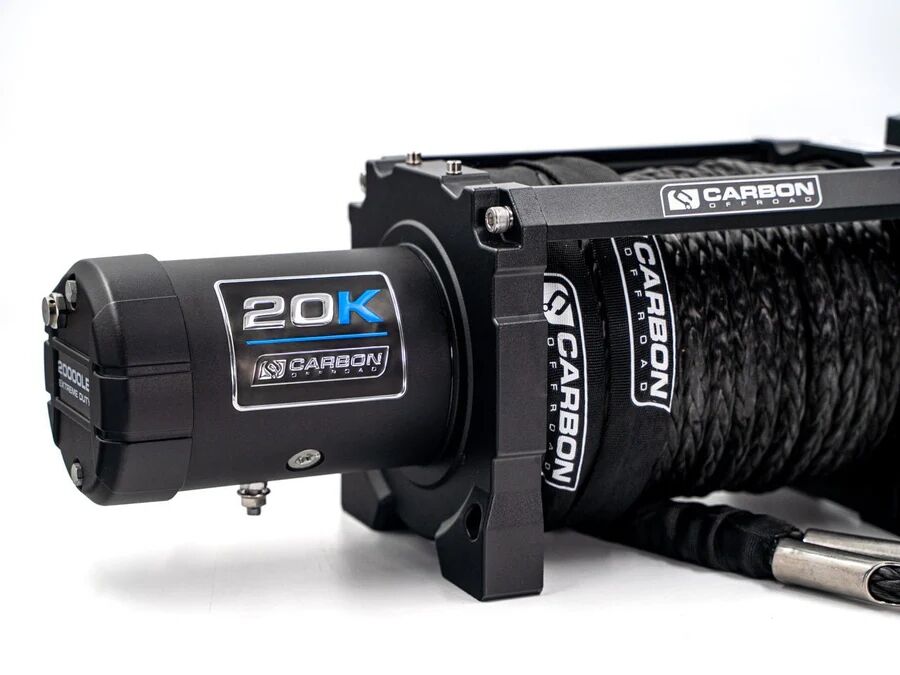

Motor: 12V DC 7 HP Series Wound Motor (24V Option Available)

Remote Control: Wired With 3.6m Lead

Wireless Remote Control: Included

Geartrain: 3-Stage Planetary

Gear Ratio: 345:1

Rotating Ring Gear

Brake: Automatic Brake In The Motor Bracket

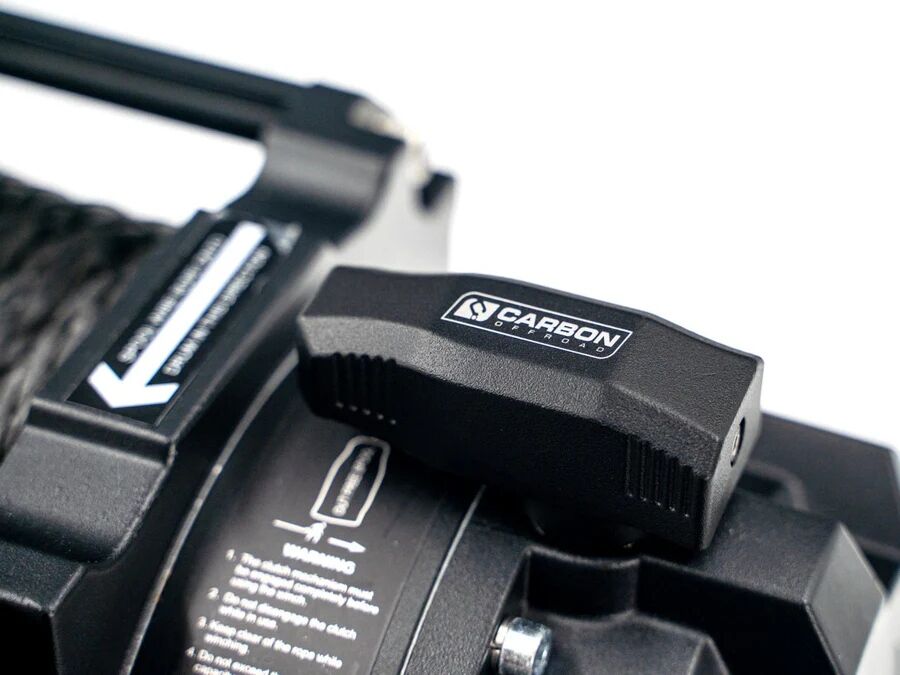

Fairlead: Carbon Offroad MEGAPRO Premium CNC Billet Type 3 Hard Anodised Multi Position Fairlead

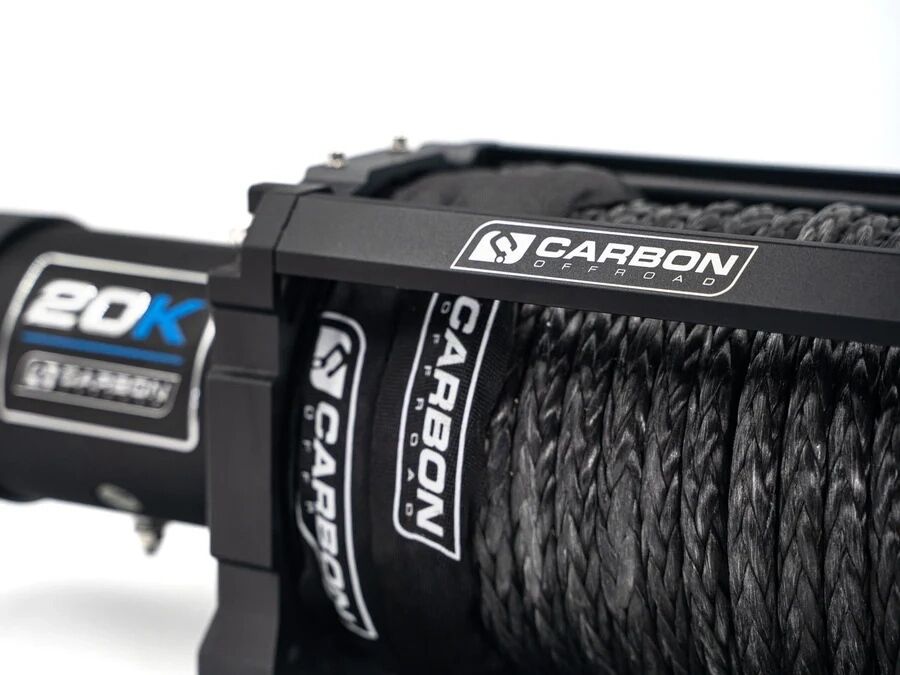

Synthetic Rope: 25m x 13mm Diameter

Drum Diameter/Length: 88mm x 224mm

Mounting Bolt Pattern: 254mm x 114.3mm

Recommended Battery: 650 CCA Minimum For Winching

Winch Dimensions (L x W x H): 579 x 192 x 224mm

Packing Dimensions (L x W x H): 640 x 250 x 345mm



Package

1 x Winch

SKU CBN-CW-XD20PUR
Brand CARBON OFFROAD
Shipping Weight 51.0000kg
Shipping Width 0.250m
Shipping Height 0.350m
Shipping Length 0.640m
Shipping Cubic 0.056000000m3
