Fitment

Fit For Mitsubishi 4B11 / 4B11T 2.0 L engine, Inline 4-cylinder DOHC 16v
Fit For Mitsubishi Lancer 4B11 / 4B11T 2.0 2007-2017
Fit For Mitsubishi Outlander CW/ZG/ZH 2006–2012
Fit For Mitsubishi Outlander GF/GG/ZJ/ZK 2013–present
Fit For Mitsubishi Outlander Sport RVR GA/XA/XB/XC 2010–present
Fit For Mitsubishi Outlander PHEV CW/ZG/ZH 2006–2012
Fit For Mitsubishi Outlander PHEV GF/GG/ZJ/ZK 2013–present
Fit For Mitsubishi ASX, compatible for Mitsubishi RVR (Canada) 2010
Fit For Proton Inspira 2010-2015

Specification

TÜV Certification Con Rods

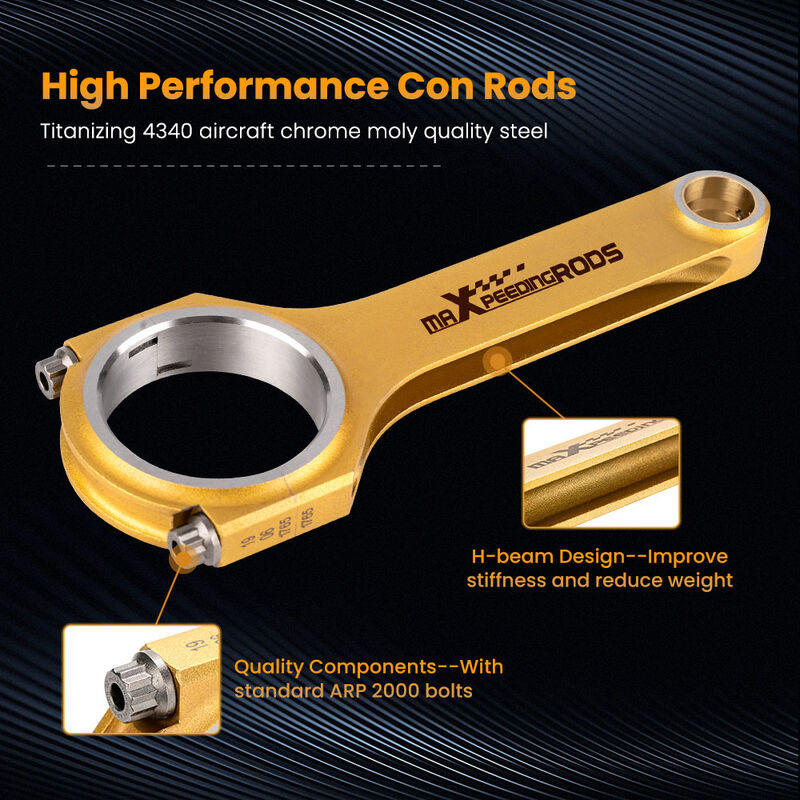

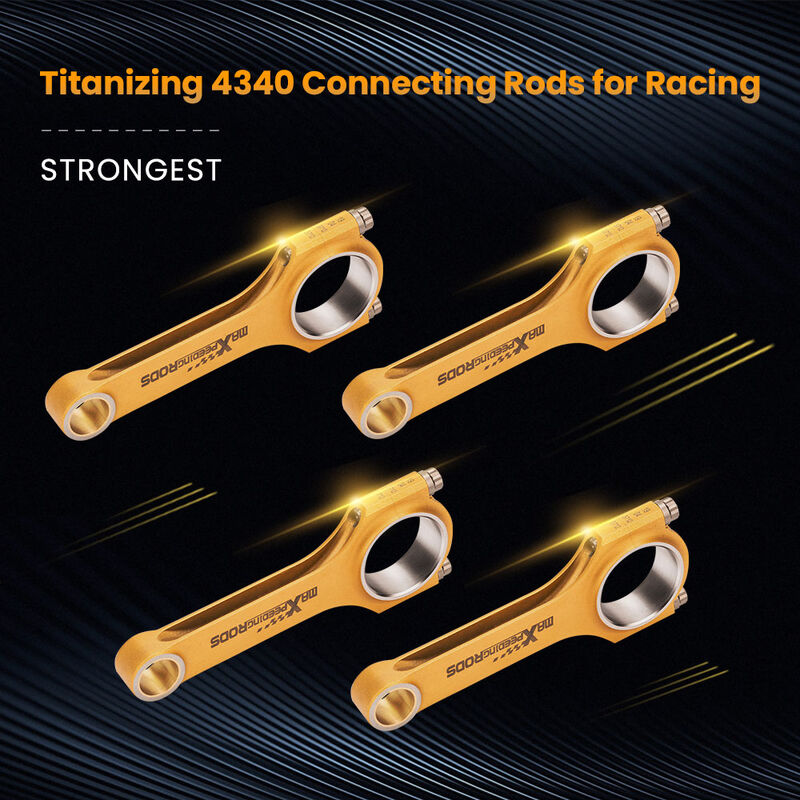

Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"

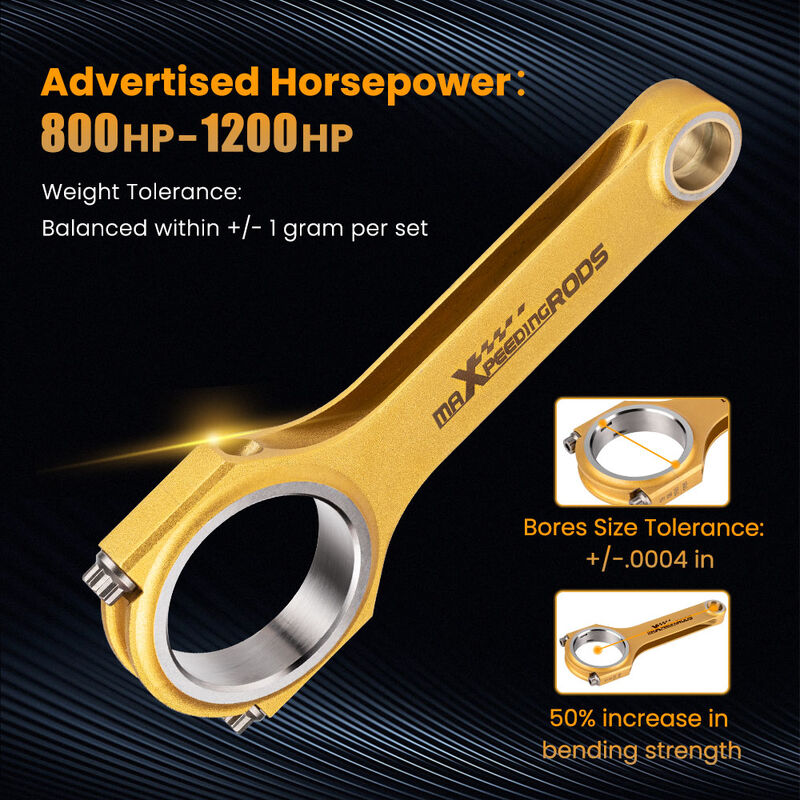

Tolerance: Balanced to +/- 0.5 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 800+hp per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length: 149.2mm
Big end diameter: 51mm
Small end diameter: 21mm
Big end width: 21.8mm
Small end width: 21.8mm

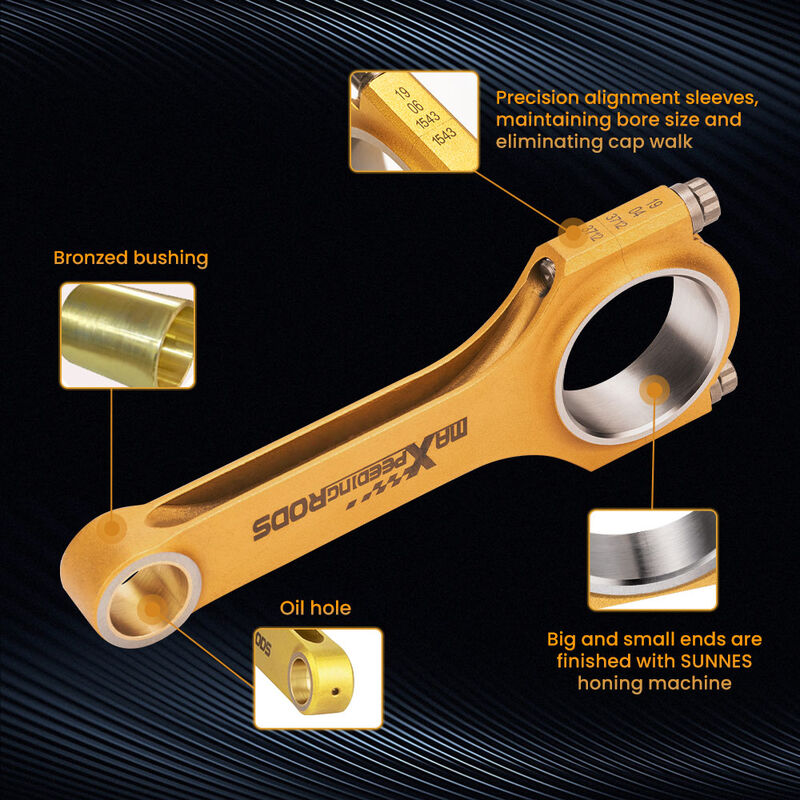

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

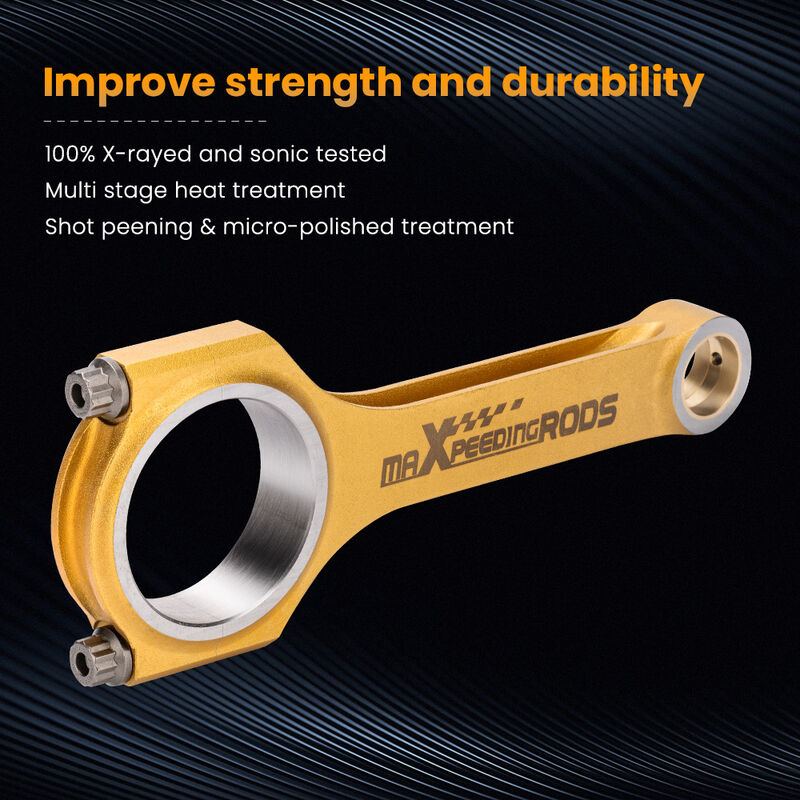

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

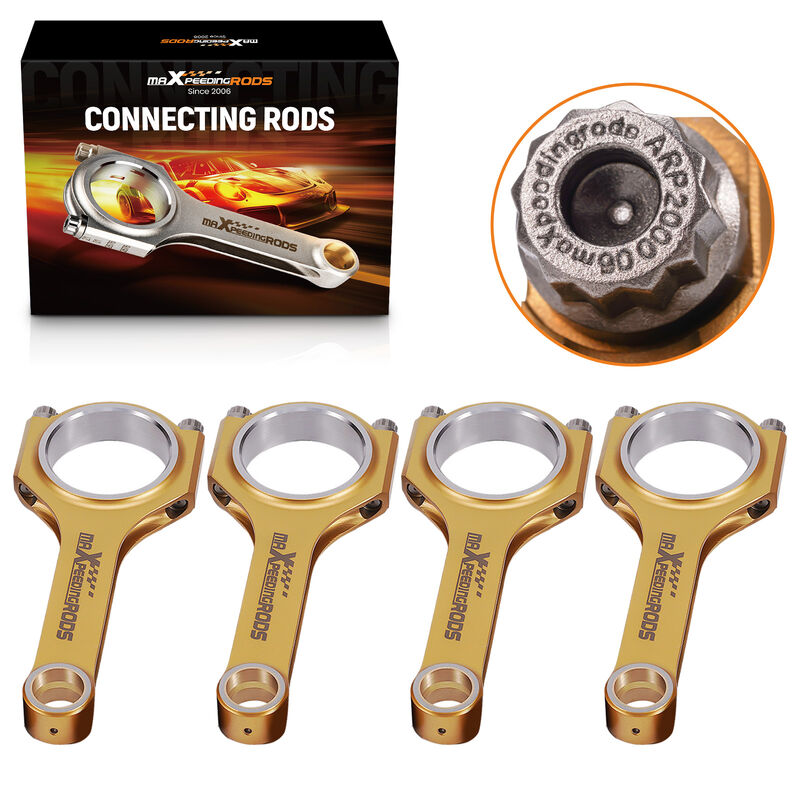

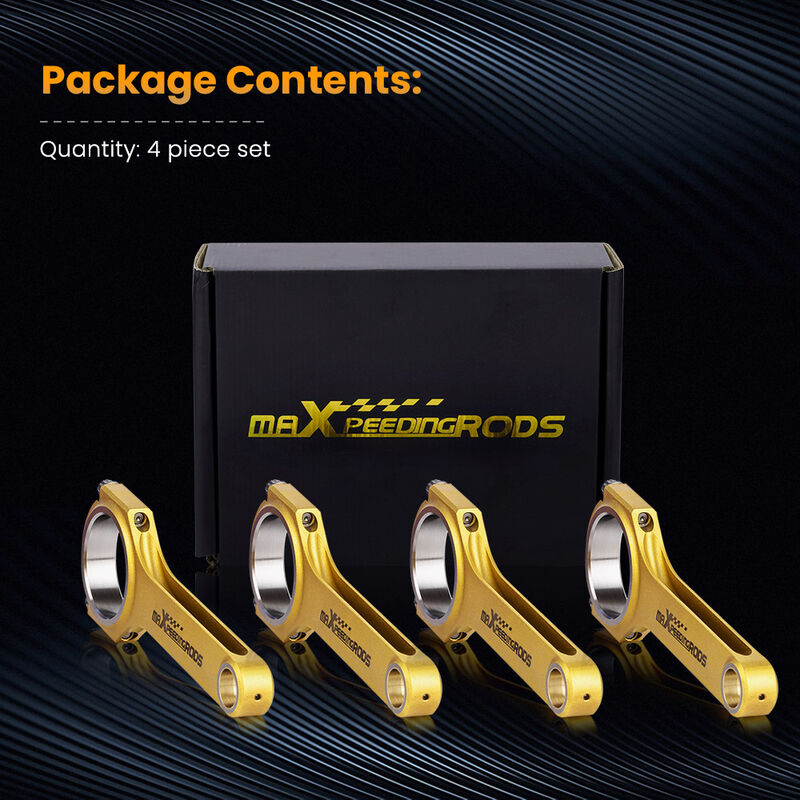

Package

4 x Connecting Rods

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
