Fitment

Fit For BMW M50 M52 B25 TU 24V M52TUB25
Fit For BMW E46 323i, 323Ci M52TUB25 1998-2000
Fit For BMW E39 523i M52TUB25 1998-2000
Fit For BMW E36/7 Z3 2.3i M52TUB25 1998-2000

Specification

TÜV Certification Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing

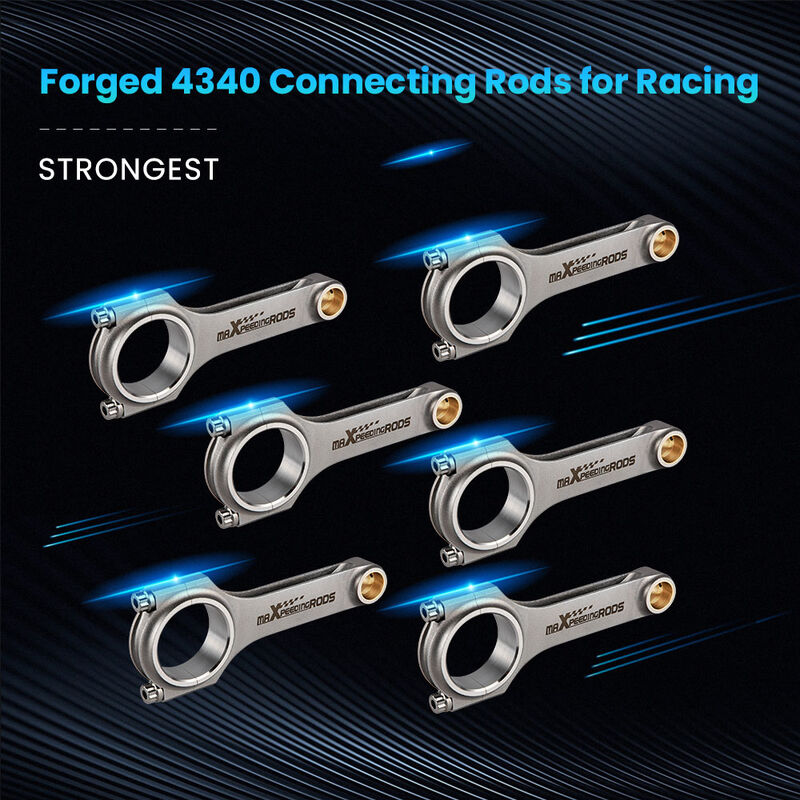

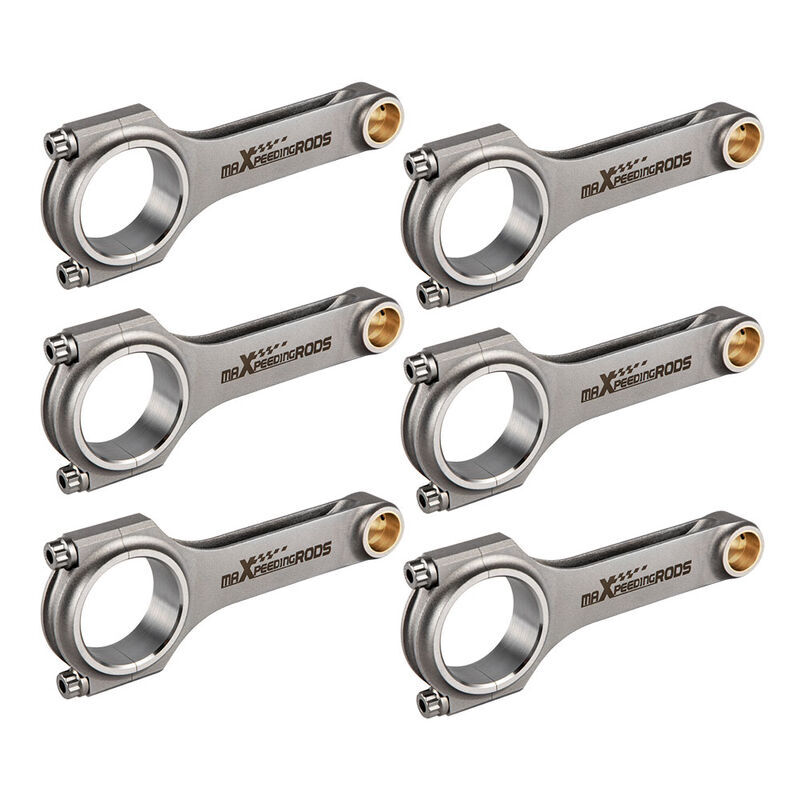

H-beam Conrods Quantity: 6 Pieces as showing in picture
Bolts: Including ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: ARP 2000 3/8" bolts
Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800hp per set
Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm

Dimensions

Center to center length: 140mm
Big end diameter: 48mm
Small end diameter: 22mm
Big end width: 21.9mm
Small end width: 21.9mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

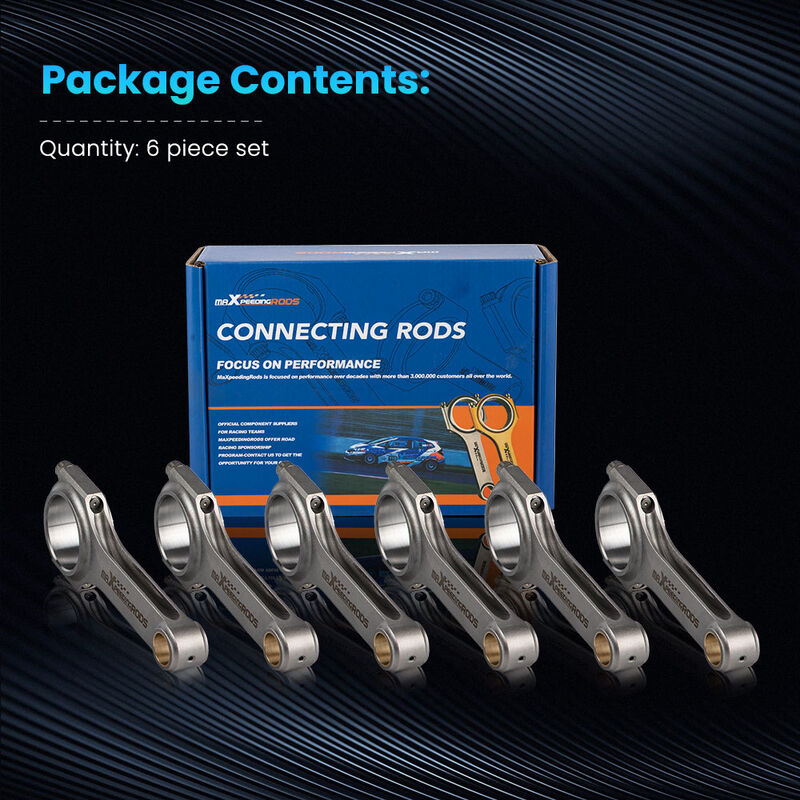

Package

6 x Connecting Rods



Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-BW-140-6
Brand MAX PEEDING RODS
Shipping Weight 4.0000kg
Shipping Width 0.200m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006000000m3
