Fitment

Fit For BMW B48 2.0T DOHC
Fit For BMW 1 Series F20 2010-2018 Hatchback 120i
Fit For BMW 2 Series F22 2012-2018 Coupe 220i
Fit For BMW 5 Series G30 2016-2018 Saloon 520i
Fit For BMW 7 Series G11, G12 2015-2018 Saloon 730i, Li; 740e, Le xDrive
Fit For BMW X1 F48 2014-2018 Estate xDrive 25i, xDrive 20i
Fit For BMW X2 F39 2017-2018 SUV sDrive 20i, xDrive 30i
Fit For BMW X4 G02 2018-2018 SUV xDrive 30i
Detail fitment:
135 kW version
2016–present F30 320i
2016–present F30 330e
2016–present F20 120i
2017–present G30 520i
2017–present G30 530e
2018–present G01 X3 xDrive20i
2019–present G20 320i
141 kW version
2014–present F56 Fit For MINI Cooper S
2015–present F22 220i
2016–present F48 X1 20i
2017–present F39 X2 sDrive20i
2018–present G29 Z4 sDrive20i
170 kW version
2014–present F56 Fit For MINI JCW Hardtop and JCW Cabrio (320 Nm)
2017–present F56 Fit For MINI JCW Clubman and JCW Countryman ALL4 (350 Nm)
2015–present F22 225i
2016–present F48 X1 25i
2017–present F39 X2 sDrive28i
185 kW version
2015–present F30/F31 330i
2016–present G30 530i
2016–present F22 230i
2016–present F32/F33/F36 430i
2018–present G01 X3 xDrive30i
2018–present X4 xDrive30i
2018–present G29 Z4 sDrive30i
190 kW version
2016–present G11 730i/730Li
2017–present G11 740e xDrive/740Le xDrive(combined with 82 kW electric motor for total output of 240 kW)
2017–present G32 630i
2019–present G20 330i
Pin Type: Floating Pin Piston

Specification

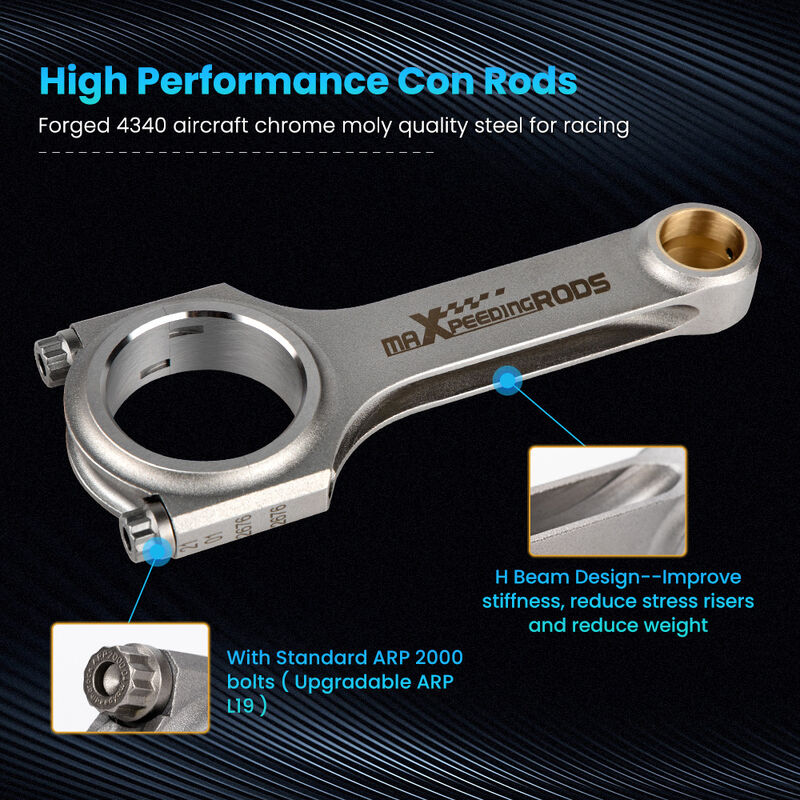

Type: Forged 4340 aircraft chrome moly quality steel for racing

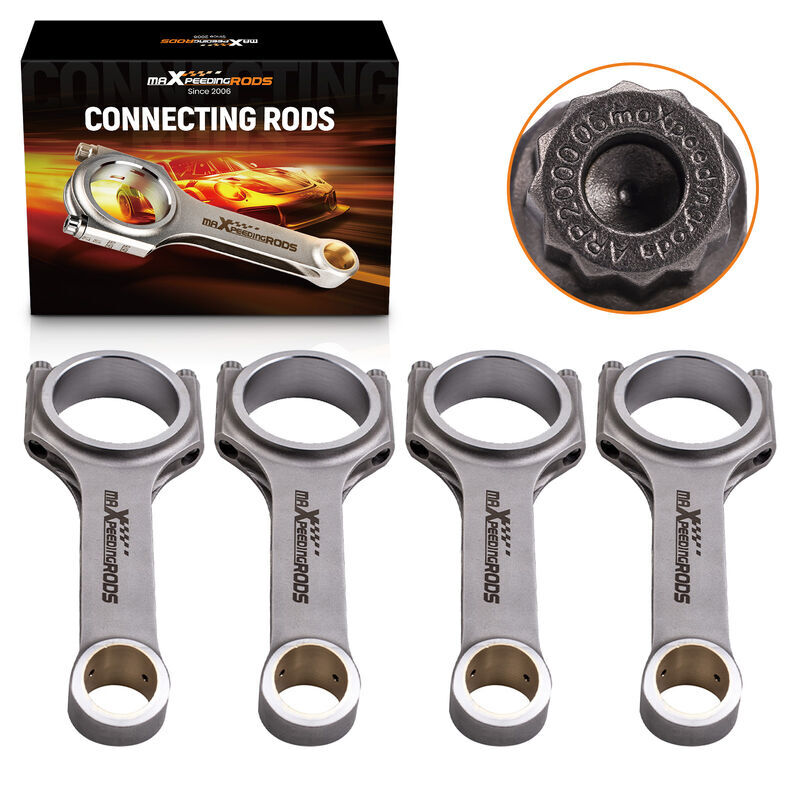

H-beam Conrods Quantity: 4 Pieces as showing in picture
Bolts: Including ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
Advertised Horsepower Rating:200HP/piece
Top acceleration: 9000rpm

Dimension

Center to center length:148mm/5.827"
Big end diameter:53.6mm/2.11"
Small end diameter:22mm/0.866"(tapered small end)
Big end width:24mm/0.945"
Small end width:20.8mm/0.819"

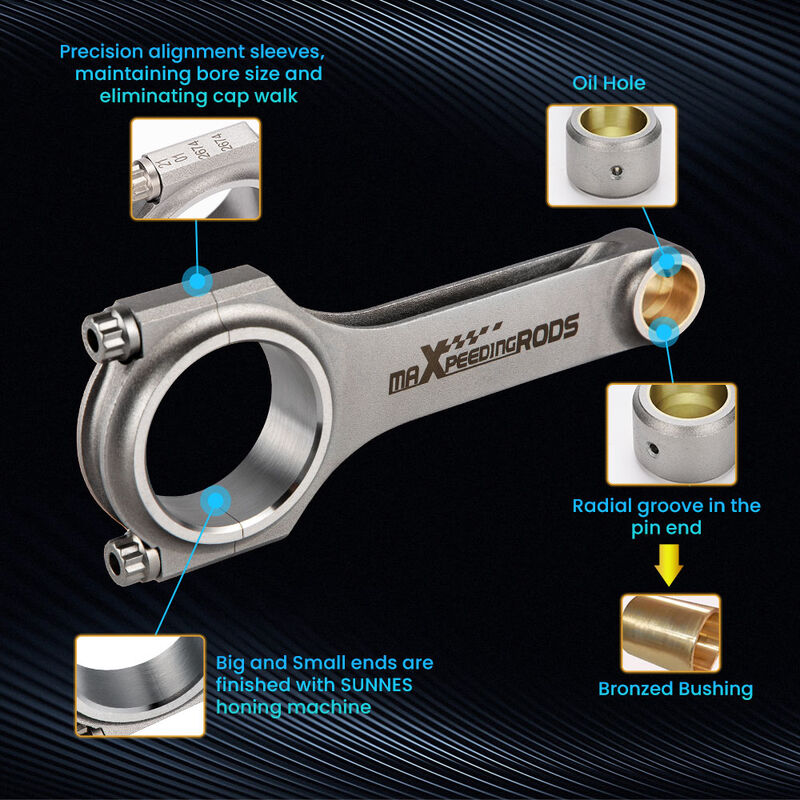

Feature

1. TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED；

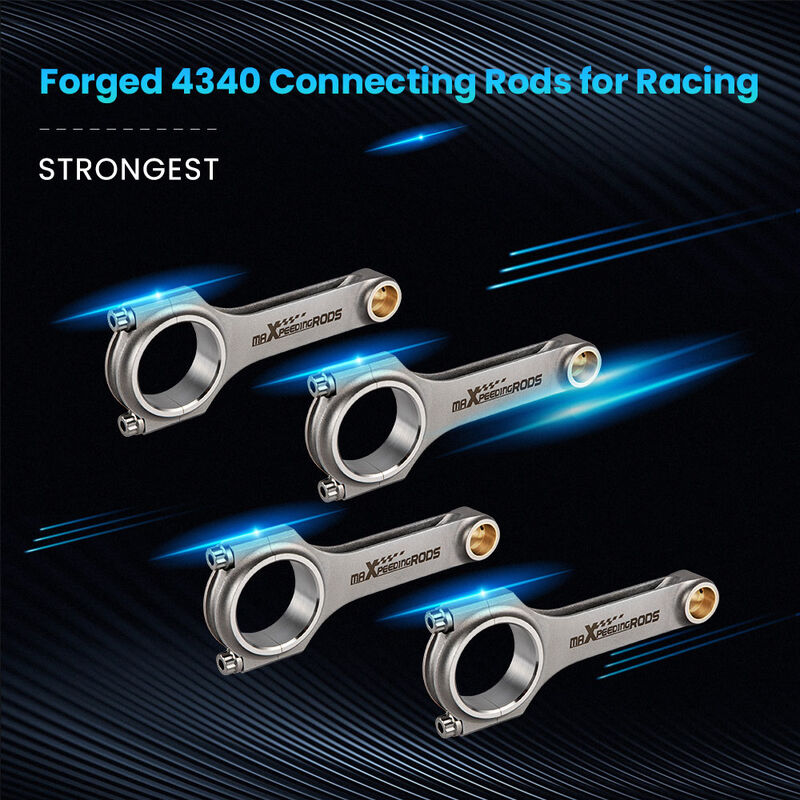

2. Material: Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing；
3. ARP 2000 bolts ,Optional ARP L19 fasteners available as an upgrade；
4. H-Beam design reduces weight without compromising strength；

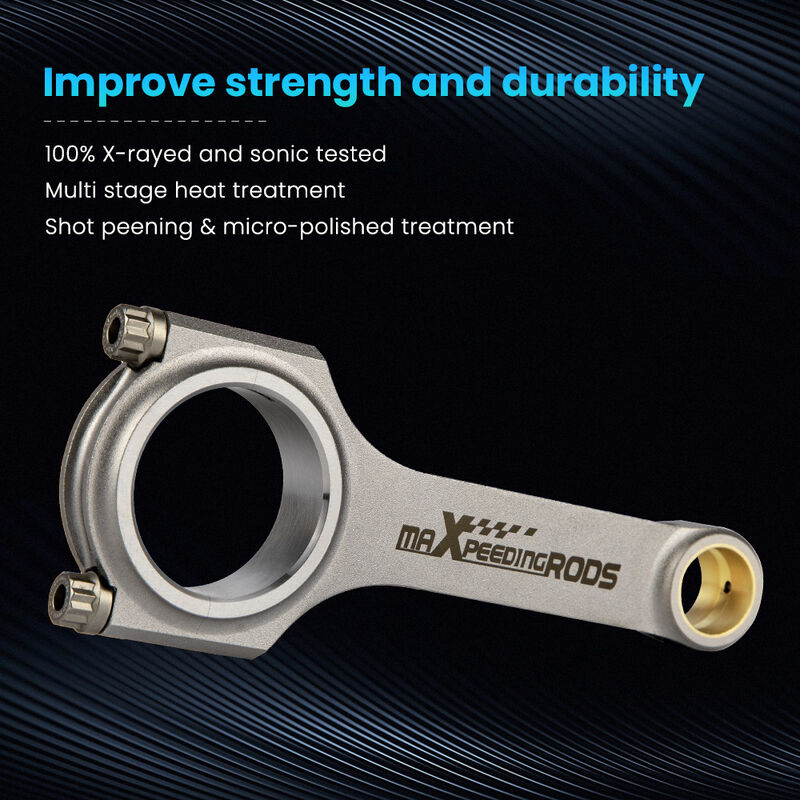

5.Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers；
6.High precision CNC machined,Precision rod cap alignment dowels；
7.Bores finished to +/- .005mm；
8.Balanced to within +/- 1 g per rod；
9. Each rod is magnetic particle tested to ensure free of flaws；
10.Use X-rayed, sonic tested；
11.Custom Service.

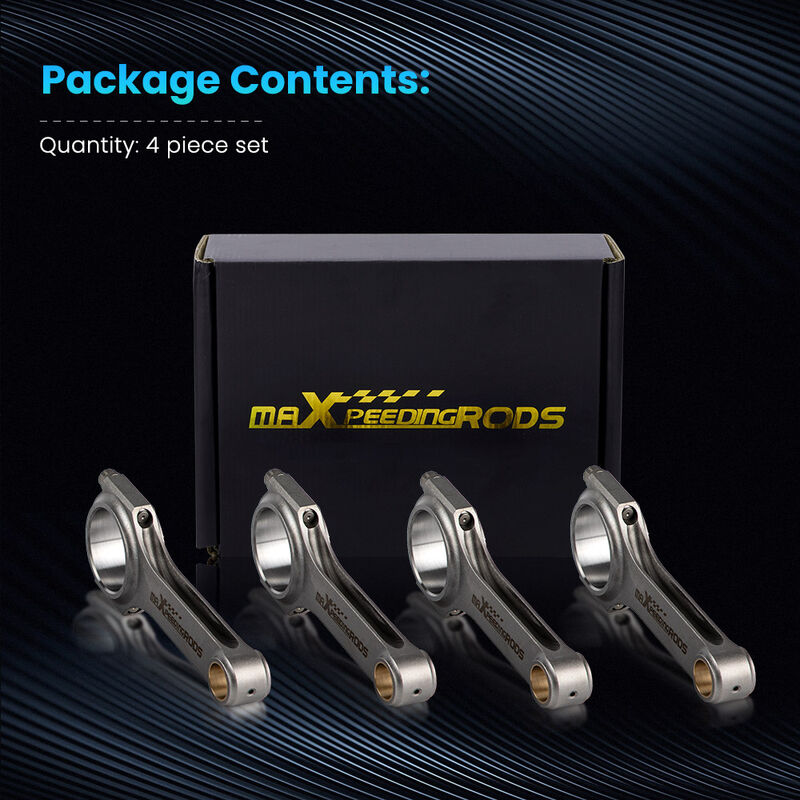

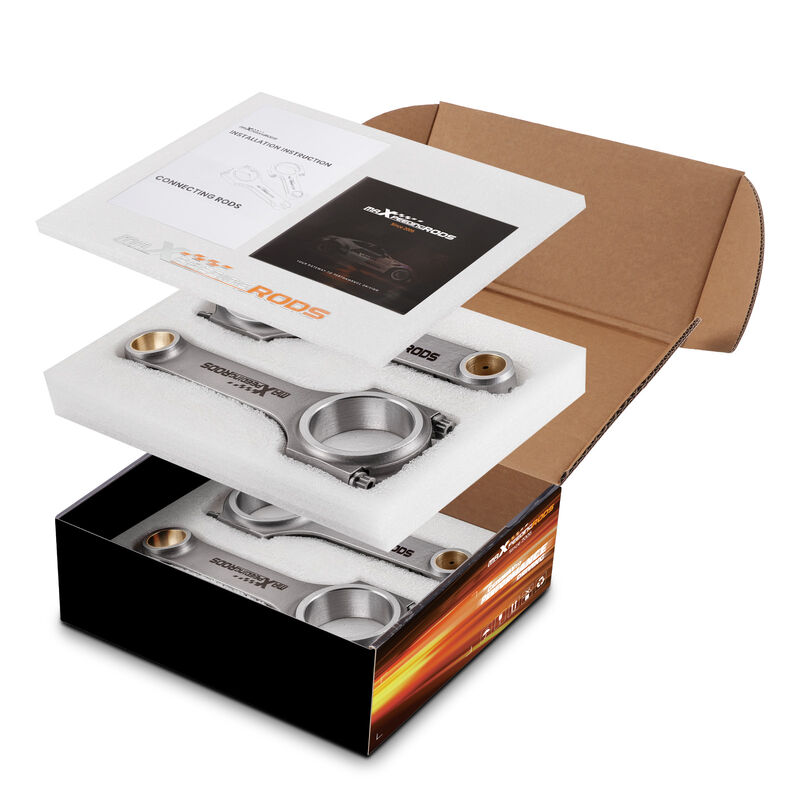

Package

4 x Connecting Rods

Note

There are titanium-plated upgrade models；
Professional installation is highly recommended ；
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
