Fitment

Fit For Honda Civic B16A Engine

Fit For Honda Civic Si 1.6L 1999-2000

Fit For Honda Civic del Sol 1.6L 1994-1997



Specification

Type: Forged 4340 aircraft chrome moly quality steel for racing

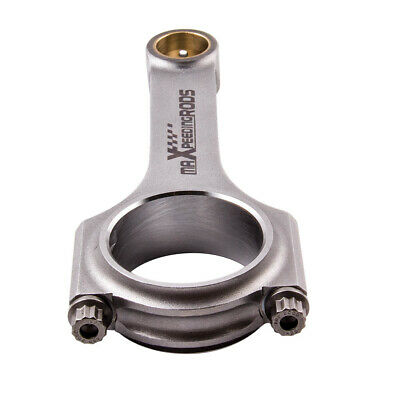

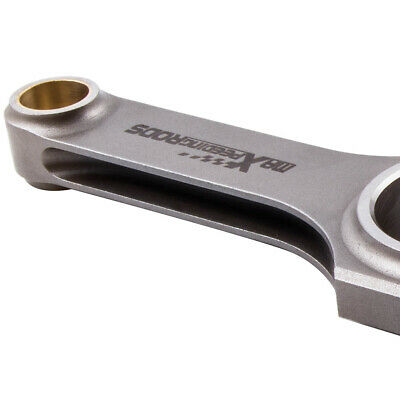

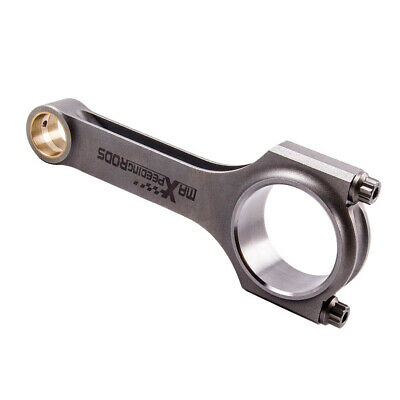

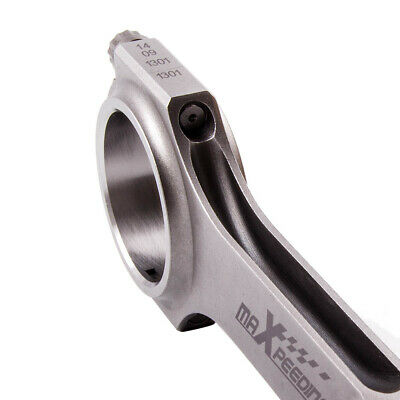

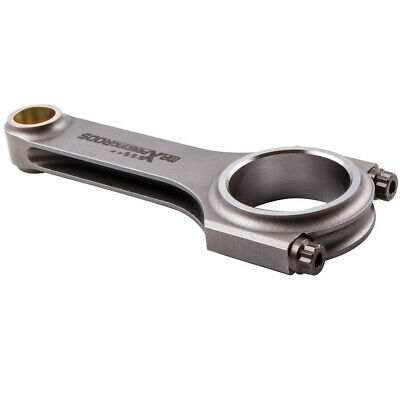

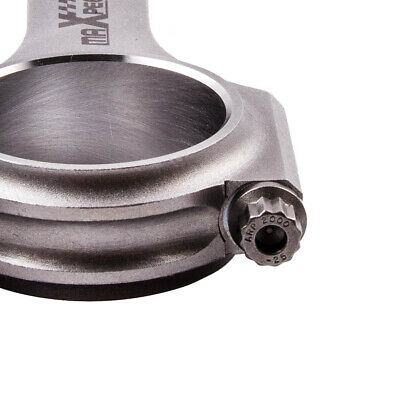

H-beam Conrods Quantity: 4 Pieces as showing in picture

Bolts: Including Genuine ARP 2000 3/8" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)

The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

Advertised Horsepower Rating: 200HP/piece

Top acceleration: 9000rpm



Dimension:

Center to center length:134.36mm/5.29"

Big end diameter:48mm/1.89"

Small end diameter:21mm/0.827"

Big end width:23.75mm/0.935"

Small end width:21mm/0.827"



Feature:

1. H-Beam design reduces weight without compromising strength;

2. Heat-treating & Shot-peened for remained consistent and strong. Shot-peened finish to remove potential for stress risers;

3. 100% CNC machined,Precision rod cap alignment dowels;

4. Bores finished to +/- .01 mm;

5. Balanced to within +/- 1 g per rod;

6. Each rod is magnetic particle tested to ensure free of flaws;

7. 100% X-rayed, sonic tested;

8. Custom-made Service.





Package

4 x Connecting Rods



Note:

Professional installation is highly recommended.

Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.

SKU MPR-CR-HON-134.36
Brand MAX PEEDING RODS
Shipping Weight 3.0000kg
Shipping Width 0.220m
Shipping Height 0.100m
Shipping Length 0.300m
Shipping Cubic 0.006600000m3
